Compact AMOLED touchscreen module with SPI interface for smart watches and wearable device integration
Wearable electronics continue to demand thinner, brighter, and more power-efficient display solutions capable of delivering premium visual performance within compact industrial designs. The 1.78 Inch Square AMOLED Display SPI Touch Screen combines high-resolution AMOLED technology, SPI interface integration, and capacitive touch functionality in a compact module optimized for smart watches and wearable applications.
Designed for modern wearable product development, this AMOLED touch display provides a balanced combination of ultra-thin mechanical structure, vibrant image quality, and customizable interface architecture for OEM and embedded device manufacturers.

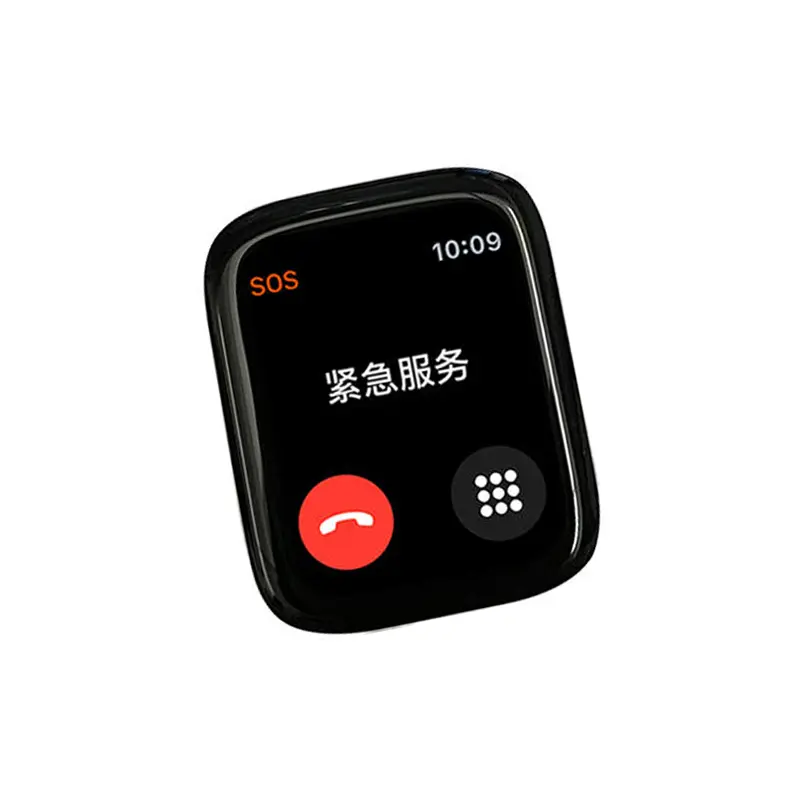

1.78 Inch AMOLED Display for Smart Wearable Devices
The module features a 368 × 448 resolution AMOLED panel within a 1.78-inch display size, making it suitable for:
- smart watches
- wearable healthcare devices
- IoT wearable terminals
- fitness trackers
- compact portable electronics
Compared with conventional LCD technologies, AMOLED displays provide:
- deeper black levels
- improved color saturation
- lower power consumption for dark UI systems
- wider viewing angles
- enhanced visual contrast
These characteristics are particularly important in wearable devices where display readability and battery efficiency directly affect user experience.
AMOLED Technology with LTPS Structure
The display uses LTPS AMOLED architecture, supporting high pixel density and efficient display driving performance.
The AMOLED structure helps wearable device developers achieve:
- slim industrial design
- improved outdoor visibility
- premium UI rendering
- lower display power requirements
- smoother visual performance
The transflective positive polarizer mode also contributes to display clarity under varying lighting conditions.
SPI Interface for Embedded Wearable Integration
The module supports SPI interface communication, which is commonly used in:
- compact embedded electronics
- wearable processors
- low-pin-count systems
- portable IoT hardware
SPI integration simplifies communication architecture while helping reduce board complexity in space-constrained wearable devices.
Flexible Engineering Integration
Readable source materials indicate support for:
- customized interface definition
- customized pin configuration
- customized FPC structure
- customized display sizing
This flexibility allows OEM developers to adapt the display for different smartwatch PCB layouts and mechanical structures.
Capacitive Touchscreen with Gesture Support
Unlike basic display modules, this product integrates capacitive touch functionality using:
- G+F touch structure
- single-point touch
- gesture control support
- FT3168 touch IC
The TX7 × RX8 channel configuration supports responsive touch interaction for smartwatch operating systems and wearable UI control.
Enhanced User Interaction for Smart Watches
Touch integration is critical for:
- swipe navigation
- gesture control
- notification management
- health tracking interaction
- wearable operating system functionality
The integrated touch architecture helps reduce module thickness while improving overall device integration efficiency.
Compact Mechanical Structure for Wearable Design
The module is engineered specifically for ultra-compact wearable devices.

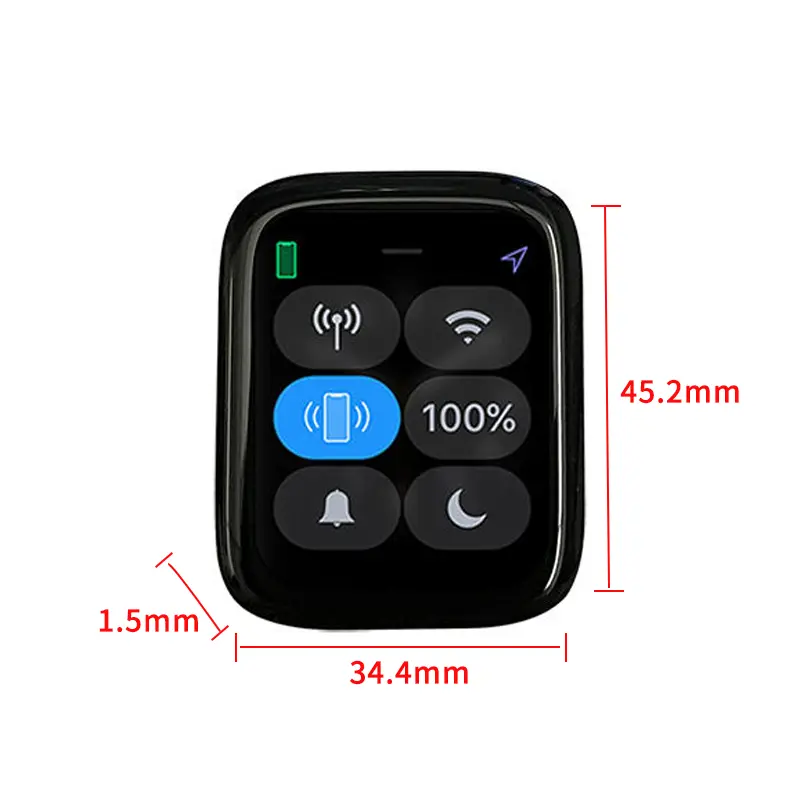

Key mechanical dimensions include:
- LTPS glass outline: 45.2 × 34.4 mm
- active area: 34.9 × 28.7 mm
- total glass thickness: 0.678 mm
This ultra-thin profile enables:
- lightweight smartwatch construction
- compact wearable housings
- reduced internal assembly space
- improved ergonomic design
Rounded Display Shape for Modern Wearables
The rounded rectangular structure aligns with modern smartwatch industrial design trends.
The display supports:
- curved-edge industrial aesthetics
- narrow-border designs
- premium wearable appearance
- optimized UI presentation
Combined with all-round viewing angle support, the display enhances user readability from multiple orientations.

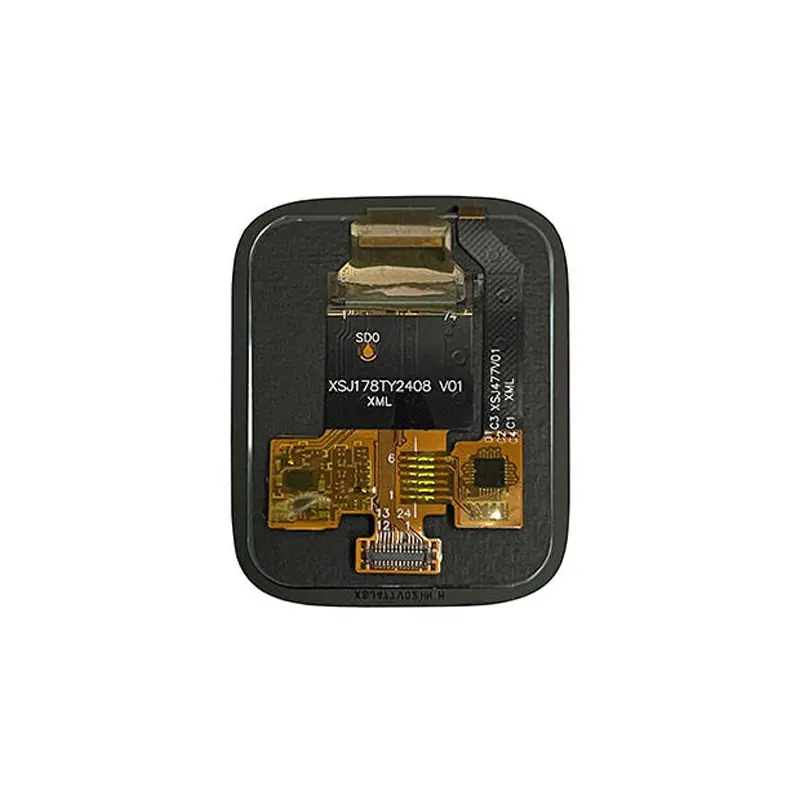

Durable Glass and Stable FPC Design
The readable source materials reference:
- professional tempered glass
- up to 7H surface strength
- ultra-fine FPC circuit design
These features help improve:
- wearable durability
- touch reliability
- signal stability
- long-term operational consistency
The FPC structure is designed for micron-level circuit precision to maintain stable communication performance in compact wearable systems.
AMOLED Display Applications
This AMOLED touchscreen module is suitable for:
- smart watches
- wearable healthcare monitors
- fitness bands
- portable IoT terminals
- industrial wearable electronics
- smart communication devices
Its combination of AMOLED image quality, SPI interface support, and compact touch integration makes it highly suitable for next-generation wearable electronics.
