12.1 Inch High Brightness LCD Panel Sunlight-readable TFT LCD module engineered for industrial control equipment, transportation terminals, charging infrastructure, and demanding outdoor environments.
Industrial equipment deployed in outdoor or high-ambient-light environments often faces a common challenge: maintaining screen visibility without sacrificing reliability. The 12.1 Inch High Brightness LCD Panel is designed specifically to address that requirement. Combining 1500-nit brightness, XGA resolution, industrial temperature tolerance, and a compact 12.1-inch format, this display module provides a dependable visual platform for OEMs, system integrators, and equipment manufacturers developing professional-grade electronic systems.
Why Choose a 12.1 Inch High Brightness LCD Panel for Industrial Projects
Many industrial applications do not require large-format displays. Instead, they need a compact screen capable of presenting operational information clearly under difficult lighting conditions. This display delivers a typical brightness level of 1500 nits, significantly exceeding conventional indoor LCD modules that typically operate at 250 to 500 nits.
For outdoor kiosks, charging terminals, transportation control systems, and industrial HMIs, higher luminance improves readability in direct sunlight, under glass enclosures, and in locations exposed to strong ambient illumination. Combined with anti-glare surface treatment and a 3H hard-coated front surface, the module helps reduce reflection while maintaining clear image presentation.
The XGA resolution of 1024 × 768 pixels remains a practical choice for industrial software environments because many embedded systems, SCADA interfaces, and equipment-control applications are designed around established aspect ratios and mature operating platforms. This allows easier software compatibility compared with more specialized display formats.
Optical Performance and Visibility Advantages
The optical characteristics of this module are designed for professional applications rather than consumer entertainment. A viewing angle specification of 89° in all directions allows operators to view information clearly from multiple positions around equipment or control stations.
The panel supports up to 16.7 million colors and utilizes an RGB vertical stripe arrangement to maintain image clarity. While color-critical applications may require wider-gamut displays, industrial systems typically prioritize readability, stability, and interface visibility. In this context, the display provides a balanced optical profile that supports data visualization, equipment monitoring, navigation interfaces, and operational dashboards.
Another advantage is brightness flexibility. The product family includes 500-nit, 1000-nit, and 1500-nit versions, allowing OEM customers to select the most appropriate luminance level according to installation requirements and power-management objectives.
Engineering Benefits for OEM Integration
From an engineering perspective, the 12.1 Inch High Brightness LCD Panel provides a practical combination of electrical compatibility and mechanical simplicity.
The display utilizes a standard LVDS interface with a 20-pin connector, supporting integration into industrial controller boards, embedded computing platforms, and custom electronic systems. The typical input voltage of 3.3 V DC aligns with many existing industrial architectures, reducing interface complexity during development.
Mechanical dimensions are equally important for enclosure design. With an active area of 245.76 × 184.32 mm and an overall thickness of only 9.1 mm, the display can be integrated into compact housings where installation space is limited.
Because the module is supplied without touch functionality, system designers have greater flexibility when selecting protective glass, optical bonding solutions, or custom front-panel structures. This can simplify environmental sealing and allow project-specific customization.
12.1 Inch High Brightness LCD Panel Reliability in Harsh Environments
Industrial displays are often expected to operate continuously for extended periods. Reliability therefore becomes a major procurement consideration.
This module supports an operating temperature range from -20°C to 70°C and storage conditions from -30°C to 80°C. Such specifications make it suitable for transportation equipment, outdoor charging infrastructure, industrial automation systems, and marine applications where environmental conditions are less predictable.
The LED backlight system is rated for a lifetime exceeding 70,000 hours. Long backlight life helps reduce maintenance frequency and lowers total ownership costs for installations expected to remain operational over many years.
The source material also highlights testing related to temperature cycling, vibration resistance, humidity exposure, and long-duration aging validation. These characteristics are particularly valuable for projects where downtime can result in operational disruption or service interruptions.
Application Scenarios
The 12.1 Inch High Brightness LCD Panel is well suited to a variety of industrial and commercial environments:

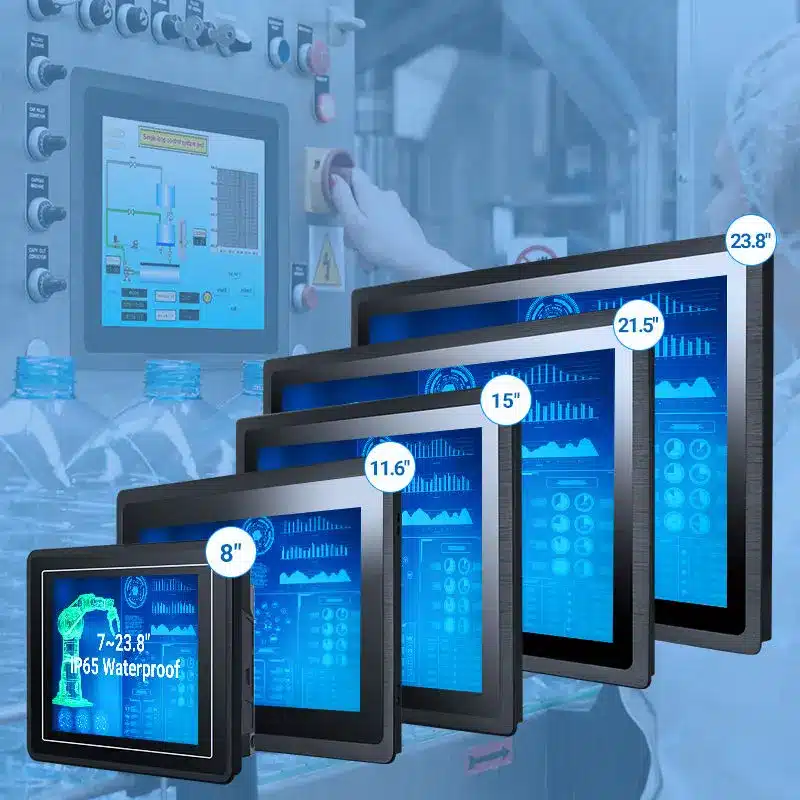

- Industrial HMI and automation panels

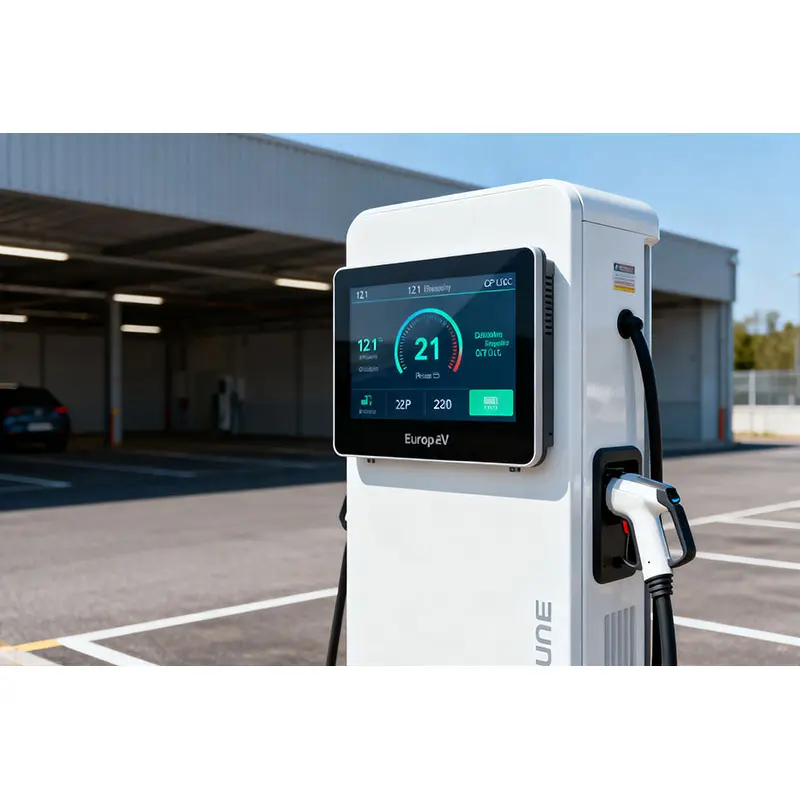

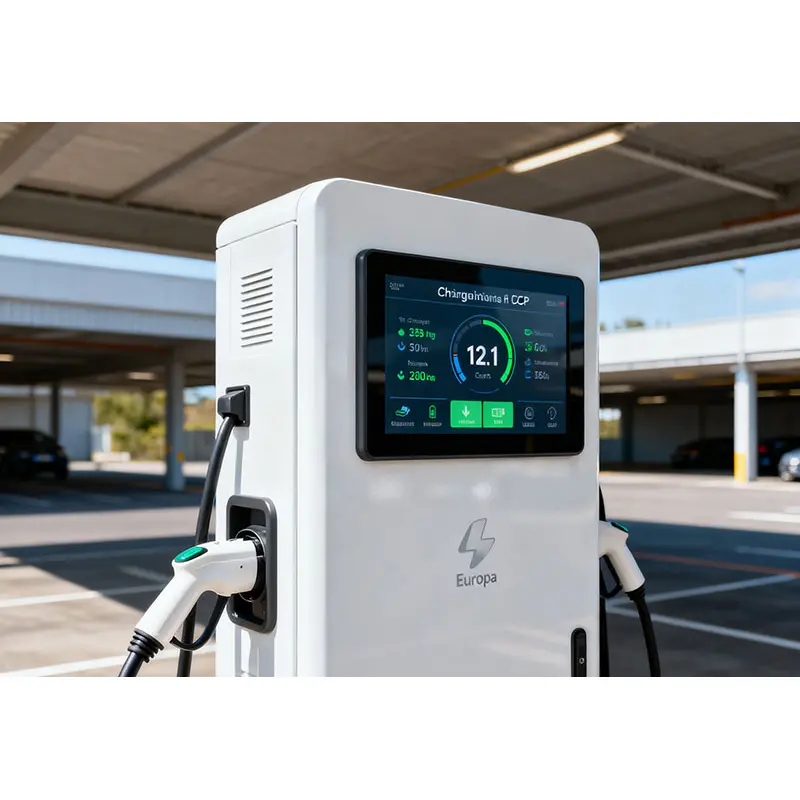

- EV charging station displays
- Passenger information terminals
- Outdoor kiosks
- Marine navigation systems
- Transportation control equipment
- Fuel dispenser interfaces
- Public information systems
Its combination of compact dimensions, sunlight readability, and industrial durability allows manufacturers to deploy a consistent display platform across multiple equipment categories.
For buyers seeking a compact display solution capable of maintaining visibility under demanding lighting conditions, the 12.1 Inch High Brightness LCD Panel provides a practical balance of optical performance, engineering compatibility, and long-term operational reliability.
