A Full HD IPS display platform engineered for retail advertising, information systems, and demanding commercial visibility requirements.
Retail window displays, transportation terminals, and public advertising systems often face a common challenge: maintaining screen visibility when ambient light levels increase. The 27 Inch Industrial High Brightness LCD Panel is developed specifically for these demanding environments. Combining Full HD resolution, IPS viewing technology, and configurable brightness levels up to 2500 nits, this display platform provides a practical solution for integrators seeking reliable image performance in commercial and industrial applications.
Why Brightness Matters in Commercial Display Projects
Many standard display panels are designed for indoor office environments and may struggle when installed near windows or in brightly illuminated public spaces. High ambient light can significantly reduce perceived contrast and content readability.
This display family addresses that challenge through multiple brightness configurations ranging from 500 nits to 2500 nits. Buyers can select the luminance level that best matches deployment conditions without redesigning the mechanical structure of their product.
Available brightness variants include:
| Model Series | Brightness |
|---|---|
| GE05 | 500 nits |
| GE10 | 1000 nits |
| GE15 | 1500 nits |
| GD20 | 2000 nits |
| GD25 | 2500 nits |
This approach simplifies procurement and engineering validation while supporting multiple installation environments from indoor commercial displays to semi-outdoor digital signage.
27 Inch Industrial High Brightness LCD Panel Performance Advantages
The 27 Inch Industrial High Brightness LCD Panel utilizes IPS technology with a normally-black optical mode. This combination helps maintain image consistency and color stability when viewed from different angles.
Key optical benefits include:
- Full HD 1920 × 1080 pixel resolution
- 81 PPI pixel density
- 1000:1 typical contrast ratio
- 89° viewing angles in all directions
- 16.7 million color support
- Anti-glare surface treatment
For public-facing installations, wide viewing performance is particularly important because audiences rarely stand directly in front of a display. IPS technology helps preserve image quality across broader viewing positions, improving visibility for larger groups of viewers.
The anti-glare coating further enhances usability by reducing distracting reflections that can occur under strong indoor lighting or near large glass surfaces.
Engineered for Long-Term Industrial Operation
Commercial display systems are often expected to operate continuously for extended periods.
This display platform incorporates a WLED backlight system rated for approximately 30,000 hours. Combined with a wide operating temperature range of -20°C to 70°C, the module is suitable for installations that experience seasonal temperature fluctuations or extended operating schedules.
Additional reliability-oriented characteristics include:
- Industrial-grade IPS architecture
- Durable 3H hard-coated surface
- Stable LVDS interface design
- Wide storage temperature support
- Consistent optical performance across brightness levels
These characteristics help reduce maintenance concerns and support long-term deployment planning.
Integration Benefits for OEM and System Designers
The 27 Inch Industrial High Brightness LCD Panel uses a dual-channel LVDS interface with an 8-bit architecture and 30-pin connector.
LVDS remains a widely adopted signaling standard in industrial display integration because it provides reliable image transmission while supporting straightforward controller-board compatibility.
The panel operates from a typical 5V power input, allowing integration into numerous commercial display architectures.
For engineering teams, platform consistency is often as important as display performance. Because multiple brightness versions share a common product family design, future upgrades or alternative deployments can often be managed with minimal redesign effort.
Recommended Applications
This display platform is designed for environments where readability, reliability, and image quality are critical.
Digital Signage Systems
Retail advertising, promotional displays, and commercial messaging systems benefit from the panel’s brightness scalability and Full HD image quality.
Retail Window Displays
Storefront installations frequently encounter direct sunlight and strong ambient illumination. Higher-brightness versions improve message visibility and customer engagement.
Transportation Information Displays
Passenger information systems, schedules, route guidance screens, and public information boards can benefit from wide viewing angles and dependable operation.
Information Kiosks
Self-service terminals and public information systems require clear content presentation and reliable daily operation.

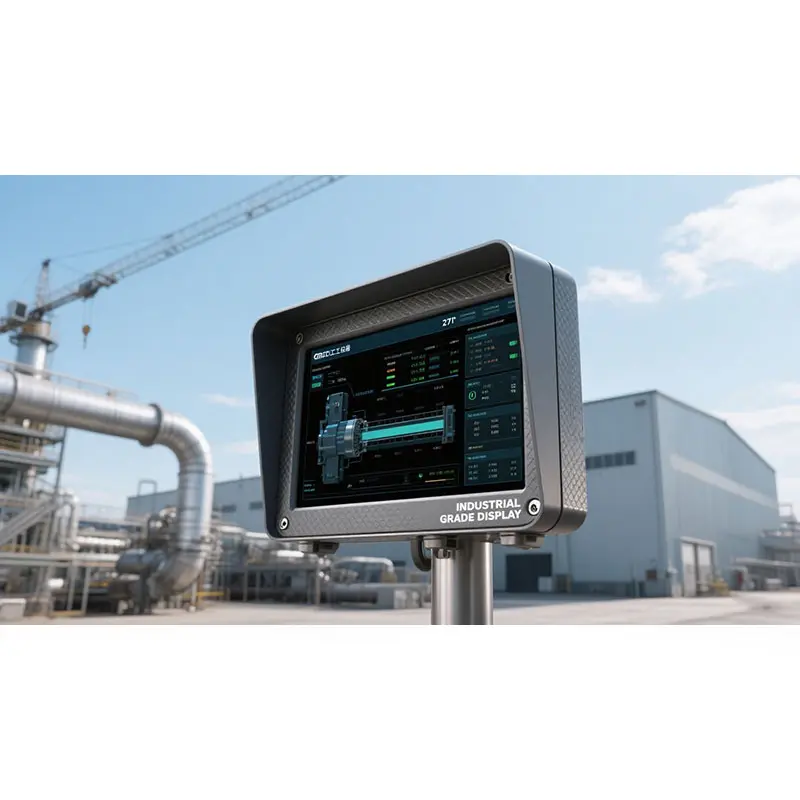

Industrial Visualization Equipment
Control rooms, monitoring stations, and industrial information displays benefit from the wide temperature range and IPS image stability.
Procurement Considerations
When selecting a commercial display panel, brightness alone should not drive the decision. Buyers should evaluate viewing angle performance, operating temperature range, interface compatibility, and long-term backlight reliability.
This display family offers a balanced combination of brightness flexibility, Full HD resolution, IPS viewing performance, and industrial-grade operating characteristics, making it suitable for a broad range of commercial display projects.
