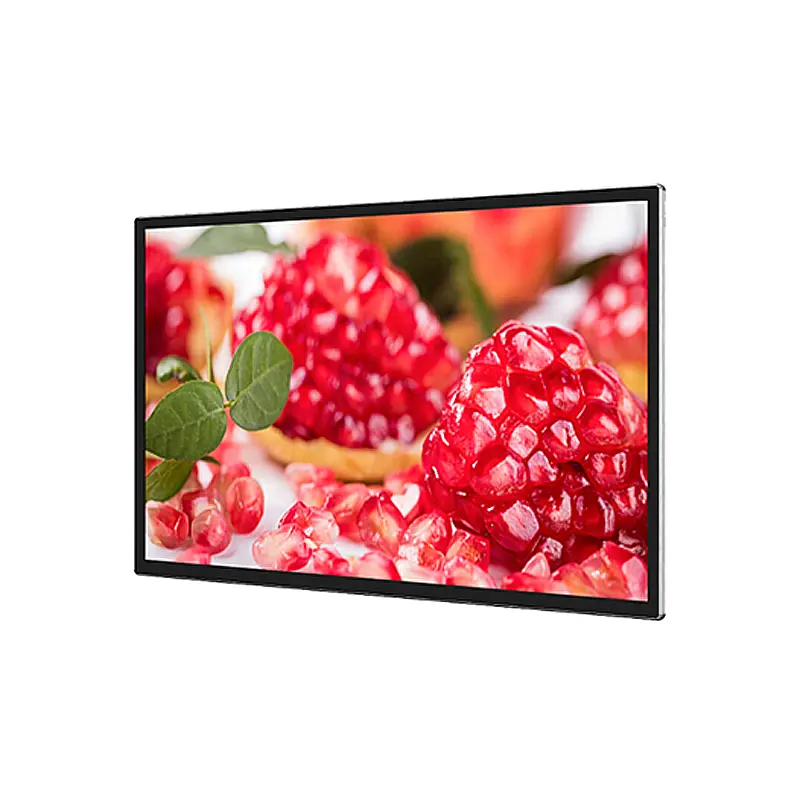

43 Inch Window Facing Display for Sunlight Readable Storefront Signage

Product Gallery
Key Specs

Model P/N

HT430-OEM

Size

43″

Resolution

1920×1080

Brightness

2000 (Typ.)(cd/m²)

Viewing Angle

89/89/89/89, CR≥10

Connector Type

HDMI, VGA, DVI, USB, Audio

Operating Temp

-20 ~
70 °C

Overall(mm)

986.5(W)×
574.5(H)×
89.5(D)
Upgrade Options (OEM/ODM)

huisoar

HT430-OEM

General Features

Brand

huisoar

Panel Size (inch)

43"

Model P/N

HT430-OEM

Resolution

1920×1080

Brightness (nits)

2000 cd/m² (Typ.)

Viewing Angle

89/89/89/89, CR≥10

Contrast Ratio

1300:1

Response Time

6/9 ms (Tr/Td)

Overall (mm)

986.5(W)×
574.5(H) ×
89.5(D) mm

Active Area (mm)

941 × 529.4 mm

Refresh Rate

60Hz

Display Colors

16.7M, 72% NTSC

Panel Type

tft-lcd

Connector Type

HDMI, VGA, DVI, USB, Audio

Operating Temp

-20 ~
70 °C

Touchscreen Type

Optional

Storage Temp

-30 ~ 80 °C

Work Mode

IPS, Normally Black, Transmissive

Input Voltage (V)

AC 110–220V, 50/60Hz

Weight (g)

20000 g(Typ./Max.)

Designed For

Window-Facing, Storefront, High Ambient Light

High-brightness commercial LCD signage engineered for retail storefront windows, customer engagement, and continuous operation.

High-brightness commercial LCD signage engineered for retail windows, daylight visibility, customer engagement, and continuous operation.

A 43 inch window facing display is designed for storefront environments where ordinary indoor screens often lose visibility behind glass and under strong ambient light. Standard commercial monitors may look clear indoors, but once placed near a shop window, sunlight and outdoor reflections can make promotional content appear washed out, dim, or difficult to read.

This 43 inch window facing display solves that challenge with a 2000 nits high-brightness screen, Full HD resolution, wide viewing angle, intelligent brightness adjustment, and commercial-grade operating support. It helps retailers transform valuable window space into a dynamic digital advertising platform for promotions, product launches, seasonal campaigns, brand messaging, and customer attraction.

For retail stores, shopping malls, pharmacies, restaurants, banks, automotive showrooms, electronics retailers, and commercial service centers, this display provides a practical solution for outward-facing digital signage that needs to stay clear, bright, and professional throughout the day.

Why High Brightness Matters for Window Displays

A conventional indoor display typically offers brightness levels between 250 and 500 nits. While this may be acceptable for indoor viewing, it is often not enough for storefront advertising, especially when the screen is installed behind glass and exposed to daylight, reflections, and changing outdoor lighting conditions.

The 43 inch window facing display delivers 2000 nits brightness, which is significantly higher than traditional indoor monitors. This enhanced luminance helps promotional videos, text, pricing, and brand visuals remain visible from outside the store.

Key visibility advantages include:

Improved readability in daylight
Better contrast through storefront glass
Stronger visual impact for passing customers
More effective promotional communication
Enhanced brand presentation in retail environments

For businesses located in shopping districts, malls, transportation hubs, and busy commercial streets, high brightness is not simply a display specification. It directly affects whether customers can see, understand, and respond to the advertising content.

Optical Performance for Professional Storefront Messaging

The display features a 43 inch Full HD screen with 1920 × 1080 resolution and a standard 16:9 aspect ratio, making it suitable for common advertising formats, video loops, product introductions, and branded visual campaigns.

With a wide 178° horizontal and vertical viewing angle, the screen supports clear visibility from multiple approach directions. This is especially important for storefront applications because pedestrians and customers rarely stand directly in front of the display. They may view the screen while walking past the store, approaching from the side, or standing at different distances.

The combination of Full HD image quality, 2000 nits brightness, and strong viewing performance allows the display to present sharp text, vivid images, and smooth video playback for both short-range and long-range viewing.

Businesses can use the display for:

Promotional videos
Brand campaigns
Product launches
Seasonal advertising
Dynamic pricing
Special-offer messaging
Corporate communications
Storefront digital posters

Compared with static posters, a window-facing digital display allows retailers to update content more flexibly and deliver more engaging visual communication.

Intelligent Brightness Adjustment for Changing Light Conditions

Retail lighting conditions can change significantly throughout the day. Morning sunlight, afternoon glare, cloudy weather, evening lighting, and indoor illumination all affect how bright the screen needs to be.

The integrated intelligent dimming system automatically adjusts screen brightness according to ambient light levels. This helps the display maintain clear visibility while avoiding unnecessary brightness when the surrounding environment is darker.

This function brings three practical benefits.

Maintain Image Quality

The screen can stay readable and visually balanced under different lighting conditions, helping advertising content remain clear from morning to evening.

Reduce Energy Consumption

Instead of operating at maximum brightness all the time, the display can use only the brightness required for the current environment, improving energy efficiency.

Extend Backlight Life

Lower brightness operation during low-light periods can reduce stress on the backlight system and support longer component service life.

For retailers that need continuous daily operation, intelligent brightness control is a valuable feature for both visual performance and long-term operating cost management.

Built for Continuous Commercial Operation

Commercial signage systems are often required to operate for long hours every day. Unlike consumer televisions, this 43 inch window facing display is engineered for demanding retail and commercial environments.

It uses a DLED backlight system with a rated lifetime of approximately 50,000 hours and supports 24/7 constant-use operation. This makes it suitable for stores, malls, service centers, and chain retail environments that need stable advertising output with reduced maintenance requirements.

Commercial reliability features include:

Long-life DLED backlight
Intelligent temperature control
Commercial-grade power design
Remote control support
Metal and aluminum alloy housing
Stable operation for extended use
Wall-mounted installation support

These characteristics help the display perform reliably in real-world storefront environments where heat, operating time, and visibility demands are much higher than standard indoor usage.

Flexible Integration for Digital Signage Projects

Modern retail organizations often require centralized content management and flexible hardware integration. This 43 inch window facing display supports multiple system configurations, including Android media player solutions, PC-based systems, and HDMI driver board options.

Available interfaces include:

HDMI
VGA
DVI
USB
RJ45 Ethernet

These connectivity options make the display easier to integrate into existing digital signage networks. Retailers and system integrators can connect different media sources, update content remotely, and deploy similar signage systems across multiple store locations.

For B2B projects, this flexibility is important because different customers may require different control systems, content platforms, network structures, or installation methods.

Practical Size and Installation Value

The 43 inch size provides a strong balance between visual impact and installation flexibility. It is large enough to attract attention in a storefront window, yet compact enough for narrower shopfronts, boutique retail spaces, reception areas, and commercial service counters.

The active display area of approximately 941 × 529.4 mm and the overall product size of approximately 986.5 × 574.5 × 89.5 mm help engineers and installers plan window layouts, wall mounting positions, and enclosure requirements more accurately. With a listed weight of approximately 20 kg, the display is practical for many retail mounting scenarios.

The slim metal enclosure also provides a clean commercial appearance while helping protect internal components during daily operation.

Designed for Storefront and Semi-Outdoor Applications

This display is optimized for installation behind storefront glass and in protected commercial environments. It is especially suitable for semi-outdoor usage where strong brightness, thermal management, and stable operation are required.

Typical application scenarios include:

Fashion retail stores
Shopping centers
Pharmacies
Restaurants
Banks
Automotive showrooms
Electronics retailers
Commercial service centers
Chain store promotions
Mall storefront advertising
Menu-style digital signage

Because this model is designed primarily for advertising and information display, it is especially suitable for passive promotional content rather than interactive kiosk applications.

A Smart Investment for Retail Visibility

Window displays are one of the most direct ways to engage potential customers before they enter a store. A bright, clear, and dynamic display can help replace static posters with flexible digital content that is easier to update and more visually attractive.

By combining 2000 nits high brightness, Full HD resolution, wide viewing angle, intelligent brightness adjustment, commercial-grade construction, and continuous operation capability, the 43 inch window facing display provides a strong solution for storefront advertising and retail customer engagement.

For businesses competing in busy commercial environments, effective window-facing digital signage can increase exposure, strengthen brand presence, and improve the impact of promotional messaging.

Contact HuiSoar to discuss display matching, system configuration, and customized support for your commercial signage project.

Application Scenarios

FAQ

What brightness does the 43 Inch Window Facing Display provide?

The standard configuration delivers approximately 2000 cd/m² brightness, making it suitable for sunlight-readable storefront applications.

Can the display operate continuously?

Yes. It is designed for commercial operation and supports 24/7 deployment with a backlight lifetime of approximately 50,000 hours.

Is the display suitable for direct sunlight?

Yes. The high-brightness design and sunlight-readable technology help maintain visibility behind storefront windows exposed to daylight.

Does the display support automatic brightness adjustment?

Yes. Intelligent dimming technology automatically adjusts brightness according to ambient light conditions.

What content inputs are supported?

The display supports HDMI, VGA, DVI, USB, and RJ45 connectivity options.

Can the display be customized?

Yes. Android systems, PC configurations, touch functionality, and brightness options can be customized for OEM and ODM projects.

What is your MOQ and sample policy for HT430-OEM?

For MOQ and sample policy on the HT430-OEM, please contact our sales team directly. We typically offer sample units for evaluation, and MOQ can be discussed based on your project volume and customization needs. To proceed, please submit a request through our website or reach out to your regional sales representative for a tailored quotation.

Do you offer displays with extended temperature ranges (-40°C to +85°C or higher) for automotive or outdoor use?

The HT430-OEM has an operating temperature range of -20°C to 70°C and storage from -30°C to 80°C. For extended temperature ranges like -40°C to +85°C, we recommend confirming with our engineering team whether a custom variant is possible. Please contact us with your specific requirements so we can evaluate feasibility and provide a solution.

What touch screen technologies do you support (e.g., capacitive, resistive, in-cell)?

The HT430-OEM supports optional touch functionality. While For detailed specifications and to confirm the best touch solution for your storefront signage, please request a datasheet or consult with our sales team.

What are the packaging options for shipping and handling of fragile LCD panels?

Standard packaging for the HT430-OEM includes protective foam, corrugated boxes, and secure cushioning to ensure safe transit of the fragile LCD panel. For bulk orders, we can provide custom packaging solutions such as wooden crates or reinforced pallets. Please discuss your shipping requirements with our logistics team to arrange the most suitable packaging for your handling and delivery needs.
