5.5 Inch High Brightness MIPI LCD Display 720×1280 1000 Nits

Download PDF
Product Gallery

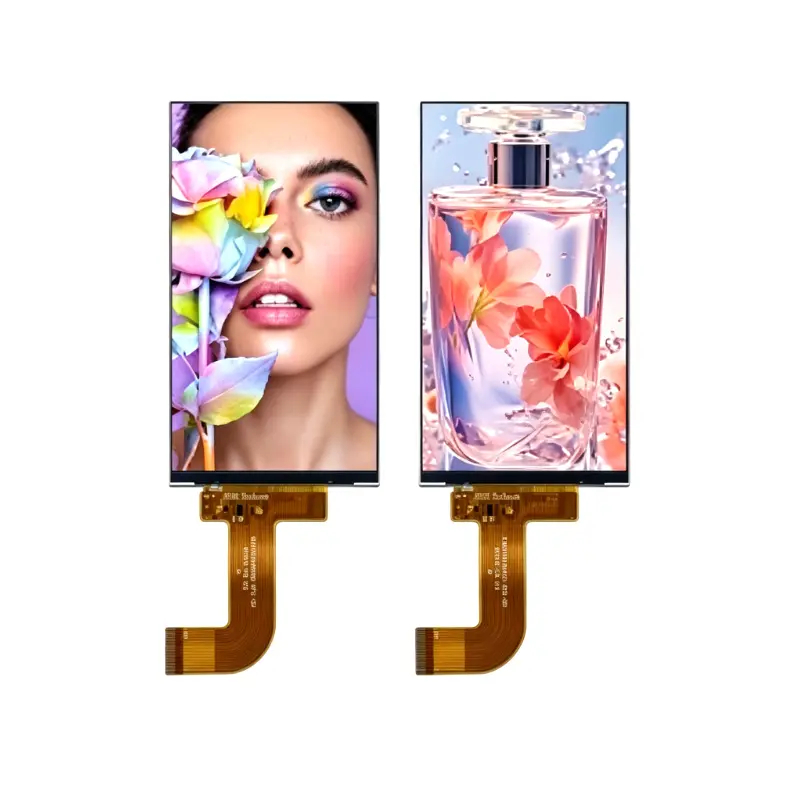

Featured product image of 5.5 Inch High Brightness MIPI LCD Display 720×1280 1000 Nits, huisoar, HS550060N0, 5.5 inch high
Additional product image of 5.5 Inch High Brightness MIPI LCD Display 720×1280 1000 Nits, huisoar, HS550060N0, 5.5 inch high
Additional product image of 5.5 Inch High Brightness MIPI LCD Display 720×1280 1000 Nits, huisoar, HS550060N0, 5.5 inch high
Additional product image of 5.5 Inch High Brightness MIPI LCD Display 720×1280 1000 Nits, huisoar, HS550060N0, 5.5 inch high
Additional product image of 5.5 Inch High Brightness MIPI LCD Display 720×1280 1000 Nits, huisoar, HS550060N0, 5.5 inch high
Featured product image of 5.5 Inch High Brightness MIPI LCD Display 720×1280 1000 Nits, huisoar, HS550060N0, 5.5 inch high
Additional product image of 5.5 Inch High Brightness MIPI LCD Display 720×1280 1000 Nits, huisoar, HS550060N0, 5.5 inch high
Additional product image of 5.5 Inch High Brightness MIPI LCD Display 720×1280 1000 Nits, huisoar, HS550060N0, 5.5 inch high
Additional product image of 5.5 Inch High Brightness MIPI LCD Display 720×1280 1000 Nits, huisoar, HS550060N0, 5.5 inch high
Additional product image of 5.5 Inch High Brightness MIPI LCD Display 720×1280 1000 Nits, huisoar, HS550060N0, 5.5 inch high
Key Specs

Model P/N

HS550060N0

Size

5.5″

Resolution

720×1280

Brightness

1000 (Typ.)(cd/m²)

Viewing Angle

80/80/80/80 (L/R/U/D)

Connector Type

MIPI, 30 Pins

Operating Temp

-20 ~
70 °C

Overall(mm)

70.34(W)×
128.1(H)×
1.62(D)
Request Quote / Datasheet
Upgrade Options (OEM/ODM)

huisoar

HS550060N0

General Features

Brand

huisoar

Panel Size (inch)

5.5"

Model P/N

HS550060N0

Resolution

720×1280

Brightness (nits)

1000 cd/m² (Typ.)

Viewing Angle

80/80/80/80 (L/R/U/D)

Contrast Ratio

500:1 (Typ.)

Response Time

N/A

Overall (mm)

70.34(W)×
128.1(H) ×
1.62(D) mm

Active Area (mm)

68.04 × 120.96 mm

Refresh Rate

60Hz

Bezel Opening

N/A

Display Colors

16.7M

Panel Type

tft-lcd

Connector Type

MIPI, 30 Pins

Surface Treatment

N/A

Operating Temp

-20 ~
70 °C

Touchscreen Type

Without Touch

Storage Temp

-30 to 80°C

Work Mode

IPS, Normally Black

Pixel Format

N/A

Input Voltage (V)

N/A

Touch Interface

N/A

Designed For

Handheld PDA, POS terminals, medical devices, industrial control panels, security displays

5.5 Inch High Brightness MIPI LCD Display 720×1280 1000 Nits

The 5.5 inch high brightness MIPI LCD display is engineered for handheld and industrial applications that demand excellent outdoor readability and stable visual performance. With a resolution of 720 × 1280 pixels and a minimum brightness of 1000 nits, this module delivers clear, sharp images even under strong ambient light conditions. Its IPS panel ensures consistent color and visibility from wide viewing angles, making it highly suitable for portable equipment, smart terminals, and control interfaces.

This display is optimized for vertical interface layouts, supporting intuitive UI design in PDA devices, POS systems, and industrial handheld equipment. Its compact structure and MIPI interface make it easy to integrate into modern embedded systems.

5.5 Inch High Brightness MIPI LCD Display for Outdoor Use

Superior Brightness for Sunlight Readability

With a brightness level reaching 1000 nits (minimum), this display stands out in environments where standard screens fail. It maintains clear visibility in outdoor or high-ambient-light conditions such as field devices, logistics terminals, and industrial control panels. This makes it ideal for applications requiring reliable performance in bright environments.

IPS Wide Viewing for Stable Image Quality

The IPS technology provides a wide viewing angle of 80/80/80/80 degrees, ensuring that the display content remains clear and color-accurate from multiple directions. This is particularly important for handheld devices where the viewing angle frequently changes during operation.

Integration Advantages of the 5.5 Inch High Brightness MIPI LCD Display

MIPI Interface with 30-Pin Configuration

Equipped with a MIPI interface and 30-pin connection, this module supports efficient high-speed data transmission while maintaining a compact design. It is well suited for modern embedded platforms used in handheld terminals, smart devices, and industrial systems.

Slim and Compact Mechanical Design

With an ultra-thin profile of only 1.62 mm, this display allows for lightweight and space-saving product designs. The compact outline dimensions make it easier to integrate into slim handheld devices and portable equipment.

Application Scenarios for Industrial and Smart Devices

Handheld PDA and POS Systems

This 5.5 inch high brightness MIPI LCD display is widely applicable in PDA terminals, POS machines, and mobile payment systems. Its vertical resolution and high brightness provide a user-friendly interface for data input, scanning, and transaction operations.

Industrial Control and Medical Equipment

Designed to operate within a temperature range of -20 to 70°C, the display performs reliably in industrial and medical environments. It is suitable for equipment interfaces, monitoring systems, and portable diagnostic devices where durability and readability are critical.

The combination of high brightness, IPS technology, and MIPI interface makes this display a strong choice for manufacturers developing advanced handheld and industrial display solutions. Contact us for customization options, including brightness tuning, interface adaptation, and mechanical design support.

Additional product image of 5.5 Inch High Brightness MIPI LCD Display 720×1280 1000 Nits, huisoar, HS550060N0, 5.5 inch high
Application Scenarios
Additional product image of 5.5 Inch High Brightness MIPI LCD Display 720×1280 1000 Nits, huisoar, HS550060N0, 5.5 inch high

FAQ

What is the minimum order quantity (MOQ) for custom-sized automotive-grade displays with capacitive touch, like the 12.3" model shown?

For custom-sized automotive-grade displays with capacitive touch, such as a 12.3" model, the minimum order quantity (MOQ) is typically negotiated based on the specific customization requirements, including panel size, touch sensor, and optical bonding. Standard MOQs for such custom projects often start at 500 to 1000 pieces, but exact figures depend on the complexity and volume. Please contact our sales team with your exact specifications to receive a confirmed MOQ for your project.

What are the packaging options for shipping and handling of fragile LCD panels?

Our LCD panels are packaged using anti-static bags, foam cushioning, and reinforced cartons to prevent damage during shipping. For fragile panels like the 5.5" model, we use custom-cut foam inserts and edge protectors. Each unit is individually wrapped and placed in a partitioned box. For bulk orders, multiple layers of protection are added. We recommend using a reliable freight service with proper handling for glass components. Specific packaging options can be tailored for high-volume or international shipments upon request.

What is the typical lead time and production capacity?

Typical lead time for standard models like the HS550060N0 is 2-4 weeks, depending on stock availability. For custom orders, lead time may extend to 6-8 weeks. Production capacity varies by order size and complexity; for high-volume runs, we can scale to meet demand. Exact lead times and capacity figures should be confirmed with our sales team at the time of order, as they depend on current production schedules and component availability.

Can you provide detailed specifications for sunlight readable displays, including typical brightness (nits), contrast ratio, and optical bonding options for outdoor or high-ambient-light use?

For sunlight readable displays, typical brightness is 1000 nits or higher, as seen in the HS550060N0 model. Contrast ratio is 500:1 (Typ.), and viewing angles are 80/80/80/80. Optical bonding options, such as air bonding or full lamination, can reduce glare and improve readability in direct sunlight. These treatments also enhance durability and prevent moisture ingress. For specific bonding types and their impact on optical performance, please consult our engineering team for your application.

What are the operating temperature ranges for your industrial LCD panels, especially for extended outdoor use?

The HS550060N0 operates from -20°C to +70°C and stores from -30°C to +80°C, suitable for extended outdoor use. For wider temperature ranges, such as -30°C to +85°C, we offer industrial-grade panels with enhanced components. These displays are tested for thermal cycling and humidity resistance. If your application requires extreme temperatures, please specify the range, and we can recommend a suitable model or customization.

Do you offer transparent displays with high transparency rates for retail or exhibition applications?

We do not currently list transparent displays in our standard product line. For retail or exhibition applications requiring high transparency, we recommend evaluating our standard TFT-LCD modules with high brightness and wide viewing angles. If you have a specific transparency requirement, please provide details, and we can explore custom solutions or refer you to a suitable partner.

What interface options are available (e.g., LVDS, eDP, MIPI) for your panels?

Our panels support MIPI, LVDS, and eDP interfaces depending on the model. The HS550060N0 uses a MIPI 30-pin interface, common for high-resolution and high-brightness displays. LVDS is typical for larger industrial panels, while eDP is used for higher data rates. Interface selection depends on your system's compatibility and resolution needs. For custom projects, we can adapt the interface to match your controller board.

What are the power consumption specifications for your sunlight readable displays in various brightness modes?

Power consumption for the HS550060N0 is not explicitly listed in the provided specs, but for a 5.5" 1000-nit display, typical power draw is around 2-4 watts at full brightness. Lower brightness modes reduce consumption proportionally. For exact power figures, including backlight and logic power, please request the detailed datasheet. In general, high-brightness displays consume more power, so consider your system's power budget.

What is the typical lead time for custom LCD controller board integration with your display modules?

Lead time for custom LCD controller board integration depends on the complexity of the firmware and hardware design. Typical projects take 4-8 weeks from specification finalization to prototype delivery. This includes schematic design, PCB layout, firmware development, and testing. For standard interfaces like MIPI, integration is faster. Exact timelines should be discussed with our engineering team after reviewing your requirements.

Can you integrate touch controllers (resistive/capacitive) into custom display modules with specific firmware requirements?

Yes, we can integrate resistive or capacitive touch controllers into custom display modules, including specific firmware for gesture recognition or multi-touch. The HS550060N0 is offered without touch, but we can add a touch panel and controller as a custom option. Firmware customization requires a detailed specification of your requirements. Lead time and minimum order quantities apply for such integrations.
