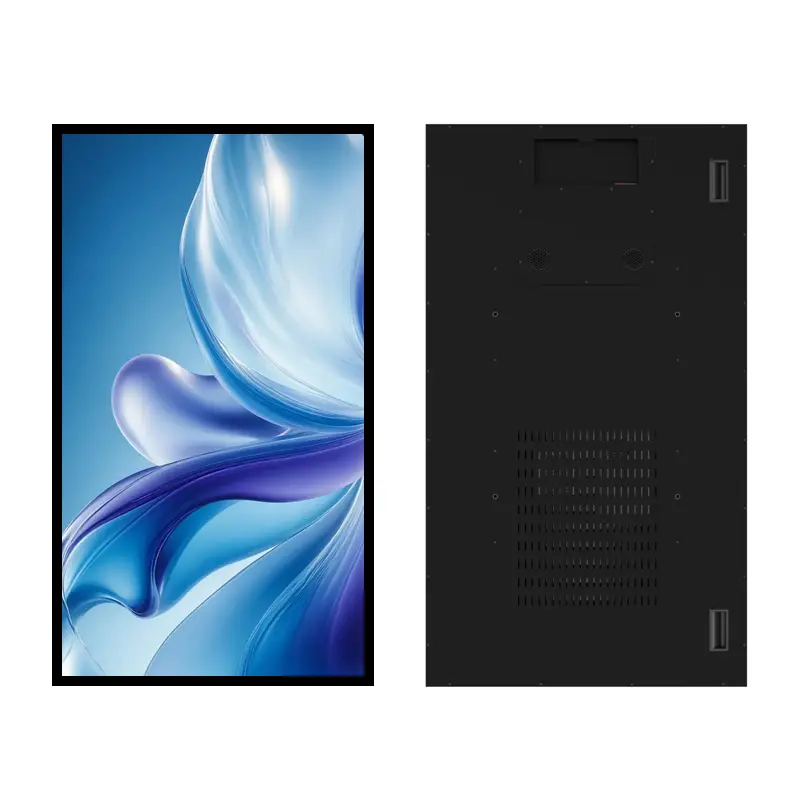

55 Inch Window Facing Digital Signage 4K 3000 Nits

Product Gallery
Key Specs

Model P/N

HS550ENT-N20

Size

55″

Resolution

3840×2160

Brightness

3000 (Typ.)(cd/m²)

Viewing Angle

89°/89°/89°/89°

Connector Type

HDMI, VGA, DVI, USB, RJ45

Operating Temp

0 ~
50 °C

Overall(mm)

1232.8(W)×
703.6(H)×
32.9(D)
Upgrade Options (OEM/ODM)

huisoar

HS550ENT-N20

General Features

Brand

huisoar

Panel Size (inch)

55"

Model P/N

HS550ENT-N20

Resolution

3840×2160

Brightness (nits)

3000 cd/m² (Typ.)

Viewing Angle

89°/89°/89°/89°

Contrast Ratio

1200:1

Response Time

5 ms (G-to-G)

Overall (mm)

1232.8(W)×
703.6(H) ×
32.9(D) mm

Active Area (mm)

1209.6×680.4

Refresh Rate

60Hz

Display Colors

1.67B, 72% NTSC

Panel Type

tft-lcd

Connector Type

HDMI, VGA, DVI, USB, RJ45

Surface Treatment

Anti-Glare (Haze 1%), Hard Coating 3H

Operating Temp

0 ~
50 °C

Touchscreen Type

Optional

Storage Temp

-20 ~ 60 °C

Work Mode

IPS, Normally Black, Transmissive

Pixel Format

RGB Vertical Stripe

Touch Interface

Optional

Weight (g)

18000 g(Typ./Max.)

Designed For

Storefront Window, Retail Advertising

55 Inch Window Facing Digital Signage 4K 3000 Nits,Retail displays only create value when they can be seen clearly from outside the store. This window facing digital signage solution is designed for storefront advertising, brand promotion, and retail messaging in bright environments where ordinary indoor screens often look washed out. With a 55 inch format, 4K UHD resolution, 3000 nits brightness, IPS wide viewing angle, and a 50000-hour WLED backlight, it gives commercial display projects a stronger platform for attracting attention through glass and in daylight-heavy locations.

Why This Window Facing Digital Signage Works for Retail Display

Optical Performance of Window Facing Digital Signage

The most important requirement for a storefront screen is visibility. This product is specified at 3000 nits typical brightness, which is far above the level of standard indoor commercial displays and therefore much better suited to shop windows, sunlit interiors, and street-facing advertising zones. Combined with 3840 × 2160 resolution, the screen supports sharp text, cleaner promotional graphics, and more refined video playback for product campaigns, branding loops, and high-impact digital merchandising.

Image stability is also important in public-facing installations because viewers rarely stand in one fixed position. The panel uses an IPS, normally black, transmissive display mode and is specified with 89/89/89/89 viewing angles, helping the content stay readable from different approach directions. A 1400:1 typical contrast ratio, 1.67 billion color support, and 72% NTSC color coverage also make the screen more suitable for modern retail creative where brightness alone is not enough and color presentation still affects brand perception.

The surface structure further supports commercial use in bright environments. The antiglare finish with 1% haze and 2H hard coating helps reduce unwanted reflections while adding practical surface durability. For stores that want a vivid window display without relying on bulky external shading, that balance of brightness and surface treatment is a real selection advantage.

Technical Selection Value for Commercial Integration

Window Facing Digital Signage for Reliable System Design

Beyond the visual specifications, this product also offers a practical technical base for OEM and project integration. The active area measures 1209.6 × 680.4 mm, while the outline dimension is 1232.8 × 703.6 × 32.9 mm, making it easier for engineering teams to evaluate cabinet fit, frame opening, and installation planning for retail windows or custom enclosures. The product page also notes default VESA mounting, with support for wall, ceiling, floor-standing, or hanging installation according to project needs.

Interface flexibility is another useful advantage. The listed signal connections include HDMI, USB, VGA, and DVI, while the manufacturer also notes optional Android or PC system integration for easier content control and deployment planning. This matters for buyers who need more than a bare panel and instead want a finished display platform that can work with different playback architectures, retail software environments, or centrally managed digital signage networks.

Operational reliability also supports long-term use. The screen uses a WLED backlight rated for 50000 hours and operates at 60 Hz, with an AC input range of 110 to 260 V. The specified operating temperature is 0 to 50°C, with storage from -20 to 60°C, which gives the product a wider commercial deployment range than standard indoor-only solutions. For buyers comparing storefront displays, these practical specifications often have as much value as the headline brightness figure because they influence maintenance planning, uptime, and deployment flexibility.

Typical Applications for Storefront Display Projects

Best-Fit Scenarios for Window Facing Digital Signage

This window facing digital signage product is especially suitable for shopfront advertising, shopping mall windows, branded retail campaigns, showroom displays, and street-facing promotional screens. In these environments, the display must compete with sunlight, reflections, and constantly moving foot traffic. The combination of 4K clarity, high brightness, wide viewing angle, and a slim commercial structure makes this screen a good fit for businesses that want digital visuals to replace static posters or ordinary backlit print signage.

It is also relevant for commercial information display in indoor locations with heavy ambient light, such as atriums, entrances, transport retail zones, and other glass-heavy spaces. Because the product is a non-touch solution, it is best suited to passive advertising and content broadcast rather than direct user interaction. For many retail, brand, and public messaging projects, that is exactly the right direction: a bright, durable, finished display built to deliver content clearly and continuously rather than function as an interactive kiosk.

For projects that need a large-format display with stronger brightness, 4K image quality, flexible installation, and storefront-ready visibility, this window facing digital signage solution provides a practical base for commercial deployment. Contact HuiSoar to discuss project requirements, display selection, and customized integration support for your retail or digital signage application.

Application Scenarios

FAQ

What is the minimum order quantity for custom display modules with specific connector types like 30-pin LVDS?

For custom display modules requiring specific connector types like 30-pin LVDS, the minimum order quantity (MOQ) is typically determined by the panel manufacturer's production batch requirements. Standard guidance for this class of industrial display is an MOQ of 50 to 100 units for connector customization, as it involves changes to the driver board and assembly line setup. The exact MOQ for the HS550ENT-N20 model with such a custom connector should be confirmed directly with the supplier, as it depends on current component availability and the specific LVDS interface version required for your integration.

What is your MOQ and sample policy for this model?

The MOQ and sample policy for standard configurations of the HS550ENT-N20 model are not explicitly stated on the product page. For industrial digital signage displays, a typical MOQ ranges from 1 to 10 units for initial orders, with sample units often available for evaluation. We recommend contacting the supplier directly to confirm their specific policy for this 55-inch 3000-nit model, including sample lead time, cost, and any credit terms. This is a standard procurement step to validate performance and compatibility before committing to a volume purchase.

What is the minimum order quantity (MOQ) for custom display modules with integrated touch and controller boards?

The minimum order quantity for custom display modules that integrate both touch functionality and controller boards is not specified for the HS550ENT-N20. For this class of product, adding integrated touch (e.g., infrared or capacitive) and a custom controller typically requires a higher MOQ than a standard display, often starting at 100 units or more, due to the additional engineering, testing, and sourcing. To proceed with a custom integration for this model, you should request a formal quotation that outlines the exact MOQ, touch technology specifications, and any NRE (Non-Recurring Engineering) fees associated with the project.

What is the typical lifespan (in hours) of your industrial LCD panels under continuous operation?

The product page does not specify an exact lifespan in hours for the HS550ENT-N20 panel. For industrial-grade LCD panels designed for 24/7 digital signage, a typical expected lifespan is 50,000 to 100,000 hours of continuous operation. This is based on standard LED backlight longevity and robust component selection. The actual lifespan for this specific 3000-nit model can be influenced by operating temperature and brightness settings. For a verified MTBF (Mean Time Between Failures) or L10 life rating, you should request the relevant reliability test reports from the manufacturer.

What are the brightness levels available for industrial displays, and can you customize beyond 1500 nits?

This specific model, the HS550ENT-N20, is offered at a fixed 3000 nits brightness. For industrial displays in general, standard brightness tiers often include 1000, 1500, 2000, 2500, and 3000+ nits. Customization beyond 1500 nits is commonly available but involves specialized high-brightness LED backlight units and enhanced thermal management. If your project requires a brightness level different from the 3000 nits specified for this model, you would need to inquire about a custom-built solution, as it constitutes a different product specification with its own MOQ and lead time.

What is the typical lead time and production capacity?

The product page does not state a typical lead time or production capacity for the HS550ENT-N20. For made-to-order industrial displays, lead times generally range from 4 to 8 weeks for initial orders, depending on component inventory and order volume. Production capacity is typically quoted per month (e.g., units per month) based on factory scheduling. To secure an accurate project timeline, you should request a formal lead time estimate and capacity confirmation from the supplier, providing your target quantities and required delivery schedule.

Can you provide sunlight readable displays with 1000+ nits brightness and anti-glare treatment?

Yes, the HS550ENT-N20 is specifically designed as a sunlight-readable display with 3000 nits brightness, which far exceeds the 1000+ nits threshold. While the page does not explicitly mention an anti-glare treatment, displays in this brightness class almost universally include an optical bonding process and/or a matte anti-reflective surface treatment to mitigate glare and enhance contrast in high-ambient light. For confirmation that this specific model includes such optical treatment, you should request the detailed optical specification sheet from the supplier.

Can you provide high brightness displays with 1000+ nits that maintain performance in direct sunlight for outdoor industrial applications?

Yes, the HS550ENT-N20 is a high-brightness display rated at 3000 nits, making it suitable for applications with direct sunlight exposure, such as outdoor industrial kiosks or sheltered installations. Its performance is supported by a high-contrast panel (1200:1) and a wide operating temperature range (0°C to 50°C). For true outdoor use, ensure the installation includes proper environmental protection (e.g., an IP65-rated enclosure for dust and water resistance), as the display module itself is designed for high brightness and temperature tolerance but may not be fully sealed against the elements.

What is the operating temperature range for your outdoor high-brightness displays, and do you offer extended ranges?

The specified operating temperature range for the HS550ENT-N20 is 0°C to 50°C. The storage temperature range is -20°C to 60°C. For outdoor high-brightness displays, extended temperature ranges (e.g., -30°C to 70°C) are often available as a customization option. This requires components rated for wider thermal tolerance and possibly active heating/cooling systems. If your application requires an operating range beyond the standard 0°C to 50°C for this model, you must discuss this as a custom requirement, which will impact the design, validation, and cost.

Do you offer transparent displays with high transparency rates for retail or exhibition applications?

The product described is a standard LCD display, not a transparent display. The HS550ENT-N20 is designed for window-facing applications, meaning it is bright enough to be seen through a store window, but it does not itself have a high transparency rate. For true transparent displays used in retail or exhibitions, you would need to inquire about a separate product category. Transparent LCD or OLED displays offer transparency rates typically from 30% to 45%, but they have different brightness, contrast, and integration requirements compared to this high-brightness signage model.
