7 Inch 1200×1920 In-Cell Touch IPS LCD Display MIPI Interface for Gaming and Medical Devices

Download PDF

Product Gallery

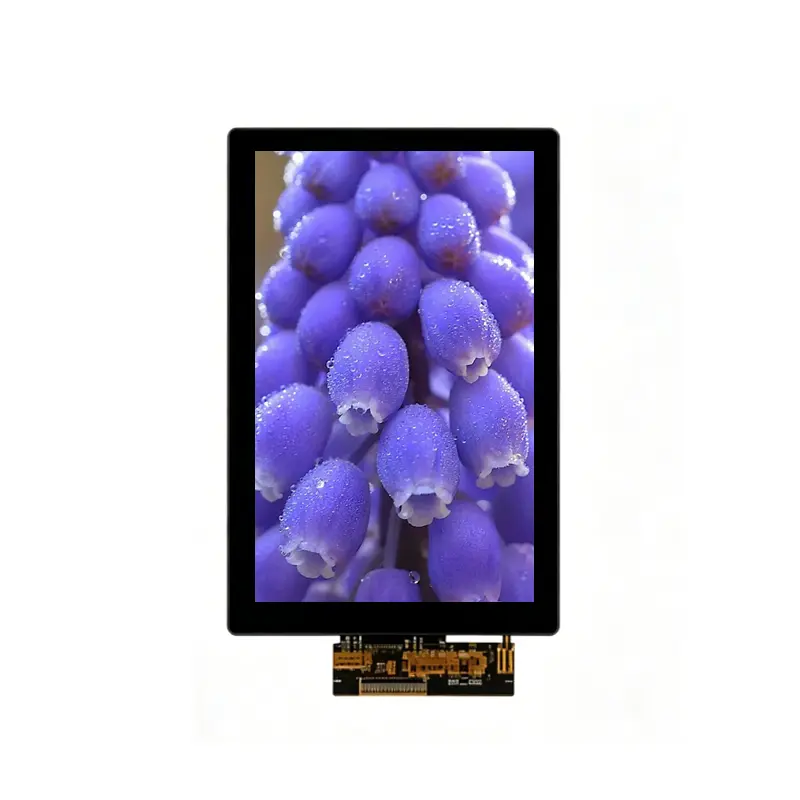

Featured product image of 7 Inch 1200×1920 In-Cell Touch IPS LCD Display MIPI Interface for Gaming and Medical Devices

Additional product image of 7 Inch 1200×1920 In-Cell Touch IPS LCD Display MIPI Interface for Gaming and Medical Devices

Key Specs

Model P/N

HS702007N1-YD

Size

7.0″

Resolution

1200×1920

Brightness

348 (Typ.)(cd/m²)

Viewing Angle

80/80/80/80

Connector Type

MIPI

Operating Temp

-20 ~

70 °C

Overall(mm)

115(W)×

176.7(H)×

3.63(D)

Upgrade Options (OEM/ODM)

huisoar

HS702007N1-YD

General Features

Brand

huisoar

Panel Size (inch)

7.0"

Model P/N

HS702007N1-YD

Resolution

1200×1920

Brightness (nits)

348 cd/m² (Typ.)

Viewing Angle

80/80/80/80

Contrast Ratio

1200:1 (Typ.)

Response Time

Overall (mm)

115(W)×

176.7(H) ×

3.63(D) mm

Active Area (mm)

94.5 (W) × 151.2 (H) mm

Refresh Rate

60Hz

Bezel Opening

N/A

Display Colors

16.7M

Panel Type

tft-lcd

Connector Type

MIPI

Surface Treatment

N/A

Operating Temp

-20 ~

70 °C

Touchscreen Type

In-Cell Touch

Storage Temp

-30 ~ 80 °C

Work Mode

N/A

Pixel Format

N/A

Touch Interface

optional

Designed For

Portable Gaming, Medical and Industrial Control Display

7 Inch 1200×1920 In-Cell Touch IPS LCD Display MIPI Interface for Gaming and Medical Devices

The 7 inch 1200×1920 In-Cell touch display is designed for high-resolution vertical applications requiring integrated touch functionality and compact structure. Combining IPS technology with In-Cell touch integration, this module delivers smooth interaction, reduced thickness, and enhanced optical performance.

High-Resolution 1200×1920 IPS Display for Precision Applications

Sharp and Detailed Visual Output

With a 1200×1920 resolution and high pixel density, this 7 inch 1200×1920 In-Cell touch display provides crisp images ideal for UI-intensive applications such as gaming interfaces, medical monitoring, and handheld terminals.

Full Viewing Angle IPS Technology

The IPS panel ensures stable color reproduction and consistent brightness across all viewing directions, improving usability in dynamic environments.

Integrated In-Cell Touch for Slim and Responsive Design

Touch and Display Combined

The In-Cell touch technology integrates the touch layer within the LCD structure, reducing module thickness while improving optical clarity and responsiveness.

Faster Response and Better Durability

Compared to traditional touch solutions, this design enhances touch sensitivity and reduces reflection, making it suitable for modern interactive devices.

MIPI Interface for High-Speed Data Transmission

Optimized for Modern Embedded Systems

The MIPI interface supports high-speed signal transmission with lower power consumption, ideal for advanced embedded platforms and portable devices.

40-Pin Compact Connection

The 40-pin design ensures stable connectivity while maintaining a compact footprint for system integration.

Designed for Gaming, Medical, and Smart Control Systems

Compact and Lightweight Structure

With a slim 3.63 mm profile, the display is well-suited for handheld and embedded designs where space is limited.

Reliable Operation in Industrial Environments

Operating in temperatures from -20°C to 70°C, this module is suitable for demanding environments such as medical equipment, industrial controls, and smart terminals.

Typical Applications

Handheld gaming devices
Medical display systems
Industrial control panels
Smart terminals and kiosks

The 7 inch 1200×1920 In-Cell touch display delivers a strong balance of resolution, responsiveness, and integration efficiency, making it an excellent choice for next-generation embedded display solutions.

Contact us for customization, datasheets, and volume pricing.

Application Scenarios

FAQ

What is the minimum order quantity (MOQ) for custom TFT displays with specific touch screen integration?

For custom TFT displays with specific touch screen integration, the minimum order quantity (MOQ) typically starts at 500 to 1,000 pieces for standard modifications like cover glass changes or touch sensor tuning. For fully custom designs including new mechanical tooling or optical bonding, MOQ may be higher, often 1,000 to 5,000 units. The exact MOQ for the HS702007N1-YD model with custom touch integration should be confirmed with Huisoar, as it depends on the complexity of the customization and current production schedules. We recommend submitting a detailed specification sheet for a formal quotation.

What is your MOQ and sample policy for this model?

For the HS702007N1-YD model, the standard MOQ is typically 500 to 1,000 pieces for standard configurations. Sample units are usually available for evaluation, with lead times of 2 to 4 weeks depending on stock. Sample pricing is generally higher than volume pricing and may require a deposit or prepayment. For exact MOQ and sample policy, please contact Huisoar directly, as terms can be negotiated based on project volume and timeline.

What are the packaging options for shipping displays to prevent damage during transit?

Standard packaging for LCD displays includes anti-static vacuum-sealed bags, foam cushioning, and corrugated cardboard boxes designed to prevent mechanical shock and electrostatic discharge. For the HS702007N1-YD, each unit is typically placed in individual compartments within a partitioned tray, then stacked with foam layers. Outer cartons are labeled with handling instructions. For high-volume shipments, custom packaging can be arranged to optimize density while maintaining protection. We recommend requesting a packaging specification sheet for your specific order quantity.

Can you supply displays with specific certifications for automotive (AEC-Q100) or medical (ISO 13485) applications, and what are the cost implications?

The HS702007N1-YD is a standard TFT display module and is not listed with specific automotive (AEC-Q100) or medical (ISO 13485) certifications. For medical applications, many standard displays can be used in non-life-support equipment if the system-level certification is managed by the integrator. For automotive-grade displays, a different model with AEC-Q100 compliance would be required. If you need certified displays, Huisoar can discuss custom options, but cost implications—such as additional testing, documentation, and higher component costs—should be requested as a formal quote. Exact certification availability for this model should be confirmed with the supplier.

What touch technologies do you support (resistive, capacitive, in-cell) and which do you recommend for high-brightness medical equipment displays?

Huisoar supports capacitive (including projected capacitive), resistive, and In-Cell touch technologies. For high-brightness medical equipment displays, In-Cell touch is recommended because it integrates the touch sensor directly into the LCD stack, reducing reflections and improving optical clarity. This is especially beneficial in medical environments where readability under bright lighting and glove operation may be required. The HS702007N1-YD features In-Cell touch, which also reduces overall module thickness and simplifies system integration. For specific medical device requirements, please discuss with Huisoar to confirm compatibility with your sterilization and durability needs.

What are the packaging options for shipping and handling of fragile LCD panels?

Standard packaging for LCD panels includes anti-static bags, foam inserts, and corrugated boxes with adequate crush resistance. For the HS702007N1-YD, each display is typically placed in a dedicated slot within a foam tray, then stacked with interleaving foam sheets. The outer carton is sealed and labeled with fragility warnings. For international shipping, additional measures such as vacuum sealing and desiccant packs may be used to control humidity. Custom packaging can be designed for high-volume or mixed orders. Always request a packaging specification for your shipment to ensure compliance with your handling procedures.

What touch technologies do you support (e.g., capacitive, resistive, in-cell) and which is recommended for automotive dashboards?

Huisoar supports capacitive (including projected capacitive), resistive, and In-Cell touch technologies. For automotive dashboards, projected capacitive touch is generally recommended due to its durability, multi-touch capability, and resistance to environmental factors like temperature and vibration. However, the HS702007N1-YD uses In-Cell touch, which may not be suitable for all automotive applications unless specifically qualified. For automotive dashboards, we recommend using a display model that is explicitly designed and tested for automotive environments, including AEC-Q100 compliance. Please consult Huisoar for the best touch technology for your specific dashboard requirements.

What touch screen technologies do you support (e.g., capacitive, resistive, in-cell)?

Huisoar supports capacitive (including projected capacitive), resistive, and In-Cell touch technologies. The HS702007N1-YD model specifically features In-Cell touch, which integrates the touch sensor within the LCD cell for a thinner profile and improved optical performance. Capacitive touch is ideal for consumer and medical devices requiring multi-touch and gesture support. Resistive touch is suitable for industrial environments where glove operation or stylus input is needed. For your application, please specify the required touch characteristics so we can recommend the most suitable technology.

What are the power consumption specifications for your high-brightness outdoor displays?

The HS702007N1-YD is a standard brightness display (348 nits) and is not classified as a high-brightness outdoor display. For outdoor applications, typical brightness requirements exceed 800 nits. Power consumption for this model is not explicitly stated in the provided specifications. For standard 7-inch displays with similar resolution and interface, typical power consumption ranges from 1.5 to 3.5 watts depending on brightness settings and backlight configuration. For exact power consumption data for the HS702007N1-YD, please request the datasheet from Huisoar. For high-brightness outdoor displays, separate models with higher power backlights are available.

Can you customize the mechanical dimensions and mounting holes of a standard LCD panel to fit our specific enclosure design?

Yes, Huisoar can customize mechanical dimensions and mounting holes for the HS702007N1-YD, subject to minimum order quantities and engineering feasibility. Customization may include changes to the active area, bezel width, mounting tab locations, or cover glass dimensions. However, such modifications typically require a new tooling investment and a higher MOQ. For standard panels, we recommend first evaluating the existing mechanical outline to see if it fits your enclosure. If modifications are needed, please provide a detailed mechanical drawing and expected volume for a feasibility assessment and quotation.
