Sunlight Readable MIPI LCD Display 7.02 Inch 1200×1920

Download PDF

Product Gallery

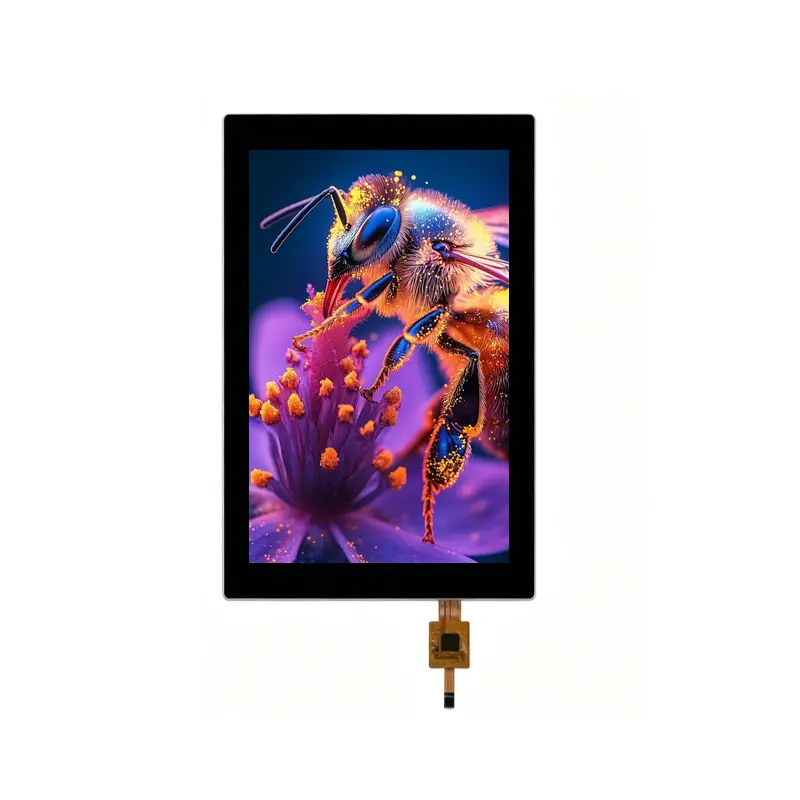

Featured product image of Sunlight Readable MIPI LCD Display 7.02 Inch 1200×1920, huisoar, HS702002B0-TY, sunlight readable

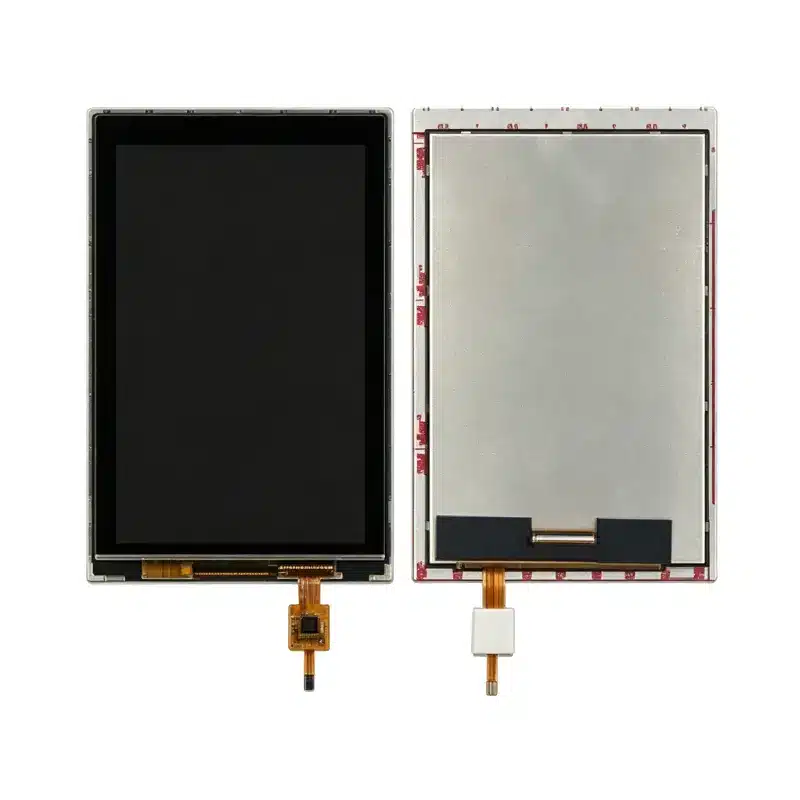

Additional product image of Sunlight Readable MIPI LCD Display 7.02 Inch 1200×1920, huisoar, HS702002B0-TY, sunlight

Key Specs

Model P/N

HS702002B0-TY

Size

7.0″

Resolution

1200×1920

Brightness

1500 (Typ.)(cd/m²)

Viewing Angle

85/85/85/85

Connector Type

MIPI Interface, 40 Pins

Operating Temp

-20 ~

70 °C

Overall(mm)

114.04(W)×

178.25(H)×

5.38(D)

Upgrade Options (OEM/ODM)

huisoar

HS702002B0-TY

General Features

Brand

huisoar

Panel Size (inch)

7.0"

Model P/N

HS702002B0-TY

Resolution

1200×1920

Brightness (nits)

1500 cd/m² (Typ.)

Viewing Angle

85/85/85/85

Contrast Ratio

1000:1

Response Time

Overall (mm)

114.04(W)×

178.25(H) ×

5.38(D) mm

Active Area (mm)

94.5 × 151.2 mm

Refresh Rate

60Hz

Bezel Opening

N/A

Display Colors

16.7M

Panel Type

tft-lcd

Connector Type

MIPI Interface, 40 Pins

Operating Temp

-20 ~

70 °C

Touchscreen Type

Projected Capacitive Touch

Storage Temp

-30 ~ 80 °C

Work Mode

PS, Transmissive

Input Voltage (V)

5.5

Touch Interface

N/A

Designed For

Industrial devices, digital signage, outdoor high brightness, handheld terminals

Sunlight Readable MIPI LCD Display 7.02 Inch 1200×1920

This sunlight readable MIPI LCD display is designed for compact equipment that needs high pixel density, strong brightness, and reliable touch interaction in demanding visual environments. With a 7.02-inch IPS panel, 1200 × 1920 resolution, and 1500–2000 nits brightness range, it supports clear portrait-format display performance for drone controllers, imaging devices, military display equipment, and industrial control systems.

Optical Performance of Sunlight Readable MIPI LCD Display

High Brightness for Outdoor and Field Use

The 1500–2000 nits brightness level makes this sunlight readable MIPI LCD display suitable for strong ambient-light environments where standard indoor modules may appear dim. It can support outdoor-facing control terminals, handheld field equipment, and display systems used in bright industrial or mobile environments.

1200 × 1920 Portrait Resolution

The 1200 × 1920 pixel resolution provides detailed UI rendering for maps, camera previews, parameter dashboards, and equipment status interfaces. The portrait format is especially useful for handheld terminals and controller panels where vertical screen space is important.

Integration Value for Embedded Display Projects

MIPI Interface with 40-Pin Connection

The MIPI interface and 40-pin connection support compact high-resolution embedded system integration. This makes the module suitable for hardware platforms that require high data bandwidth within limited mechanical space.

IPS Wide Viewing Performance

With 85/85/85/85 viewing angles and IPS hard-screen technology, the display maintains stable image quality from different viewing positions. This is valuable for operators using equipment outdoors, in vehicles, or in shared control environments.

Applications for Sunlight Readable MIPI LCD Display

Drone Controllers and Imaging Devices

This sunlight readable MIPI LCD display is well suited for drone controller panels, camera monitoring devices, and portable imaging equipment where bright-screen visibility and fine image detail are important.

Industrial and Rugged Equipment Displays

The -20°C to 70°C operating temperature range supports use in industrial automation devices, outdoor terminals, and equipment panels that may experience changing environmental conditions.

Medical, Military, and Field Terminals

For professional equipment requiring a compact display with high brightness, capacitive touch, and sharp image output, this module provides a practical platform for embedded system development.

For projects requiring a compact high-brightness touch display with MIPI interface and detailed portrait resolution, this sunlight readable MIPI LCD display offers a strong foundation for custom product integration. Contact us to discuss interface matching, touch customization, and OEM/ODM display support.

Application Scenarios

FAQ

What is the minimum order quantity (MOQ) for custom display modules with specific touch interfaces?

For custom display modules with specific touch interfaces, the minimum order quantity (MOQ) typically starts at 500 to 1000 pieces for standard modifications like cover glass changes or touch sensor adjustments. For fully custom touch interfaces, MOQ may be higher, often 1000 to 3000 pieces, depending on complexity and material sourcing. The exact MOQ for the HS702002B0-TY model should be confirmed directly with Huisoar, as it depends on the specific touch customization required.

What is the minimum order quantity (MOQ) for custom display modules with integrated touch and controller boards?

For custom display modules that integrate both touch and controller boards, MOQ generally ranges from 500 to 2000 pieces, as this involves additional engineering and firmware validation. The exact figure for the HS702002B0-TY should be verified with Huisoar, as it depends on the controller board design and any required interface adaptations.

What is the minimum order quantity (MOQ) for custom-sized automotive-grade displays with capacitive touch, like the 12.3" model shown?

For custom-sized automotive-grade displays with capacitive touch, such as a 12.3-inch model, MOQ typically starts at 1000 to 3000 pieces due to the need for automotive-grade materials, extended temperature testing, and reliability validation. The exact MOQ for any specific model should be confirmed with the manufacturer, as it varies based on panel size, touch integration, and certification requirements.

What are the available interface options (e.g., LVDS, eDP) and connector types for your industrial LCD panels, and do you offer compatible controller boards or driver solutions?

The HS702002B0-TY uses a 40-pin MIPI interface, which is common for high-resolution, high-brightness displays. For other industrial LCD panels, interface options typically include LVDS, eDP, and MIPI, with connector types varying by model. Many manufacturers offer compatible controller boards or driver solutions, but availability for this specific model should be confirmed with Huisoar. For general project guidance, selecting a panel with a standard interface like LVDS or eDP simplifies integration, while MIPI is preferred for compact designs with high pixel density.

Do you offer samples for evaluation before placing a bulk order?

Yes, samples are typically available for evaluation before placing a bulk order. For the HS702002B0-TY, you can request a sample from Huisoar to test its sunlight readability, touch performance, and mechanical fit in your application. Sample lead times and any associated costs should be confirmed directly with the supplier.

Can you compare the power consumption and lifespan of your Mini LED backlight units against standard LED backlights in similar-sized panels?

Mini LED backlight units generally offer higher brightness (up to 2000+ nits) and better contrast through local dimming, but consume more power than standard LED backlights at equivalent brightness levels. Standard LED backlights have a longer lifespan, typically 50,000 to 100,000 hours, while Mini LED may have slightly lower lifespan due to more complex driver circuitry. For the HS702002B0-TY, which uses a standard LED backlight, power consumption and lifespan figures should be requested from Huisoar for precise comparison.

What are the key differences between Tianma, BOE, Innolux, and AUO panels in terms of quality, availability, and cost for industrial use?

Tianma, BOE, Innolux, and AUO are all major LCD panel manufacturers with distinct strengths. Tianma is known for high brightness and rugged designs, BOE for cost-effective high-resolution panels, Innolux for balanced performance and availability, and AUO for premium quality and wide viewing angles. For industrial use, availability and cost can vary by region and volume. The HS702002B0-TY is a Huisoar-branded panel, so direct comparison with these brands should be based on your specific requirements for brightness, interface, and reliability.

Do your automotive displays meet AEC-Q100 qualification standards?

The HS702002B0-TY is not explicitly listed as automotive-grade or AEC-Q100 qualified. For automotive displays, AEC-Q100 qualification is standard for active components, while the display module itself may follow AEC-Q104 or other automotive reliability standards. If you require AEC-Q100 compliance, please confirm with Huisoar whether this model or a variant meets that specification.

Can you provide high brightness displays with 1000+ nits that maintain performance in direct sunlight for outdoor industrial applications?

Yes, the HS702002B0-TY is designed for high brightness with 1500 to 2000 nits, making it suitable for direct sunlight readability in outdoor industrial applications. This brightness level ensures clear visibility even under strong ambient light. For other high-brightness needs, many manufacturers offer 1000+ nits panels with optical bonding to reduce glare. The exact performance of this model in direct sunlight should be validated through sample testing.

What military-grade certifications (e.g., MIL-STD-810) do your rugged displays comply with?

The HS702002B0-TY does not list specific military-grade certifications such as MIL-STD-810. For rugged displays that require MIL-STD-810 compliance, manufacturers typically offer reinforced designs with shock, vibration, and temperature testing. If you need MIL-STD-810 certification, please inquire with Huisoar about customization options or alternative models that meet those standards.
