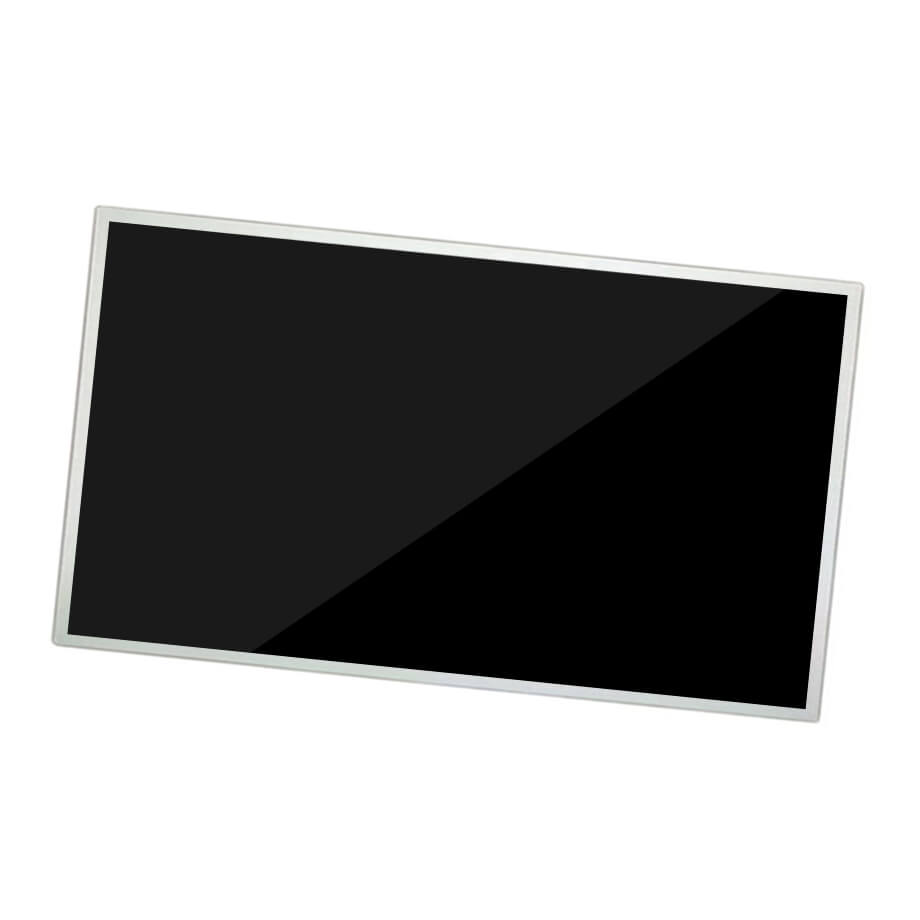

C2150FHF1ME00 21.5″ LVDS Display Module Industrial Control

The TIANMA C2150FHF1ME00 is a practical 21.5-inch FHD industrial LCD module made for control systems and equipment displays that need stable performance day after day. It uses a 1920×1080 resolution (102 PPI) and a normally-black SFT structure, so the image looks clean and consistent, with wide 88° viewing angles (CR≥10) and a symmetrical best-view direction.

For typical indoor industrial environments, 350 nits brightness paired with a 1300:1 contrast ratio gives a clear, readable UI for HMIs, automation panels, and kiosk-style interfaces. The panel also comes with an anti-glare surface (Haze 25%), which helps reduce reflections from ceiling lights and makes text easier to read during long shifts. Motion response is snappy for menus and dashboards too, with a typical 14 ms response time and 60 Hz refresh.

On the integration side, it uses dual-channel 8-bit LVDS with a 30-pin connector and a 5.0V supply. The backlight is WLED (16S4P) rated for 30,000 hours, and it’s provided without a built-in backlight driver, giving OEM/ODM teams flexibility in driver selection. Temperature ratings are 0–60°C operating and -10–60°C storage, matching many standard industrial deployments.
