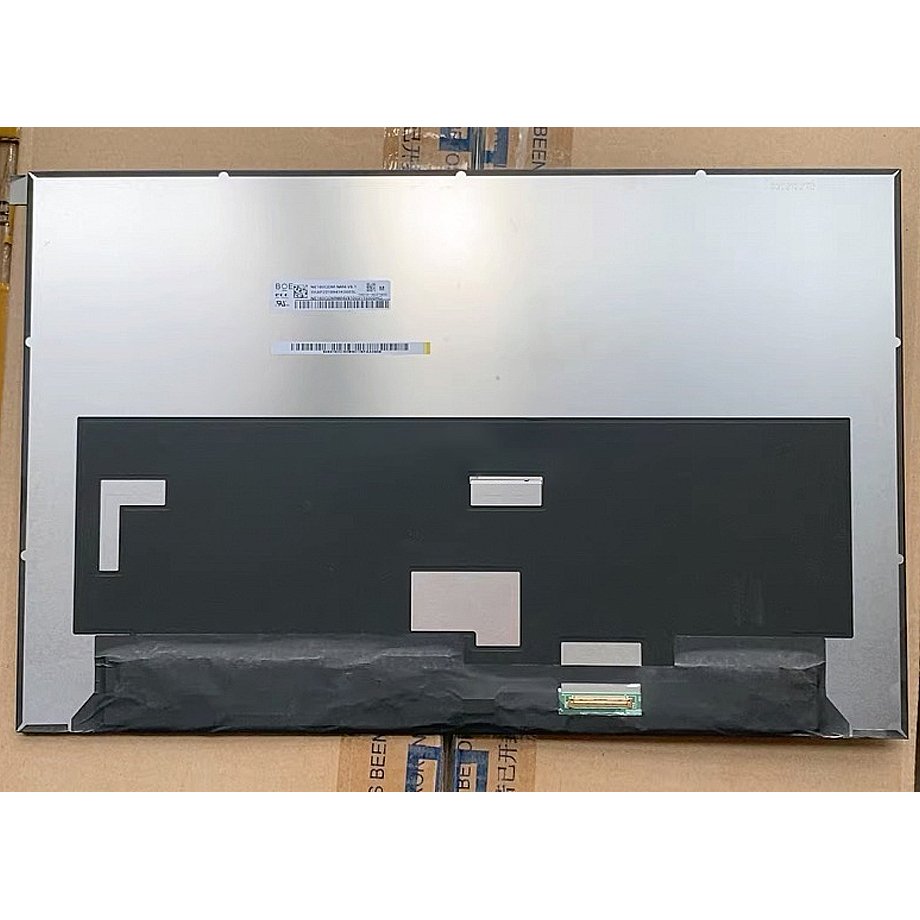

NE160QDM-NM2 16″ 2560×1600 DCI-P3 MiniLED Laptop Screen

Download PDF
Product Gallery
Key Specs

Model P/N

NE160QDM-NM2

Size

16″

Resolution

2560×1600

Brightness

1250 (Typ.)(cd/m²)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Connector Type

eDP (4 Lanes) Connector

Operating Temp

0 ~
50 °C

Overall(mm)

352.6(W)×
223.5(H)×
Request Quote / Datasheet
Upgrade Options (OEM/ODM)
Product Overview

The BOE NE160QDM-NM2 is a premium 16.0-inch WQXGA (2560×1600) laptop display module built for users who care about both sharp detail and punchy brightness. With 188 PPI, a normally-black ADS structure, and wide 89° viewing angles, it keeps text and graphics looking clean from almost any position—ideal for high-end notebooks and gaming laptops.

What makes this panel stand out is its Mini LED backlight with an onboard LED driver, delivering a very bright 1250 nits (typ.) and strong contrast for scenes with lots of highlights and shadows. Color performance is also a big plus: it supports 1.06B colors and targets DCI-P3, which is helpful for creators, HDR-style visuals, and games that benefit from richer color. Integration is straightforward for modern laptop designs thanks to an eDP 4-lane connector and a typical 3.3V supply.

If you’re sourcing a high-brightness 16-inch Mini LED laptop LCD for an OEM/ODM project—especially one focused on gaming or outdoor-leaning usability—this model is a solid candidate, rated for 0–50°C operation and -20–60°C storage.

boe
NE160QDM-NM2
General Features

Brand

boe

Panel Size (inch)

16"

Model P/N

NE160QDM-NM2

Resolution

2560×1600

Brightness (nits)

1250 cd/m² (Typ.)

Viewing Angle

89/89/89/89 (Typ.)(CR≥10)

Contrast Ratio

1200:1 (Typ.) (TM)

Response Time

-

Overall (mm)

352.6(W)×
223.5(H) ×

Active Area (mm)

344.678(W)×215.424(H) mm

Refresh Rate

60Hz

Bezel Opening

-

Display Colors

1.06B DCI-P3

Panel Type

tft-lcd, lcm

Connector Type

eDP (4 Lanes) Connector

Surface Treatment

-

Operating Temp

0 ~
50 °C

Touchscreen Type

no-touch

Storage Temp

-20 ~ 60 °C

Work Mode

ADS, Normally Black, Transmissive

Pixel Format

RGB Vertical Stripe

Backlight Life

Mini LED , 15K hours , With LED Driver

Input Voltage (V)

3.3V (Typ.)

Touch Interface

Vibration Resistance

Weight (g)

385 g(Typ./Max.)

Designed For

gaming / laptops / sunlight-readable-displays
Applications & Value of LCD Panel
Engineering test diagram
  • Fast sourcing with in-stock panels & cross-reference alternatives
  • Stable supply chain with long-term availability
  • Engineering-level support from panel to integration
  • Custom solutions: cable, touch & optical bonding
  • Strict quality control with IQC / OQC / aging test
  • Full traceability system for quality assurance
  • Complete technical documentation & drawings
  • Compliance support: RoHS & certification files
Recommended: Same Size
（16"）
Alternatives
No data was found
FAQ

Can you provide detailed specifications for sunlight readable displays, including typical brightness (nits), contrast ratio, and optical bonding options for outdoor or high-ambient-light use?

For sunlight readability, this model offers 1250 nits brightness and a 1200:1 contrast ratio, which are critical for combating glare. Optical bonding options are not specified in the provided data; availability and specific configurations would need to be confirmed on request for your application's high-ambient-light requirements.

What are the key differences between standard TFT displays and stretched bar LCDs for automotive dashboard applications?

Standard TFTs are typically rectangular. Stretched bar LCDs are ultra-wide, low-height panels designed specifically for automotive dashboards and center consoles. Key differences include form factor, which allows integration into long, narrow spaces, and often enhanced reliability for automotive temperature and vibration. This specific model is a standard rectangular panel designed for laptops, not a stretched bar format.

For industrial HMI panels like the 21.5-inch Tianma models, what are the operating temperature ranges and what certifications (e.g., IP rating, anti-vibration) do they carry?

The provided specifications are for the BOE NE160QDM-NM2 laptop panel. For industrial HMI panels from other manufacturers like Tianma, operating temperature ranges and certifications (IP rating, anti-vibration) are not specified here. Such details are model-specific and must be obtained directly for the relevant product.

For automotive projects, do you support long-term supply, PPAP-like documents, or automotive-grade alternatives?

This NE160QDM-NM2 model is designed for gaming laptops and sunlight-readable displays. Support for long-term supply agreements, PPAP documentation, or automotive-grade alternatives is not specified in the provided information. These are specialized requirements that must be discussed and confirmed based on the specific automotive project needs.

What are the available interface options (e.g., LVDS, eDP) and connector types for your industrial LCD panels, and do you offer compatible controller boards or driver solutions?

Interface and connector details for the NE160QDM-NM2 are not provided in the specs. For industrial panels in general, common interfaces include eDP and LVDS. The availability of compatible controller boards or driver solutions is not specified; this information is available on request for integration planning.

Can you provide datasheet, drawing, and pin definition?

Yes, comprehensive technical documentation including the detailed datasheet, mechanical drawings, and pin definition for the NE160QDM-NM2 is available. Please submit a formal request to receive these essential files for your engineering and procurement evaluation.

What is the typical lead time for custom automotive-grade displays like the 12.3-inch C123HAX04.6 with in-cell touch, and what customization options are available?

Lead times and customization options for the referenced 12.3-inch C123HAX04.6 automotive display are not specified here, as the provided product info is for a different model. For any custom automotive-grade project, lead time and options (like in-cell touch) are highly project-dependent and require direct consultation.

What is the operating and storage temperature range, and are wide-temp options available (e.g., -30~85, -40~85°C)?

The operating temperature (OT) range for this model is 0°C to 50°C. Storage temperature range and availability of extended wide-temperature options (e.g., -30~85°C) are not specified in the provided data. This information is available on request.

If using eDP, what is the expected voltage rail (3.3V/5V) and any sequencing requirements?

The interface type (eDP or other) for the NE160QDM-NM2 is not specified in the provided specs. Therefore, the expected voltage rail (3.3V/5V) and any power sequencing requirements are not defined here. This critical integration detail is available in the full datasheet upon request.

What is your MOQ and sample policy for this model?

The Minimum Order Quantity (MOQ) and sample policy for the NE160QDM-NM2 are not specified in the provided product information. These are standard commercial terms that can be provided upon request based on your project volume and requirements.
