TIANMA C2150FHF1ME01 21.5″ Anti-Glare Panel Industrial HMI
Product Gallery
Key Specs
Model P/N
C2150FHF1ME01
Size
21.5″
Resolution
1920×1080
Brightness
350 (Typ.)(cd/m²)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Connector Type
LVDS (2 ch, 8-bit) 30 pins Connector
Operating Temp
0 ~
60 °C
Overall(mm)
495.6(W)×
292.2(H)×
12.85(D)
Upgrade Options (OEM/ODM)
Product Overview

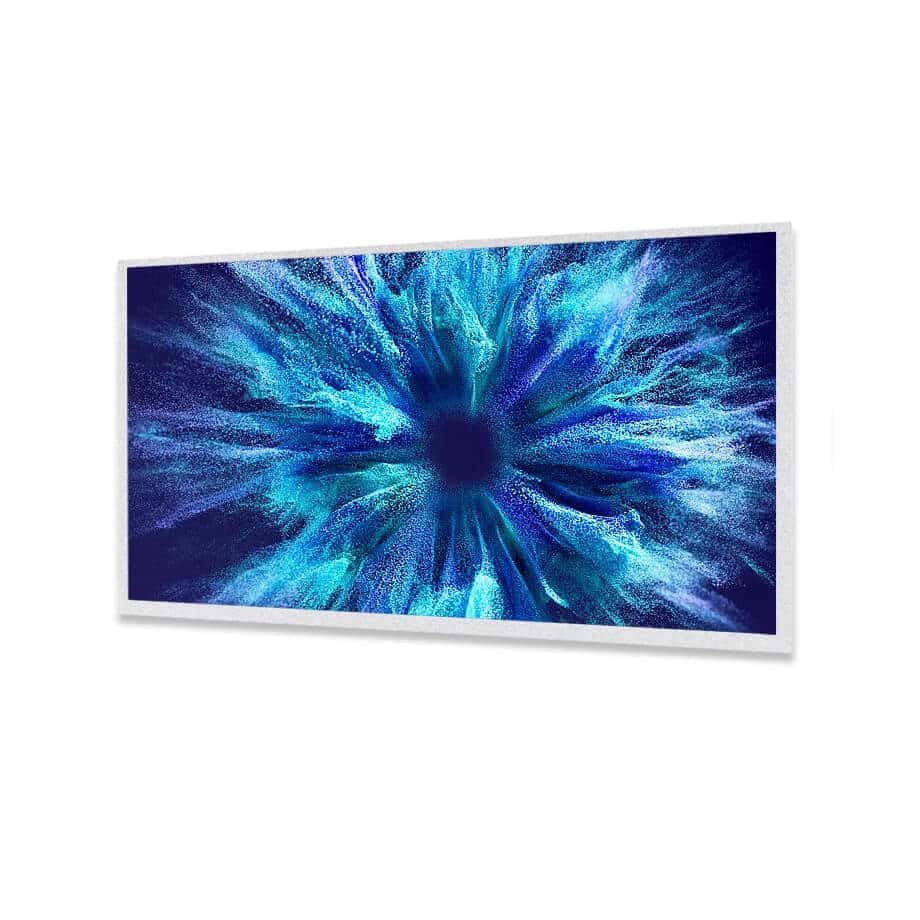

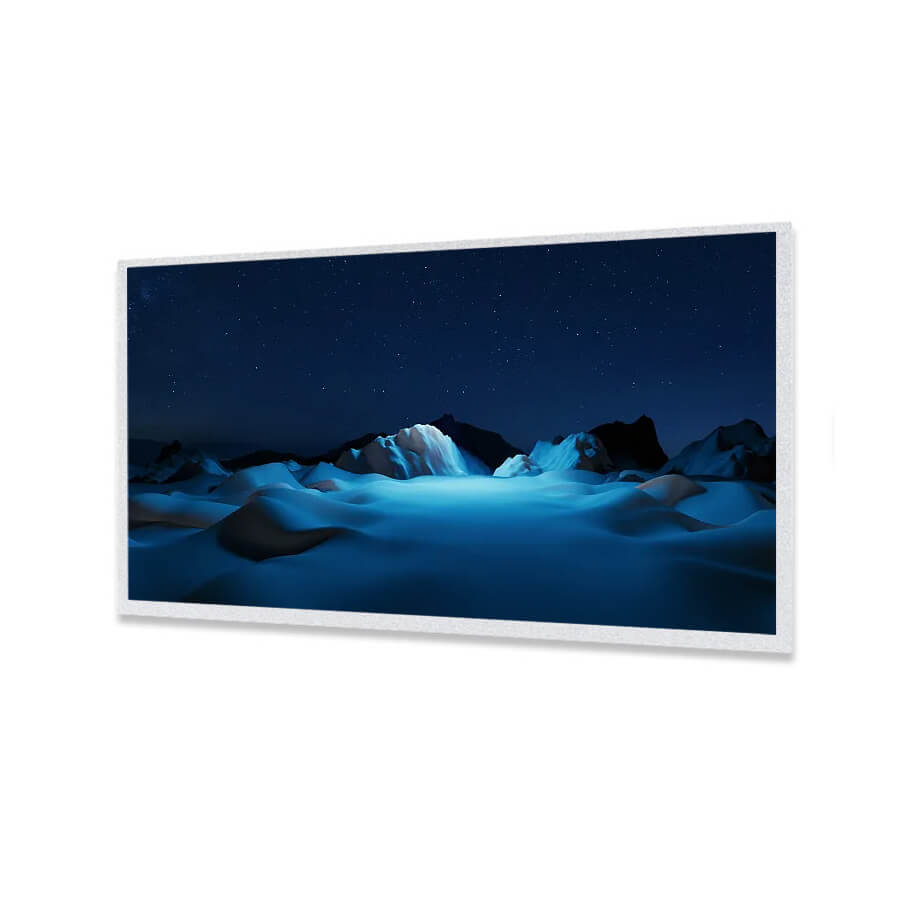

The TIANMA C2150FHF1ME01 is a straightforward 21.5-inch FHD industrial LCD module that’s built for everyday equipment screens—think factory HMIs, control panels, kiosks, and industrial PCs. It uses a 1920×1080 resolution (102 PPI) and a normally-black SFT structure, so the image stays stable and readable. You also get wide 88° viewing angles (CR≥10) with a symmetrical viewing direction, which helps when the screen is mounted at different heights or angles.
In terms of performance, it’s designed for typical indoor industrial environments: 350 nits of brightness, a strong 1500:1 contrast ratio, and 60 Hz refresh for smooth UI movement. The anti-glare surface (Haze 25%) is a practical touch—it reduces reflections and makes text easier to read under overhead lighting. This version is non-touch, which keeps integration simpler if you don’t need touch or you plan to add a separate overlay.
For connectivity, it uses dual-channel 8-bit LVDS with a 30-pin connector, runs on 5.0V, and the backlight is WLED (16S4P) rated for 30,000 hours. It comes without a built-in backlight driver, giving OEM/ODM teams flexibility in choosing their own driver solution. Temperature ratings are 0–60°C operating and -20–60°C storage.
tianma
C2150FHF1ME01
General Features
Brand
tianma
Panel Size (inch)
21.5"
Model P/N
C2150FHF1ME01
Resolution
1920×1080
Brightness (nits)
350 cd/m² (Typ.)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Contrast Ratio
1500:1 (Typ.) (TM)
Response Time
20 (Typ.)(Tr+Td)
Overall (mm)
495.6(W)×
292.2(H) ×
12.85(D) mm
Active Area (mm)
476(W)×267.79(H) mm
Refresh Rate
60Hz
Bezel Opening
479.8(W)×271.21(H) mm
Display Colors
16.7M 72% NTSC
Panel Type
tft-lcd, lcm
Connector Type
LVDS (2 ch, 8-bit) 30 pins Connector
Surface Treatment
Antiglare (Haze 25%)
Operating Temp
0 ~
60 °C
Touchscreen Type
no-touch
Storage Temp
-20 ~ 60 °C
Work Mode
SFT, Normally Black, Transmissive
Pixel Format
RGB Vertical Stripe
Backlight Life
WLED [16S4P] , 30K hours , W/O Driver
Input Voltage (V)
5.0V (Typ.)
Touch Interface
Vibration Resistance
Weight (g)
1680 g(Typ./Max.)
Designed For
industrial-equipment
Applications & Value of LCD Panel
- Fast sourcing with in-stock panels & cross-reference alternatives
- Stable supply chain with long-term availability
- Engineering-level support from panel to integration
- Custom solutions: cable, touch & optical bonding
- Strict quality control with IQC / OQC / aging test
- Full traceability system for quality assurance
- Complete technical documentation & drawings
- Compliance support: RoHS & certification files
Recommended: Same Size
（21.5"）
Alternatives
FAQ
What is the operating and storage temperature range, and are wide-temp options available (e.g., -30~85, -40~85°C)?
For the C2150FHF1ME01, the specified operating temperature (OT) range is 0°C to 60°C. Storage temperature range is not specified in the provided data; available on request. This is a standard industrial temperature model. Tianma does offer wide-temperature panels as part of its broader portfolio, but this specific model is not one. For extended ranges like -30°C to 85°C or -40°C to 85°C, you would need to inquire about alternative part numbers designed for those environmental conditions.
Can you provide detailed specifications for sunlight readable displays, including typical brightness (nits), contrast ratio, and optical bonding options for outdoor or high-ambient-light use?
The C2150FHF1ME01, at 350 nits and a 1500:1 contrast ratio, is designed for standard indoor industrial lighting. It is not specified as a sunlight-readable display. For true sunlight readability, panels typically require 1000+ nits, high-contrast ratios, and advanced optical treatments. Optical bonding is a key option to reduce internal reflection and enhance contrast in high-ambient light. For such specifications, please request details on Tianma's dedicated high-brightness and optically bonded product lines, as this model does not include these features.
What are the available interface options (e.g., LVDS, eDP) and connector types for your industrial LCD panels, and do you offer compatible controller boards or driver solutions?
The specific interface and connector for the C2150FHF1ME01 are not provided in the given specs; available on request. Typically, Tianma's industrial panels in this class support standard interfaces like LVDS or eDP. The company generally offers a range of compatible controller boards and driver IC solutions to facilitate integration. For this exact model, you would need to request the detailed datasheet for pin definition, interface type (e.g., 2-lane LVDS), and connector specifications to source or design the correct driving circuitry.
For industrial HMI panels like the 21.5-inch Tianma models, what are the operating temperature ranges and what certifications (e.g., IP rating, anti-vibration) do they carry?
This specific 21.5-inch model, C2150FHF1ME01, has an operating temperature range of 0°C to 60°C. Regarding certifications such as IP ratings for ingress protection or specific anti-vibration testing, the provided product information does not include these details. Certifications are typically assessed at the system level (the final device enclosure), not just the panel module. For any specific environmental durability claims or module-level testing reports for this part number, please inquire directly, as they are not specified here.
Can you provide datasheet, drawing, and pin definition?
The detailed datasheet, mechanical drawing, and pin definition document for the Tianma C2150FHF1ME01 are not included in the provided summary information. These critical engineering documents are available upon request. They contain all necessary specifications for integration, including interface details, power requirements, timing diagrams, mechanical dimensions, mounting hole patterns, and the complete pinout for the connector. Please request these files for your procurement and design review processes.
Does the panel support eDP 2/4 lanes and what refresh rate is typical (e.g., 60/90/120 Hz)?
The provided specifications for the C2150FHF1ME01 do not list the interface type (LVDS or eDP), lane count, or refresh rate. The typical refresh rate for industrial FHD panels of this size is 60Hz. To confirm whether this model uses an eDP interface (and if so, whether it is 2 or 4 lanes) and its exact refresh rate, you must consult the official datasheet, which is available on request. Do not assume the interface without the technical documentation.
What is the typical lead time and production capacity?
Typical lead time and production capacity are not specified in the product technical data. These are commercial and supply chain details that vary based on order quantity, project timeline, and factory scheduling. For standard industrial panels like this, lead times for sample and volume orders can be provided upon quotation. Tianma has significant manufacturing capacity, but specific availability for this model should be confirmed with the sales team based on your forecast and requirements.
What is the typical lead time for custom automotive-grade displays like the 12.3-inch C123HAX04.6 with in-cell touch, and what customization options are available?
This question references a different, automotive-grade product (C123HAX04.6) not covered by the provided specs for the C2150FHF1ME01 industrial panel. Therefore, lead time and customization options cannot be provided. For any automotive display project, lead times are significantly longer due to rigorous qualification processes. Customization can include cover glass shaping, optical bonding, specific interfaces, and tailored mechanical designs. Please submit a separate inquiry for automotive-grade display specifications and timelines.
What are the key differences between standard TFT displays and stretched bar LCDs for automotive dashboard applications?
This question pertains to automotive dashboard applications, which are outside the scope of the provided industrial HMI panel specs. Generally, key differences are: Form Factor: Stretched bar LCDs have a long, narrow aspect ratio (e.g., 12.3-inch but very wide) designed to fit modern dashboards, unlike standard rectangular displays. Integration: They often require custom driver layouts and flexible PCBs. Performance: Both require high reliability, but automotive grades have stricter temperature, vibration, and longevity standards. The C2150FHF1ME01 is a standard 16:9 format industrial panel, not a stretched automotive display.
What backlight lifetime is expected (e.g., L70) and do you have accelerated life test guidance?
The expected backlight lifetime (e.g., L70, which denotes the time until brightness decays to 70% of initial) is not specified in the provided information for the C2150FHF1ME01; available on request. Industrial panels typically target 50,000 hours or more. Accelerated life test methods and results, which predict long-term performance under stressed conditions, are part of the reliability documentation. To obtain the official lifetime specification and any test guidance for this specific model, you need to request the reliability report or detailed product datasheet from Tianma.
