Industrial-grade 1280 × 800 capacitive touch display module for outdoor HMI, control terminals, and embedded equipment integration
In an outdoor charging kiosk or industrial operator terminal, display readability often becomes the limiting factor for stable operation. This 10.1 inch sunlight readable touch display is designed for environments where standard commercial LCD modules struggle with glare, temperature variation, or unreliable touch response. With 800 nits brightness, ADS wide viewing technology, and a PCAP capacitive touch structure, the module supports embedded system designers looking for a compact industrial display platform with reliable optical performance and LVDS integration flexibility.
Why This 10.1 Inch Sunlight Readable Touch Display Fits Industrial Integration
The module combines a 1280 × 800 pixel resolution with a 10.1 inch display format that balances interface clarity and compact enclosure design. The ADS panel architecture provides stable image visibility across wide viewing angles, which is important for operator interfaces viewed from different installation positions.
Unlike lower-brightness indoor displays, the 800 nits backlight structure improves visibility under strong ambient lighting conditions. This makes the display suitable for semi-outdoor or high-ambient-light deployments such as EV charging interfaces, transportation terminals, smart agriculture controllers, and factory HMI systems.
The display also uses a Normally Black transmissive mode, supporting better contrast consistency and improved image depth compared with many entry-level TN modules.
Optical Performance and Touch Structure

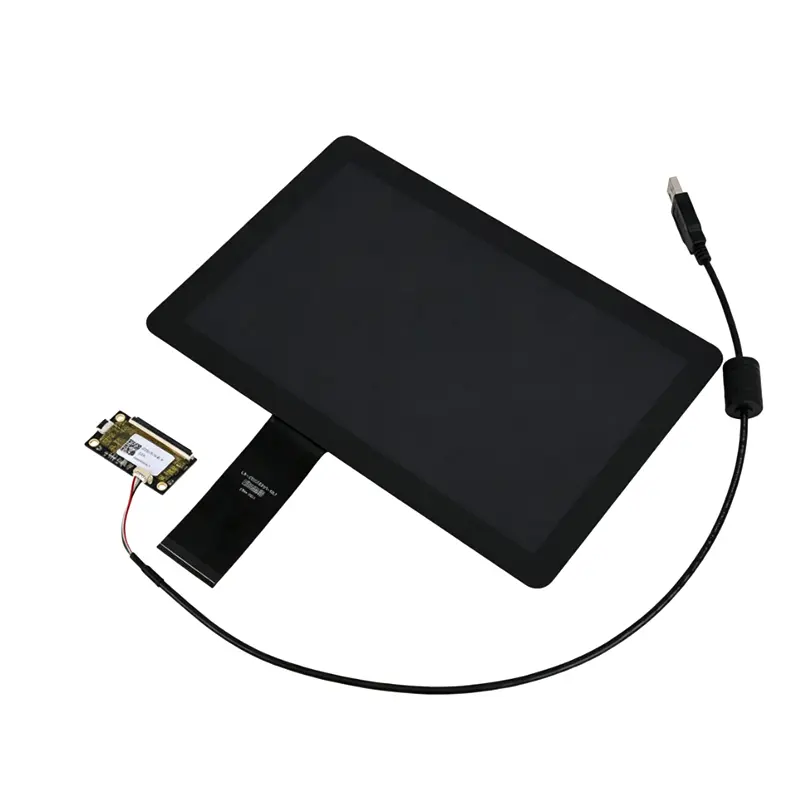

The module integrates a G+G PCAP touch panel with ≥86% transmissivity and ≥6H surface hardness. For industrial equipment manufacturers, this helps improve long-term usability in environments where repeated touch interaction and surface durability are important.
The capacitive touch layer supports USB and I2C communication options, giving developers flexibility depending on controller architecture and embedded platform requirements. The ILI2511 touch IC also supports multi-touch operation with up to 10 touch points.
Because the touch structure is integrated directly with the LCD module, OEMs can reduce secondary integration complexity during enclosure development.
LVDS Architecture for Embedded System Compatibility
One of the strongest engineering advantages of this 10.1 inch sunlight readable touch display is its 40-pin LVDS interface configuration. LVDS remains widely used across industrial embedded systems due to signal stability, EMI resistance, and compatibility with industrial SBCs and controller boards.
LVDS Integration Advantages
Industrial product developers frequently prefer LVDS displays for:
- Industrial controller platforms
- Embedded Linux systems
- ARM-based HMI terminals
- Medical control interfaces
- Transportation display equipment
- Smart manufacturing terminals
The single-channel 8-bit LVDS structure helps maintain integration simplicity while supporting stable image transmission for medium-resolution industrial applications.
The module also operates from a standard 3.3 V interface environment, simplifying power architecture planning during hardware development.
Mechanical Design and Environmental Considerations

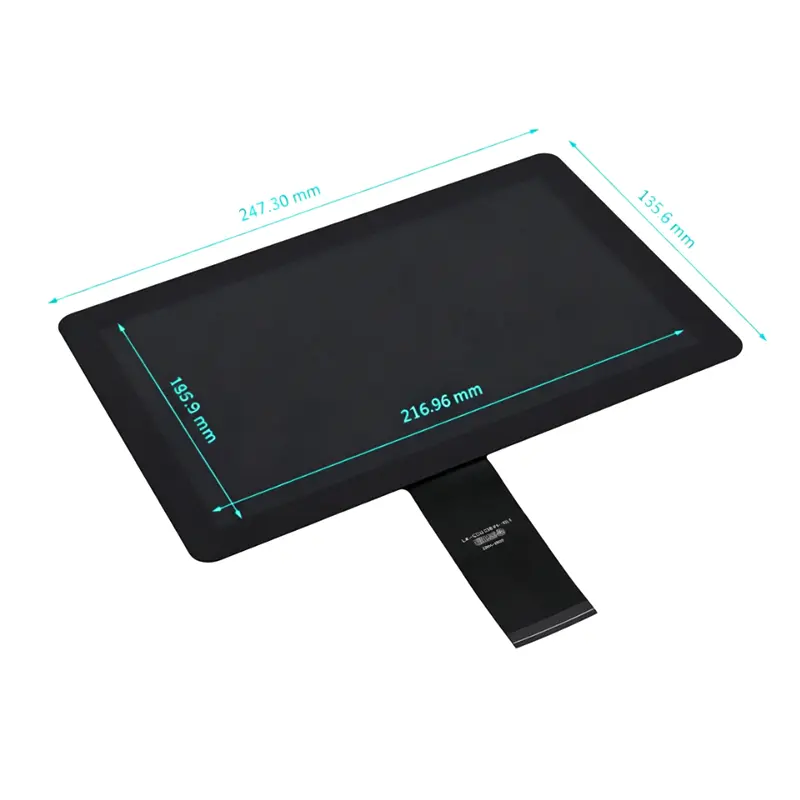

The display’s active area measures 216.96 × 135.6 mm, while the overall outline dimension remains compact at 247.3 × 165.9 × 2.0 mm. This allows easier front-panel integration into compact industrial housings or wall-mounted terminal systems.
Its operating temperature range of -20 to 70°C supports deployment in wider environmental conditions than standard office-grade displays. Storage tolerance up to -30 to 80°C further improves logistics and environmental reliability for industrial procurement projects.
Suitable Application Environments
This 10.1 inch sunlight readable touch display is well suited for:
- Industrial HMI terminals
- Outdoor access control systems
- EV charging interfaces
- Agricultural automation equipment
- Portable diagnostic instruments
- Smart transportation terminals
- Embedded industrial computers
- Retail self-service control panels
The combination of sunlight readability, capacitive touch integration, and industrial temperature capability makes the module especially useful where both optical visibility and operator interaction matter equally.
Procurement and Customization Value
For OEM and industrial integration projects, sourcing a display module often involves more than panel selection alone. This module supports customization-oriented development workflows including touch interface adaptation, brightness tuning, optical treatment coordination, and controller integration support.
The display category shown in the provided source materials also indicates compatibility with broader customized display ecosystems including high-brightness displays, touch display solutions, and industrial controller integration environments.
For B2B procurement teams, this reduces sourcing fragmentation and can simplify long-term product lifecycle planning.
