Portrait-format IPS TFT LCD module with capacitive touch integration for industrial terminals, handheld systems, and embedded Android devices
In compact industrial terminals and vertically oriented operator interfaces, screen layout efficiency often matters more than raw screen size. This 10.1 inch MIPI DSI touch display is designed for portrait-format embedded systems where narrow-width integration, stable touch interaction, and direct MIPI compatibility are important. With an 800 × 1280 IPS TFT structure, projected capacitive touch panel, and integrated MIPI DSI interface, the module supports modern Android-based HMI platforms, industrial handheld equipment, and embedded control systems that require a taller interface layout without increasing enclosure width excessively.
Why This 10.1 Inch MIPI DSI Touch Display Fits Embedded Platforms
Unlike traditional landscape-oriented industrial displays, this module uses a portrait-style 800 × 1280 resolution layout. This vertical configuration improves information stacking efficiency for menu-heavy interfaces, monitoring dashboards, self-service control systems, and handheld industrial devices.
The IPS display structure supports full viewing angle visibility with stable image performance across multiple viewing positions. This is useful for shared-access terminals or equipment where operators interact from different standing positions.
Its 350 nits luminance level is suitable for indoor industrial environments, transportation terminals, medical operator interfaces, and embedded smart devices where balanced brightness and power efficiency are both important.
Portrait HMI Advantages for Industrial Integration
The taller active area of 135.36 × 216.58 mm provides several practical UI advantages:
- Better vertical menu organization
- Easier touchscreen gesture interaction
- Improved readability for control lists
- More efficient portrait Android UI adaptation
- Narrower enclosure width for compact equipment
For developers building Android-based or Linux-based touch terminals, the display orientation can reduce interface redesign effort compared with adapting landscape displays to vertical software layouts.
MIPI DSI Architecture for Modern Embedded Systems
One of the most commercially valuable aspects of this 10.1 inch MIPI DSI touch display is its native MIPI DSI interface structure. MIPI remains widely used across ARM platforms, Android controller boards, mobile-class processors, and compact embedded computing systems.
Benefits of MIPI DSI Integration
Compared with some traditional parallel display interfaces, MIPI DSI helps support:
- Reduced cable complexity
- Lower EMI risk
- Compact PCB routing
- High-speed image transmission
- Better compatibility with mobile-class SoCs
- Efficient embedded hardware layouts
This makes the module especially suitable for developers using RK series processors, Android SBC platforms, industrial tablets, and handheld control systems.
The display uses a 40-pin MIPI connector configuration that aligns with many embedded integration workflows.

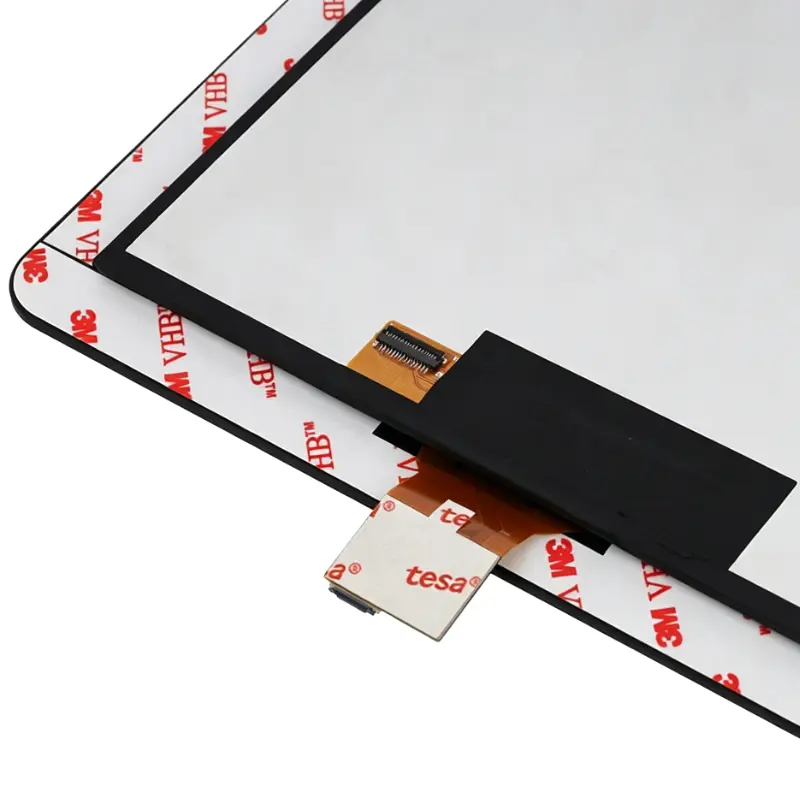

Capacitive Touch Structure and Mechanical Design
The integrated projected capacitive touch panel uses a G+G structure with a GT911 touch controller and I2C touch communication. The touch system supports responsive operation for industrial control applications where repeated user interaction is expected.
Mechanical Integration Value

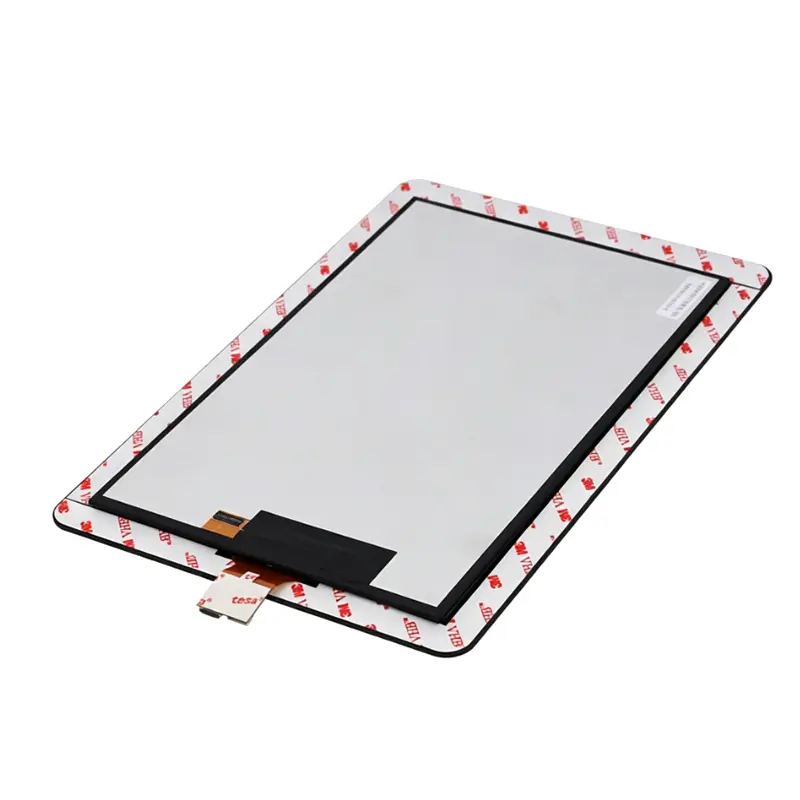

The module outline dimension measures 167.8 × 246.36 × 5.0 mm, while the LCD module itself maintains a relatively slim profile for front-panel embedded installation.
Its surface hardness rating of ≥6H improves durability in touch-intensive environments such as:
- Factory operator terminals
- Industrial handheld systems
- Smart building control panels
- Medical information terminals
- Portable diagnostic equipment
- Transportation information devices
The transmissivity rating of ≥85% also helps preserve display clarity while maintaining touch functionality.
Environmental and Supply Considerations
The operating temperature range of -10 to 60°C supports deployment beyond normal consumer electronics environments. Storage tolerance from -20 to 70°C also improves handling flexibility during transportation and inventory management.
For OEM projects, the module category shown in the provided source materials also indicates broader customization support across touch integration, display interface adaptation, and industrial display solution development.
Common Integration Scenarios
This 10.1 inch MIPI DSI touch display is suitable for:
- Vertical HMI systems
- Android embedded terminals
- Industrial handheld controllers
- Medical operator panels
- Portable monitoring devices
- Smart building interfaces
- Self-service control terminals
- Compact industrial tablets
Its combination of IPS viewing performance, portrait resolution layout, and MIPI compatibility makes it especially useful where enclosure space and UI efficiency must both be optimized.
