Commercial-grade AMVA3 LCD display engineered for transportation signage, retail displays, and high ambient light public communication systems.
46 Inch High Brightness LCD Panel for Commercial Outdoor Displays

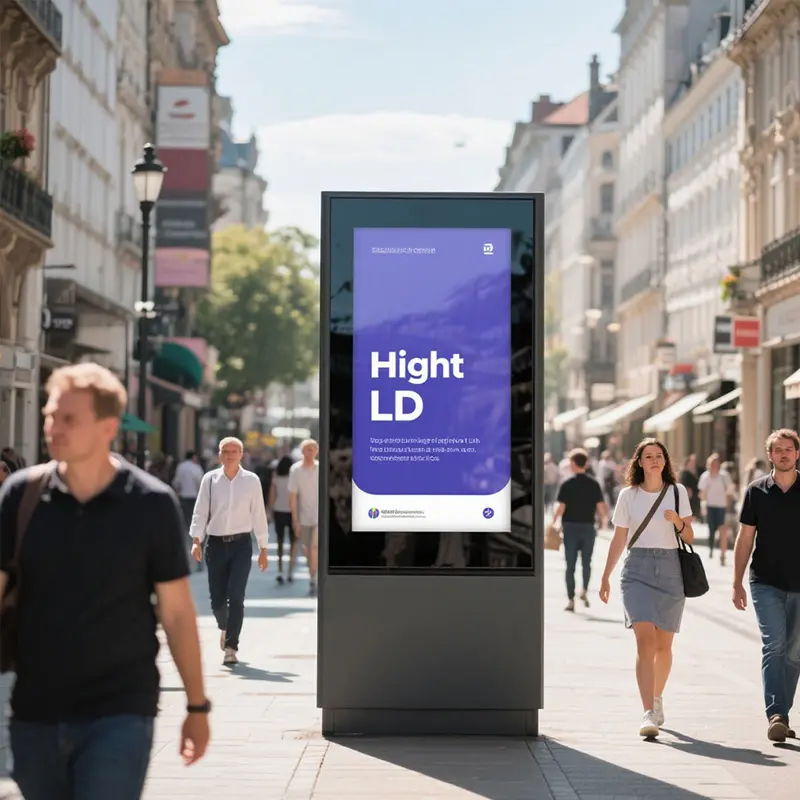

Outdoor Visibility Challenges in Commercial Signage
46 Inch High Brightness LCD Panel products are increasingly deployed in transportation terminals, outdoor retail advertising systems, public information displays, and semi-outdoor communication kiosks where stable readability under strong ambient light is essential. Conventional commercial LCD displays often suffer from insufficient luminance, image washout, and thermal instability when exposed to direct sunlight or changing outdoor lighting conditions.
This industrial-grade AMVA3 LCD panel is engineered specifically for professional signage integrators and OEM display manufacturers that require long-term operational stability together with high brightness image performance. With configurable luminance ranging from 500 to 5000 nits, the panel delivers reliable visibility for demanding public display environments.
Full HD Resolution for Digital Signage Applications
The display uses a native 1920 × 1080 Full HD resolution structure optimized for large-format commercial media systems. The RGB vertical stripe arrangement improves image sharpness and text clarity for transportation guidance systems, menu boards, advertising screens, and public communication terminals.
For commercial signage deployments, Full HD resolution provides several practical advantages:
- Clear rendering of text and graphics
- Stable image sharpness at viewing distance
- Efficient media playback compatibility
- Lower controller complexity compared with 4K systems
- Reduced hardware integration costs
The 47 PPI pixel density is suitable for mid-range and long-distance viewing scenarios commonly found in transportation hubs, retail storefronts, and outdoor kiosks.
High Brightness Performance for Sunlight Environments
One of the key strengths of this panel is its flexible high brightness architecture. Supporting brightness levels from 500 nits up to 5000 nits, the display can be configured according to installation environment requirements.
Lower brightness configurations are appropriate for:
- Indoor retail displays
- Window-facing commercial signage
- Semi-outdoor installations
Higher brightness configurations are designed for:
- Direct sunlight applications
- Outdoor transportation displays
- Public information terminals
- Smart city communication systems
The anti-glare surface treatment with 28% haze helps reduce reflected ambient light, improving readability under difficult lighting conditions. This is particularly important for outdoor signage systems installed near glass storefronts, bus stations, or urban public infrastructure.
AMVA3 Display Technology and Wide Viewing Angles
The AMVA3 normally black display structure improves contrast stability and black depth compared with standard commercial LCD architectures. With a typical contrast ratio of 4000:1, the panel maintains strong image definition even in high ambient light conditions.
The wide 85/85/85/85 viewing angle structure ensures image consistency from multiple directions, making the display suitable for public-facing applications where audiences approach from different positions.
This technology is beneficial for:
- Transit information displays
- Interactive public communication systems
- Outdoor advertising networks
- Retail wayfinding displays
- Quick-service restaurant menu boards
The panel also supports 16.7 million to 1.07 billion colors depending on controller configuration, helping maintain smooth image gradients and accurate media presentation.
Industrial Reliability for Continuous Operation
Commercial outdoor displays require more than brightness alone. Thermal stability and operational reliability are critical for long-term deployment.
This 46-inch panel supports:
- Operating temperatures from -20 to 70°C
- Storage temperatures from -30 to 80°C
- WLED backlight lifetime up to 50,000 hours
The industrial-grade thermal tolerance allows stable operation in both hot and cold environments, supporting year-round outdoor signage deployment.
Optional MEMC motion enhancement up to 240 Hz can also improve dynamic content playback for:
- Video advertising systems
- Transportation announcement displays
- Sports and event information boards
- Digital menu systems
Integration Flexibility for OEM and System Designers
The panel uses an LVDS 51-pin interface supporting 8-bit and 10-bit signal transmission, simplifying integration with commercial media players and industrial controller boards.
OEM customers can integrate the display into:
- Outdoor kiosks
- Smart lockers
- EV charging stations
- Retail advertising enclosures
- Transportation guidance systems
- Smart city infrastructure
The 12V driving voltage structure also supports simplified industrial power architecture for embedded display systems.
Why Choose This 46 Inch High Brightness LCD Panel
Compared with conventional commercial LCD modules, this solution offers:
- Configurable brightness up to 5000 nits
- AMVA3 high-contrast display structure
- Wide industrial temperature range
- Long-life WLED backlight
- LVDS integration compatibility
- Stable outdoor readability
- Commercial signage optimization
For system integrators and digital signage manufacturers, the panel provides a balance between visibility performance, integration flexibility, and long-term deployment reliability.
