A 4K IPS display module engineered for large-format digital signage and commercial information systems.
Large-format public displays face a different challenge than standard commercial screens. At 65 inches, image visibility is influenced not only by resolution but also by brightness, viewing angle performance, environmental adaptability, and integration compatibility. The 65 Inch Outdoorsl High Brightness LCD Panel combines UHD resolution, industrial-grade brightness options, IPS technology, and V-by-One connectivity into a display platform designed for demanding signage and information-display projects.
Why the 65 Inch Outdoorsl High Brightness LCD Panel Fits Large Public Displays
A larger display area increases audience reach, but visibility remains the deciding factor in real-world deployment. This panel combines a 65-inch screen size with native 3840 × 2160 UHD resolution, delivering sharper text rendering, improved graphical detail, and better content presentation than lower-resolution alternatives.
For transportation terminals, shopping centers, exhibition halls, and public information systems, UHD resolution helps maintain content clarity even when viewers are positioned farther away from the display. This capability becomes increasingly important as display sizes grow and content complexity increases.
The 65 Inch Outdoorsl High Brightness LCD Panel therefore offers both scale and image precision for professional installations.
Brightness Series for Different Installation Environments
The industrial series includes multiple brightness configurations to accommodate varying deployment requirements.
| Model Series | Brightness |
|---|---|
| GD20 | 2000 nits |
| GD25 | 2500 nits |
| GD30 | 3000 nits |
| GD35 | 3500 nits |
| GD40 | 4000 nits |
| GD45 | 4500 nits |
| GD50 | 5000 nits |
This flexibility allows OEM manufacturers and system integrators to match brightness levels with actual operating conditions.
Indoor commercial environments may only require lower luminance levels, while storefront displays, transportation hubs, and bright public spaces can benefit from higher-brightness configurations. Instead of over-specifying every project, buyers can select a brightness option aligned with installation requirements and budget targets.
IPS Technology and Optical Performance
Wide Viewing for Public-Facing Displays
Public displays are viewed from multiple directions rather than a single fixed position. This panel uses IPS technology and provides 89-degree viewing angles in all directions, helping preserve image consistency across large viewing areas.
The panel also supports:
- 1.07 billion display colors
- 68% NTSC color coverage
- 1100:1 typical contrast ratio
- Matte surface treatment with 28% haze
These specifications contribute to more consistent image presentation in environments where users approach the display from different angles.
Surface Treatment for Bright Environments
The matte surface and integrated 2H hard coating help reduce reflections while improving front-surface durability. In commercial spaces with strong ambient lighting, glare reduction can significantly improve readability and user experience.
Integration Advantages for OEM and ODM Projects
The 65 Inch Outdoorsl High Brightness LCD Panel is designed as an LCD module rather than a finished monitor, making it suitable for custom equipment development.
Key engineering parameters include:
- Display area: 1428.48 × 803.52 mm
- Viewable area: 1433.4 × 808.6 mm
- Driving voltage: 12.0 V
- V-by-One 8-lane signal interface
- 51-pin terminal connection
These specifications help engineers plan enclosure dimensions, thermal architecture, mounting structures, and controller-board selection during product development.
Motion Performance for Dynamic Content
Many signage systems now display video content, advertising campaigns, transportation updates, and interactive media.
The panel supports:
- 60Hz standard operation
- 120Hz MEMC enhancement
- 120Hz panel + 120Hz backlight operation
- 240Hz mode from 60Hz input
These refresh configurations allow smoother motion rendering for applications that require more than static content presentation.
Procurement Value and Long-Term Reliability
Display procurement should consider long-term operational costs as well as headline specifications.
The 65 Inch Outdoorsl High Brightness LCD Panel incorporates a WLED backlight system rated for 50,000 hours. Longer backlight life can help reduce maintenance frequency and improve overall system availability.
The panel also supports operating temperatures from -20°C to 70°C, enabling deployment in a wider range of commercial and semi-outdoor environments.
For procurement teams, the combination of UHD resolution, IPS viewing performance, high-brightness options, commercial interfaces, and long service life creates a display platform that supports long-term deployment strategies rather than short-term installation goals.

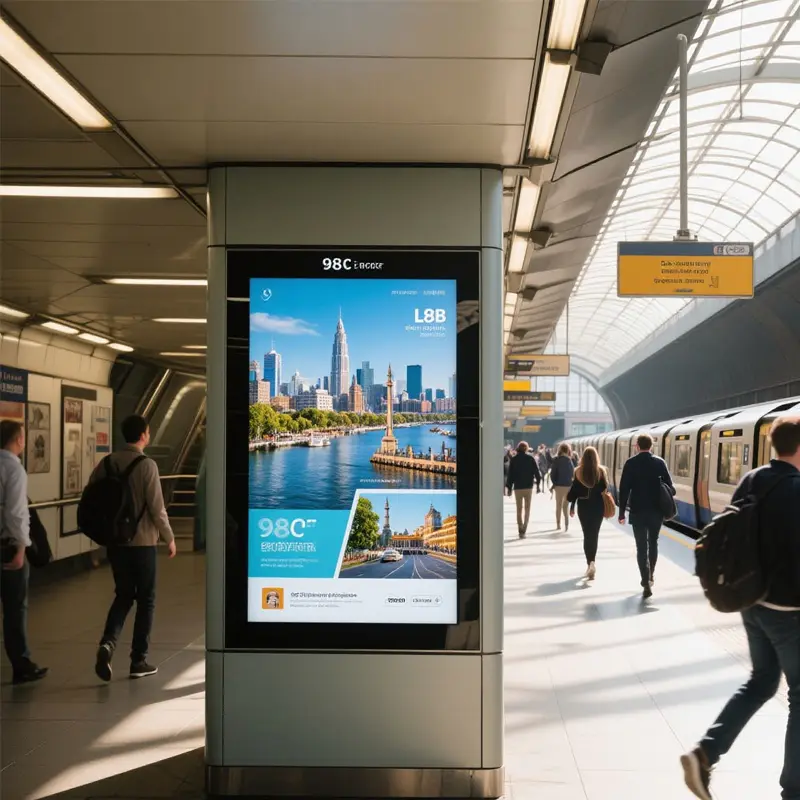

Typical applications include:
- Digital signage networks
- Passenger information systems
- Airport displays
- Railway and metro stations
- Retail advertising screens
- Shopping mall directories
- Exhibition and event displays
- Commercial information boards
