Designed for embedded equipment requiring stable visibility, compact integration, and industrial temperature performance

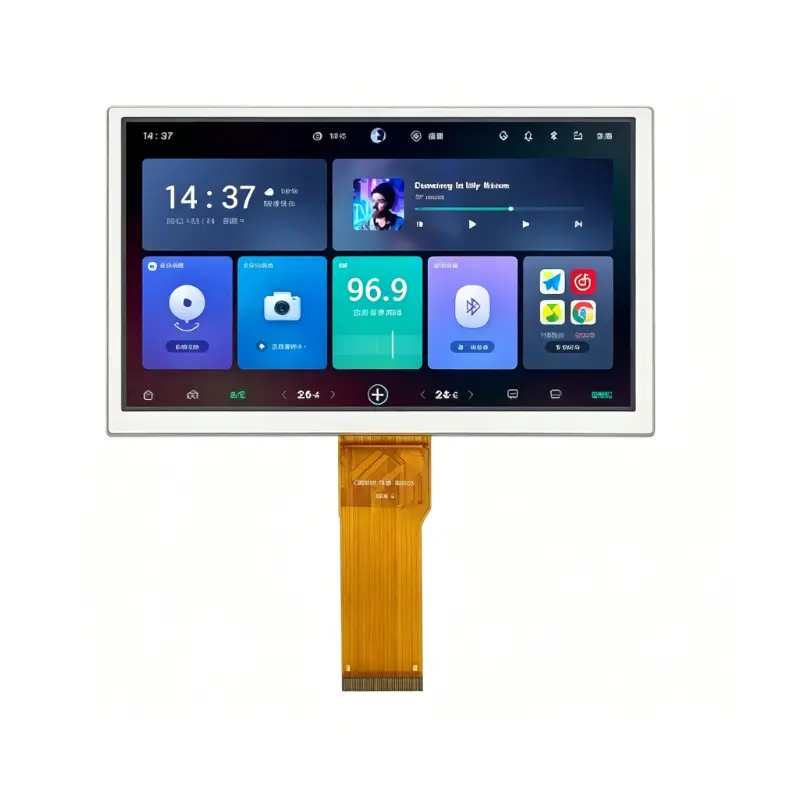

In industrial equipment development, display selection often becomes a balance between visibility, interface compatibility, mechanical size, and environmental reliability. This 7 Inch IPS LCD Display is designed for engineers and equipment manufacturers that need a compact display module capable of maintaining readability in bright environments while remaining easy to integrate into embedded platforms. With 1024 × 600 resolution, 800 nits brightness, IPS viewing technology, and a CPU/RGB interface, it provides a practical solution for industrial control systems, vehicle electronics, medical equipment, and embedded HMI projects.
Visibility and Optical Performance for Demanding Environments
One of the primary strengths of this display module is its optical performance. The 800 nits brightness level offers a significant advantage over standard indoor display modules, helping operators view critical information in environments with strong ambient light. Production workshops, transportation systems, and industrial machinery frequently expose displays to varying lighting conditions, making brightness an important procurement consideration.
The IPS panel structure further improves usability by providing viewing angles of 85° in all directions. Unlike narrower-angle technologies, IPS technology maintains more consistent color and contrast when viewed from different positions. This characteristic is especially valuable in shared operator environments where multiple users may observe the screen simultaneously.
With support for 16.7 million colors and a typical contrast ratio of 800:1, the 7 Inch IPS LCD Display can present interface graphics, monitoring data, and operational controls with good clarity and color consistency.
Why Choose a 7 Inch IPS LCD Display for Embedded Equipment?
Display integration is often constrained by enclosure size and system architecture. The 7-inch format remains one of the most widely adopted sizes for industrial and embedded applications because it balances screen visibility with installation flexibility.
The active display area measures 154.21 × 85.92 mm while the overall module dimensions are 164.9 × 100 × 3.5 mm. This compact profile allows the module to fit into control panels, portable terminals, vehicle-mounted equipment, and medical instruments where installation space is limited.
The RGB stripe pixel arrangement supports sharp rendering of text, icons, and graphical user interfaces. For applications that require frequent operator interaction through external buttons or controllers rather than touch functionality, the non-touch structure can simplify system design and reduce integration costs.
Mature RGB Interface Architecture
Interface selection remains a critical factor during display evaluation. This module utilizes a CPU/RGB interface with a 24-bit RGB signal structure and a 50-pin connection design.
For many industrial control platforms and legacy embedded systems, RGB remains a proven and widely supported interface standard. Development teams can often integrate RGB displays more easily into existing hardware architectures without requiring complex signal conversion solutions.
The mature interface ecosystem also helps reduce engineering risk during product development. Whether the application involves industrial controllers, transportation systems, or specialized monitoring equipment, the 7 Inch IPS LCD Display offers a familiar integration path for hardware designers.
Industrial Temperature Capability and Reliability
Environmental performance frequently determines whether a display is suitable for field deployment. This module supports an operating temperature range from -20°C to 70°C and a storage temperature range from -30°C to 80°C.
These specifications make the display suitable for applications exposed to seasonal temperature variations, enclosed equipment cabinets, and transportation environments. While operating conditions should always be evaluated within the complete system design, the temperature specifications provide greater deployment flexibility compared with many consumer-oriented display modules.
The WLED backlight structure further supports stable operation while maintaining brightness consistency. Combined with the IPS optical architecture, this design helps create a display platform suitable for long-term equipment integration.
Application Value Across Multiple Industries
The specification profile aligns well with several commercial and industrial applications.
For industrial automation systems, the display can serve as an operator interface for machinery control, process monitoring, and production management equipment.

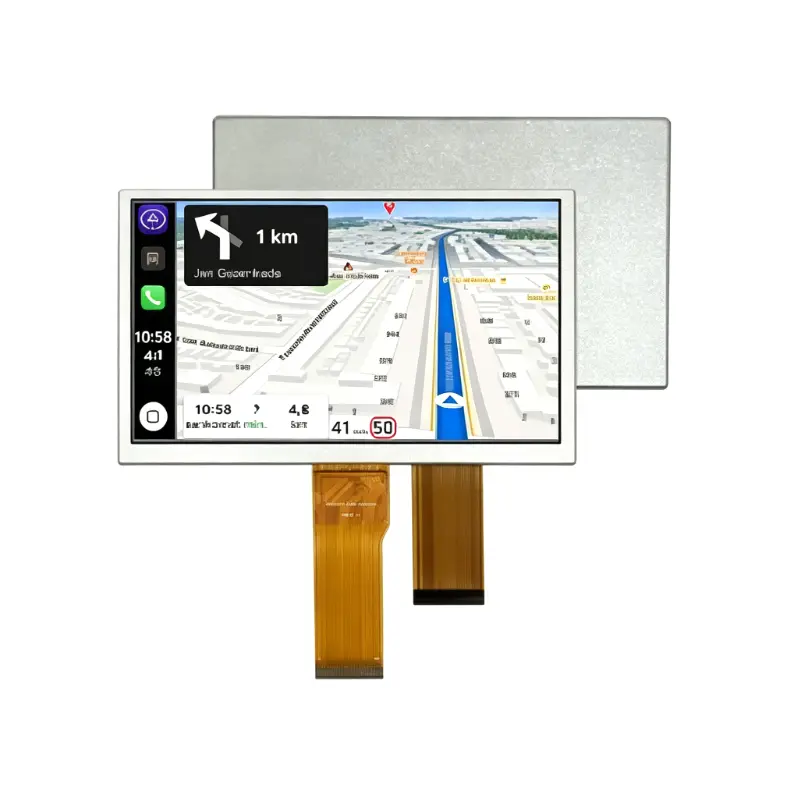

For vehicle electronics, the combination of IPS viewing performance, 800 nits brightness, and wide temperature capability supports dashboard displays, fleet-management terminals, and transportation monitoring systems.
Medical equipment manufacturers can also benefit from the compact dimensions and stable image quality when designing diagnostic instruments, portable devices, or healthcare information terminals.
Embedded HMI systems represent another strong application area. The 7 Inch IPS LCD Display provides the visibility, interface compatibility, and installation flexibility required for many custom control solutions.
From a procurement perspective, the value of this module comes from the combination of industrial brightness, IPS viewing performance, compact mechanical dimensions, RGB interface compatibility, and environmental adaptability. Rather than focusing on a single specification, buyers gain a balanced display platform suitable for long-term equipment development and integration projects.
