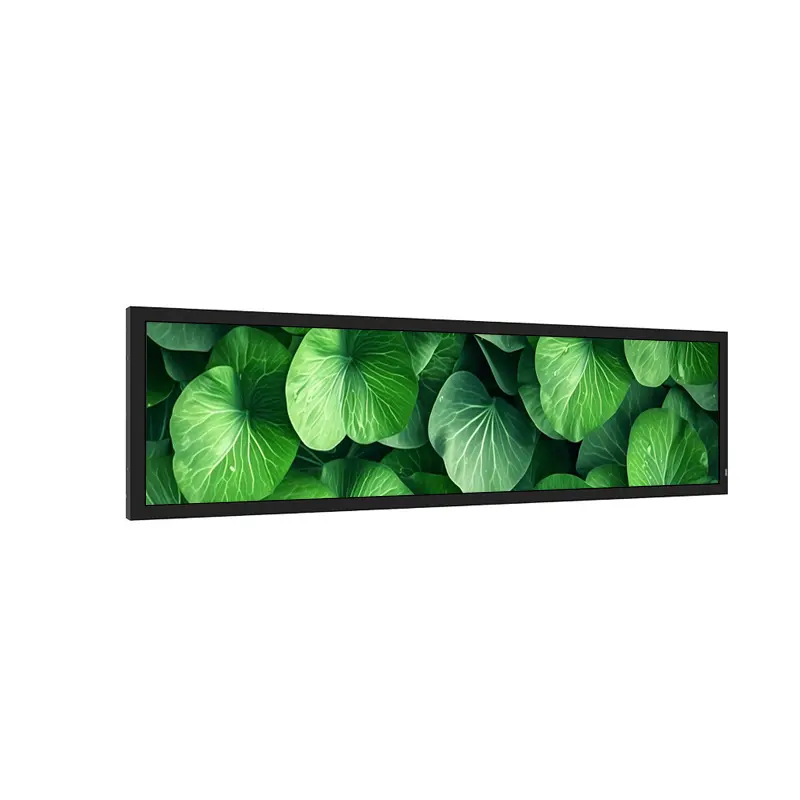

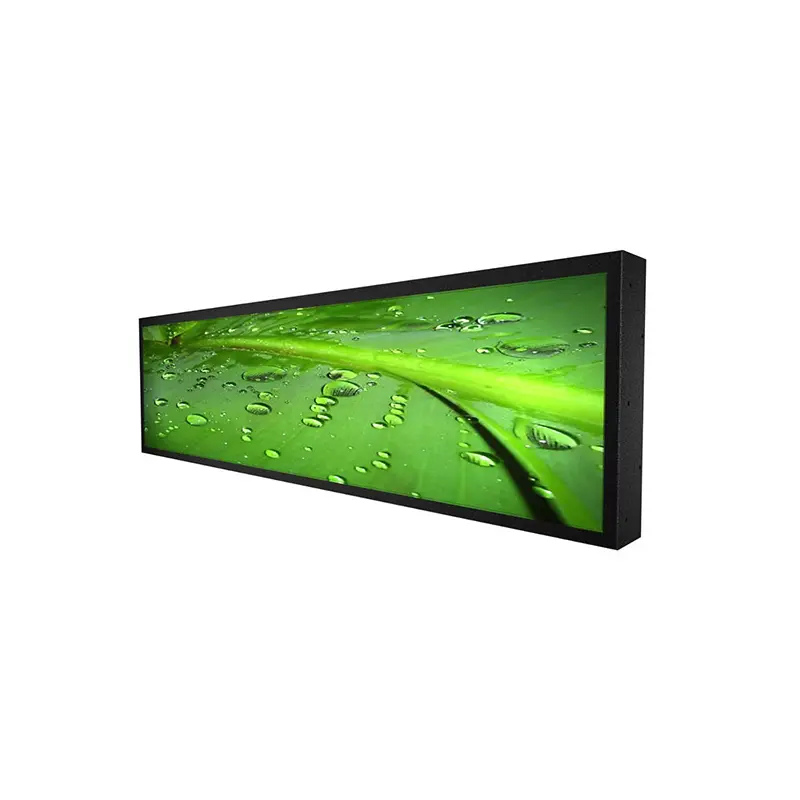

42 Inch Sunlight Readable LCD Display 4:1 for Outdoor Transit Signage

4:1 High-Brightness Stretch Bar Display with HDMI/USB Input, DC12V Power, and VESA Mounting for Public Information Systems

A 42 Inch Sunlight Readable LCD Display gives signage builders a long 4:1 canvas for information that must remain visible in bright public environments. This stretch bar display combines 1920×480 resolution, 500–5000 nits brightness customization, 4000:1 contrast, 178° horizontal and vertical viewing, HDMI/USB input, DC12V 2A power, and VESA 700 × 200 mm mounting. It is designed for passenger information, advertising, EV charging, fuel dispenser, retail window, smart-city, and industrial visibility projects where ordinary indoor screens may not provide enough readability.

At a Glance: 42-Inch 4:1 Stretch Signage Highlights

• 42-inch stretch bar format for route boards, timetable screens, public notices, and advertising strips.
• 1920(RGB) × 480 resolution with 46 PPI for long horizontal content.
• 4:1 aspect ratio helps reduce wasted display area in narrow mounting spaces.
• 500–5000 nits brightness range supports indoor, semi-outdoor, and sunlight-facing projects.
• 4000:1 contrast and 178° viewing support public readability from multiple angles.
• HDMI and USB input simplify signage playback compared with raw panel-only integration.
• DC12V 2A input and VESA 700 × 200 mm mounting support structured installation planning.

Product Overview of the 42 Inch Sunlight Readable LCD Display

The 42 Inch Sunlight Readable LCD Display is built for projects where visibility and layout efficiency matter at the same time. In transit stations, retail storefronts, EV charging areas, gas stations, public corridors, and building entrances, content is often better presented as a long strip rather than a conventional 16:9 screen. A 4:1 display lets designers show route names, timing information, queue guidance, promotional banners, ticker messages, and public notices in a cleaner horizontal format.

The 1920×480 resolution gives system integrators a practical canvas for text-heavy signage. Instead of compressing multiple information blocks into a standard rectangular screen, the stretched layout can carry one continuous line of high-priority content or several organized zones. The supplied display area of 1039.68 × 259.92 mm is also useful for cabinet design, visible-window planning, and content-safe area review.

Optical performance is a major selection point. The supplied specifications list 500–5000 nits brightness, with 2500 cd/m² shown in the summary table, plus 4000:1 contrast, 178° viewing, 16.7M colors, and 99% sRGB color saturation. For buyers, the key decision is not only maximum brightness but matching luminance to the real installation: indoor halls, window-facing storefronts, covered platforms, and direct-sunlight areas need different brightness, heat, and front-glass strategies.

Key Features of the 42 Inch Sunlight Readable LCD Display

Technical Specifications of the 42-Inch 4:1 Stretch Display

These confirmed values indicate a signage-ready stretch display rather than a bare panel-only module. For procurement, confirm the actual brightness configuration, media playback method, HDMI resolution/timing support, USB function, cable exit, enclosure material, front protection, and mounting drawing before sample approval.

Why Choose This 42-Inch 4:1 Display for Outdoor Signage?

This display is strongest where a standard rectangular screen wastes space. The 4:1 shape is suited to long visual messages and narrow mounting zones.

1920×480 Format for Route Boards and Message Strips

The 1920×480 canvas is well suited to bus, metro, light-rail, airport, and smart-city information. It can show route names, platform guidance, countdown timers, weather/news tickers, community notices, and promotional content without forcing a tall enclosure.

Brightness Range for Sunlight-Readable Planning

The 500–5000 nits range allows buyers to specify brightness according to installation exposure. A retail window may require higher luminance than an indoor corridor, while a covered station platform may need a balance between readability, heat, and power consumption. The listed 2500 cd/m² configuration is a useful high-brightness reference, but final brightness should be selected by site conditions.

Wide Viewing for Public Spaces

Public signage is read by moving audiences. The 178° horizontal and vertical viewing specification supports off-axis readability, which is important for platforms, entrances, EV charging stations, gas pumps, and store windows where viewers rarely stand perfectly centered.

HDMI/USB Input, DC12V Power, and VESA Mounting

The integration profile is a key reason to choose this display for signage systems. HDMI and USB input reduce the need to design around raw LCD signaling, making the product more suitable for media-driven displays, advertising boards, and public information systems.

HDMI and USB for Media-Based Signage

HDMI input can support standard signage players, controllers, or embedded computers. USB may support media input or project-specific playback functions, depending on configuration. Buyers should confirm file playback behavior, supported formats, update workflow, and whether a separate media player is required.

DC12V 2A Power Baseline

The DC12V, 2A power specification gives electrical designers a clear starting point. Final power planning should still consider brightness level, media electronics, thermal load, cable length, and the complete system design inside the enclosure.

VESA 700 × 200 mm Mounting

The VESA 700 × 200 mm pattern supports wall, bracket, and cabinet integration. Before production, verify mounting-hole location, load distribution, service access, cable exit direction, and whether the final installation needs shock, vibration, weather, or tamper protection.

Recommended Applications for High-Visibility 42-Inch Signage

This display is suitable for environments where long horizontal content must stay readable under strong ambient light.

Transportation Systems and Passenger Information

Bus, metro, and light-rail timetable screens benefit from the stretched format because routes and time data can be displayed in a clear horizontal line. Platform guidance and service notices can also use the 4:1 format efficiently.

Outdoor and Window-Facing Digital Signage

Retail storefronts, shopping center displays, building entrances, and advertising boards can use the high-brightness range and wide viewing angle to improve visibility in bright environments. Confirm glare, glass reflection, and cabinet cooling for window-facing use.

EV Charging, Fuel Dispenser, and Industrial Displays

EV charging stations, fuel dispenser displays, and industrial control panels often require compact but highly visible information screens. This display’s HDMI/USB input, DC12V power, and VESA mounting make it practical for integrated commercial equipment.

Smart City and Public Information Boards

Community information boards, weather tickers, news strips, wayfinding systems, and public-service signage can use the 42-inch format for continuous information delivery in narrow installation zones.

Customization Options for 42-Inch Sunlight Readable Display Projects

Project evaluation can include brightness target selection, cover glass, anti-glare or anti-reflective front treatment, optical bonding review, enclosure adaptation, HDMI/USB media workflow, mounting bracket design, VESA structure review, thermal design, cable routing, packaging, sample validation, and application-specific signage support.

Procurement and Engineering Checklist for 42-Inch Display Selection

• Confirm whether the 4:1 aspect ratio matches your route, timetable, banner, or ticker content.
• Select the correct brightness target from the 500–5000 nits range based on actual site exposure.
• Verify whether the project uses HDMI input, USB playback, or a separate media player.
• Confirm DC12V 2A power compatibility and total system power budget.
• Match the 1073.6 × 298.6 × 58.06 mm size to the enclosure and front window.
• Validate VESA 700 × 200 mm mounting, bracket strength, and service access.
• Review cover glass, glare control, heat dissipation, and weather protection if used outdoors.
• Test content readability, color, brightness, and thermal behavior before bulk production.
