Compact IPS LCD module for HMI, vehicle, security, and medical equipment integration.
Compact industrial equipment often needs a display that is small enough for embedded installation but still clear enough for operators to read quickly. The 7 Inch IPS TFT LCD Module is designed for this type of requirement, combining 1024 × 600 resolution, 650 cd/m² brightness, IPS viewing performance, and a 40-pin LVDS interface. For engineering teams building HMI panels, security terminals, navigation devices, agricultural machinery dashboards, or medical equipment, this module offers a practical balance of readability, integration stability, and wide-temperature reliability.

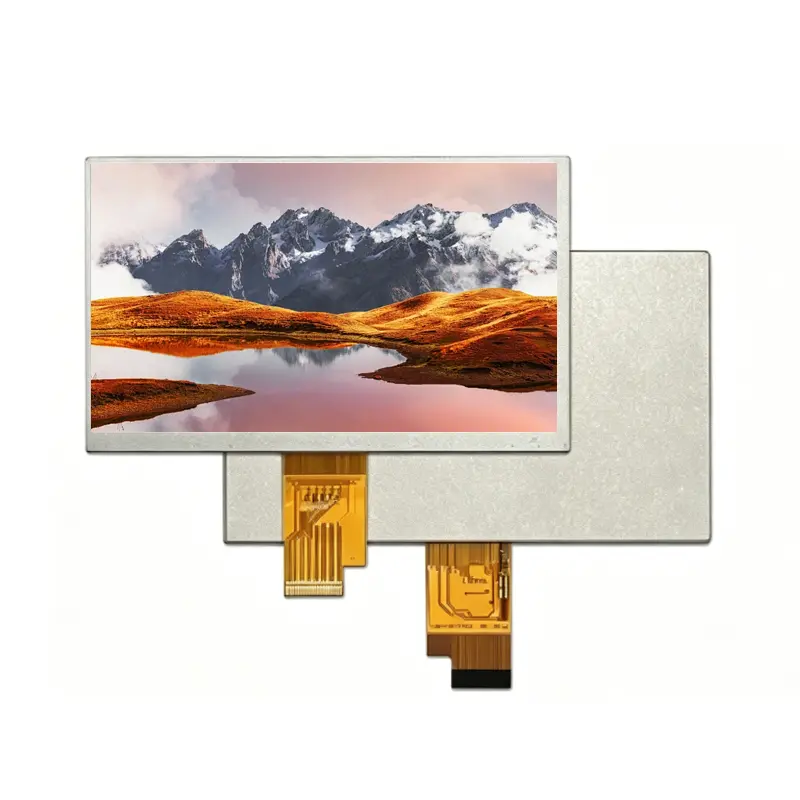

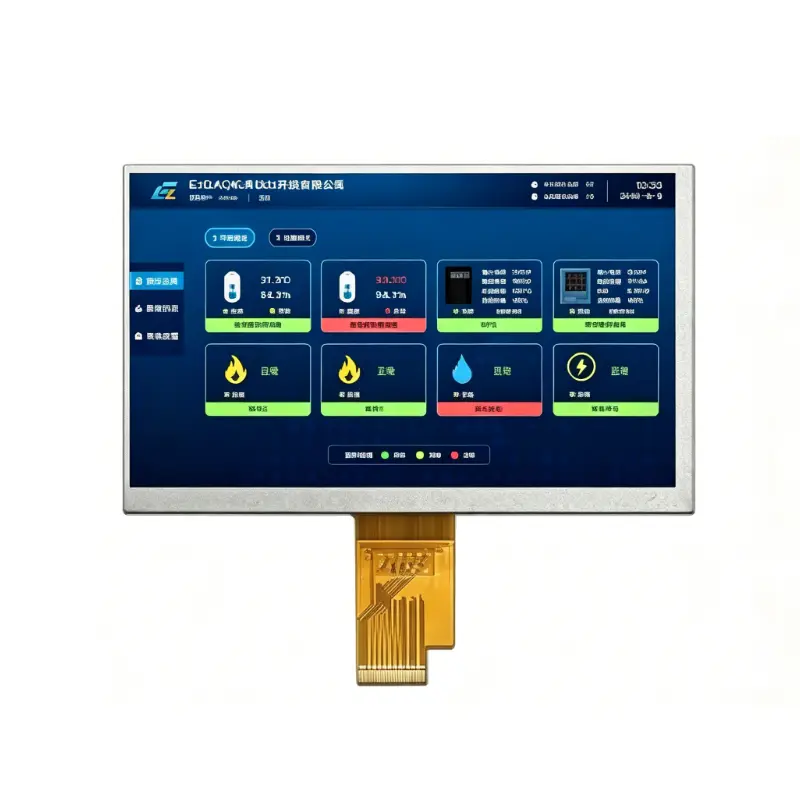

7 Inch IPS TFT LCD Module for Compact Industrial Interfaces
A 7-inch display size is widely used in equipment where space is limited but visual information still needs to be presented clearly. The 1024 × 600 resolution gives the module enough pixel structure for menus, icons, warning prompts, status data, and graphical user interfaces. Compared with lower-resolution compact screens, this format allows more information to fit into the display area without making the interface feel crowded.
The 7 Inch IPS TFT LCD Module also provides 650 cd/m² typical brightness. This brightness level is useful for indoor industrial equipment, enclosed vehicle systems, control cabinets, and moderate ambient-light environments. It is not positioned as an extreme sunlight-readable panel, but it offers stronger visibility than many low-brightness standard modules.
IPS Viewing Performance for Operator Readability
Industrial displays are often viewed from different positions. Operators may stand beside a machine, sit at an angle in a vehicle, or check a panel while moving around equipment. IPS technology helps reduce color shift and contrast loss when the display is not viewed directly from the center.
This module supports 80° viewing angles in all four directions. For HMI systems and monitoring interfaces, that viewing stability helps operators read screen information more consistently. The 16.7M color capability and 1000:1 typical contrast ratio also support clearer UI elements, data visualization, and status indicators.
The 7 Inch IPS TFT LCD Module is especially relevant for applications where several users may view the same screen from different angles. Examples include security equipment, factory panels, vehicle-mounted displays, and medical support terminals.
LVDS Interface for Embedded System Integration
A display module must match the electrical requirements of the host system. This product uses an LVDS 8-bit signal interface with a 40-pin configuration. LVDS is widely used in embedded and industrial display systems because it supports stable image transmission and is suitable for many controller-board designs.
For OEM and ODM projects, the LVDS interface gives engineers a familiar integration path. It supports system development where display reliability, signal stability, and cable planning are important. The 40-pin structure also provides a clear basis for connector matching during hardware design.
Mechanical integration is equally important. The module has a 164.9 mm × 100 mm × 5.56 mm mechanical dimension and a 154.21 mm × 85.92 mm active area. These dimensions help engineers evaluate front-panel openings, bezel structure, enclosure depth, cable routing, and mounting space before finalizing product design.
Wide-Temperature Value for Demanding Equipment
Many compact industrial displays are installed in environments that are less controlled than office or consumer electronics settings. This module supports an operating temperature range from -30°C to 80°C and a storage temperature range from -30°C to 85°C. That wide-temperature capability is a strong selection factor for equipment used in transportation, agriculture, outdoor-facing cabinets, industrial sites, and field instruments.
For procurement teams, temperature range can reduce project risk. A display with broader environmental tolerance is less likely to become the limiting component in harsh or variable working conditions. This is especially important when the display is part of equipment expected to operate for long periods or across seasonal temperature changes.
No-Touch Design for Display-Focused Applications
This model is specified without touch functionality. That makes it suitable for systems where the display is used mainly for information output rather than direct touch interaction. Examples include dashboards, instrument displays, monitoring panels, marine navigation screens, and embedded control systems using external buttons, knobs, or host-side controls.
A no-touch design may also simplify the front structure in certain applications. Product teams can use protective cover glass, sealed windows, or custom bezels without needing to account for touch controller integration. For buyers who need touch capability, a different module or customized touch bonding solution should be evaluated separately.
Application and Procurement Fit
The 7 Inch IPS TFT LCD Module fits projects that need a compact display with stable image quality, LVDS compatibility, and reliable temperature performance. It is suitable for industrial HMI systems, security display terminals, agricultural machinery panels, vehicle-mounted equipment, portable instruments, medical equipment interfaces, and marine navigation-related displays.
For procurement decision-making, the key value is the complete combination of specifications. The module offers 1024 × 600 resolution, 650 cd/m² brightness, IPS wide viewing, 1000:1 contrast ratio, LVDS 8-bit signaling, WLED backlight, and wide-temperature operation. This makes it a strong candidate for embedded products that need dependable visual output rather than consumer-style multimedia features.
Before selection, buyers should confirm the LVDS timing, backlight driving requirements, connector definition, mechanical tolerance, cover-lens requirement, and expected operating environment. Matching these details early can reduce redesign risk and speed up product development.
