75 Inch Waterproof Digital Signage Monitor for 4K Outdoor Networks IP66
Model P/N
Size
Resolution
Brightness
Viewing Angle
Connector Type
Operating Temp
Overall(mm)
huisoar
HS750ENT-GD40
Brand
Panel Size (inch)
Model P/N
Resolution
Brightness (nits)
Viewing Angle
Contrast Ratio
Response Time
Overall (mm)
Active Area (mm)
Refresh Rate
Bezel Opening
Display Colors
Panel Type
Connector Type
Surface Treatment
Operating Temp
Touchscreen Type
Storage Temp
Work Mode
Pixel Format
Input Voltage (V)
Weight (g)
Designed For
Sealed 2500–5000 Nits UHD Outdoor Display for Public Signage, Transportation, Retail, and Smart City Screens
A 75 Inch Waterproof Digital Signage Monitor is a large-format outdoor display for public signage networks that need 4K clarity, high-brightness visibility, sealed protection, and long-service operation. This model combines 3840 × 2160 UHD resolution, 2500–5000 nits brightness, IP65/IP66 outdoor structure, anti-glare 2H surface treatment, V-by-One 8-lane 56-pin signal input, 12.0 V typical driving voltage, and a 50,000-hour WLED backlight. It is built for outdoor advertising, transportation information, smart-city display systems, retail-facing signage, and large public information screens.
At a Glance: 75-Inch Sealed Outdoor Signage Highlights
- 75-inch screen size gives public signage projects a strong visual footprint for long-distance attention.
- 3840 × 2160 UHD resolution supports sharper text, route data, advertising graphics, and public information layouts.
- 2500–5000 nits brightness range helps the display stay readable in high ambient-light environments.
- IP65/IP66 waterproof structure is stated for rain, dust, humidity, and outdoor signage deployment.
- Anti-glare haze 3% hard coating 2H helps reduce reflection issues in public-facing installations.
- V-by-One 8-lane 56-pin interface gives system integrators a defined signal path for controller matching.
- Standard configuration is no-touch, while custom touch, cover glass, and bonding can be evaluated for interactive projects.

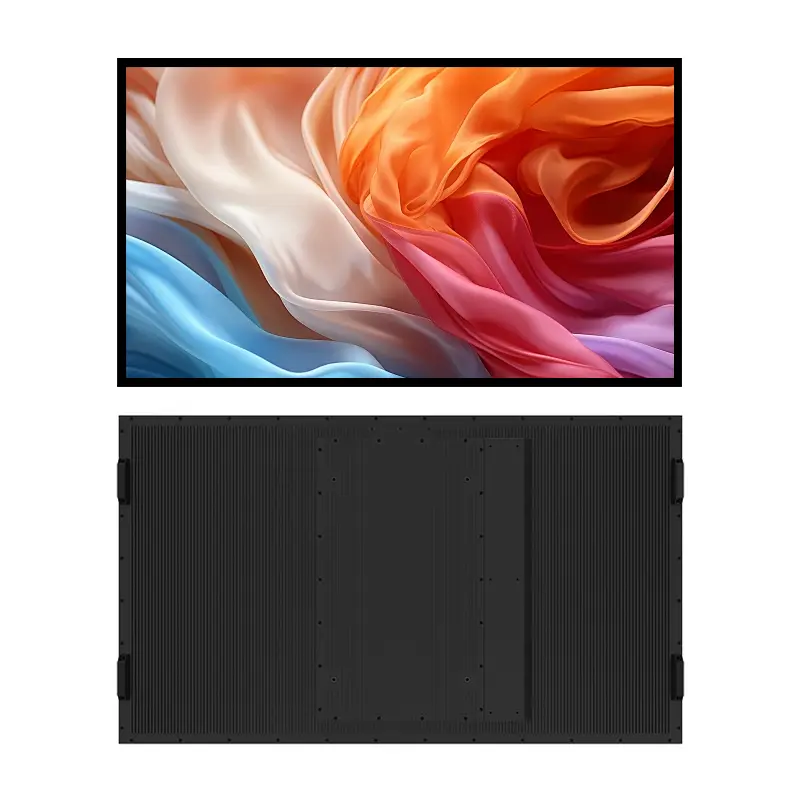

Product Overview of the 75 Inch Waterproof Digital Signage Monitor
Outdoor signage projects fail when the screen is large but not readable, bright but not protected, or visually impressive but difficult to integrate. The 75 Inch Waterproof Digital Signage Monitor is designed to solve those issues by combining a large 4K display area with high-brightness output, sealed outdoor structure, and practical interface data for engineering teams.
For transportation hubs, retail plazas, shopping malls, real estate promotion, public squares, EV charging sites, and smart-city information boards, a 75-inch display provides enough space for multi-zone content. Operators can show advertising, wayfinding, emergency notices, service updates, route guidance, brand visuals, and commercial messages without compressing the layout.
The monitor is especially useful when the project requires more impact than a compact outdoor screen but does not want the structural complexity of an LED wall. With 2500–5000 nits brightness, 89-degree viewing angles, 1.07B colors, and 4K UHD resolution, it gives integrators a strong visual platform for large public spaces. Before procurement, buyers should confirm the final installation structure, IP protection target, controller interface, mounting load, temperature requirements, front glass plan, and whether the project needs a custom touch stack.
Key Features of the 75 Inch Waterproof Digital Signage Monitor
| Feature | B2B Value |
|---|---|
| 75-inch large-format display | Creates strong public visibility for advertising, transport, retail, and smart-city signage. |
| 3840 × 2160 UHD resolution | Supports sharper 4K content, route maps, promotional visuals, and public notices. |
| 2500–5000 nits brightness | Helps maintain readability in high ambient-light and outdoor-facing environments. |
| IP65/IP66 sealed structure | Supports outdoor deployment where rain, dust, and humidity must be considered. |
| Anti-glare haze 3%, 2H surface | Helps reduce reflections and front-surface glare in exposed public locations. |
| 89°/89°/89°/89° viewing | Supports readable content for pedestrians approaching from different directions. |
| V-by-One 8 lanes, 56 pins | Gives engineers a defined high-bandwidth interface path for 4K display control. |
| 12.0 V typical driving voltage | Provides a clear electrical reference for controller and power-system planning. |
| WLED 50,000-hour backlight | Supports long-service outdoor signage and public display lifecycle planning. |
| No-touch standard, custom touch optional | Keeps the base configuration simple while allowing custom interactive front stacks. |
Technical Specifications of the 75-Inch 4K Outdoor Monitor
| Specification | Confirmed Value |
|---|---|
| Product Type | Waterproof digital signage monitor |
| Screen Size | 75 inches |
| Resolution | 3840 × 2160 UHD |
| Brightness | 2500–5000 nits |
| Active Area | 1649.66 × 927.936 mm |
| Opening Size | 1651.6 × 930.0 mm |
| Viewing Angle | 89°/89°/89°/89° |
| Surface Treatment | Anti-glare haze 3%, hard coating 2H |
| Contrast Ratio | 1200:1 typical |
| Display Colors | 1.07B colors, 69% NTSC |
| Interface | V-by-One 8 lanes, 56 pins |
| Driving Voltage | 12.0 V typical |
| Backlight | WLED, 50,000 hours, includes LED driver |
| Standard Touch | No touch |
These confirmed values show that this product should be treated as a large-format outdoor signage monitor with strong optical and engineering requirements. The public table does not include unknown values. Touch is not claimed as standard; it can be reviewed as a custom front-stack option when the project needs interactive outdoor signage.
Why Choose a Sealed 75-Inch Monitor for Outdoor Signage Networks?
A sealed 75-inch display is valuable when the signage location needs both large-scale visibility and environmental protection. It is not only a screen-size decision; it is a complete outdoor deployment decision involving brightness, sealing, mounting, signal control, and maintenance planning.
IP65/IP66 Protection for Public Outdoor Installations
The source identifies a fully sealed IP65/IP66 waterproof structure for outdoor performance. That makes the product suitable for projects exposed to rain, dust, and humidity. Still, final protection must be validated after installation because cable exits, mounting brackets, cabinet seams, ventilation paths, and service doors can affect the complete system.
4K UHD Content for Transportation, Retail, and City Messaging
A 75-inch 4K screen gives operators enough canvas for complex public information. Transportation sites can show routes, service alerts, and schedules. Retail locations can combine promotional content with navigation. Smart-city projects can display announcements, maps, and emergency messages with higher visual clarity.
2500–5000 Nits for High Ambient-Light Visibility
The 2500–5000-nit brightness range helps the monitor handle bright public environments better than standard indoor displays. Brightness should still be matched with installation angle, cover glass, anti-glare treatment, thermal design, and content contrast. A shaded station wall and a sun-facing plaza may require different brightness and enclosure strategies.
Outdoor 4K Readability, Anti-Glare Surface, and Viewing Angle
The visual performance of this 75 Inch Waterproof Digital Signage Monitor depends on more than luminance. Its 4K resolution, 89-degree viewing, anti-glare surface, and large active area work together to support public readability.
3840 × 2160 Detail for Large Public Content
UHD resolution helps prevent text and graphics from looking coarse on a 75-inch surface. This matters when signage includes maps, pricing, emergency notices, transit information, wayfinding arrows, QR codes, or multi-zone advertising layouts.
Anti-Glare Haze 3% with Hard Coating 2H
The anti-glare surface treatment helps reduce reflection risk in outdoor-facing installations. For premium applications, buyers may also evaluate cover glass, anti-reflective treatment, optical bonding, and vandal-resistant front protection. These options should be reviewed with brightness and thermal planning.
89-Degree Viewing for Pedestrian Traffic Flow
Public signage is rarely viewed from one fixed point. People approach from the side, move past the display, or read it at different heights. The 89-degree viewing specification helps maintain a wider usable viewing envelope for high-traffic environments.
V-by-One 56-Pin Interface and 75-Inch Mounting Checks
Large 4K outdoor displays require careful integration. The V-by-One interface, 12.0 V driving voltage, panel weight, and opening size should be confirmed before cabinet or structure tooling.
V-by-One 8-Lane Control Matching
The confirmed V-by-One 8-lane 56-pin interface supports the bandwidth required for large-format UHD display control. Engineers should verify controller compatibility, cable length, connector orientation, signal integrity, power sequencing, and backlight control before sample approval.
27.6 kg Typical / 30.5 kg Max Panel Weight
The panel weight affects the frame, wall bracket, pedestal, cabinet, and service design. For outdoor installations, structural teams should account for wind load, vibration, thermal expansion, installation access, and long-term maintenance.
No-Touch Standard with Custom Touch Evaluation
The standard configuration is no-touch. For interactive kiosks, wayfinding displays, EV charging stations, or smart-city terminals, custom touch integration can be evaluated. Options may include capacitive touch, protective cover glass, optical bonding, anti-glare or anti-reflective treatment, and enclosure-level front protection.
Recommended Applications for Large Outdoor Display Projects
This monitor is best used where a large public screen must remain visible, protected, and serviceable in outdoor or outdoor-facing conditions.
Transportation Hubs and Passenger Information
Metro stations, train terminals, airports, and bus hubs can use the display for passenger guidance, service updates, route maps, safety alerts, and advertising. The large 4K format supports both information density and visual impact.

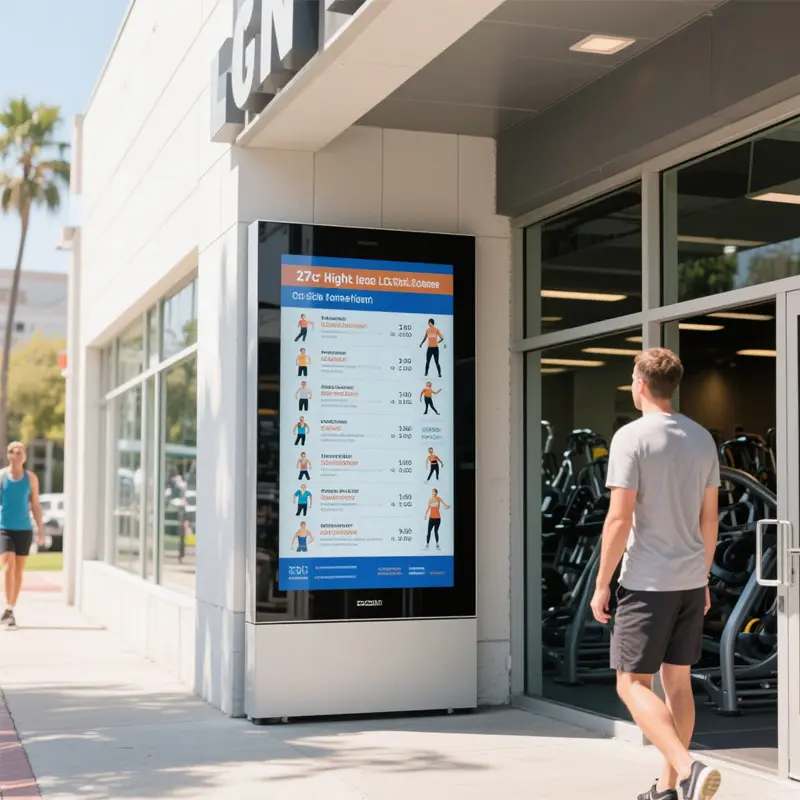

Retail, Shopping Mall, and Commercial Promotion
Outdoor-facing mall entrances, storefronts, shopping centers, and retail chains can use the display for brand campaigns, promotions, tenant announcements, wayfinding, and event information. The high-brightness range supports brighter installation environments.
Smart Energy, EV Charging, and Infrastructure Sites
EV charging stations, fuel dispensers, and smart-city kiosks may require screens that combine visibility with protected outdoor operation. The monitor can support larger status screens, promotional media, or customer-facing information boards when the enclosure, power, and control system are validated.
Real Estate, Public Squares, and Event Venues
Public plazas, property promotion sites, stadium areas, and outdoor event venues need displays that can attract attention from a distance. The 75-inch format and 4K content capability make it suitable for large-scale advertising and public communication.
Customization Options for 75-Inch Outdoor Signage Projects
Project evaluation can include brightness version selection, sealed enclosure adaptation, cover glass, optical bonding, anti-glare or anti-reflective treatment, custom touch add-on, V-by-One cable and controller matching, mounting structure design, thermal planning, media-player integration, and cabinet-level protection review.
For interactive requirements, the confirmed base configuration remains no-touch, but HuiSoar can evaluate customized touch integration based on cover glass thickness, bonding method, touch controller interface, enclosure structure, installation height, and application environment.
Procurement and Engineering Checklist for 75-Inch Monitor Selection
- Confirm whether the project requires 2500, 3000, 4000, or 5000-nit brightness.
- Verify the IP65/IP66 protection target and whether it applies to the final installed assembly.
- Check 4K content layout, media-player resolution, and viewing distance.
- Confirm V-by-One 8-lane 56-pin controller compatibility.
- Review 12.0 V driving voltage, power sequencing, and backlight control.
- Match active area, opening size, and outer structure to the cabinet drawing.
- Validate panel weight, mounting structure, wind load, and service access.
- Decide whether standard no-touch is enough or whether custom touch / cover glass is required.
- Confirm thermal path, ambient temperature, sample validation plan, quantity, and installation site.
FAQ
About 75 Inch Waterproof Digital Signage Monitor Projects
Is this monitor suitable for outdoor advertising?
Does the 75 Inch Waterproof Digital Signage Monitor include touch?
What interface does the display use?
Is IP65/IP66 protection enough for all outdoor sites?
What brightness should I choose for public signage?
Can it be used for EV charging or smart-city displays?
What should be confirmed before ordering samples?
