15.6″ 600cd/m² 1080P Wide Color Gamut Industrial LCD Display HMI Panel

15.6" 600cd/m² 1080P Wide Color Gamut Industrial LCD Display HMI Panel

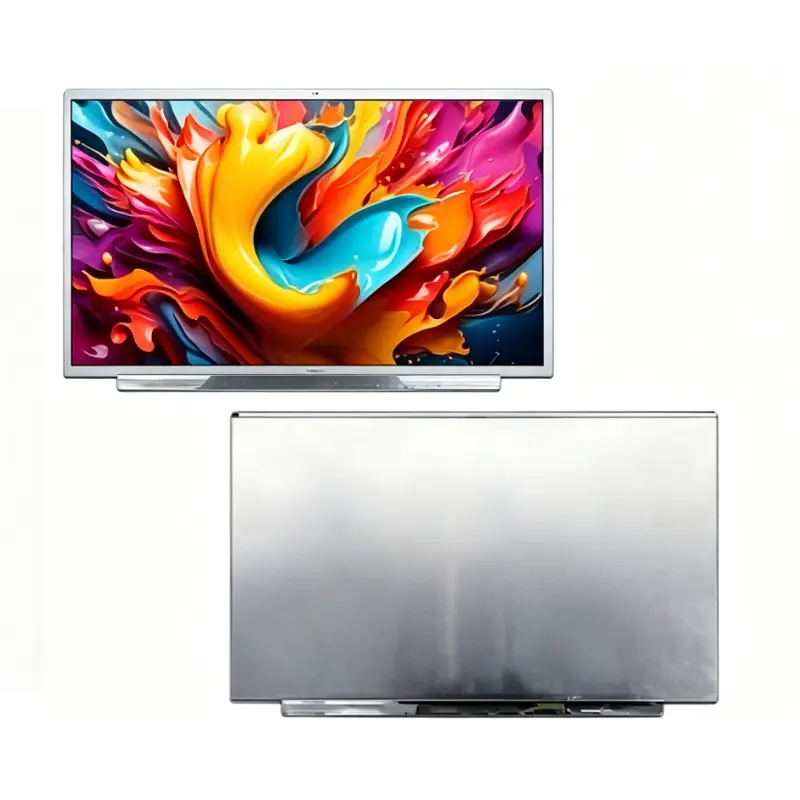

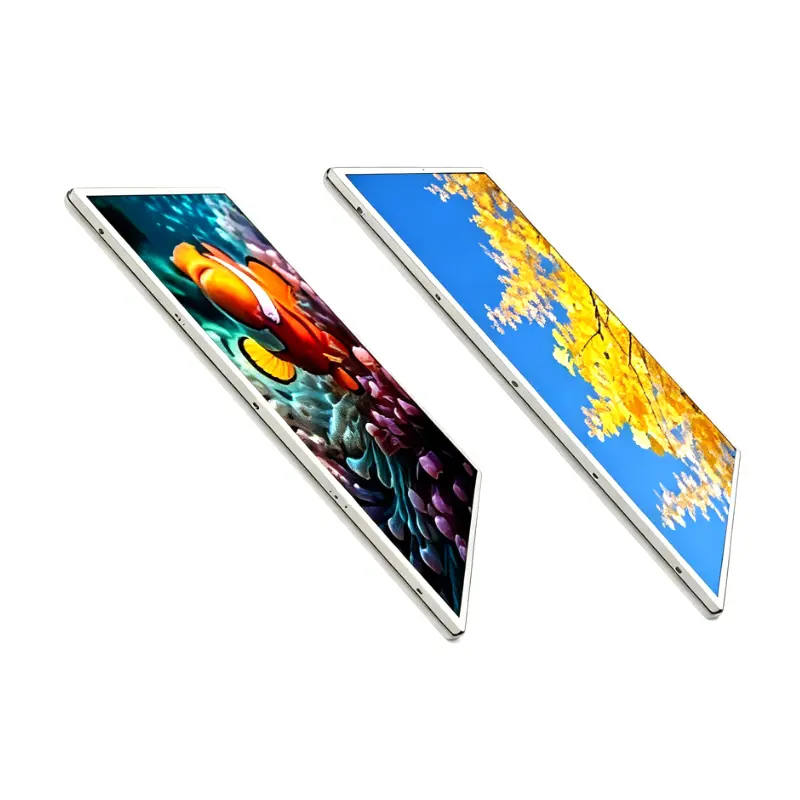

The 600cd/m² 1080P Wide Color Gamut Industrial LCD Display is a 15.6-inch Full HD IPS TFT-LCD component for professional equipment requiring a larger HMI workspace, wide viewing performance and eDP integration. It combines 1920 × 1080 resolution, 600 cd/m² typical luminance, a 344.16 × 193.59 mm active area and a −20°C to +70°C operating range. The standard configuration is non-touch and uses a 30-pin eDP interface.

The module is also identified for wide-color-gamut use. Because no quantitative color-space coverage is specified for this configuration, projects requiring a defined sRGB, NTSC, DCI-P3 or Adobe RGB target should include that measurement requirement in the qualification specification.

Product Summary

The 15.6-inch format provides enough display area for industrial dashboards, process information, monitoring windows and multi-zone control pages without moving to a larger industrial panel class.

Its 16:9 Full HD raster supports familiar interface design workflows, while the IPS structure and 85°/85°/85°/85° left/right/up/down viewing specification help maintain visibility when the operator is not positioned directly in front of the screen.

The panel is transmissive, uses WLED backlighting and displays 16.7M colors with an RGB stripe arrangement.

Key Specifications

Wide Color Gamut and Full HD IPS Performance

What wide color gamut does and does not establish

Wide-gamut positioning can be valuable for industrial interfaces that rely on differentiated colors, camera imagery, maps or visually dense status information. However, the phrase alone is not a substitute for a measured color-space specification.

If a project requires a defined color target, establish the required color space, coverage percentage, measurement method and acceptance tolerance before sample approval. The 16.7M-color specification describes the available color count and must not be treated as an NTSC, sRGB or DCI-P3 coverage value.

Full HD supports information-rich HMI layouts

Native 1920 × 1080 resolution gives designers room for status panels, alarms, charts, navigation areas and machine controls within a standard 16:9 canvas.

Driving the panel at its native raster also avoids unnecessary scaling of small UI elements. This is particularly important where numeric data, thin lines and compact icons must remain readable.

600 cd/m² Brightness for Professional Equipment

A fixed 600 cd/m² typical luminance is a useful step above many standard indoor notebook-class panels and can support industrial spaces with elevated ambient light.

It should not automatically be promoted as direct-sun readable. Finished visibility depends on the cover window, reflection level, bonding method, installation angle and actual lighting.

Evaluate the complete optical stack

If a protective front window will be added, test the complete stack rather than evaluating the bare LCD alone. Glass transmission, internal reflections and surface treatment can materially change perceived contrast.

The WLED backlight is confirmed, but its voltage, current, driver topology, enable/dimming requirements and lifetime grade should be obtained before power and thermal design are frozen.

Integrating the 600cd/m² 1080P Wide Color Gamut Industrial LCD Display

Qualify the 30-pin eDP connection

A matching 30-pin connector does not guarantee eDP compatibility.

Engineering approval should cover the complete pin assignment, lane configuration, link requirements, operating voltage, connector orientation, cable definition and native 1920 × 1080 timing. Matching only diagonal size, resolution and connector count is insufficient for a replacement decision.

eDP compatibility requires more than pin count

The module should be matched against the actual host or controller platform before PCB or cable release. If the existing equipment uses LVDS, HDMI or another interface, the system requires an appropriate controller or interface path rather than assuming direct panel-level interchangeability.

Mechanical Integration and Enclosure Planning

The detailed working envelope is 360.00 × 221.95 × 6.40 mm, with a 344.16 × 193.59 mm active area.

Use the approved mechanical drawing for tooling

Final enclosure release should use the approved production drawing and its tolerances. Check bezel overlap, active-window position, mounting support, connector clearance and cable routing before committing to tooling.

The screen geometry and the full module envelope serve different purposes: the active area controls the visible opening, while the complete mechanical drawing controls fit inside the enclosure.

Wide-Temperature and Non-Touch Architecture

The module operates from −20°C to +70°C and has a storage range of −30°C to +80°C.

These panel-level limits help support professional equipment used across changing environmental conditions, but they do not establish finished-system weatherproofing, vibration resistance, humidity qualification or automotive certification.

The standard configuration is non-touch. Projects that require operator touch input should treat the touch panel, controller interface, cover structure and additional mechanical stack as a separately qualified subsystem.

Industrial and Vehicle Display Applications

The 600cd/m² 1080P Wide Color Gamut Industrial LCD Display is suitable for evaluation in industrial control equipment, operator terminals and vehicle-display systems where Full HD resolution, IPS viewing and eDP integration fit the host architecture.

For industrial HMI projects, the larger active area can support multi-zone dashboards and detailed process graphics. For vehicle-display projects, integration should include environmental, electrical, mechanical and compliance requirements appropriate to the finished equipment. Vehicle-display application wording does not by itself establish an automotive-grade qualification.

Customization and Procurement Planning

Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability and the requested specification. Sample and standard-module quantities are confirmed separately.

Possible project reviews can cover eDP cable and pin definition, cover glass, anti-glare or anti-reflective treatment, optical bonding, separately engineered touch, enclosure adaptation, brightness requirements and a defined color-gamut target.

Procurement checklist

Before sample release, submit the host or controller platform, native 1920 × 1080 timing, complete eDP interface requirements, mechanical drawing, required color-space target, front-window structure, lighting environment, temperature requirement, touch decision, sample quantity and expected annual demand.

Engineering review should confirm eDP compatibility, panel and backlight power requirements, mechanical fit, optical performance, color-target requirements, environmental limits and the requested customization scope.
