15.7 Inch Circular Android Advertising Display for Retail Promotion

15.7 Inch Circular Android Advertising Display for Retail Promotion

Its 960 × 960 round screen combines 700 cd/m² luminance with Android 11 playback and remote content publishing for indoor commercial campaigns.

Product Summary

The Circular Android Advertising Display is a 15.7-inch commercial media system for retail promotions, specialty-store interiors, exhibition information and decorative branded content. It combines a native 960 × 960 image canvas, 700 cd/m² luminance, Android 11, several playback routes and remote cloud publishing in a 452.95 × 452.95 × 33.3 mm circular enclosure.

Android 11 identifies the operating-system version; it does not guarantee compatibility with every content-management platform or application.

Optional touch is not included unless the touch technology, controller, interface and front-cover structure are defined.

The 700 cd/m² specification supports indoor commercial-lighting evaluation, but it does not establish direct-sun or exposed-outdoor readability.

Key Specifications

The values above define the confirmed configuration. Processor, memory, storage, exact external ports, power input, audio, mounting hardware and storage-temperature data require project documentation.

Circular Content Design for a 960 × 960 Canvas

Build Artwork at Native Resolution

Prepare master artwork at 960 × 960 pixels. Native-resolution images and video avoid unnecessary scaling and give designers a predictable square working canvas for the circular presentation area.

Product images, logos and short promotional messages can be positioned around the visual center. Avoid converting ordinary wide-screen advertising into a circle without redesigning the composition, because important content near the four square corners may fall outside the useful circular area.

Protect Content Within the Circular Safe Area

Keep essential text, prices, logos and calls to action inside a central safe zone. Background textures and decorative imagery may extend toward the circular edge, while critical information should remain clear of the outer boundary.

A content template showing the 960 × 960 canvas, circular visible area and recommended safe zones should be approved before a large campaign is produced. This reduces repeated artwork corrections across store locations.

Validate Media Formats Before Deployment

USB, internet and signal playback are confirmed as operating routes, but the supported file formats, codecs, maximum bit rates and signal standard are not defined. Test representative images, videos and playlists on the sample unit before final content production.

Managing the Circular Android Advertising Display

Local USB and Signal Playback

USB playback is useful for demonstrations, temporary exhibitions and single-location installations that do not require frequent remote changes. Confirm the physical USB connector, storage format, directory rules, supported codecs and autoplay behavior.

Signal playback may support an external media source, but the exact video interface is not specified. Do not assume HDMI, DisplayPort, VGA or another signal type until the ordered hardware and rear I/O are documented.

Internet and Cloud Publishing

Internet playback and remote publishing through cloud management support centrally controlled content changes. This workflow can help multi-location operators distribute campaigns without manually visiting each screen.

Before deployment, confirm the network connection, CMS name, account structure, subscription or licensing terms, scheduling functions, user permissions, device monitoring and behavior during a network interruption. Offline caching and automatic recovery should be included in sample testing when continuous playback is important.

Android 11 Software Qualification

Android 11 provides the operating environment, while the included message-sending software supports content publishing. Application compatibility still depends on the processor architecture, memory, storage, firmware, screen orientation, permissions and any supplier modifications to Android.

Submit the intended CMS or application package for compatibility review. Confirm automatic startup, kiosk mode, scheduled restart, screen rotation, remote support and recovery after a power interruption.

700 cd/m² for Indoor Commercial Lighting

The 700 cd/m² screen is positioned for shopping malls, supermarkets, specialty stores and exhibition halls. It offers more luminance than many ordinary indoor displays, but final visibility depends on reflections, viewing distance, content contrast and the front-cover construction.

Evaluate the display under the actual store lighting. Glossy windows, spotlights and bright entrance areas may require changes to the installation angle, enclosure position, artwork contrast or front-cover treatment. Outdoor and direct-sun installations require a separately qualified solution.

Mechanical and Installation Planning

Active Area and Finished Dimensions

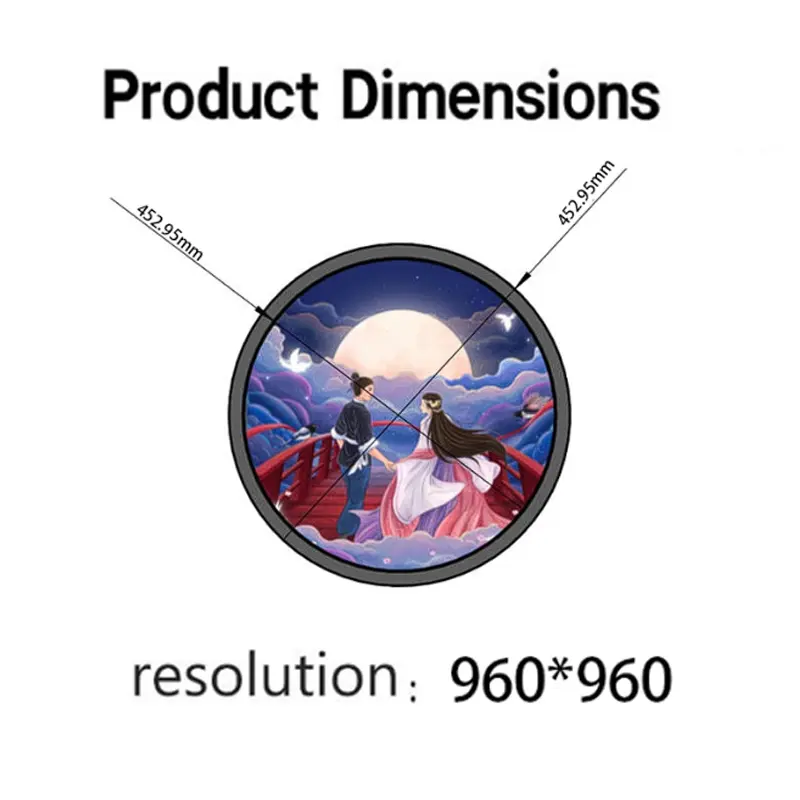

The active-area envelope is 400 × 400 mm, while the complete unit measures 452.95 × 452.95 × 33.3 mm. Enclosure and wall-layout drawings should distinguish the image area from the total circular housing.

Allow clearance for mounting hardware, power input, data connections, ventilation and service access. The 33.3 mm product depth should not be treated as the complete installed depth until the bracket, connectors and cable bend space are added.

Mounting, Power and Cable Access

The mounting method, connector locations, input voltage and maximum power are not yet defined. Obtain a rear drawing and I/O photograph before releasing wall panels, display furniture or exhibition structures.

The engineering package should identify the mounting-point pattern, permitted orientation, unit weight, cable exit direction, ventilation requirement, power connector and service-removal procedure.

Optional Touch Integration

Touch is a separate configuration. Specify the touch technology, number of touch points, controller, communication interface, cover-lens design, bonding method and combined finished dimensions before ordering.

The circular interaction design should use large controls, clear edge spacing and an approved touch-active area. A non-touch advertising playlist should not be converted into an interactive application without revising navigation, button size and user feedback.

Retail and Exhibition Applications

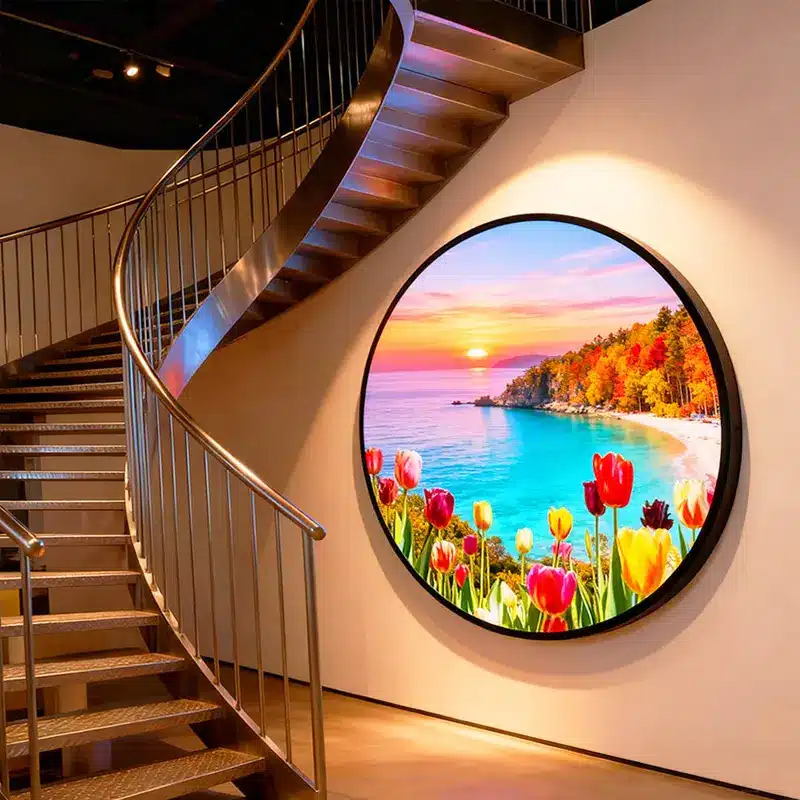

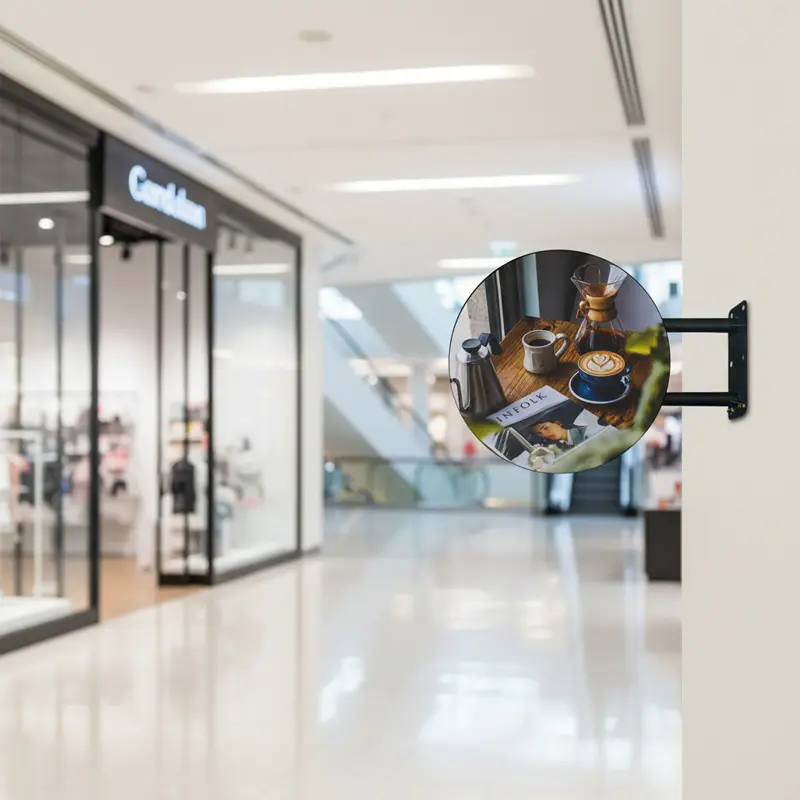

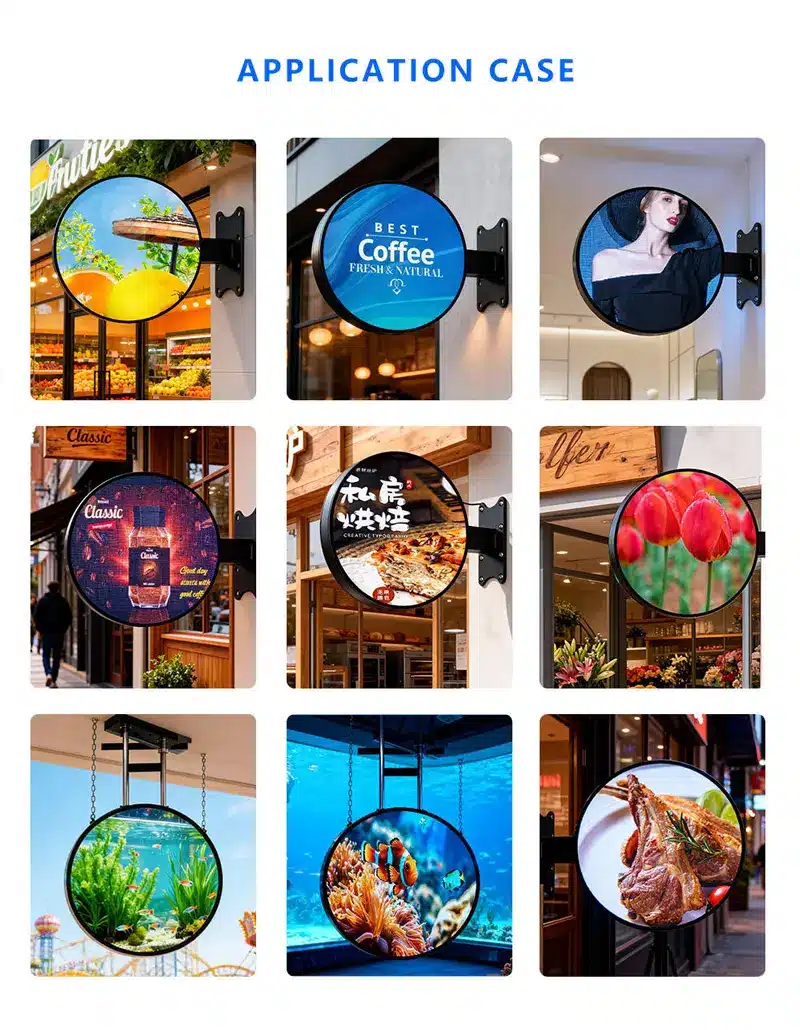

The Circular Android Advertising Display fits indoor shopping malls, supermarkets, clothing stores, jewelry counters, cosmetics displays, exhibition halls and branded decorative installations. Its round shape can support product-focused artwork, logos, visual dials, artistic media and short promotional loops.

Use the non-touch configuration for scheduled advertising and decorative content. Select the optional-touch route only after the interaction flow, touch hardware and software environment have been approved.

Configuration and Procurement

Project review may cover touch integration, Android software configuration, CMS workflow, local USB playback, signal-input requirements, network operation, enclosure appearance, branding, packaging and installation details.

Commercial terms, production timing and supply status should be reconfirmed for each order. Sample testing should precede a multi-location rollout because software behavior, media compatibility, lighting performance and installation details affect the finished result.

Procurement Checklist

Confirm:

• Assigned and supplier model references
• Native 960 × 960 artwork
• Circular safe-area template
• Supported image and video formats
• Supported codecs and bit rates
• Exact signal-input interface
• Android 11 CMS/application compatibility
• CPU, RAM and storage
• Network hardware and cloud platform
• Offline playback and power-loss restart
• Physical USB and network ports
• Optional touch technology and interface
• 700 cd/m² lighting suitability
• 400 × 400 mm active area
• 452.95 × 452.95 × 33.3 mm product size
• Mounting pattern and cable access
• Input voltage and maximum power
• Operating and storage conditions
• Sample quantity, order quantity and schedule
