23.6 Inch Round High Brightness Android Signage Machine for Retail
Model P/N
Size
Resolution
Brightness
Viewing Angle
Connector Type
Operating Temp
Overall(mm)
huisoar
HS0236ZJ01-C070
Brand
Panel Size (inch)
Model P/N
Resolution
Brightness (nits)
Viewing Angle
Contrast Ratio
Response Time
Overall (mm)
Active Area (mm)
Refresh Rate
Display Colors
Panel Type
Connector Type
Operating Temp
Touchscreen Type
Storage Temp
Work Mode
Pixel Format
Input Voltage (V)
Operating Environment
Designed For

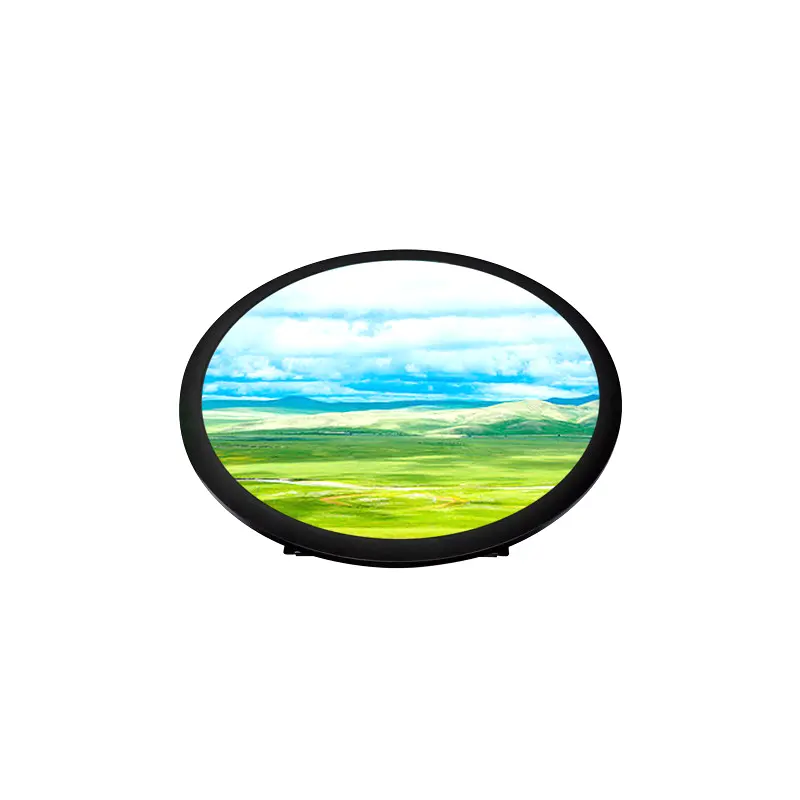

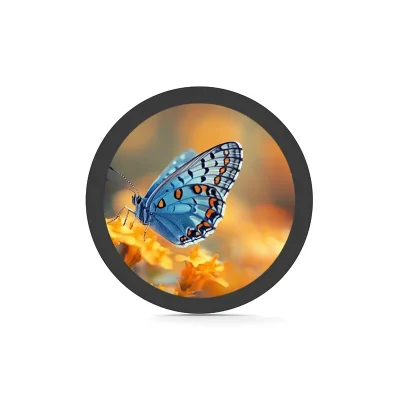

23.6 Inch Round High Brightness Android Signage Machine for Retail
Its 848 × 848 circular canvas, 700 cd/m² luminance and Android playback tools support distinctive retail and exhibition content.
Product Summary
The Round High Brightness Android Signage Machine is a 23.6-inch circular commercial display for retail promotions, branded interiors, exhibition information and decorative digital communication. Its unusual round enclosure helps businesses move beyond conventional rectangular signage while retaining an integrated Android playback and content-publishing workflow.
The native 848 × 848 resolution creates a square graphics canvas behind the circular visible format. The active display area measures 600.384 × 600.384 mm, while the complete unit measures 663 × 663 × 45.7 mm. A standard luminance of 700 cd/m² supports bright indoor commercial spaces, subject to validation behind the final front structure and under the actual installation lighting.
The system supports Android operation, message-sending software, multiple playback routes and cloud-managed publishing. Touch can be evaluated as an optional project configuration rather than assumed to be included in every unit.
Key Specifications
| Parameter | Confirmed Value |
|---|---|
| Display size | 23.6 inches |
| Display shape | Circular |
| Native resolution | 848 × 848 pixels |
| Luminance | 700 cd/m² |
| Active area | 600.384 × 600.384 mm |
| Complete dimensions | 663 × 663 × 45.7 mm |
| Operating system | Android; version requires confirmation |
| Content software | Message-sending software |
| Playback routes | USB, internet and signal playback |
| Remote publishing | Cloud-managed publishing |
| Touch | Optional |
| Operating temperature | 0°C to +50°C |
Circular Content Design and 700 cd/m² Visibility
Native 848 × 848 Artwork
The 848 × 848 raster should be used as the native content canvas. Preparing graphics at the correct resolution avoids unnecessary scaling and gives the content team direct control over text size, icon placement and image sharpness.
A square file can be loaded onto the display, but important content must remain inside the circular visible region. Logos, prices, calls to action and product images placed close to the four corners may be clipped or hidden by the round mask.
The 848 × 848 raster should be mapped natively to a circular safe area.
Circular Safe-Area Planning
A circular interface requires a different design grid from conventional 16:9 signage. The main message should occupy the center, while secondary information can follow rings or curved zones around it.
Content teams should create an approved safe-area template that shows:
- The full 848 × 848 canvas
- The circular visible boundary
- Text and logo safety margins
- Areas reserved for optional touch controls
- Cropping behavior for square images and video
- Background areas that can extend beyond the visible circle
This template should be approved before a large media library is produced.
700 cd/m² Lighting Boundary
The 700 cd/m² configuration is intended for high-ambient indoor commercial spaces such as mall interiors, specialty stores, exhibition areas and illuminated retail environments.
A 700 cd/m² rating does not by itself establish direct-sunlight readability.
Window-facing deployment should be tested with the final cover, reflections, installation angle and surrounding lighting. No anti-glare, anti-reflective or outdoor-protection specification should be assumed without a separately approved configuration.
Deploying the Round High Brightness Android Signage Machine
Android Playback and Message Software
The integrated Android architecture provides a standalone route for advertising playback without requiring an external computer for every installation. Message-sending software is identified as part of the machine concept, supporting promotional content and information updates.
Android support does not define CPU, memory, OS version, network hardware, CMS licensing or application compatibility.
Before deployment, confirm the Android version, processor, RAM, storage, boot behavior, automatic application launch, recovery after power interruption and compatibility with the required content-management software.
USB, Internet and Signal Playback
The machine supports multiple playback modes, including USB, internet and signal playback. These routes provide useful flexibility for single-screen installations, remotely managed projects and applications that use an external content source.
The exact implementation still requires confirmation. Procurement should identify:
- USB connector type and supported storage format
- Accepted image, video and audio formats
- Maximum media resolution and bitrate
- Network connection method
- External signal connector and supported input formats
- Automatic loop and playlist behavior
- Offline playback after content download
- Startup behavior after power restoration
Cloud Publishing Requirements
Cloud-managed publishing can reduce repeated on-site content changes, particularly in retail or exhibition deployments. However, cloud functionality should be treated as a complete workflow rather than a generic hardware feature.
Engineering and operations teams should confirm the CMS platform, account structure, licensing, server location, network security, scheduling functions, device grouping, status reporting, content caching and response to network loss. Remote publishing should be tested on production-representative units before a multi-location rollout.
Mechanical Integration and Optional Touch
663 mm Round Enclosure Planning
The complete unit measures 663 × 663 × 45.7 mm. These dimensions, rather than the nominal 23.6-inch display size alone, should control wall, fixture and decorative-panel planning.
The 663 × 663 × 45.7 mm complete-machine envelope controls installation planning, not only the 23.6-inch diagonal.
A release drawing should identify:
- Mounting-hole position and load
- Wall or fixture bracket
- Cable-entry location
- Ventilation requirements
- Power access
- Service clearance
- Permitted display orientation
- Front-edge and bezel dimensions
- Touch-controller space when required
Optional Touch Configuration
Optional touch must be specified separately from the standard advertising configuration.
A touch project requires confirmation of the touch technology, controller, operating-system driver, interface, number of touch points, cover-glass thickness, printed border, optical bonding, touch accuracy and environmental requirements. The touch layer can also affect brightness, reflections, overall thickness and enclosure dimensions.
The interactive content design should be reviewed at the same time. Buttons and navigation zones must fit the circular safe area and remain large enough for the expected viewing and operating distance.
Retail and Exhibition Applications
The circular format is suited to applications where display shape contributes directly to visual identity.
For retail projects, the Round High Brightness Android Signage Machine can support promotional loops, product highlights, brand graphics, seasonal campaigns and decorative media in:
- Shopping malls and supermarkets
- Cosmetics and beauty counters
- Jewelry and watch displays
- Fashion and specialty stores
- Exhibition halls and trade-show booths
- Corporate reception areas
- Branded decorative installations
- Event and product-launch displays
The 700 cd/m² configuration is best qualified for indoor or protected commercial environments. Outdoor, unshaded window or moisture-exposed installations require separate optical, thermal and enclosure assessment.
Customization and Procurement
Project evaluation may cover:
- Optional touch integration
- Android and CMS configuration
- Startup logo and default content
- Local or cloud playback workflow
- Enclosure color and finish
- Mounting structure
- Branding and packaging
- Content templates
- External signal requirements
- Front protection
- Software adaptation
Custom configuration scope and minimum quantities must be confirmed separately. The product-page minimum order quantity does not establish the minimum quantity for custom touch, enclosure, software or branding work.
Procurement Checklist
Confirm the following before sample or production approval:
- Approved HS0236ZJ01-C070 and LCMA-RX0236ZJ01-C070 documentation
- Native 848 × 848 artwork and orientation
- Circular visible area and safe-zone template
- 600.384 × 600.384 mm active area
- 663 × 663 × 45.7 mm complete dimensions
- 700 cd/m² lighting suitability
- Front-cover and reflection conditions
- Android version, CPU, RAM and storage
- Startup, auto-play and power-loss recovery behavior
- Message-software or CMS compatibility
- CMS license and server requirements
- Network hardware and offline operation
- USB connector and supported storage format
- Supported media files, codecs and bitrates
- External signal connector and accepted formats
- Power input and maximum consumption
- Mounting points, bracket and installation load
- Cable entry, airflow and service clearance
- Standard non-touch or optional-touch requirement
- Touch technology, controller and interface
- Operating range of 0°C to +50°C
- Required compliance documents
- Sample criteria, quantity and deployment schedule
FAQ
About 23.6 Inch Round High Brightness Android Signage Machine
What must be confirmed before using cloud management across a retail deployment?
How should content be prepared for the circular screen?
Is 700 cd/m² sufficient for a storefront or window-facing installation?
What changes when the optional touch panel is added?
Which mechanical details must be approved before installation?
What is the typical lead time and production capacity?
Typical lead time and production capacity depend on order volume, configuration, and current production schedule. Production capacity is generally aligned with standard LCM manufacturing lines and can be scaled based on demand. To provide accurate lead time and capacity for your specific quantity and customization needs (e.g., touch panel, Android software), please contact our sales team. We will confirm exact lead times and capacity commitments on request.
Do you offer displays with wide viewing angles (e.g., 85/85/85/85)?
Yes, we offer displays with wide viewing angles. The 23.6 Inch Round High Brightness Android Signage Machine features a viewing angle of 89°/89°/89°/89°, which is even wider than the 85/85/85/85 specification you mentioned. This ensures consistent image quality from almost any angle, making it suitable for retail and exhibition environments where viewers may be positioned at various angles. For other models with different viewing angles, please consult our engineering team to confirm availability.
What interface options are available (e.g., LVDS, eDP, MIPI) for your panels?
The 23.6 Inch Round High Brightness Android Signage Machine uses an LVDS interface. LVDS is a common interface for commercial displays, offering reliable signal transmission. Please contact our engineering team to evaluate the feasibility of alternative interfaces for your specific application. We will work with you to determine the best solution based on your system requirements.
Can you integrate capacitive or resistive touch screens with optically bonded covers for enhanced durability?
Yes, we can integrate touch panels with this display. The product supports an optional touch panel, and we can offer both capacitive and resistive touch options depending on your application needs. For enhanced durability, optically bonded covers can be applied to reduce glare and improve impact resistance. This is a common customization for retail and public-facing displays. Please provide your touch requirements and environmental conditions, and our engineering team will recommend the most suitable touch solution and bonding method for your project.
What are the warranty terms and after-sales service for your display products?
Warranty terms and after-sales service are important for commercial deployments. Typically, our displays come with a standard warranty period, and we provide technical support and repair services. For specific warranty duration and coverage details, please contact our sales or support team. We also offer after-sales services including troubleshooting, spare parts, and possibly extended warranty options. To ensure your project is protected, we recommend confirming warranty terms before placing an order. Our team is ready to assist with any post-purchase support you may need.
