18.5 Inch FHD eDP Industrial HMI Display Panel for Control Systems

18.5 Inch FHD eDP Industrial HMI Display Panel for Control Systems

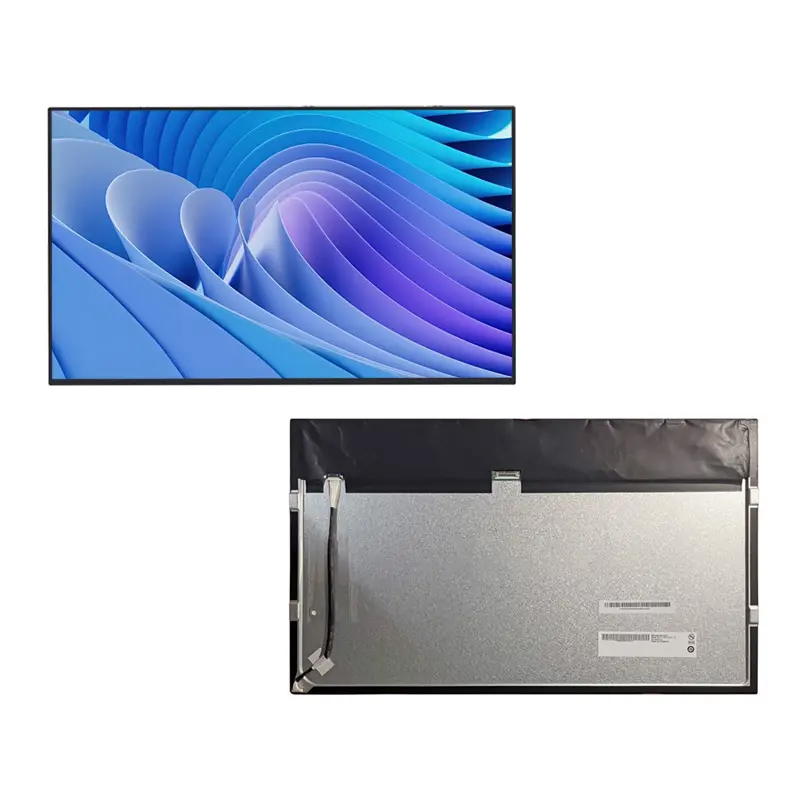

The FHD eDP Industrial HMI Display Panel is an 18.5-inch TFT-LCD component for embedded control equipment that needs a native 1920 × 1080 workspace, IPS viewing and direct eDP integration. It combines 500 cd/m² typical luminance, a 1000:1 typical contrast ratio, 30-pin eDP signaling and a non-touch module structure. With operation and storage specified from −20°C to +70°C, the panel provides a defined starting point for industrial HMI terminals, machine interfaces and equipment visualization systems.

Product Summary

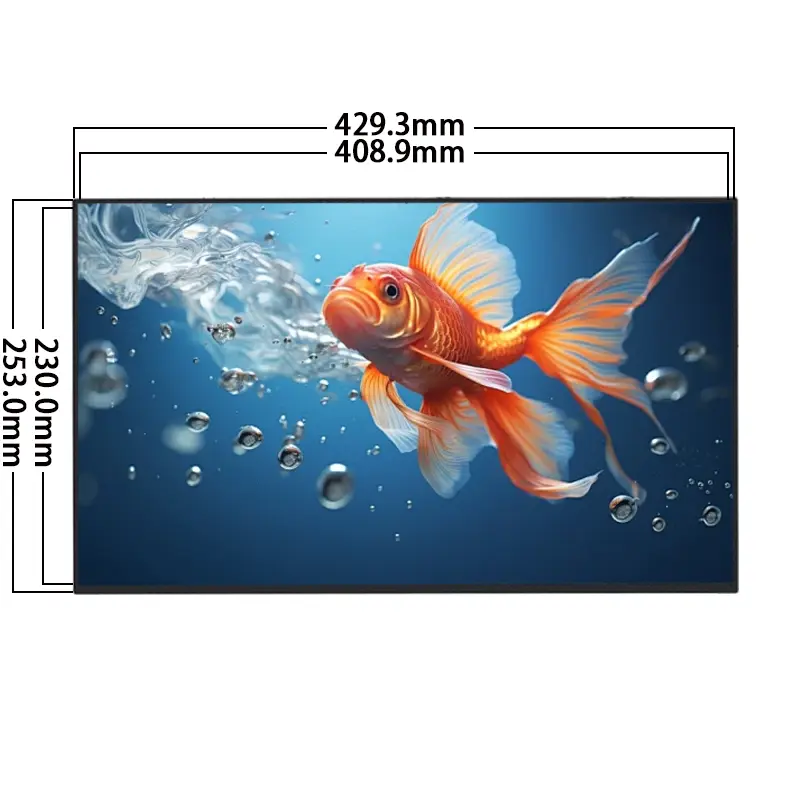

The 18.5-inch format provides a Full HD 16:9 image area without moving into a larger monitor-class footprint. Its active area measures 408.96 × 230.04 mm, while the complete panel envelope is 429.3 × 253.06 mm with an 11.83 mm maximum thickness.

IPS display technology and 89°/89°/89°/89° viewing at CR ≥10 support interface visibility from multiple operator positions. The module is supplied as a non-touch display component, allowing the equipment designer to define the final front window, controls and optional interaction system separately.

Key Specifications

Full HD HMI Workspace

Native 1920 × 1080 Interface Layout

Full HD resolution provides space for operating values, trend charts, diagrams, alarm areas, navigation controls and status information within one 16:9 interface. Designing the application at the native 1920 × 1080 raster avoids unnecessary scaling and gives the UI team a predictable pixel canvas.

The native 1920 × 1080 raster should be used for Full HD HMI layouts without unnecessary scaling.

IPS Viewing for Shared Operator Positions

An HMI may be viewed from different standing positions or installed above, below or beside the operator's normal eye line. The 89°/89°/89°/89° L/R/U/D viewing specification supports a broader viewing range than a narrow fixed-angle display architecture.

Final readability should still be checked in the actual enclosure because front glass, installation angle and ambient reflections can change the finished visual result.

500 cd/m² Optical Fit

Bright-Indoor Use Boundary

The 500 cd/m² typical panel luminance is suitable as a higher-output baseline for industrial interiors, equipment areas and other locations with stronger ambient illumination than a conventional office environment.

It should not be interpreted as a finished-system direct-sunlight rating.

Front-Window Reflection Validation

A protective lens can reduce effective brightness and increase reflected ambient light. Cover-glass transmission, surface treatment, air gap or bonding method, viewing angle and local lighting therefore belong in the optical qualification process.

The 500 cd/m² panel rating should be validated behind the final front window under actual installation lighting.

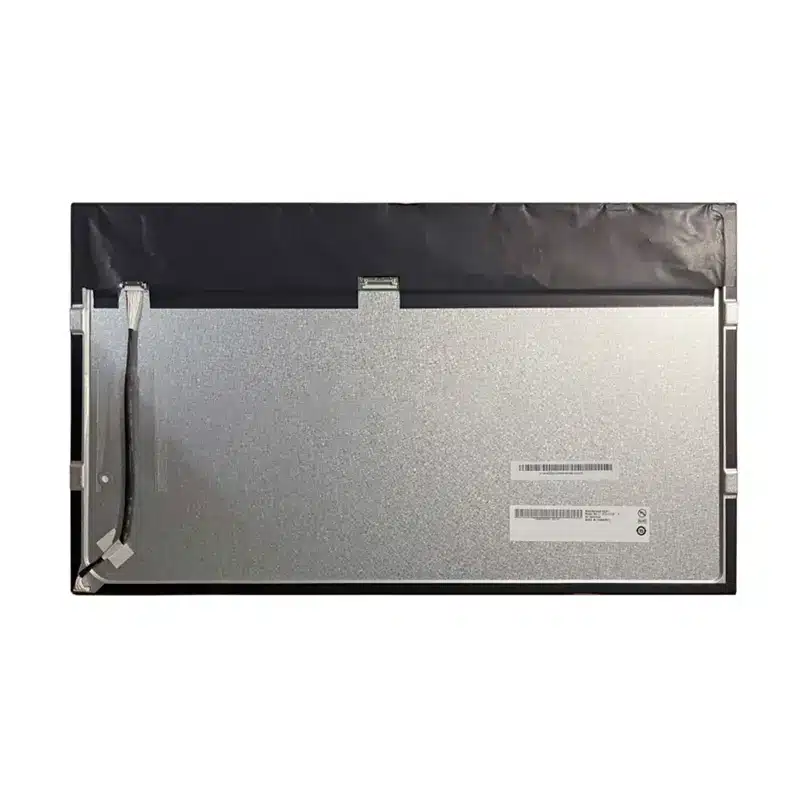

30-Pin eDP Integration

Connector Count Is Not Compatibility

The panel uses a 30-pin eDP connection, but connector count alone does not establish electrical or timing compatibility. The host output, complete pin definition, connector orientation, link configuration, electrical levels and panel/backlight requirements must be checked before the controller board or production cable is released.

A matching 30-pin connector does not guarantee eDP timing, lane, voltage or pin compatibility.

Host and Cable Qualification

Engineering review should start with the native Full HD timing and the intended embedded computer, industrial mainboard or controller platform. Cable length, connector direction and routing should then be checked against the mechanical design.

A system built around another native display interface should not be assumed to connect directly to this panel without an appropriate interface solution.

FHD eDP Industrial HMI Display Panel Integration

Active Area and Enclosure Opening

For this 18.5-inch module, the active image area is 408.96 × 230.04 mm. That dimension is the primary reference for determining the visible front-window opening and usable graphical area.

The finished bezel should provide sufficient tolerance without covering required image content or exposing inactive areas unnecessarily.

Full Module Envelope

The complete panel measures 429.3 × 253.06 mm with an 11.83 mm maximum thickness. These dimensions serve a different purpose from the active area: they control internal clearance, support structure, cable space and enclosure depth.

The 429.3 × 253.06 mm outline and 11.83 mm maximum thickness should be approved before enclosure tooling.

Non-Touch Architecture

Adding a Separate Touch Stack

The standard configuration is non-touch.

When direct interaction is required, the touch sensor, controller, communication interface, cover lens and bonding structure should be qualified as a separate assembly. Adding touch can change total thickness, optical transmission, reflections, cable routing and front-window dimensions.

This separation can be useful for equipment families in which the same display core supports both button-operated and touch-operated variants.

Environmental Qualification

−20°C to +70°C Operating Boundary

The module is specified for operation from −20°C to +70°C and storage from −20°C to +70°C. These panel-level temperature limits provide useful design boundaries for industrial equipment, but they do not establish enclosure protection, humidity tolerance, vibration resistance or an IP rating.

Thermal validation should therefore consider the actual internal cabinet temperature rather than only the surrounding room temperature.

Industrial Application Fit

The FHD eDP Industrial HMI Display Panel is well aligned with industrial control terminals, machine interfaces, equipment dashboards, embedded monitoring stations and other systems that need Full HD graphics through an eDP panel connection.

Its principal selection strengths are the 18.5-inch FHD workspace, IPS viewing, 500 cd/m² typical luminance, non-touch architecture and −20°C to +70°C operating range. The final system should still be qualified for its specific host, front structure, mounting method and environmental conditions.

Customization and Procurement

For an FHD eDP Industrial HMI Display Panel project, engineering evaluation can cover the eDP cable and controller relationship, complete 30-pin definition, front-window reflection control, cover glass, AR/AG treatment, optical bonding, enclosure adaptation and separately engineered touch.

Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability and the requested specification. Sample and standard-module quantities are confirmed separately.

Procurement Checklist

Before release, confirm:

• native 1920 × 1080 timing;
• complete 30-pin eDP assignment;
• host lane/link configuration and electrical requirements;
• connector orientation and cable route;
• panel and WLED electrical requirements;
• 408.96 × 230.04 mm active area;
• 429.3 × 253.06 × 11.83 mm maximum envelope;
• 500 cd/m² luminance requirement and tolerance;
• final cover-glass and reflection target;
• standard non-touch or separate touch plan;
• −20°C to +70°C environmental requirement;
• sample validation criteria;
• project quantity and annual demand.
