18.5 Inch Sunlight Readable LCD Screen for Industrial Kiosks

FHD TN TFT-LCD Module with 30-Pin LVDS, 5.0V Input, and 50,000-Hour WLED Backlight

An 18.5 Inch Sunlight Readable LCD Screen is a Full HD high-brightness TFT-LCD module for industrial kiosks, HMIs, factory automation equipment, vending terminals and embedded systems that need 500–1500 nits brightness, 1920×1080 resolution, 30-pin LVDS integration, 5.0V input, anti-glare 3H surface treatment and a long-life WLED backlight. It is best evaluated as a panel-level component for OEM development, not as a finished waterproof monitor.

At a Glance: FHD TN LVDS Panel Highlights

• 18.5-inch Full HD format supports industrial UI, kiosk interface, and information-display layouts.
• 500–1500 nits brightness series helps buyers match luminance to the real installation environment.
• NE10 model positioning supports a 1000-nit configuration within the same 18.5-inch series.
• TN normally white transmissive mode provides fast 1.5 / 3.5 ms Tr/Td response.
• 30-pin LVDS, 1-channel, 8-bit interface supports familiar embedded controller integration.
• 5.0V typical power supply supports compact industrial equipment design.
• Designed For: industrial equipment, HMIs, kiosks, vending machines, information terminals, and embedded display systems.

Product Overview of the 18.5 Inch Sunlight Readable LCD Screen

The 18.5 Inch Sunlight Readable LCD Screen is built for equipment projects that need a mainstream widescreen display with stronger brightness than a standard indoor panel. Its 1920×1080 Full HD format gives interface designers enough space for menus, status data, icons, control pages, and public information layouts without moving to a much larger display size.

The strongest selection value is the combination of brightness, interface simplicity, and long backlight life. The series includes 500-nit, 1000-nit, and 1500-nit versions, allowing OEM teams to choose a configuration for indoor industrial equipment, bright retail terminals, semi-exposed kiosks, or transport-related display systems. The WLED backlight is listed with a 50,000-hour lifetime, which is important for projects where service access and downtime are major cost factors.

This model should be specified carefully because it is a TN, normally white, transmissive module. That means it can be attractive for projects that value fast response and cost-effective FHD integration, but buyers should validate viewing angle, contrast behavior, cover glass, and installation position against the final user workflow.

Key Features of the 18.5 Inch Sunlight Readable LCD Screen

Technical Specifications of the 18.5-Inch FHD LVDS LCD Module

These confirmed parameters show a practical FHD industrial display module. The public table does not include a weight value because the supplied screenshots conflict on typical weight, and that value should be confirmed from the final drawing or datasheet before production use.

Why Choose an 18.5-Inch FHD TN Screen for Industrial Kiosks?

1920×1080 Interface Space Without Oversizing the Enclosure

The 18.5-inch size is a useful middle ground for industrial kiosks and embedded terminals. It is larger than compact 10.1-inch or 12.1-inch HMIs, but still easier to integrate than 21.5-inch or larger signage panels. For operator menus, vending interfaces, factory dashboards, and service-terminal workflows, Full HD resolution gives product teams a clean UI canvas while keeping the mechanical footprint manageable.

TN Fast Response for Dynamic Equipment Content

This screen is not positioned as an IPS viewing-angle-first module. Its advantage is the TN normally white transmissive structure with fast 1.5 / 3.5 ms response. That can be useful for equipment screens that show moving interface elements, status transitions, test values, video snippets, or frequently refreshed operating data. Buyers should still confirm whether the final user position requires wider viewing performance than the listed 85/85/80/80 viewing angles.

500–1500 Nits for Controlled Bright and Semi-Exposed Use

The brightness series gives procurement teams a practical way to match environment and cost. A 500-nit version may fit controlled indoor equipment, while 1000-nit and 1500-nit configurations are more suitable for brighter indoor spaces, near-window installation, or semi-exposed commercial terminals. For direct outdoor use, final performance depends heavily on cover glass, reflection control, cabinet design, and thermal validation.

30-Pin LVDS and 5.0V Integration for OEM Development

For engineering teams, the 30-pin LVDS interface is one of the most important confirmed specifications. This module uses 1-channel, 8-bit LVDS signaling and 5.0V typical supply, so controller matching should begin with the correct timing, connector definition, cable route, grounding, and power-rail design.

The active area of 409.8 × 230.4 mm and bezel opening of 413.4 × 234.0 mm give mechanical designers practical dimensions for window alignment and front-frame design. Since touch is not confirmed, OEM teams can keep a non-touch structure or evaluate separate cover glass, optical bonding, or add-on touch according to the application.

Recommended Applications for Industrial and Commercial Equipment

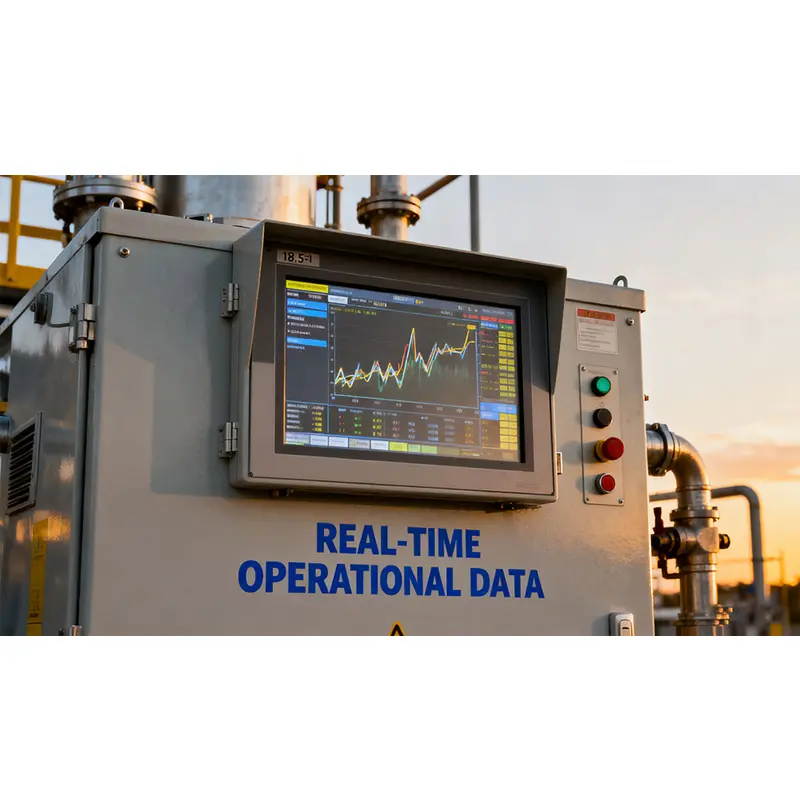

This 18.5 Inch Sunlight Readable LCD Screen is well suited to industrial control systems and HMIs where operators need a larger Full HD interface for equipment status, control pages, and production data. The same specification profile also fits factory automation equipment, test and measurement instruments, rack-mount industrial PCs, and embedded monitoring systems.

For public-facing equipment, the panel can support ATM, kiosk, vending-machine, transportation-display, digital-signage, and information-terminal projects. In these use cases, buyers should validate brightness target, viewing angle, cover glass reflection, and operating temperature inside the final enclosure before mass production.

Customization Options for 18.5-Inch LCD Screen Projects

Project evaluation can include brightness version selection, cover glass, anti-glare or anti-reflection review, optical bonding, no-touch or add-on touch structure, LVDS cable and controller matching, enclosure/front-window fit, 5V power design, thermal planning, and optional frame-rate review. For branded equipment projects, mechanical drawing review and sample validation should come before bulk procurement.

Procurement and Engineering Checklist for 18.5-Inch Screen Selection

• Confirm whether the project needs 500, 1000, or 1500 nits.
• Match 1920×1080 UI layout to the final application software.
• Verify the 30-pin LVDS pinout, timing, and controller board.
• Confirm 5.0V power supply stability and backlight-control requirements.
• Review the active area and bezel opening against the front window.
• Confirm final weight from the official drawing because source screenshots conflict.
• Decide whether cover glass, optical bonding, or touch is required.
• Test viewing angle, reflection, and thermal behavior in the final enclosure.
