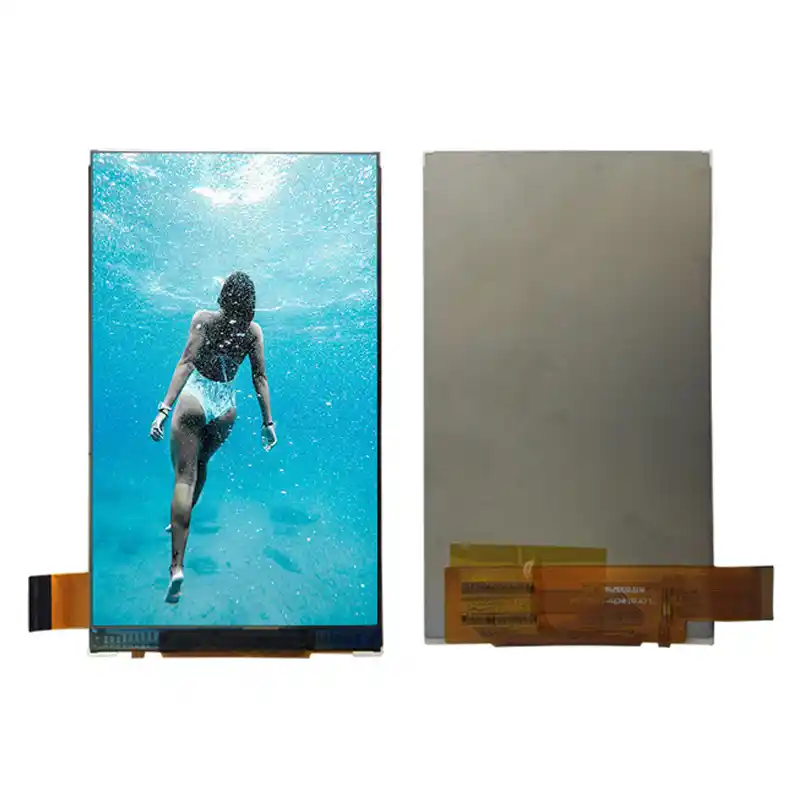

The Compact WVGA MIPI TFT LCD Module provides a 3.97-inch portrait display for handheld HMIs, portable terminals, compact controllers, and embedded equipment. Its native 480 × 800 raster supports vertical menus, camera previews, status dashboards, and touch-ready interface concepts without mechanically rotating a landscape panel.

The standard configuration uses a 20-pin FPC, OTM8019A driver identification, 16.7M colors, all-o’clock viewing wording, and a 56.44 × 95.70 × 2.00 mm outline. Panel luminance is 350 cd/m². A touch sensor, controller board, connector mate, and complete initialization package are not confirmed as standard inclusions.

Key Specifications

Portrait UI and Optical Fit

Native 480 × 800 Layout

The 480 × 800 pixel matrix is intended for portrait content. Native-resolution assets preserve text, icons, video previews, status controls, and vertically organized measurement data. UI release should account for the visible opening, border overlap, orientation, and cover-lens masking rather than relying on diagonal size alone.

350 cd/m² Behind the Final Front Stack

The 350 cd/m² panel is positioned for indoor and controlled-light equipment. Finished visibility depends on cover transmission, reflections, air gap or bonding, surface treatment, installation angle, and ambient light. The panel rating does not establish direct-sun readability.

The all-o’clock description supports flexible viewing orientation but does not define numerical directional angles. Use the approved optical specification for angle limits.

Color, Pixel Pitch, and Backlight Boundaries

The 16.7M-color specification supports graphical interfaces and color-coded status information. The confirmed pixel pitch is 0.108 × 0.108 mm.

The backlight is identified as eight-chip white LED. This does not define forward voltage, topology, current, dimming, enable behavior, thermal limits, or lifetime. Those values are required before releasing a production driver.

Integrating the Compact WVGA MIPI TFT LCD Module

20-Pin MIPI Host Qualification

A 20-pin FPC does not prove MIPI lane count, mode, data rate, voltage, timing, or compatibility with another display. Before PCB release, confirm the pin assignment, connector pitch and contact side, FPC orientation, clock and data-lane mapping, command or video mode, reset behavior, panel rails, and backlight controls.

A processor with MIPI DSI still requires the correct configuration and timing package. HDMI, LVDS, eDP, RGB, or SPI hosts require conversion unless the ordered assembly includes a matching controller.

OTM8019A Documentation Boundary

OTM8019A identifies the listed driver family but does not establish a drop-in library or universal initialization sequence. The approved command table, power sequence, timing, scan direction, color order, and sleep or wake behavior must match the ordered revision.

Sample validation should include cold starts, power interruptions, sleep recovery, full-screen color patterns, orientation, and extended operation.

FPC, Power, and Backlight Review

Production integration requires the FPC pinout, pitch, mating connector, contact orientation, bend zone, and strain-relief limits. Panel logic and backlight power should be treated separately until the electrical table confirms every rail and current requirement.

Mechanical Integration

Active Area Versus Module Outline

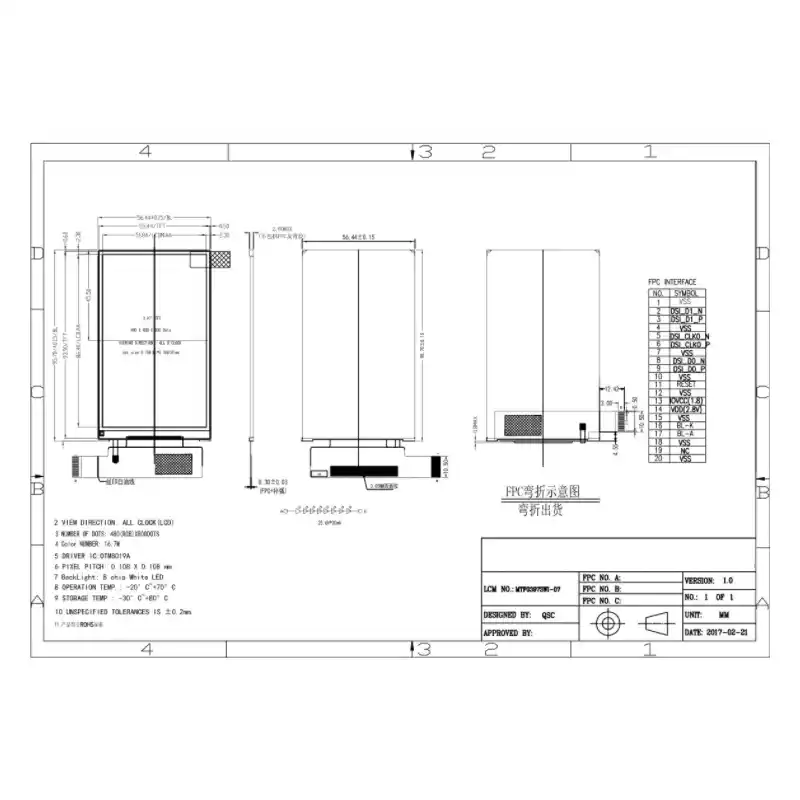

The 51.84 × 86.40 mm active area sits within a 56.44 × 95.70 mm outline. Use the approved drawing to define the viewing window, bezel overlap, support surfaces, adhesive zones, FPC clearance, and connector location.

The 2.00 mm module thickness supports slim products, but touch, bonding, a cover lens, gasket, or frame increases the complete stack.

FPC Routing and Portrait Orientation

The FPC exits near the short edge. Provide a controlled bend radius and avoid compression at the enclosure edge. The mechanical release should identify screen top, scan direction, connector datum, contact side, and the safe fold path.

Application Fit for Handheld HMIs

The Compact WVGA MIPI TFT LCD Module is suitable for handheld service terminals, compact security interfaces, smart controllers, portable test and service equipment, small camera devices, and embedded operator panels after electrical and optical qualification.

It is a display component rather than a complete HMI. It does not establish touch, battery life, waterproofing, vibration grade, certification, EMC compliance, or finished-device environmental performance.

Customization and Procurement

Drawing-based, sample-based, and full-custom projects may cover FPC geometry, pin definition, brightness, cover lens, surface treatment, touch integration, optical bonding, branding, packaging, and mechanical adaptation.

Custom configurations are generally reviewed from 500 pieces, subject to tooling, materials, and the requested specification. Sample and standard-module quantities are confirmed separately.

Procurement Checklist

Confirm:

• Approved module revision and complete datasheet
• Native 480 × 800 timing and portrait orientation
• MIPI DSI lane count, mode, and target data rate
• Complete 20-pin assignment, pitch, contact side, and connector
• Panel logic, I/O, reset, and power-sequence requirements
• OTM8019A command and initialization package
• FPC direction, bend radius, and enclosure clearance
• 51.84 × 86.40 mm active area and 56.44 × 95.70 × 2.00 mm outline
• Eight-chip LED voltage, current, topology, driver, enable, and dimming
• 350 cd/m² fit behind the final cover
• Touch, cover-lens, and bonding requirements
• Operating and storage conditions
• Sample criteria, annual demand, and schedule
