6 Inch Portrait MIPI LCD Touch Screen for Smart Terminals
Model P/N
Size
Resolution
Brightness
Viewing Angle
Connector Type
Operating Temp
Overall(mm)
huisoar
HS060HD07A-V1
Brand
Panel Size (inch)
Model P/N
Resolution
Brightness (nits)
Viewing Angle
Response Time
Overall (mm)
Active Area (mm)
Refresh Rate
Display Colors
Panel Type
Connector Type
Operating Temp
Touchscreen Type
Storage Temp
Work Mode
Pixel Format
Input Voltage (V)
Control Type
Operating Environment
Motherboard Type
Designed For
6 Inch Portrait MIPI LCD Touch Screen for Smart Terminals
A slim 720×1280 capacitive touch display for portrait smart-terminal and embedded-control interfaces.
The 6 Inch Portrait MIPI LCD Touch Screen is a 720×1280 a-Si TFT display and capacitive-touch assembly for smart terminals, handheld controllers, and compact portrait HMIs. It combines 350 cd/m² luminance, normally-black operation, an all-direction viewing statement, MIPI display input, ST7703, and a slim 76.75 × 140.28 × 1.66 mm module structure.
The active image area measures 73.98 × 131.52 mm. Final display and touch compatibility depends on the controlled MIPI timing, lane assignment, display pinout, touch-controller details, voltage levels, and FPC orientation.
Key Specifications at a Glance
| Parameter | Confirmed value |
|---|---|
| Commercial size | 6.0 inch |
| TFT size in drawing | 5.94 inch |
| Resolution | 720 × 1280 pixels |
| Display technology | a-Si TFT LCD |
| Display mode | Normally black |
| Viewing statement | All-direction viewing |
| Brightness | 350 cd/m² |
| Display interface | MIPI |
| Display connector | 30-pin FPC shown |
| Driver IC | ST7703 |
| Touch | Capacitive touch panel |
| Display colors | 16.7 million colors |
| Pixel arrangement | RGB vertical stripe |
| Pixel pitch | 0.10275 × 0.10275 mm |
| Active area | 73.98 × 131.52 mm |
| Module outline | 76.75 × 140.28 × 1.66 ± 0.15 mm |
| Backlight | 14 LEDs |
| Operating temperature | −10°C to +60°C |
| Storage temperature | −20°C to +70°C |
Final production integration should follow the approved electrical specification, display and touch pin assignments, mechanical drawing, and qualified sample.
Portrait 720×1280 Interface Design
The 720×1280 native format supports vertically structured user interfaces with enough space for images, text, navigation controls, status information, and touch-operated menus.
Designing the portrait UI
Application graphics should be created at the native pixel resolution. A smart-terminal interface can allocate space for:
- Main image or data region
- Status and connection indicators
- Touch navigation controls
- Notifications and alarm messages
- Device settings
- Measurement or control data
- Footer actions
Native-resolution rendering reduces unnecessary scaling and helps preserve text and icon clarity.
Normally-black display behavior
The module is identified as normally black. This can support dark-themed interfaces and strong visual separation between illuminated graphics and dark backgrounds.
Normally-black operation does not by itself establish a specific contrast ratio, black level, or viewing-angle value. Those characteristics should be confirmed on the approved sample.
350 cd/m² for Controlled-Light Equipment
The standard luminance is 350 cd/m². This is suitable primarily for indoor equipment, controlled-light environments, and enclosures where strong direct reflections are limited.
Readability depends on the complete optical stack
Final visibility also depends on:
- Touch-sensor reflectance
- Cover-lens construction
- Air gap or bonding method
- Surface treatment
- Enclosure angle
- Ambient lighting
- Backlight control
- UI contrast
A 350 cd/m² module should not be marketed as sunlight-readable without additional optical evidence.
Backlight qualification
The module uses a 14-LED backlight. The host design requires compatible backlight-driving circuitry based on the controlled electrical requirements.
The LED count does not establish total module power, dimming method, backlight lifetime, or brightness-adjustment range.
6 Inch Portrait MIPI LCD Touch Screen Integration
The display uses a MIPI route, with a four-channel configuration stated for the product. The host must match the exact lane count, lane order, timing, voltage levels, and control signals.
A matching MIPI connector does not establish electrical compatibility.
Display pin and lane checks
Confirm before controller-PCB release:
- MIPI lane count
- Clock-lane assignment
- Data-lane order and polarity
- Native 720×1280 timing
- Complete display pin assignment
- Logic and panel voltages
- Reset and synchronization signals
- FPC pitch and contact side
- Connector orientation
- Backlight connections

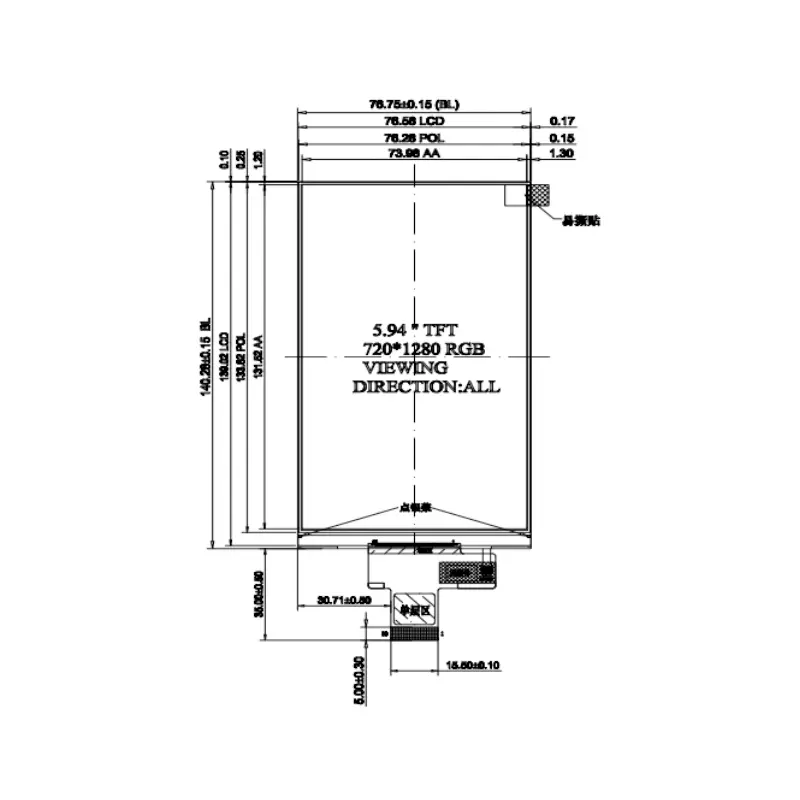

The drawing shows a 30-position display pin table, but the controlled pin definition must govern the hardware design.
Non-MIPI hosts require conversion
HDMI, USB, eDP, LVDS, and parallel RGB cannot connect directly without suitable interface-conversion hardware.
Controller-board selection must use the complete timing, lane, voltage, and pin requirements rather than resolution alone.
ST7703 technical boundary
ST7703 is identified as the LCD driver IC.
The driver name does not prove universal host compatibility, host-side register programming, a specific initialization routine, or a particular power sequence. Datasheet-defined timing, voltage, control, and power requirements must be verified for the complete module.
Capacitive-Touch Integration
Capacitive touch is identified for the detailed product configuration. The touch system is electrically separate from the MIPI display-data path.
Touch information required
Confirm:
- Touch-controller model
- Touch communication protocol
- Touch operating voltage
- Interrupt and reset signals
- Touch FPC pin assignment
- Touch-point requirement
- Cover-lens dimensions
- Bonding construction
- Firmware support
Capacitive touch does not automatically establish multi-touch, glove operation, water rejection, or compatibility with a specific operating system.
CTP versus RTP project variants
A broader product table references RTP/CTP options, while the detailed configuration specifies CTP. The standard page therefore presents capacitive touch.
A resistive-touch version should be treated as a separate project configuration and confirmed through its own drawing and electrical specification.
Mechanical Fit and FPC Routing
The module outline is 76.75 × 140.28 × 1.66 ± 0.15 mm. This slim profile is useful for compact terminals, but the complete assembly will be thicker after the protective front, touch adhesive, PCB, enclosure, and mounting structure are added.
Active area and enclosure opening
The active area is 73.98 × 131.52 mm. Enclosure planning should distinguish among:
- Visible image area
- LCD outside dimensions
- Touch-sensor outline
- Cover-lens dimensions
- Bezel overlap
- Assembly tolerances
- FPC exits
- Connector clearance
The front window should be finalized from the complete assembly drawing.
Display and touch FPCs

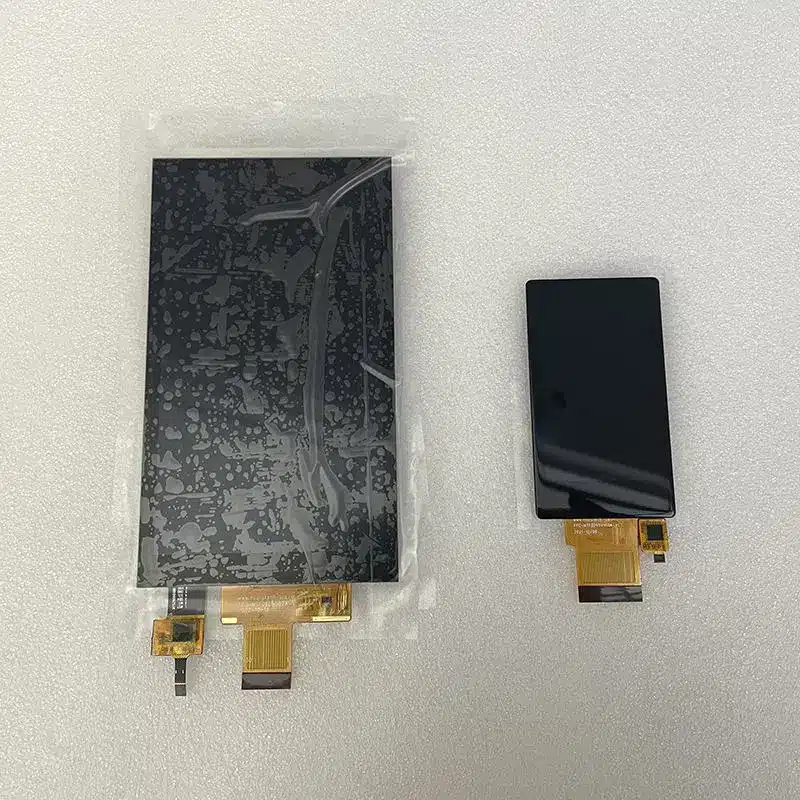

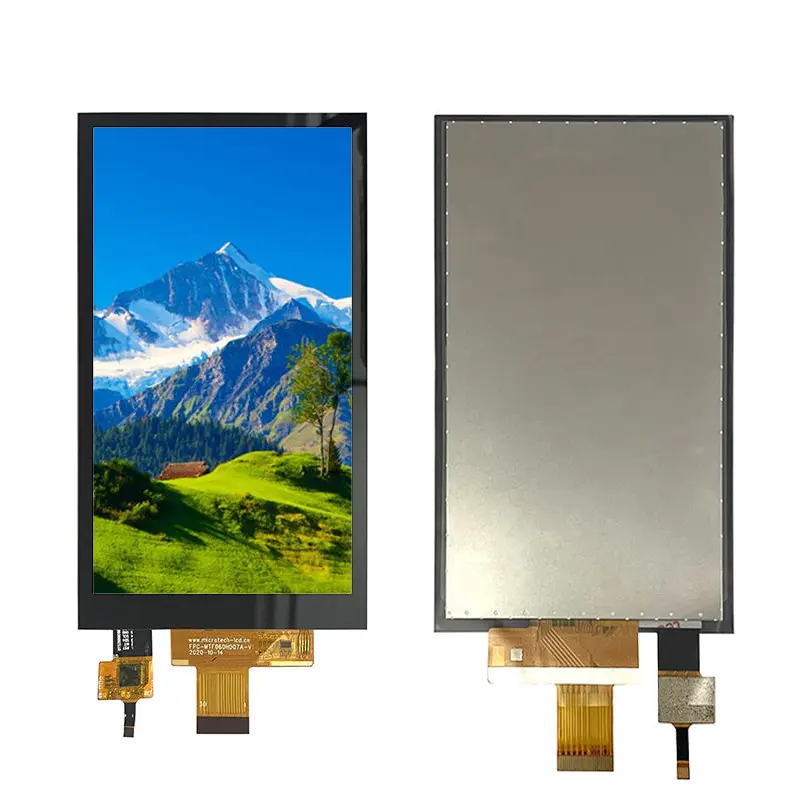

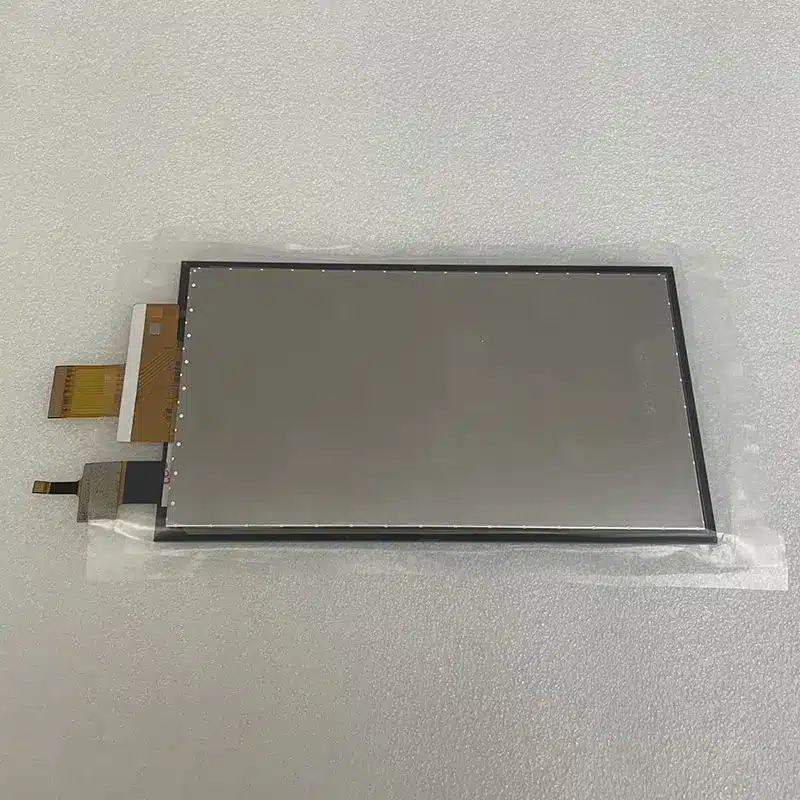

The product images show separate flexible connections for the LCD and touch functions. Both routes require adequate bend radius, strain relief, and clearance from screws, sharp edges, brackets, and heat sources.
Recommended Applications
The 6 Inch Portrait MIPI LCD Touch Screen may be evaluated for:
- Smart control terminals
- Handheld control equipment
- Smart-home panels
- Portrait embedded HMIs
- Portable test and service equipment
- Compact information terminals
- Data-collection interfaces
- General embedded touch systems
Another display architecture may be preferable when the project requires direct HDMI input, higher luminance, confirmed outdoor readability, a landscape-native format, specified touch-point count, or a ready-made controller board.
Customization and Project Qualification
Project review may cover:
- MIPI timing and lane mapping
- Display and touch pin definitions
- FPC shape and routing
- Capacitive-touch construction
- Cover-lens design
- Brightness target
- Mechanical adaptation
- Controller-board matching
- Packaging and branding
Custom configurations are generally reviewed from 1,000 pieces, subject to tooling requirements, material availability, and the requested specification. Sample and standard-module quantities are confirmed separately.
Procurement Checklist
Before sample approval, confirm:
- Native 720×1280 portrait UI
- Four-lane MIPI host capability
- Clock and data-lane mapping
- Complete display pin assignment
- Logic and panel voltages
- Display FPC pitch and orientation
- ST7703-related module requirements
- Touch-controller identity
- Touch communication interface
- Touch FPC pin assignment
- Required touch-point count
- Active area: 73.98 × 131.52 mm
- Module outline: 76.75 × 140.28 × 1.66 ± 0.15 mm
- Complete cover and touch drawing
- 350 cd/m² lighting environment
- Backlight-driver requirements
- Operating temperature: −10°C to +60°C
- Storage temperature: −20°C to +70°C
- Sample quantity and annual demand
- Controller requirement and production schedule
FAQ
About 6 Inch Portrait MIPI LCD Touch Screen
Is capacitive touch standard?
Is the interface definitely four-lane MIPI?
What does ST7703 confirm?
Is 350 cd/m² suitable outdoors?
