75 Inch 4K High Brightness LCD Panel for Outdoor Signage

UHD 3840×2160 Commercial Display Panel with 2000–5000 Nits Brightness and V-by-One Interface

A 75 Inch 4K High Brightness LCD Panel is a large-format UHD TFT-LCD module for outdoor-facing signage, commercial display systems, interactive kiosks, advertising panels, and information boards that need stronger visibility than standard indoor displays. It combines 3840 × 2160 resolution, 2000–5000 cd/m² brightness, IPS full-view performance, anti-glare 3% haze surface treatment, WLED backlighting, and a V-by-One 8-lane interface for OEM display projects that require both optical impact and system-level integration.

At a Glance: 75 Inch UHD High Brightness Panel Highlights

• 75.0-inch large-format TFT-LCD module for commercial signage, information boards, and kiosk display systems.
• 3840 × 2160 UHD resolution supports detailed advertising visuals, public information layouts, and large-screen content.
• 2000–5000 cd/m² brightness range supports high-ambient-light and outdoor-facing display evaluation.
• IPS normally black transmissive mode and 89° viewing angles support public viewing from multiple directions.
• V-by-One 8-lane, 56-pin signal interface provides a professional basis for large-format controller-board matching.
• Anti-glare surface with 3% haze and 2H hard coating helps reduce reflection in bright commercial environments.
• WLED backlight with 50,000-hour lifetime supports long operating schedules for B2B signage deployments.

Product Overview of the 75 Inch 4K High Brightness LCD Panel

The 75 Inch 4K High Brightness LCD Panel is designed for OEM and system-integration teams building large public display products where brightness, image clarity, and electrical compatibility must be evaluated together. A 75-inch screen gives enough physical area for advertising visuals, transport information, wayfinding messages, retail campaigns, and multi-zone commercial content, while 3840 × 2160 UHD resolution helps keep text and graphics clearer across the large display surface.

The panel’s 2000–5000 cd/m² brightness range is the main reason it fits outdoor-facing and high-ambient-light applications. Standard indoor displays can appear weak when installed near windows, entrances, transportation terminals, or open commercial spaces. By contrast, this high-brightness LCD panel gives project teams multiple brightness options within the same D-series platform, allowing optical performance to be matched to the viewing environment, enclosure design, and thermal requirements.

For integration, the panel uses a V-by-One 8-lane, 56-pin signal interface and 12.0 V typical supply voltage. This makes it more appropriate for professional display-system design than for simple consumer-monitor replacement. Engineers should evaluate controller-board compatibility, cable routing, cabinet structure, thermal dissipation, and cover-glass strategy before sample approval, especially when the display will be used in bright public areas or long-hour signage systems.

Key Features of the 75 Inch 4K High Brightness LCD Panel

The 75 Inch 4K High Brightness LCD Panel provides a large-format, high-luminance display foundation for digital signage products that must balance image detail, brightness, viewing angle, and integration reliability.

Technical Specifications of the 75 Inch UHD Signage LCD Panel

The 75-inch UHD signage LCD panel gives procurement and engineering teams the core parameters needed for optical evaluation, V-by-One controller matching, cabinet design, and field-use testing.

These parameters should be reviewed as a complete display platform. UHD resolution affects content design, brightness affects thermal and optical planning, V-by-One affects the control-board path, and the 75-inch size affects mechanical handling, mounting strength, and service access. A sample should be tested with the intended cabinet, cover glass, controller board, content type, and ambient light conditions before bulk procurement.

Why Choose This 75 Inch UHD High Brightness Panel?

This 75 inch UHD high brightness panel is a strong choice when a project needs public-facing visual impact, 4K content detail, and a professional signal interface rather than a finished consumer display.

75 Inch 4K Format for Public Information and Advertising Screens

A 75-inch format provides enough physical area for large advertising images, passenger information, retail promotions, and commercial announcements. When paired with 3840 × 2160 UHD resolution, the panel can support sharper content than lower-resolution large-format displays, especially when the screen must show both visual media and readable text. This is valuable for airports, train stations, malls, retail showrooms, and large indoor/outdoor-facing commercial spaces.

The 59 PPI specification also matters for large-screen content planning. A display in this class is usually viewed from a distance, but information-board applications may still require readable schedules, maps, prices, notices, or directional messages. UHD resolution helps prevent the screen from becoming only a basic image surface and gives integrators more room to create multi-zone layouts.

2000–5000 Nits Brightness and V-by-One Integration for OEM Projects

The 2000–5000 cd/m² brightness range makes this panel suitable for applications where ordinary indoor brightness is not enough. For window-facing signage, entrance displays, transport hubs, and high-light commercial spaces, engineers can evaluate the correct brightness option based on ambient light, cover glass, thermal design, and duty cycle. Higher brightness should always be reviewed with heat management and enclosure ventilation, not selected as an isolated value.

The V-by-One 8-lane, 56-pin interface gives OEM teams a professional path for UHD display driving. It is important to confirm the controller board, cable route, signal integrity, grounding, and power design before production. For large display equipment, interface stability and mechanical serviceability are just as important as optical brightness.

Display Performance of the Large-Format LCD Panel for Outdoor-Facing Signage

The display performance of this large-format LCD panel is centered on high luminance, UHD clarity, wide viewing, and anti-glare surface design for public-facing signage.

2000–5000 cd/m² Brightness for High-Ambient-Light Visibility

The brightness range is a key selection factor for outdoor-facing signage projects. Lower brightness within the series may be suitable for bright indoor commercial spaces, while higher brightness versions can be evaluated for window-facing or semi-outdoor display systems. For direct sunlight exposure, brightness should be reviewed together with optical bonding, cover glass, anti-glare treatment, enclosure sealing, ventilation, and thermal dissipation.

This cautious approach is important because panel brightness alone does not guarantee outdoor system performance. A display installed behind reflective glass, inside a poorly ventilated cabinet, or in a hot environment may require additional system-level design. The panel gives a high-brightness foundation, but the final product should be validated in its real installation condition.

UHD Resolution, 1.07B Colors, and IPS Full-View Performance

The UHD 3840 × 2160 resolution gives content teams a strong platform for 4K advertising, product visuals, public notices, and multi-zone signage layouts. The source also lists 1.07B colors with 69% NTSC, which supports richer content reproduction than basic low-color display systems. For branded commercial signage, color and detail can influence how product images, graphics, and video campaigns appear to the viewer.

IPS full-view performance and 89-degree viewing angles help the panel serve public environments where people do not stand directly in front of the display. In malls, stations, airports, and retail spaces, viewers approach from different directions and distances. Wide viewing helps keep the screen useful for both straight-on and angled viewing positions.

Anti-Glare Surface and WLED Backlight for Commercial Deployment

The anti-glare surface with 3% haze and 2H hard coating helps reduce distracting reflections in bright commercial environments. It should not be treated as a complete outdoor-protection solution, but it is a useful panel-level feature for readability. If the finished product requires impact resistance, sealing, waterproofing, or public-touch protection, those requirements should be handled through front glass, bonding, cabinet, and enclosure design.

The WLED backlight with 50,000-hour lifetime gives buyers a practical reference for long operating schedules. Digital signage systems often run for long daily periods, so backlight life, heat management, brightness control, and maintenance access should be considered early in the equipment design process.

Integration and Mounting Options for V-by-One High Brightness Display Projects

Integration for V-by-One high brightness display projects should be planned around signal driving, mechanical support, cabinet layout, power design, and thermal management.

V-by-One 8-Lane Controller Board and Signal Planning

The V-by-One 8-lane, 56-pin interface is a central integration parameter for this panel. Engineers should confirm that the selected controller board supports the panel’s UHD resolution, timing, interface lane configuration, and backlight control requirements. Cable routing, connector orientation, grounding, and electromagnetic design should also be reviewed because large-format UHD panels can be more demanding than smaller display modules.

If an existing media player or host system does not directly match the panel interface, a dedicated controller-board solution may be required. In that case, buyers should provide expected input sources, operating system requirements, media format, brightness-control needs, and enclosure constraints. This allows the display supplier to evaluate control-board matching more accurately.

Cabinet Mounting, Weight Handling, and Service Access

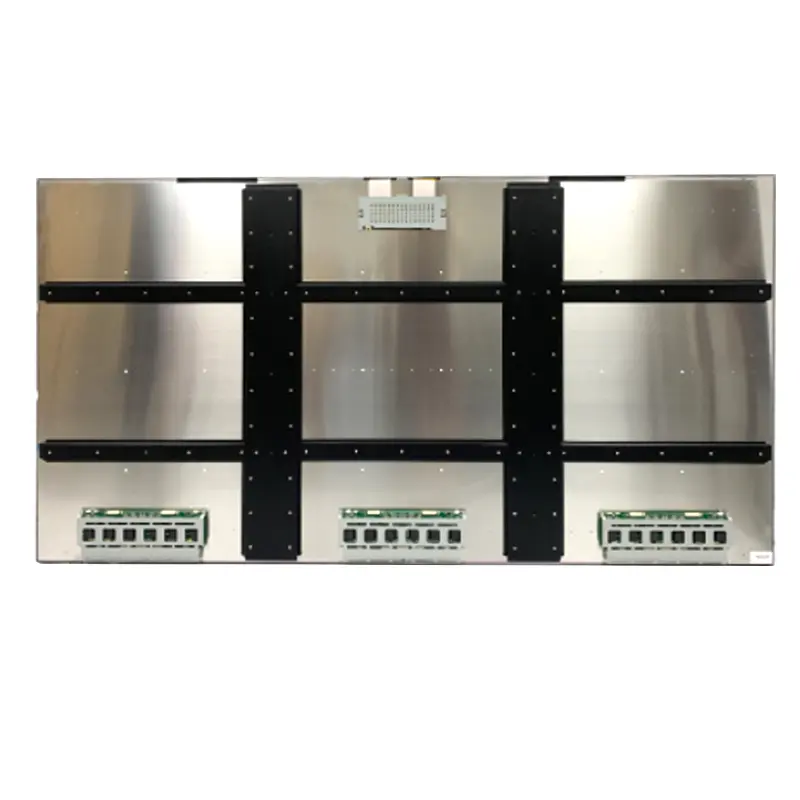

Mechanical planning is especially important for a 75-inch LCD panel. The listed weight of 27.6 kg typical and 30.5 kg maximum affects cabinet strength, mounting bracket design, transport packaging, and service procedures. A large panel should not be evaluated only by its visible area; engineers must also review support points, rear structure, thermal clearance, cable exits, and service access.

For outdoor-facing signage or kiosk products, the front structure should be designed around the display, not added at the end. Cover glass thickness, bonding method, air gap, gasket design, maintenance opening, and cabinet rigidity can all affect final optical performance and reliability. A drawing review before sample production can reduce mechanical mismatch.

Power, Thermal Dissipation, and Long-Hour Operation Review

The source lists 12.0 V typical supply voltage and operating temperature from -20°C to 70°C. These values help define an electrical and environmental planning baseline, but the final system still needs thermal review. High-brightness backlights generate heat, and heat can affect optical performance, electronic reliability, and long-term stability if the enclosure is poorly designed.

For 24/7 or long-hour signage, engineers should evaluate airflow, heat sink paths, cabinet material, fan or fanless strategy, brightness scheduling, and environmental exposure. System validation should include the planned brightness level, actual content type, ambient temperature range, and installation orientation.

Recommended Applications for Outdoor-Facing Digital Signage and Information Boards

Outdoor-facing digital signage and information-board projects benefit from a 75-inch high-brightness 4K panel when they need large visual area, strong luminance, and clear public readability.

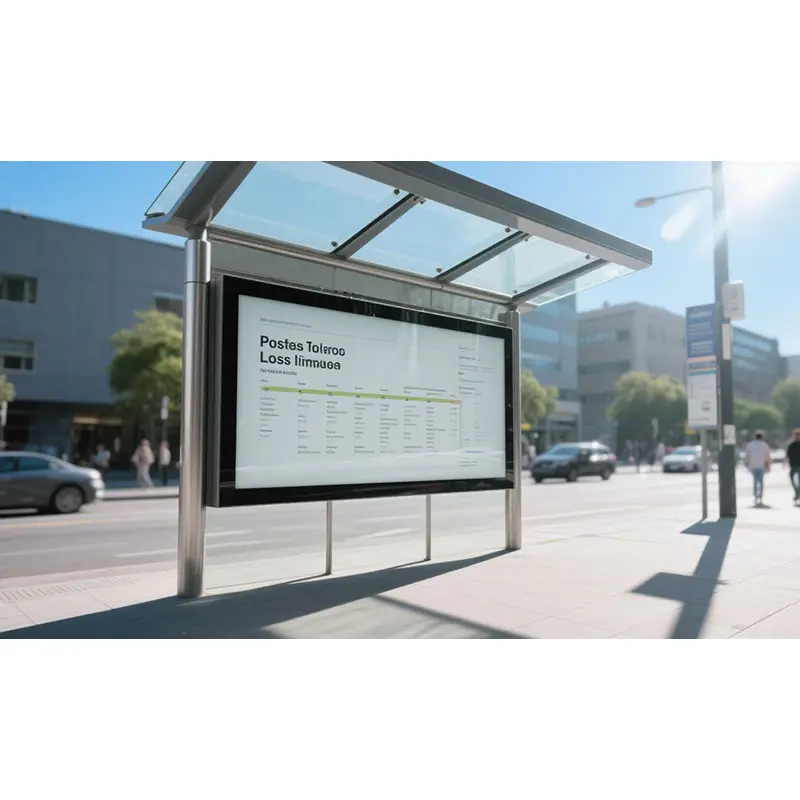

Airport and Train Station Information Boards with High Ambient Light

Transport hubs often have bright halls, glass walls, and long viewing distances. A 75-inch UHD panel can display arrival information, directional content, safety notices, and promotional media on a large surface. The high-brightness range helps the screen remain more visible in strong ambient light, while wide viewing angles support passengers approaching from different directions.

Shopping Mall and Retail Advertising Panels for Brand Campaigns

Retail signage must attract attention while presenting product images, pricing, or campaign messages clearly. The combination of 4K resolution, high brightness, and large size gives advertisers more room for detailed visuals and multi-zone content. For storefront or window-facing use, cover glass reflection, thermal load, brightness setting, and content schedule should be reviewed as part of the display system.

Interactive Kiosks and EV Charging Information Displays

Interactive kiosks and EV charging display systems need readable screens in public spaces where users may stand close to the panel. While this panel itself is not confirmed as a touch module, it can be evaluated with a separate touch panel, protective cover glass, or optical bonding stack when the finished system requires interaction. The large format can support maps, service menus, charging status, promotions, or public information.

Commercial Display Walls and Large Visualization Equipment

Commercial display systems in showrooms, conference environments, and public visualization spaces may need high brightness and UHD content without using a finished television architecture. A large-format high-brightness LCD panel gives system designers more flexibility to create a custom cabinet, controller board, and installation structure. This is useful when the display becomes part of a larger equipment product rather than a standalone monitor.

Customization Options for 75 Inch High Brightness LCD Panel Projects

Customization for 75 inch high brightness LCD panel projects should be evaluated at the display-system level. Brightness selection can be reviewed across the 2000, 2500, 3000, 3500, 4000, 4500, and 5000-nit D-series options. Cover glass, anti-glare strategy, optical bonding, touch-panel integration, front-frame structure, V-by-One cable planning, and controller-board matching can be evaluated according to the application requirements.

For outdoor-facing or public environments, customization may also include cabinet design, mounting support, thermal dissipation, sealing structure, and IP-rated enclosure evaluation. These should not be described as default panel features unless confirmed in the final product specification. Buyers should provide drawings, brightness targets, viewing environment, expected duty cycle, and installation photos or renderings so the display solution can be reviewed realistically.

Procurement and Engineering Checklist for 75 Inch Panel Selection

A reliable procurement decision should confirm optical, electrical, mechanical, and environmental requirements before approving a large-format high-brightness LCD panel.

• Confirm whether the project requires a panel module, open-frame system, or finished waterproof outdoor display.
• Match 3840 × 2160 UHD resolution with the planned content source, controller board, and media playback system.
• Select brightness based on indoor bright, window-facing, semi-outdoor, or direct-sunlight exposure conditions.
• Confirm V-by-One 8-lane compatibility, controller timing, cable design, and backlight-control requirements.
• Review active area, visible area, cabinet dimensions, mounting structure, rear clearance, and service access.
• Evaluate weight handling, transport packaging, installation safety, and maintenance workflow.
• Review cover glass, anti-glare, optical bonding, touch, sealing, and enclosure protection at system level.
• Validate sample performance under real brightness, content, thermal, and operating-hour conditions before bulk order.

Brightness / Interface / Mounting Selection Guide for 75 Inch Signage Panels

For indoor commercial signage, lower brightness within the series may be sufficient if the display is not exposed to strong sunlight or window glare. For window-facing, transportation, or outdoor-facing installations, higher brightness should be tested with the final cover glass and enclosure. Interface selection should start with V-by-One controller-board support, not only media-player input. Mounting review should include panel weight, cabinet reinforcement, cable route, airflow, and access for future maintenance.
