8 Inch LVDS Touch Display for High-Brightness Industrial Control

1920×1200 IPS PCAP Display Module for Industrial HMI, Vehicle, and Outdoor-Facing Embedded Interfaces

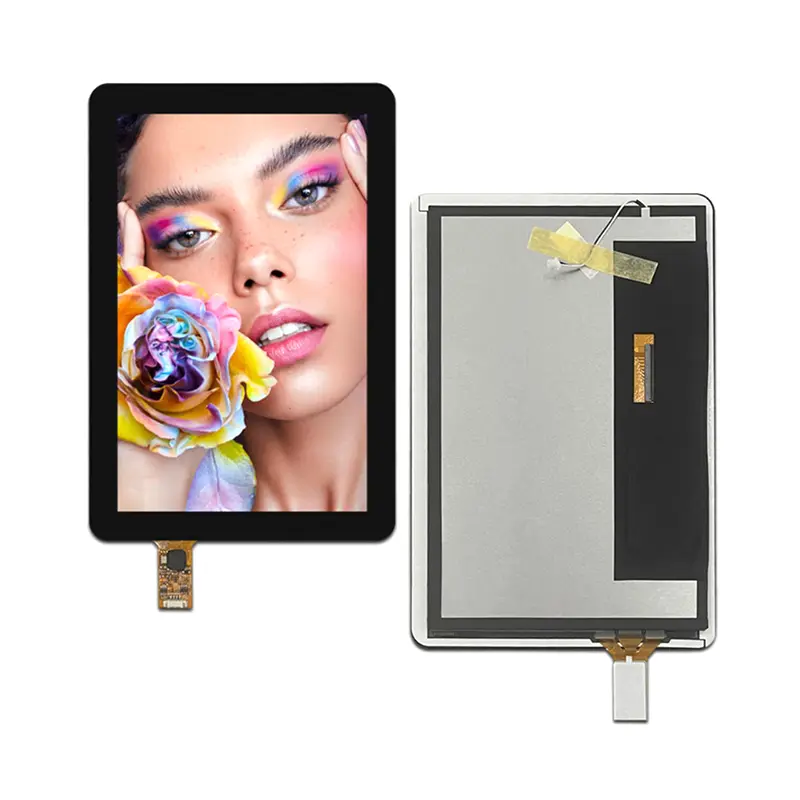

An 8 Inch LVDS Touch Display is a compact 1920×1200 IPS TFT-LCD module for industrial HMI, outdoor-facing terminals, vehicle equipment, and remote-control interfaces that need sharp UI detail, 1000 cd/m² typical brightness, projected capacitive touch, and 40-pin LVDS integration. Its 8-inch 16:10 format gives interface designers more pixel density than standard low-resolution compact screens while keeping the module practical for embedded equipment where enclosure space is limited.

At a Glance: 1920×1200 IPS Touch Module Highlights

• 8-inch IPS TFT-LCD module with projected capacitive touch for interactive control interfaces.
• 1920×1200 resolution supports dense icons, maps, camera feeds, charts, and parameter dashboards.
• 1000 cd/m² typical brightness helps improve visibility in high-ambient-light industrial environments.
• 80/80/80/80 viewing supports multi-angle operation in vehicle, HMI, and remote-control layouts.
• LVDS 8-bit interface with 40 pins supports embedded display controller integration.
• -20 ~ 70 °C operating range supports industrial and mobile equipment conditions.
• 181.7 × 119.8 × 5.5 mm outline helps engineers evaluate enclosure, bezel, and cable clearance early.

Product Overview of the 8 Inch LVDS Touch Display

The 8 Inch LVDS Touch Display is best suited for compact equipment that needs both high visual density and direct touch interaction. Instead of using a low-resolution 8-inch screen for simple menus, this module gives designers 1920×1200 pixels for richer control layouts, inspection views, monitoring panels, and multi-zone dashboards.

Its strongest buyer value is the combination of resolution, brightness, touch, and LVDS integration in one compact module. The 1000 cd/m² typical brightness is useful for factory terminals, outdoor-facing control boxes, vehicle cabins, and field-use devices where ordinary indoor LCD brightness may be insufficient. The IPS hard-screen viewing specification also helps maintain readability when the operator is not directly in front of the display.

This module fits projects where a finished monitor is too large and a bare non-touch panel would require extra touch-stack development. Before sample approval, buyers should confirm the LVDS timing table, 40-pin pin assignment, PCAP touch interface, input voltage, backlight requirements, cover glass plan, and final mechanical drawing.

Key Features of the 8 Inch LVDS Touch Display

Technical Specifications of the 8 Inch 1920×1200 IPS Touch Module

These specifications make the module attractive for buyers who need a high-pixel-density compact display rather than a basic 800×480 or 1024×600 screen. The public values above are confirmed values only; power input, touch interface protocol, detailed pin assignment, and backlight driving conditions should be checked during engineering review.

Why Choose an 8 Inch 1920×1200 Touch LCD for Industrial HMI?

This display format gives compact HMI devices a sharper and more interactive interface without moving to a larger screen size. The 1920×1200 resolution is especially useful where operators need more than basic button labels, such as status dashboards, machine parameters, maps, alarms, trend curves, or high-detail menus.

1000 cd/m² Brightness for High-Ambient-Light Control Panels

The confirmed 1000 cd/m² typical luminance supports installations where ambient light is stronger than standard office conditions. It should still be evaluated together with cover glass, anti-glare treatment, optical bonding, enclosure shading, and thermal dissipation when the display faces windows, outdoor entrances, or direct field exposure.

16:10 Resolution for Dense UI Without Oversized Housing

The 16:10 layout gives designers more vertical content space than a wide 16:9 compact panel. For industrial control panels, UAV remote interfaces, and vehicle terminals, this can help place command buttons, image areas, status bars, and diagnostic data on one screen while preserving a compact front-panel footprint.

PCAP Touch for Modern Equipment Interaction

Projected capacitive touch is suitable for equipment that requires direct icon-based control, menu navigation, and multi-step user input. Since the touch interface is not confirmed in the provided data, PCB and firmware teams should validate the touch controller connection before final layout.

Display Performance for 1920×1200 High-Detail Embedded Interfaces

The module’s main display advantage is its ability to show fine visual information in a small physical size. A 1920×1200 pixel matrix on an 8-inch screen gives buyers more room for graphical dashboards, split-screen data, and detailed control pages.

IPS 80/80/80/80 Viewing for Vehicle and Panel Operation

The 80/80/80/80 viewing specification helps when the operator views the screen from the side, above, or below. This matters in vehicle cabins, wall-mounted control panels, and handheld control boxes where the viewing position changes during operation.

1200:1 Contrast for Interface Separation

The 1200:1 typical contrast ratio supports visual separation between text, icons, warning indicators, and dark UI backgrounds. For control applications, contrast is important because operators often need fast recognition rather than decorative image quality only.

40-Pin LVDS and PCAP Integration Checks for 8 Inch Display Projects

The 40-pin LVDS connection gives controller-board developers a clear display-interface direction, but final integration still depends on matching electrical and mechanical details. Engineers should request the datasheet, timing table, and pin assignment before committing the PCB.

LVDS 8-Bit Signal Matching and Cable Planning

LVDS integration should be checked at the controller-board level, including timing, bit mapping, connector orientation, cable length, grounding, and EMI behavior. The module uses a 40-pin signal configuration, so cable routing and FPC bending space should be reviewed with the enclosure drawing.

Active Area, Outline, and Thickness Fit

The confirmed active area is 172.224(H) × 107.64(V) mm, and the outline is listed as 181.7 × 119.8 × 5.5 mm. These dimensions should be matched against the bezel opening, touch cover size, adhesive area, screw or frame design, and available Z-height inside the device.

Touch, Cover Glass, and Thermal Validation

The capacitive touch stack should be validated with the final cover glass thickness, surface treatment, bonding method, and grounding design. For high-brightness operation, engineers should also review heat buildup, backlight driving, and enclosure ventilation at the system level.

Recommended Applications for High-Resolution 8 Inch LVDS Touch Modules

This module fits projects where compact size, touch input, and high information density are required together. It should not be selected only because it is 8 inches; it is strongest when the product interface genuinely benefits from 1920×1200 detail.

Industrial HMI and Automation Control Terminals

Industrial HMI builders can use the resolution for machine status, parameter lists, operation buttons, trend curves, and alarm pages. The PCAP touch function supports direct operator control, while LVDS supports embedded controller integration.

Vehicle, Navigation, and Remote-Control Interfaces

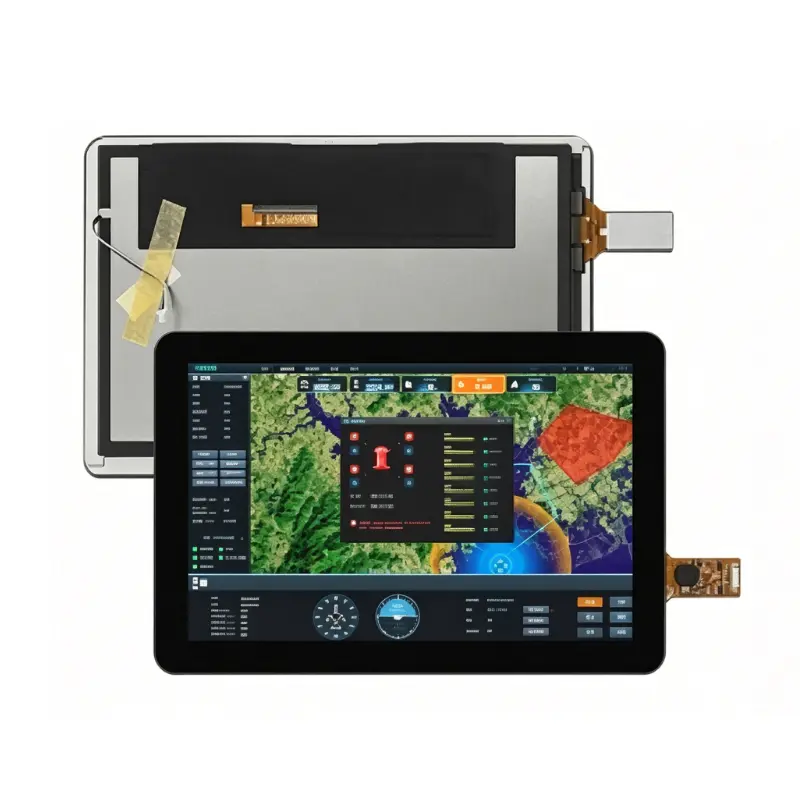

Vehicle display engineers and remote-control terminal designers can use the 1000 cd/m² brightness and wide viewing angle for cabins, field devices, and mobile equipment. The 16:10 format is useful for map-plus-status layouts or camera-preview-plus-command interfaces.

Smart Equipment, Security, and Monitoring Devices

Security terminals, smart instruments, and monitoring equipment often need both clear visuals and compact front-panel design. The 8-inch LVDS touch display can support high-density interface pages, but the final project should validate power, touch communication, and enclosure protection.

Customization Options for 8 Inch IPS Capacitive Touch Display Projects

Project evaluation can include cover glass, anti-glare treatment, optical bonding, brightness validation, capacitive touch stack review, FPC routing, housing design, LVDS cable matching, and controller-board support. These options should be confirmed against the target environment, quantity, and mechanical drawing rather than assumed as standard for every build.

Procurement and Engineering Checklist for 8 Inch LVDS Touch Display Selection

• Confirm the 1920×1200 UI design is required and that the host processor can drive the resolution.
• Check LVDS 8-bit timing, 40-pin pinout, connector direction, and cable route.
• Validate the PCAP touch interface before PCB layout and firmware planning.
• Review active area, outline, thickness, cover glass, and bezel opening with the enclosure drawing.
• Confirm brightness target, viewing environment, anti-glare or bonding requirements, and thermal path.
• Ask for input voltage and backlight driving details before sample approval.
• Test readability, touch response, EMI behavior, and mounting fit during sample validation.
