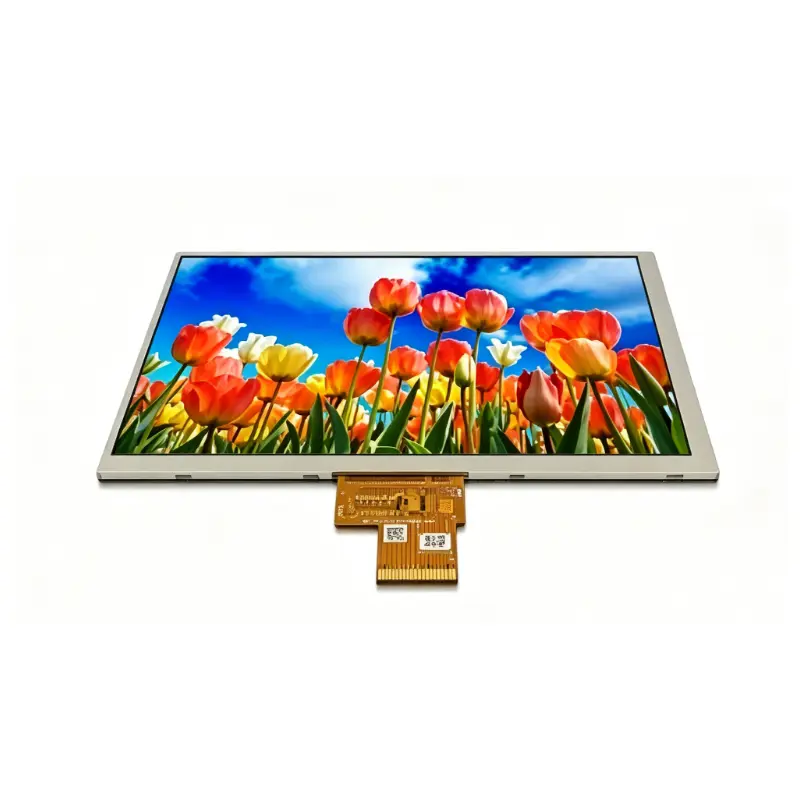

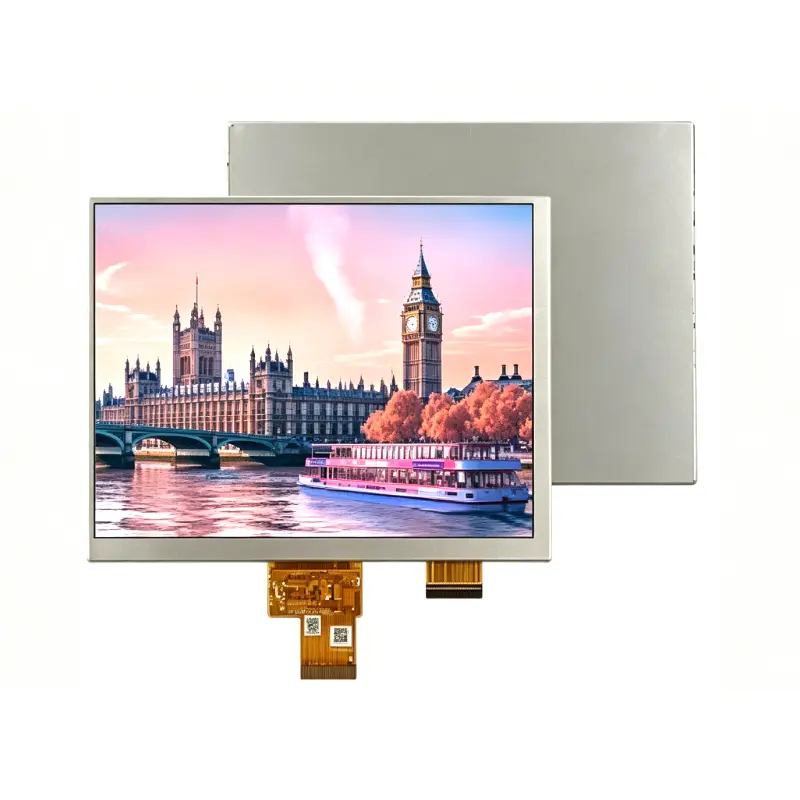

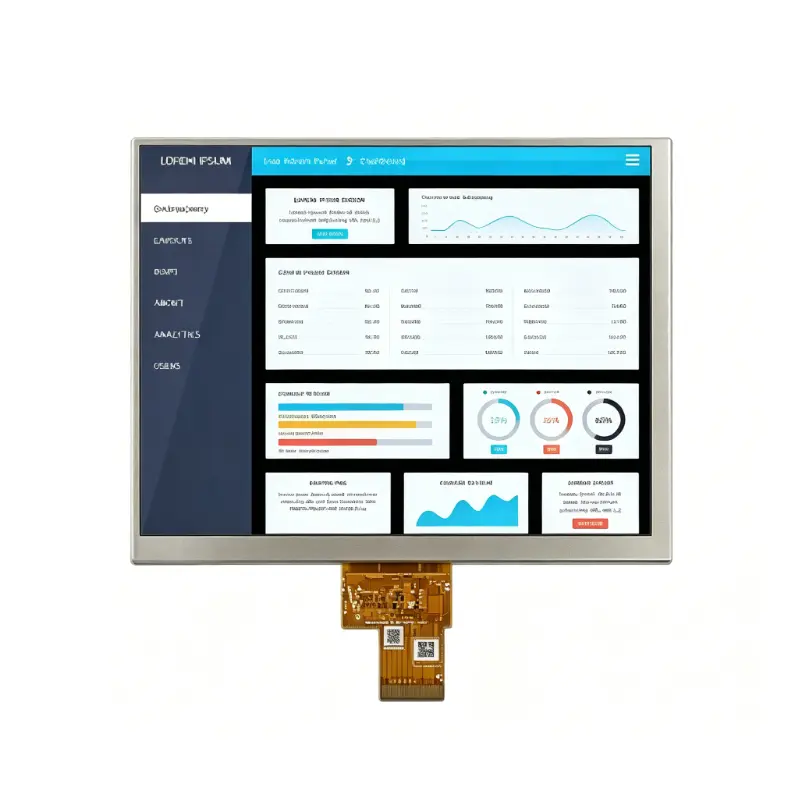

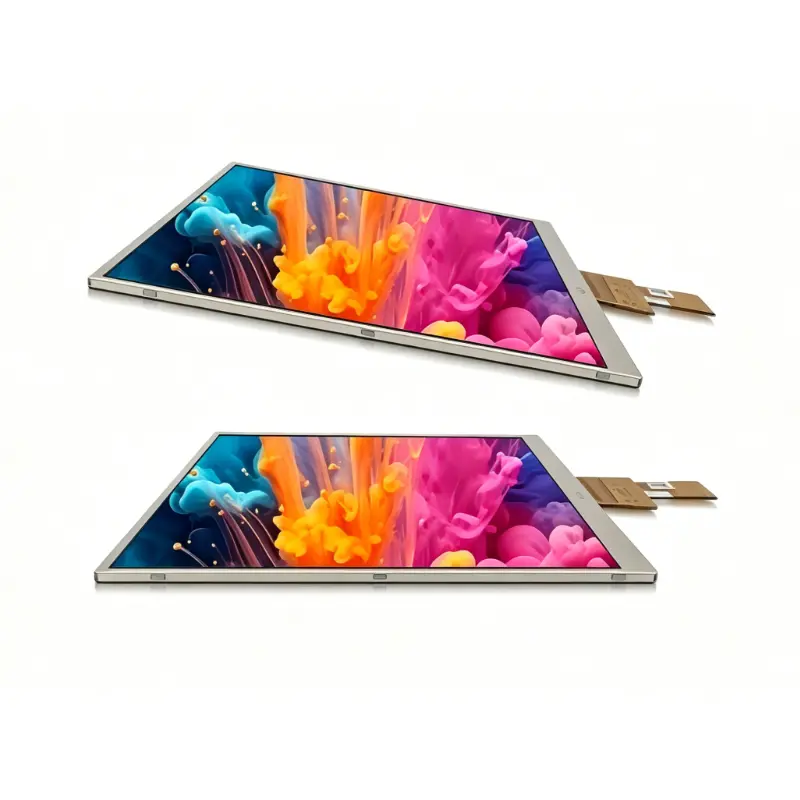

8 Inch LVDS XGA LCD Module 1024×768 LVDS for Embedded HMI Standard Brightness Panel

Compact 1024×768 IPS TFT-LCD Display with 300 cd/m² Brightness, 40-Pin LVDS, and 4:3 Format

An 8 Inch LVDS XGA LCD Module is a compact 4:3 TFT-LCD display for embedded HMI, vehicle display, access control, portable equipment, visual doorbell, and industrial device projects that need a practical balance of screen size, 1024 × 768 resolution, IPS viewing behavior, 300 cd/m² brightness, and 40-pin LVDS integration. It is suitable for product teams that need an 8-inch display module for equipment-level integration rather than a finished monitor.

At a Glance: 8 Inch XGA LVDS Display Highlights

• 8-inch TFT-LCD module for compact embedded products, industrial equipment, vehicle display systems, and portable devices.
• 1024 × 768 XGA resolution supports 4:3 interface layouts, status screens, icons, control menus, and compact information pages.
• 300 cd/m² brightness gives a practical display level for indoor and controlled-light embedded applications.
• IPS hard-screen display family supports wider viewing behavior than narrow-view conventional TN-style panels.
• 80/80/80/80 viewing angle specification supports visibility from left, right, up, and down directions.
• 40-pin LVDS signal interface supports embedded controller-board integration.
• No-touch configuration gives OEM teams flexibility to evaluate separate touch, cover glass, front lens, or housing design.

Product Overview of the 8 Inch LVDS XGA LCD Module

The 8 Inch LVDS XGA LCD Module is a compact component-level display for product teams that need a 4:3 XGA screen inside embedded equipment. It is especially useful when the final product needs more interface area than a small handheld display but cannot accommodate a larger industrial monitor-class panel. The 1024 × 768 format gives a familiar layout for control pages, menu-based systems, status dashboards, access-control terminals, visual doorbells, digital photo frames, vehicle screens, and portable electronics.

This display is not positioned as a complete outdoor signage unit or an integrated touch monitor. It is a TFT-LCD module designed for engineering integration. The key confirmed parameters include an 8-inch panel size, 1024 × 768 resolution, 300 cd/m² brightness, 4:3 aspect ratio, IPS hard-screen display family, transmissive polarizer structure, WLED backlight, 40-pin LVDS signal interface, 16.7M colors, and no-touch configuration.

For procurement and engineering teams, the value is in predictable integration data. The active area is 162.05 × 121.54 mm, while the structure size is shown as 174 × 136 × 2.6 mm in the product image parameter block. These values help mechanical teams review front-opening fit, enclosure depth, cable route, and internal clearance before sample evaluation.

Key Features of the 8 Inch LVDS XGA LCD Module

The 8 Inch LVDS XGA LCD Module provides a compact display foundation for embedded products that need a 4:3 layout, LVDS signaling, and practical industrial application coverage.

Technical Specifications of the 8 Inch IPS LCD Display Module

The 8-inch IPS LCD display module provides the core specifications needed for enclosure fit, interface matching, and sample validation.

These specifications should be reviewed together. Resolution affects UI layout and controller output. Display area and structure size affect front-opening and mechanical fit. LVDS and 40-pin cable planning affect controller-board compatibility. Brightness affects application environment and front-lens decisions. No-touch configuration affects whether the project needs an added touch panel, cover glass, keypad, or external control interface.

Why Choose This 8 Inch XGA LCD Display Module?

This 8 inch XGA LCD display module is a good fit when a compact product requires a 4:3 screen, embedded LVDS interface, and enough resolution for practical control and information display.

8 Inch 4:3 XGA Layout for Compact Embedded HMI

The 8-inch 4:3 format is useful for embedded HMI because it provides a balanced screen shape for menus, status readouts, icons, images, and control screens. Many compact industrial and device-level interfaces do not require a widescreen display. A 4:3 display can simplify layout planning when the software interface is built around vertical and horizontal information blocks.

The 1024 × 768 resolution gives enough detail for product information pages, access-control prompts, vehicle display menus, medical device screens, handheld navigation interfaces, and small industrial control panels. It can also support graphical content for digital photo frames, visual doorbells, portable DVD products, and compact smart-home equipment.

300 cd/m² Brightness and 40-Pin LVDS for Equipment Integration

The 300 cd/m² brightness level is suitable for equipment used in indoor or controlled-light environments. It should not be described as a sunlight-readable specification. For high-ambient-light or outdoor-facing projects, buyers should evaluate whether a higher-brightness version, cover-glass treatment, optical bonding, or shading structure is needed.

The 40-pin LVDS signal interface is important for engineering integration. LVDS compatibility should be confirmed before sample approval, including pin definition, cable length, signal mapping, voltage requirements, backlight control, and timing. The display module should be tested with the intended controller board and final cable design rather than only with a generic test adapter.

Display Performance of the 8 Inch IPS LCD for Industrial and Device Applications

The display performance of this 8-inch IPS LCD is centered on XGA resolution, wide viewing, transmissive LCD operation, 16.7M colors, and a practical WLED backlight structure.

1024×768 Resolution for Interface Text and Product Graphics

The 1024 × 768 XGA resolution gives product designers more pixel space than lower-resolution compact displays. This supports clearer menus, small icons, status values, image previews, and multi-section interface layouts. In access-control terminals, visual doorbells, medical equipment, industrial devices, and vehicle displays, this can improve the readability of compact UI elements.

For projects migrating from lower-resolution displays, engineers should verify scaling, font size, touch target spacing when touch is added, and content source compatibility. XGA resolution is useful, but the UI should be tested on the actual panel size because 8-inch screen dimensions affect perceived text size.

IPS Hard Screen with 80-Degree All-Direction Viewing

The IPS hard-screen family and 80/80/80/80 viewing angle specification support equipment that may be viewed from different positions. This matters for visual doorbells, access-control devices, vehicle displays, compact industrial panels, and smart-home interfaces where users may not always stand directly in front of the screen.

Wide viewing also helps with shared-use devices. In medical equipment, industrial terminals, and vehicle systems, multiple users may view the same display from the side. The panel still needs sample validation under the final front cover, because glass, coating, viewing height, and enclosure angle can change real-world perception.

Transmissive LCD and WLED Backlight for Compact Products

The transmissive LCD structure and WLED backlight make this module suitable for compact electronic products that need active backlit display performance. WLED is a common backlight type for TFT-LCD modules and supports practical product integration across tablet-style devices, portable products, access systems, and embedded terminals.

Brightness, contrast, and color should be tested with the intended cover lens and housing. The source table confirms 16.7M display colors and a 1000:1 typical contrast ratio, which supports clear general-purpose display output for compact product interfaces.

Integration and Mounting Options for LVDS 40-Pin Embedded LCD Projects

LVDS 40-pin embedded LCD projects should begin with controller-board matching, cable planning, mechanical drawing review, front-stack design, and operating-temperature validation.

LVDS Interface and 40-Pin Cable Planning

The display uses LVDS signal type and 40 pins. Engineering teams should confirm the exact pin definition, LVDS bit mapping, clock configuration, connector orientation, cable length, cable shielding, grounding method, and backlight-control wiring before sample approval. A 40-pin connector description is not enough by itself to guarantee compatibility with an existing controller board.

If the host system uses HDMI, MIPI, RGB, SPI, or another interface, a driver board may be required. In that case, buyers should provide host-output information, interface timing, expected operating system, target content, brightness-control needs, and space limits for the driver board.

Mechanical Fit for 174 × 136 mm Class Enclosures

The display-area information and overall-size information help engineers define mechanical fit. The active area is 162.05 × 121.54 mm, and the product-image parameter block shows a 174 × 136 × 2.6 mm structure size. These values affect bezel opening, front-frame overlap, internal support, gasket placement, cover-lens sizing, cable path, and service access.

The specification table also shows maximum thickness as 2 mm, while the image parameter block lists 2.6 mm. Because both values appear in the provided source materials, engineers should confirm the mechanical drawing before tooling or enclosure approval. Do not finalize a housing based only on the summary table.

Power, Thermal, and Front-Panel Review

The provided source materials do not list the input voltage, response time, weight, backlight lifetime, or detailed electrical timing. These items should be requested before final procurement. For embedded systems, power sequencing, backlight driving, EMI behavior, temperature performance, and long-hour operation should be validated with the actual control board.

For front-panel design, teams can evaluate cover glass, anti-glare coating, optical bonding, touch integration, gasket design, and protective housing. These are project-level options and should not be treated as default features unless confirmed in a drawing or quotation.

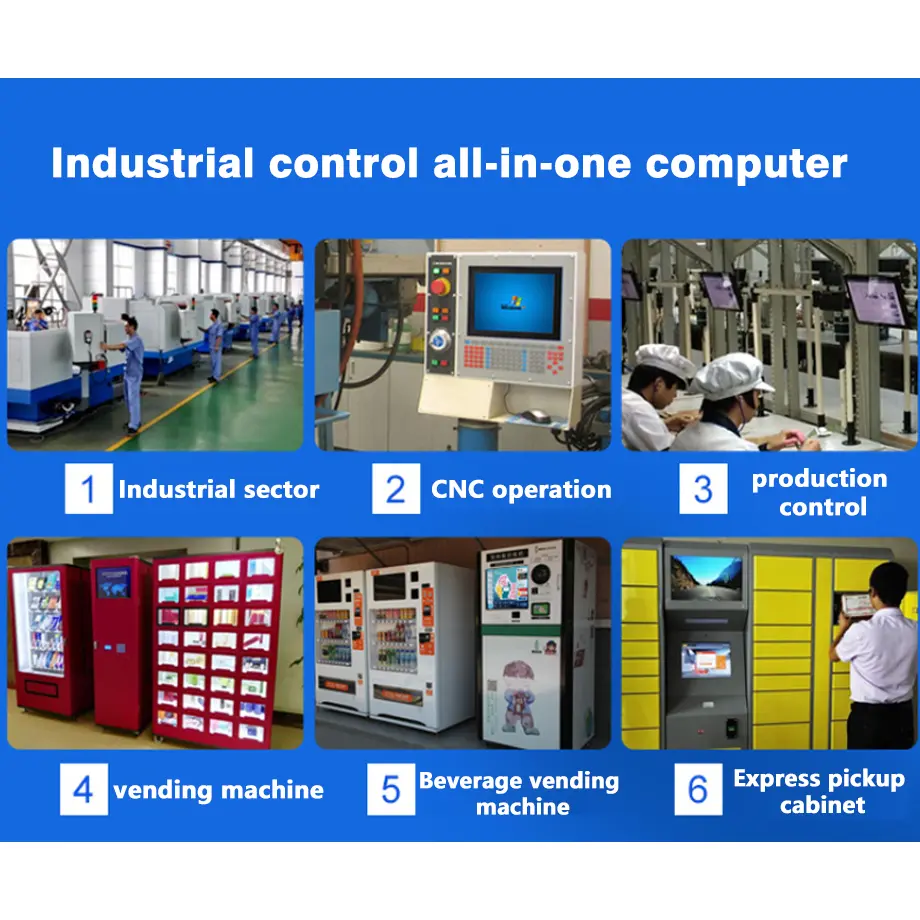

Recommended Applications for Compact Embedded Display Systems

Compact embedded display systems benefit from this module when they require a small 4:3 screen with XGA resolution, LVDS integration, and broad device compatibility.

Access Control and Visual Doorbell Displays with Clear 4:3 UI

Access-control terminals and visual doorbells often need a compact display for prompts, camera previews, user instructions, status icons, and verification feedback. The 8-inch size gives more visual area than very small control screens, while the 4:3 XGA format supports clear, balanced interface layouts. No-touch structure also allows the final device to use buttons, touch overlay, keypad, or external controls.

Vehicle Display and Handheld Navigation Equipment

Vehicle-mounted products and handheld navigation devices need compact displays that can present menus, maps, icons, and status information. The LVDS interface and 1024 × 768 resolution provide a useful foundation for embedded system design. For vehicle or mobile use, vibration resistance and final mounting strength should be validated because these values are not confirmed in the source materials.

Industrial Equipment and Medical Device Interfaces

Industrial and medical equipment often require stable display modules for settings, monitoring values, system status, and operator prompts. The 8-inch XGA format can support more detailed content than low-resolution display modules while still fitting compact housings. The confirmed -30°C to 80°C operating temperature range supports wide-temperature evaluation for device environments, but final system validation is still required.

Portable DVD, Digital Photo Frame, and Smart-Home Products

Portable DVD players, digital photo frames, digital learning devices, and smart-home appliances can use an 8-inch LCD module when they need a compact color display with a balanced aspect ratio. The 16.7M color support and WLED backlight are useful for general image and UI output. Product teams should validate brightness, viewing angle, and housing fit with the final content and use environment.

Customization Options for 8 Inch LCD Module Projects

Customization for 8 inch LCD module projects can include LVDS cable design, controller-board matching, cover glass, anti-glare front treatment, optical bonding, touch-panel addition, housing support, bezel review, mounting evaluation, and application-specific front-panel design. These options should be handled as project-level engineering evaluations rather than default module features.

If the final product requires outdoor or high-ambient-light use, buyers should request a brightness review and evaluate whether 300 cd/m² is sufficient. If the equipment requires frequent user interaction, a resistive or capacitive touch stack may be evaluated separately. If the equipment requires public-use durability, cover glass, bonding, sealing, and impact protection should be reviewed at the finished-device level.

Procurement and Engineering Checklist for 8 Inch LCD Module Selection

A reliable procurement decision should confirm optical, electrical, mechanical, and environmental requirements before approving this compact LVDS XGA module.

• Confirm whether 1024 × 768 resolution matches the UI, icon size, text density, and content source.
• Verify that the 4:3 aspect ratio fits the product’s enclosure and software layout.
• Confirm LVDS signal compatibility, 40-pin connector details, pin definition, cable path, and controller board.
• Request the electrical specification for input voltage, power sequencing, backlight control, and timing.
• Confirm active area, outline size, maximum thickness, connector location, and FPC / cable clearance.
• Validate brightness under the actual cover glass, viewing distance, and lighting environment.
• Confirm whether the product needs no touch, added touch, keypad control, cover glass, or optical bonding.
• Test samples under the target operating temperature, mounting structure, and application environment.

Brightness / LVDS / Mounting Selection Guide for 8 Inch LCD Modules

For indoor equipment, 300 cd/m² may be sufficient if ambient light is controlled. For vehicle, doorbell, or public-access products, engineers should test the display with the final front lens and installation angle. LVDS selection should start with the host controller and required pin mapping. Mounting selection should include the 174 × 136 mm class outline, 8-inch active area, cable exit, front opening, and any touch or glass stack.
