8 Inch MIPI Touch LCD Display 1200×1920 500 Nits for Portrait HMI Systems
Model P/N
Size
Resolution
Brightness
Viewing Angle
Connector Type
Operating Temp
Overall(mm)
huisoar
HS800042B0-YLT
Brand
Panel Size (inch)
Model P/N
Resolution
Brightness (nits)
Viewing Angle
Response Time
Overall (mm)
Active Area (mm)
Refresh Rate
Display Colors
Panel Type
Connector Type
Operating Temp
Touchscreen Type
Storage Temp
Work Mode
Designed For
8 Inch MIPI Touch LCD Display for Portrait HMI Systems
1200×1920 IPS G+G Capacitive Touch Module for Security, Industrial Control, Logistics, and Medical Equipment
An 8 Inch MIPI Touch LCD Display is a portrait-format 1200×1920 IPS TFT-LCD module for security displays, industrial HMI, logistics cabinets, tower crane panels, and medical equipment that need high-detail vertical UI, MIPI 4-lane signaling, G+G capacitive touch, IIC touch communication, and a compact 31-pin structure. It is designed for product teams that need a display module rather than a finished monitor, especially where vertical information layout and direct operator interaction are central to the user experience.
At a Glance: 1200×1920 Portrait Touch Module Highlights
- 8-inch IPS TFT-LCD module with 1200×1920 portrait resolution for high-detail vertical interfaces.
- 500 cd/m² typical brightness supports indoor equipment, cabinet terminals, and controlled high-ambient-light areas.
- IPS 85/85/85/85 viewing helps maintain readability from multiple operator positions.
- MIPI 4-LANE interface with 31 pins supports compact embedded system integration.

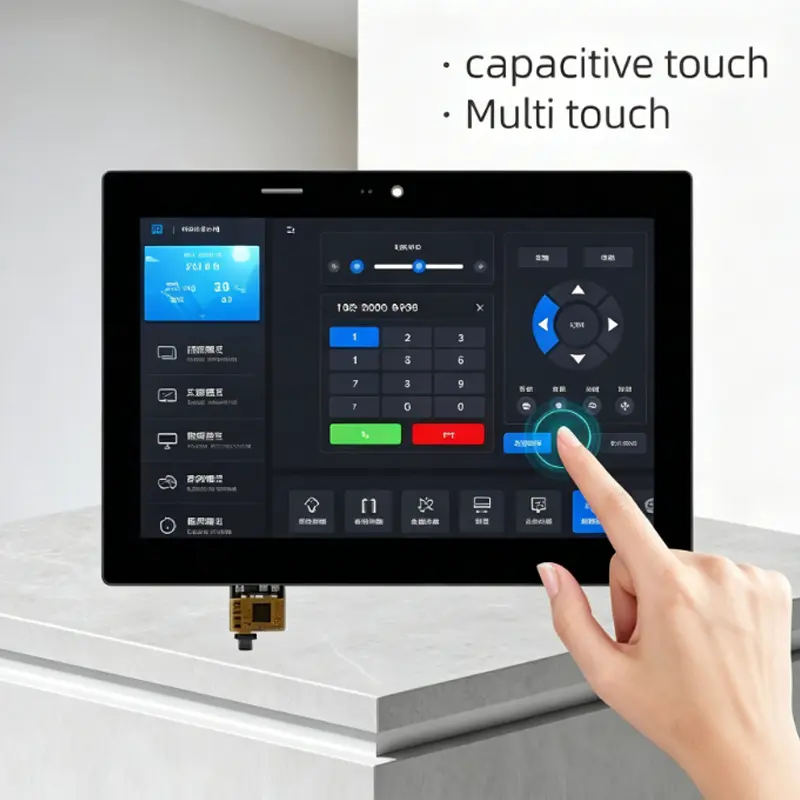

- G+G capacitive touch with IIC interface supports responsive touch-based control.
- 107.64 × 172.22 mm active area supports portrait dashboard, list, and monitoring UI layouts.
- -10 ~ 60 °C operating range supports many indoor industrial and commercial equipment environments.
Product Overview of the 8 Inch MIPI Touch LCD Display
The 8 Inch MIPI Touch LCD Display is best suited for equipment that needs a vertical, high-resolution touch interface rather than a basic low-resolution control screen. Its 1200×1920 pixel format gives designers space for detailed data lists, monitoring charts, status indicators, touch buttons, and scrolling menus without moving to a larger display size.
Its main buyer value is the combination of portrait resolution, MIPI 4-lane signaling, and G+G capacitive touch. This makes it useful for industrial HMI systems, security panels, logistics pickup cabinets, meal pickup cabinets, tower crane displays, monitor displays, and medical equipment displays where operators need clear information and direct input.
This module should be evaluated as part of the full device architecture. Before sample approval, engineering teams should confirm the MIPI 4-lane timing, 31-pin pin assignment, HX8279D driver support, GT1151QM touch support, IIC touch routing, input voltage, backlight driving, cover glass design, and enclosure clearance.
Key Features of the 8 Inch MIPI Touch LCD Display
| Key Feature | B2B Value |
|---|---|
| 1200 × 1920 portrait resolution | Supports dense vertical UI layouts for monitoring, security, logistics, and HMI screens. |
| 8-inch compact display size | Provides a strong balance between usable interface area and manageable enclosure size. |
| 500 cd/m² typical brightness | Fits equipment displays used in indoor or controlled lighting environments. |
| IPS 85/85/85/85 viewing | Helps users view the screen from different sides of a panel or terminal. |
| MIPI 4-LANE interface | Supports embedded platforms requiring high-speed compact display signaling. |
| 31-pin signal structure | Gives hardware engineers a defined connector direction for FPC and board planning. |
| G+G capacitive touch | Supports durable front touch interaction for operator-facing devices. |
| IIC touch interface | Provides a clear communication path for touch controller integration. |
| HX8279D display IC | Helps firmware and driver teams identify display initialization requirements. |
| GT1151QM touch IC | Helps touch firmware teams review controller support before sample testing. |
Technical Specifications of the 8 Inch 1200×1920 MIPI Touch Module
| Specification | Confirmed Value |
|---|---|
| Product Type | MIPI TFT-LCD capacitive touch module |
| Display Size | 8 inch |
| Aspect Ratio | 10:16 portrait |
| Resolution | 1200 × 1920 |
| Brightness | 500 cd/m² typical |
| Viewing Angle | 85/85/85/85 |
| Display Interface | MIPI 4-LANE |
| Signal Pins | 31 pins |
| Touch Type | G+G capacitive touch |
| Touch Interface | IIC |
| Active Area | 107.64 × 172.22 mm |
| Overall Size | 137.61 × 197.06 × 4.5 mm |
| Operating Temperature | -10 ~ 60 °C |
| Storage Temperature | -20 ~ 70 °C |
These confirmed values indicate a module built for portrait touch interaction and embedded MIPI integration. Unknown items such as input voltage, power consumption, exact MIPI timing, backlight current, and connector orientation should be confirmed from the engineering datasheet before final PCB layout.
Why Choose a 1200×1920 Portrait LCD for Equipment HMI?
A 1200×1920 portrait module gives designers more vertical working space than common 800×1280 displays. This is valuable when the product interface depends on lists, alarms, camera previews, forms, operating parameters, and navigation menus.
Vertical UI Space for Security, Logistics, and Medical Screens
Security and logistics terminals often display identity prompts, order lists, pickup status, codes, and action buttons in a vertical sequence. Medical and monitoring equipment may also need stacked parameter fields and clear touch controls. The 1200×1920 resolution supports these layouts without forcing excessive scrolling or compressed text.
500 cd/m² Brightness for Controlled Equipment Environments
The confirmed 500 cd/m² brightness is suitable for many indoor equipment interfaces and controlled lighting conditions. For brighter environments, buyers should evaluate cover glass, reflection, optical bonding, anti-glare treatment, enclosure shading, and thermal behavior instead of assuming direct-sunlight suitability.
IPS Full-View Performance for Multi-Angle Operation
The 85/85/85/85 viewing specification helps when an operator stands to the side of a cabinet, panel, or monitoring station. In shared-use terminals, this reduces the risk that the display becomes difficult to read from an off-axis position.
MIPI 4-LANE and G+G IIC Touch Integration Checks
The module’s MIPI 4-LANE and 31-pin structure are major integration factors. A successful project requires display timing, pin mapping, connector, cable, touch controller, and software support to be reviewed together.
31-Pin MIPI Host Matching Before PCB Layout
Engineers should confirm the host processor supports the required MIPI lane configuration, display initialization, voltage levels, and timing. The HX8279D display IC should be reviewed by the firmware team so initialization and display control are not left until late-stage debugging.
G+G Capacitive Touch and IIC Routing
The G+G capacitive touch structure supports direct operator input, while IIC provides the touch communication path. The GT1151QM touch IC should be checked for firmware support, interrupt routing, reset behavior, grounding, and noise performance inside the final device.
Mechanical Fit Around 137.61 × 197.06 × 4.5 mm
The confirmed outline size must be checked against bezel opening, mounting method, FPC exit, connector location, cover glass, adhesive region, and available internal depth. Since this module is used in equipment panels, enclosure tolerance and front-surface design should be reviewed before tooling.
Recommended Applications for Portrait MIPI Touch Display Projects
This display is strongest where the product interface benefits from vertical visual structure and direct touch operation.
Security Display and Access-Control Terminals
Security devices can use the portrait screen for ID information, camera previews, passcode input, status prompts, and access results. The capacitive touch layer enables direct operation, while the MIPI interface supports compact electronics.
Plant Control, Tower Crane, and Industrial HMI Panels
Industrial equipment often needs parameter lists, alarm messages, mode selection, and status dashboards. The 8 Inch MIPI Touch LCD Display supports these workflows, but buyers should confirm operating temperature, vibration requirements, and protective housing design separately.
Logistics Cabinets, Pickup Terminals, and Medical Devices
Logistics pickup cabinets and meal pickup cabinets can use the vertical interface for order lists and user prompts. Medical devices can use the high-resolution portrait layout for readable parameters and touch controls, but any medical regulatory approval must be handled at the finished-device level.
Customization Options for 8 Inch MIPI Touch LCD Display Projects
Project evaluation can include brightness validation, cover glass, anti-glare coating, optical bonding, G+G capacitive touch stack review, FPC routing, MIPI cable matching, controller-board support, housing adaptation, and mechanical drawing review. These options should be confirmed according to target application, quantity, environment, and enclosure design.
Procurement and Engineering Checklist for 8 Inch MIPI Touch LCD Display Selection
- Confirm 1200×1920 portrait UI scaling and host graphics capability.
- Review MIPI 4-lane timing, 31-pin pinout, connector orientation, and FPC route.
- Check HX8279D driver support and display initialization requirements.
- Validate GT1151QM touch IC support, IIC routing, grounding, reset, and interrupt behavior.
- Match active area, outline size, thickness, cover glass, and bezel opening.
- Confirm input voltage, backlight driving, and thermal path before sample approval.
- Test brightness, touch response, EMI behavior, mechanical fit, and operating temperature in the final device.
FAQ
About 8 Inch MIPI Touch LCD Display Integration
What is the minimum order quantity (MOQ) for custom display modules with specific touch interfaces?
MOQ details are For custom display modules with specific touch interfaces, please contact our sales team with your requirements. We can provide a quotation and discuss minimum order quantities based on your project volume and customization needs.
What are the key durability and reliability differences between your standard TFT displays and your sunlight readable models for outdoor industrial use?
The key durability and reliability differences between standard TFT displays and sunlight-readable models for outdoor industrial use center on brightness, optical bonding, and environmental ratings. Sunlight-readable versions often incorporate optical bonding to reduce internal reflections and improve contrast in direct sunlight. For environmental durability, the HS800042B0-YLT operates from -10°C to 60°C and stores from -20°C to 70°C, with an IPS panel offering 85/85/85/85 viewing angles. Specific reliability test data (e.g., MTBF, vibration/shock ratings) should be confirmed on request.
Do you offer displays with wide viewing angles (e.g., 85/85/85/85)?
Yes, the HS800042B0-YLT offers a viewing angle of 85/85/85/85 (left/right/up/down), which is typical for IPS panels. This wide viewing angle ensures consistent color and contrast from various positions, making it suitable for industrial HMIs where operators may view the screen from different angles.
What are the warranty terms and after-sales service for your display products?
Warranty terms and after-sales service details are Typically, we offer a standard warranty period and technical support. For specific terms, please contact our sales team. We can provide a warranty agreement and discuss after-sales service options based on your project requirements.
Do you offer displays with In-Cell touch technology that are suitable for automotive dashboards or industrial HMIs with high reliability?
The HS800042B0-YLT uses G+G capacitive touch, not In-Cell technology. For automotive dashboards or high-reliability industrial HMIs, we can discuss alternative touch solutions. Please contact our engineering team to evaluate your specific reliability and environmental requirements.
What are the operating temperature ranges for your industrial control displays, especially for environments below -20°C or above 70°C?
The HS800042B0-YLT has an operating temperature range of -10°C to 60°C and storage from -20°C to 70°C. For environments below -20°C or above 70°C, we recommend discussing extended temperature options with our engineering team. We may offer custom solutions for extreme conditions.
Can you customize the mechanical dimensions and mounting holes for a specific industrial enclosure?
Yes, we can customize mechanical dimensions and mounting holes for specific industrial enclosures. The HS800042B0-YLT has an active area of 107.64 mm × 172.22 mm. Please provide your enclosure drawings and mounting requirements, and our engineering team will evaluate feasibility and provide a custom design.
Can you provide medical-grade displays with specific certifications (e.g., ISO 13485)?
Medical-grade certifications like ISO 13485 are For medical applications, we can discuss compliance requirements with our quality team. Please provide your target certifications and intended use, and we will assess if the HS800042B0-YLT or a custom variant can meet those standards.
What are the common interface options (e.g., LVDS, eDP, MIPI) for your industrial TFT displays, and what are their pin counts?
Common interface options for our industrial TFT displays include LVDS, eDP, and MIPI, with pin counts varying by resolution and design. For specific interface and pin count details, please consult our datasheet or contact our engineering team.
What are the operating temperature ranges for your industrial LCD panels, especially for extended outdoor use?
The HS800042B0-YLT operates from -10°C to 60°C and stores from -20°C to 70°C. For extended outdoor use, we recommend discussing higher brightness and wider temperature range options with our engineering team. We can provide guidance on suitable models for your specific outdoor environment.
