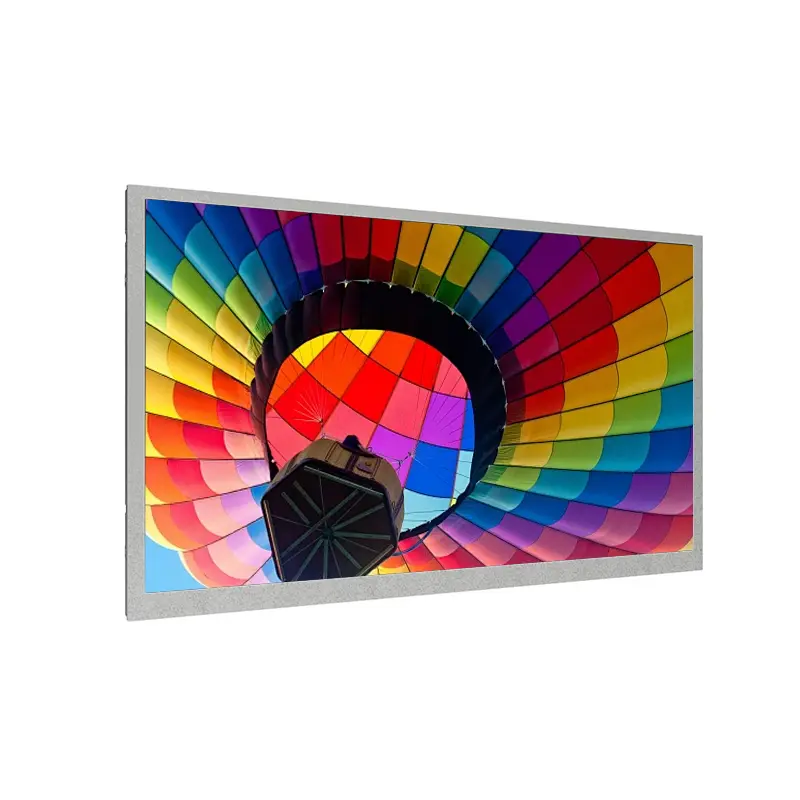

13.3 Inch FHD LVDS LCD Display Sunlight Readable

Compact Full HD High-Brightness LCD Module with 30-Pin LVDS, AHVA Wide Viewing, and Anti-Glare Matte Surface

A 13.3 Inch FHD LVDS LCD Display is a compact sunlight-readable TFT-LCD module for industrial control systems, transportation equipment, embedded HMI projects, outdoor-adjacent signage, and professional devices that need Full HD image clarity in a manageable size. It combines 1920 × 1080 resolution, 1000–5000 nits configurable brightness, AHVA IPS-like wide viewing, 30-pin LVDS connectivity, 3.3V input, anti-glare matte surface treatment, no-touch configuration, and a 50,000-hour WLED backlight.

At a Glance: 13.3 Inch Full HD LVDS Display Highlights

• 13.3-inch compact TFT-LCD module for industrial control, transportation equipment, embedded HMI, and compact professional display systems.
• 1920 × 1080 FHD resolution with 166 PPI supports sharp text, icons, dashboards, and operator-interface graphics.
• 1000–5000 nits configurable brightness supports bright ambient environments and sunlight-readable display evaluation.
• AHVA IPS-like, normally black, transmissive display mode supports wide viewing and stable image presentation.
• 89°/89°/89°/89° viewing angle helps users read the display from multiple positions around equipment.
• 30-pin LVDS, 2-channel, 8-bit terminal interface provides a practical embedded controller integration path.
• No-touch panel configuration allows project-specific cover glass, touch add-on, bonding, or front-panel design.

Product Overview of the 13.3 Inch FHD LVDS LCD Display

The 13.3 Inch FHD LVDS LCD Display is built for compact equipment where screen clarity, sunlight-readable brightness, and embedded integration must be balanced in one panel platform. A 13.3-inch module is large enough for detailed HMI layouts, operator dashboards, transport information screens, and compact signage content, yet still practical for slimmer enclosures and space-sensitive equipment.

The 1920 × 1080 FHD resolution gives this size a high pixel density of 166 PPI, which is useful when the screen must show fine text, icons, monitoring values, diagrams, status alerts, or compact multi-zone layouts. Compared with lower-resolution compact displays, the FHD format gives engineers more design space for modern interfaces without forcing the product into a much larger screen size.

For integration, the panel uses a 30-pin LVDS interface with 2-channel, 8-bit signaling and a 3.3V typical power supply. These details help engineers evaluate controller-board compatibility, cable design, power planning, and enclosure layout early in the design process. The panel is also specified as no touch, which gives product teams flexibility to add a separate touch stack, cover glass, bonding structure, or protective front design according to the final equipment requirements.

Key Features of the 13.3 Inch FHD LVDS LCD Display

The 13.3 Inch FHD LVDS LCD Display gives OEM engineers a compact high-brightness panel foundation for industrial, transportation, and embedded display projects.

Technical Specifications of the 13.3 Inch Full HD LVDS LCD Module

The 13.3-inch Full HD LVDS LCD module provides the core values needed for optical selection, controller matching, enclosure planning, and sample validation.

These specifications should be reviewed together rather than separately. FHD resolution affects controller and UI planning, brightness affects thermal and cover-glass decisions, LVDS affects signal compatibility, and the 10.1 mm thickness affects enclosure design. For embedded products, cable exit, mounting clearance, front-panel tolerance, and backlight-control strategy should be confirmed before bulk procurement.

Why Choose This 13.3 Inch Sunlight Readable LCD Module?

This 13.3 inch sunlight readable LCD module is a strong fit when compact equipment needs Full HD clarity, wide viewing, and higher brightness than ordinary indoor panels can provide.

13.3 Inch Full HD Format for Industrial and Transportation Interfaces

A 13.3-inch FHD panel works well for industrial control systems and transportation equipment because it provides enough screen area for useful information without becoming difficult to package. Operators can view equipment status, fault messages, configuration menus, diagrams, camera previews, or route information on a screen that remains compact enough for embedded installation.

The 166 PPI pixel density is valuable for professional interface design. It supports sharper text and cleaner icons, which helps when the screen is used for real-time decisions or public information. In industrial and transportation environments, readable details matter because users may need to understand the screen quickly while standing, moving, or viewing from an angle.

1000–5000 Nits Brightness with 30-Pin LVDS Integration

The 1000–5000 nits brightness range gives engineers options for different lighting conditions. Bright indoor spaces, window-facing terminals, outdoor-adjacent installations, and transportation environments may require higher luminance than standard indoor displays. The correct brightness should be selected according to ambient light, cover glass, enclosure heat, duty cycle, and target readability.

The 30-pin LVDS interface supports a familiar embedded integration path, but it still requires detailed validation. Engineers should confirm 2-channel 8-bit LVDS compatibility, display timing, connector orientation, cable length, power sequencing, backlight control, and grounding. Sample testing should use the intended controller board and enclosure rather than a generic bench setup.

Display Performance of the High-Visibility FHD LCD for Industrial Environments

The display performance of this high-visibility FHD LCD is centered on Full HD clarity, wide viewing, anti-glare surface treatment, high brightness options, and long-life WLED backlighting.

Full HD Resolution and 166 PPI for Compact Interface Clarity

The 1920 × 1080 FHD resolution gives this compact display enough detail for dashboards, HMI screens, equipment menus, transport information, warning messages, and small-format signage layouts. The 166 PPI specification supports crisp visual presentation in a screen size that still fits many embedded applications.

For industrial equipment, this can improve the usability of data-dense screens. For transportation systems, it can support route information, passenger guidance, status indicators, and public-facing content. For compact signage, it allows clearer images and text than lower-resolution small panels.

AHVA Wide Viewing, 90% NTSC Color, and 800:1 Contrast

The panel uses AHVA IPS-like normally black transmissive operation and lists 89-degree viewing in all directions. This helps preserve readability when users approach from different angles or when the display is mounted above, below, or beside normal eye level. In shared workstations or public environments, wide viewing can improve daily usability.

The source also lists 16.7M colors, 90% NTSC color support, and an 800:1 typical contrast ratio. This combination supports richer visual output for professional displays, interface graphics, and high-brightness signage content. It should still be validated inside the final enclosure because cover glass, bonding, brightness setting, and ambient light can affect perceived image quality.

Anti-Glare Matte Surface for Outdoor-Adjacent Use

The anti-glare matte surface helps reduce reflection in bright viewing environments. This is important for transportation terminals, industrial control panels, operator stations, and outdoor-adjacent equipment where glare can make screen content harder to read.

The panel should not be treated as a finished waterproof outdoor display by default. For outdoor or public-access systems, cover glass, sealing, bonding, housing, impact protection, thermal dissipation, and IP-rated enclosure design should be reviewed at the system level. The LCD panel provides the optical foundation; the finished product determines the final environmental protection level.

Integration and Mounting Options for 30-Pin LVDS Embedded Display Projects

30-pin LVDS embedded display projects should begin with controller matching, cable planning, enclosure design, front-stack evaluation, and thermal review.

30-Pin LVDS Controller Board and Cable Planning

The source confirms a 30-pin LVDS, 2-channel, 8-bit terminal interface. Engineers should verify LVDS timing, signal mapping, connector pinout, cable length, shielding, grounding, and backlight-control method before sample approval. A controller board that works with one compact LCD may not automatically match this panel’s timing and backlight requirements.

If the host system uses HDMI, MIPI, eDP, or another output, an interface board may be needed. In that case, buyers should provide host interface details, target operating system, input source, brightness-control requirements, and sample testing conditions.

Mechanical Fit, Outline Dimensions, and Enclosure Planning

Mechanical planning is critical for a compact FHD module. The outline dimensions are 309.7 × 184.1 × 10.1 mm, while the display area is 293.472 × 165.078 mm. These values help engineers define front opening, gasket position, cover glass overlap, internal clearance, cable exit, mounting points, and service access.

The ≤500 g weight supports compact equipment, but enclosure design still matters. Vibration, handling, mounting pressure, thermal expansion, front-frame tolerance, and protective glass can affect final reliability. Drawings should be reviewed before sample validation.

Power, Thermal, and High-Brightness Operation Review

The panel uses a 3.3V typical power supply and high-brightness configurations up to the source-listed range. Compact high-brightness displays can require careful power and thermal review, especially when installed behind cover glass or inside sealed equipment. Heat dissipation should be validated with the intended brightness, operating schedule, ambient temperature, and enclosure material.

For long-hour operation, the WLED backlight’s 50,000-hour lifetime is useful for lifecycle planning. However, final service life depends on the selected brightness level, heat management, operating schedule, and finished system design.

Recommended Applications for Industrial Control and Transportation Displays

Industrial control and transportation displays benefit from this compact FHD high-brightness panel when the equipment needs clear information display, wide viewing, and reliable embedded integration.

Industrial Control Panels with High-Detail HMI Screens

Industrial control panels often require clear status values, alarms, equipment diagrams, and configuration menus. A 13.3-inch FHD display gives enough space for detailed HMI layouts while keeping the module compact enough for operator panels and machine interfaces. The high-brightness range and anti-glare surface support readability in bright industrial work areas.

Transportation Equipment with Multi-Angle Viewing Needs

Transportation equipment may be viewed by operators, passengers, or maintenance teams from different angles. The AHVA IPS-like viewing behavior and FHD resolution support route data, status information, service messages, and public-facing content. The -20°C to 70°C operating range also supports environments with wider temperature variation.

Compact Digital Signage and Outdoor-Adjacent Information Terminals

Compact signage terminals may need a screen that stays readable near windows, entry areas, kiosks, or public service points. The 13.3-inch format is large enough for effective information display while remaining easier to package than larger signage screens. For outdoor-adjacent installation, cover glass, bonding, enclosure protection, and thermal performance should be evaluated as part of the finished system.

Embedded Professional Devices Requiring No-Touch LCD Flexibility

Some embedded systems do not need integrated touch because they use buttons, keypads, external controls, or separate touch structures. The no-touch panel configuration is useful for these projects because OEM teams can design the front interface around the actual product requirement rather than adapting to a fixed touch stack.

Customization Options for 13.3 Inch LCD Display Projects

Customization for 13.3 inch LCD display projects can include brightness version selection, cover glass, anti-glare or anti-reflective front treatment, optical bonding, touch-panel addition, housing design, LVDS cable customization, controller-board matching, mounting review, and IP-rated enclosure evaluation. These options should be treated as project-level engineering choices rather than default panel specifications.

For industrial and transportation projects, customization should begin with the brightness target, viewing angle, installation environment, enclosure size, front-panel design, and interface plan. If the final equipment will be exposed to outdoor conditions, vibration, dust, or public use, the cabinet, sealing, cover glass, thermal path, and service access should be validated during sample evaluation.

Procurement and Engineering Checklist for 13.3 Inch LCD Panel Selection

A reliable procurement decision should confirm optical, electrical, mechanical, and environmental requirements before approving this compact high-brightness FHD LCD panel.

• Confirm whether the product requires a bare no-touch panel, added touch, cover glass, or bonded front stack.
• Match 1920 × 1080 FHD resolution with the planned UI, content source, scaling, and controller board.
• Select brightness according to ambient light, viewing distance, cover glass, enclosure heat, and duty cycle.
• Confirm 30-pin LVDS compatibility, 2-channel 8-bit signaling, pinout, cable length, and backlight control.
• Review display area, outline dimensions, enclosure opening, gasket design, mounting support, and service access.
• Validate 3.3V power input, power sequencing, operating temperature, and heat dissipation.
• Test anti-glare performance with the final cover structure and real lighting conditions.
• Approve samples only after testing with the intended controller, enclosure, brightness level, and application environment.

Brightness / LVDS / Mounting Selection Guide for 13.3 Inch Display Panels

For indoor industrial control systems, a lower brightness configuration may be sufficient if lighting is controlled. For transportation equipment, window-facing devices, or outdoor-adjacent terminals, higher brightness should be tested with the final cover glass and enclosure. LVDS selection should begin with the controller board and required timing. Mounting selection should include outline size, weight, panel thickness, cable access, front-frame tolerance, and thermal space.
