13.3 Inch Wide Gamut Touch Display Module for Retail Terminals
Model P/N
Size
Resolution
Brightness
Viewing Angle
Connector Type
Operating Temp
Overall(mm)
huisoar
HS13D30665
Brand
Panel Size (inch)
Model P/N
Resolution
Brightness (nits)
Viewing Angle
Contrast Ratio
Response Time
Overall (mm)
Active Area (mm)
Refresh Rate
Bezel Opening
Display Colors
Panel Type
Connector Type
Operating Temp
Touchscreen Type
Storage Temp
Work Mode
Pixel Format
Touch Interface
Control Type
Weight (g)
Protective Glass Specification
Operating Environment
Designed For
13.3 Inch Wide Gamut Touch Display Module for Retail Terminals
This Wide Gamut Touch Display Module combines Full HD IPS imaging, 72% NTSC color, 30-pin eDP video and a separate USB 5 V touch path.
Product Summary
The 13.3-inch display provides a 1920 × 1080 interface for indoor retail terminals, learning systems, tablet-style equipment and embedded operator panels. Its IPS normally-black architecture supports wide-angle viewing, while the 72% NTSC color specification gives interface designers a broader color target for icons, media, product images and branded user interfaces.

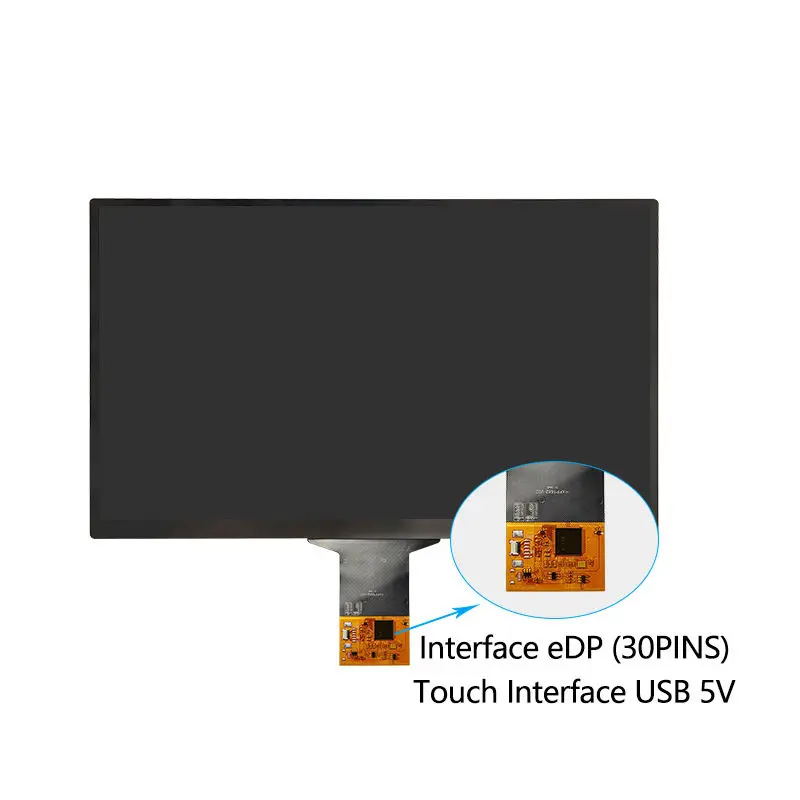

The display image and touch controls use separate signal paths. A 30-pin eDP connection carries the Full HD image, while the capacitive-touch assembly uses a USB 5 V reference that must be qualified with the selected host and touch-controller configuration.
Key Specifications
| Parameter | Value |
|---|---|
| Display size | 13.3 inch |
| Native resolution | 1920 × 1080 pixels |
| Panel type | IPS TFT-LCD, normally black |
| Color gamut | 72% NTSC |
| Display colors | 16.7M |
| Brightness | 280 cd/m² |
| Contrast ratio | 800:1 typical |
| Response time | 30–35 ms |
| Refresh rate | 60 Hz |
| Viewing-angle sequence | 89/89/89/89 |
| Display interface | 30-pin eDP |
| Touch type | Capacitive touch |
| Touch reference | USB 5 V |
| Active area | 293.76 × 165.24 mm |
| Touch-lens outline | 303.36 × 180.76 mm |
72% NTSC Color for Interface Design
What 72% NTSC Means for UI Content
The 72% NTSC specification gives the display a wider color target than basic low-gamut panels. It can support more distinct interface colors for:
- product images
- branded interface elements
- status indicators
- educational graphics
- video content
- retail catalogs
- menu photography
- operator guidance
Color gamut does not by itself guarantee color accuracy. The finished product still depends on panel calibration, graphics processing, operating-system color handling and the selected cover stack.
Finished-Product Color Validation
Color approval should use the complete assembly rather than a bare-panel photograph. The validation process should consider:
- test-image source
- graphics pipeline
- gamma
- white point
- cover-lens transmission
- optical adhesive
- viewing angle
- ambient lighting
- backlight setting
- production tolerances
Projects with strict color requirements should define the measurement method and acceptable gamut tolerance in the approved specification.
Full HD Layout on a 13.3-Inch Panel
Native 1920 × 1080 Content
The native Full HD raster supports detailed interface layouts without requiring the large enclosure of a desktop monitor. It provides enough space for:
- transaction information
- product-selection interfaces
- equipment controls
- instructional content
- split-screen menus
- dashboards
- media playback
- data tables
- graphical status pages
Native 1920 × 1080 content should be used wherever practical to preserve text edges and icon detail.
Text, Controls and Data Density
A 13.3-inch Full HD screen can carry dense information, but touch controls should remain large enough for the intended user. Important actions should be separated from secondary data, and text should be tested at the actual viewing distance.
UI qualification should cover:
- button dimensions
- font size
- touch-target spacing
- color contrast
- error messages
- localization
- landscape orientation
- accessibility requirements

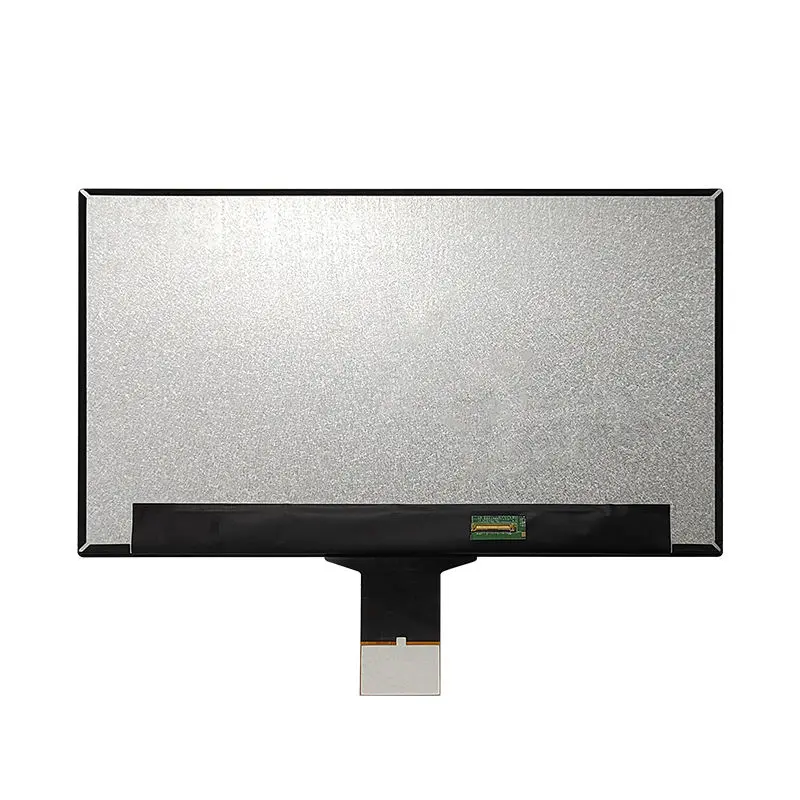

Wide Gamut Touch Display Module Integration
30-Pin eDP Image Path
The LCD uses a 30-pin eDP image connection. A matching connector count does not prove that two eDP panels are interchangeable.
Before PCB or cable release, verify:
- connector manufacturer and part number
- pin assignment
- eDP version
- lane count
- link rate
- panel power rails
- backlight power
- auxiliary-channel behavior
- EDID handling
- backlight enable
- PWM or brightness-control method
- cable orientation
- connector location
- startup sequence
USB 5 V Touch Path
The capacitive-touch function is separate from the eDP image connection. The supplied information identifies a USB 5 V touch reference, but the final controller, protocol and touch-point count must be confirmed for the ordered configuration.
Touch qualification should verify:
- controller model
- USB device behavior
- touch-point count
- coordinate orientation
- calibration
- firmware
- operating-system support
- edge accuracy
- touch latency
- cable length
- grounding
- shielding
- electromagnetic behavior
Indoor 280 cd/m² Optical Positioning
The display uses a single standard luminance value of 280 cd/m². This is suitable for evaluation in controlled indoor environments such as retail counters, equipment consoles, learning terminals and indoor exercise equipment.
It should not be described as:
- sunlight readable
- outdoor readable
- high brightness
- window-facing
- suitable for direct sunlight
Finished luminance and contrast are affected by:
- touch sensor
- OCA layer
- cover lens
- surface reflection
- bezel design
- backlight setting
- viewing angle
- ambient illumination
The completed product should be tested under the actual installation lighting.

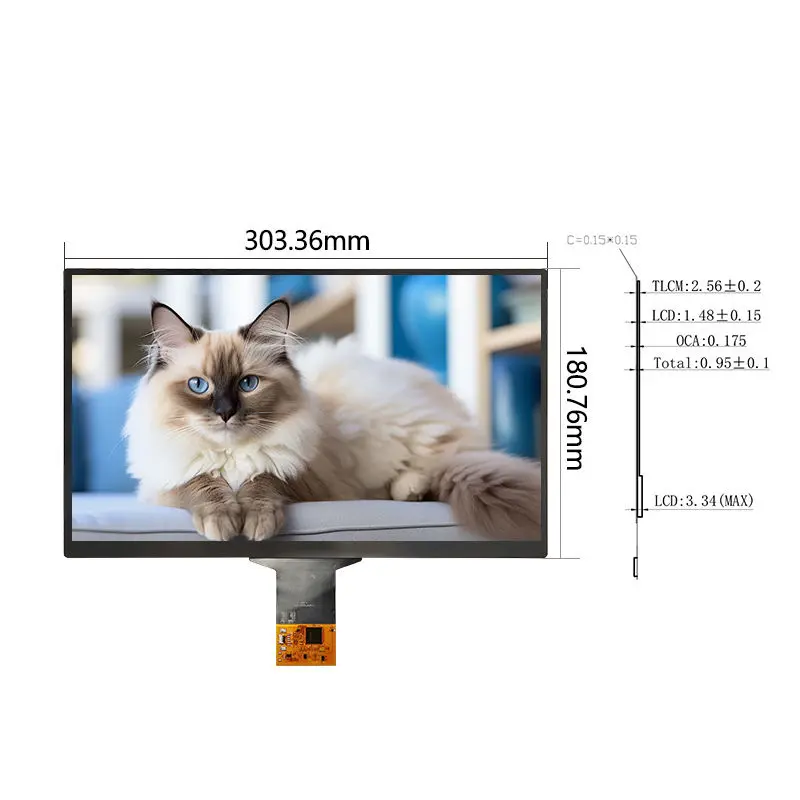

Mechanical Stack and Enclosure Fit
LCD, Sensor and Cover-Lens Dimensions
The mechanical drawing separates several dimensional layers:
| Layer | Dimension |
|---|---|
| LCD active area | 293.76 × 165.24 mm |
| Lens viewing area | 294.30 × 166.00 mm |
| LCD outline | 297.46 × 172.75 mm |
| Touch-sensor outline | 301.62 × 175.89 mm |
| Lens outline | 303.36 × 180.76 mm |
| LCD thickness | 2.56 ± 0.20 mm |
| Total touch stack | 3.95 ± 0.10 mm |
The enclosure should be released against the approved combined-module drawing, not against the LCD active area alone.
FPC and Shielding Considerations
The drawing shows a touch flex with a six-pin reference and double-sided electromagnetic shielding film. The final drawing should confirm:
- FPC contact orientation
- insertion direction
- connector pitch
- cable length
- stiffener dimensions
- bend limits
- shielding connection
- grounding point
- tear-off section
- adhesive area
Recommended Applications
Retail Operator Terminals
The Full HD resolution and capacitive touch can support product lookup, operator guidance, transaction summaries and inventory workflows. The module should be described as a retail operator interface rather than a certified payment terminal.
Learning and Training Equipment
The 13.3-inch format can display instructional media, quizzes, diagrams and interactive controls in indoor learning terminals.
Tablet-Style Embedded Products
The thin LCD and touch stack can support integrated desktop, portable or panel-mounted products after mechanical, power and touch-controller qualification.
Indoor Equipment Consoles
The display can present controls, settings, status information and multimedia content in equipment used under controlled lighting.
Treadmill and Exercise Interfaces
The 16:9 Full HD format can support workout data, menus and media interfaces. Environmental, vibration and perspiration protection must be established by the finished equipment design.
Medical and vehicle projects require separate qualification for regulatory, environmental and functional requirements.
Customization and Qualification
Project-specific review may cover:
- capacitive-touch panel
- cover-lens outline
- cover-lens thickness
- black border
- silk printing
- logo printing
- FPC dimensions
- cable orientation
- connector choice
- touch-controller option
- USB touch implementation
- shielding
- optical bonding
- surface treatment
- mechanical stack
- packaging
Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability and the requested specification. Some lens, FPC or touch-panel projects may require higher minimum quantities. Samples and standard-module quantities are confirmed separately.
Procurement Checklist
Before sample approval or production release, confirm:
- approved 1920 × 1080 timing
- eDP version
- eDP lane count
- eDP link rate
- 30-pin pinout
- connector part number
- panel voltage
- backlight voltage and current
- backlight enable logic
- brightness-control method
- USB touch protocol
- touch-controller model
- touch-point count
- firmware revision
- operating-system support
- LCD outline
- lens outline
- sensor outline
- viewing area
- active-area position
- total stack thickness
- FPC orientation
- bezel opening
- adhesive zone
- shielding connection
- 72% NTSC measurement method
- 280 cd/m² target
- response-time grade
- operating-temperature range
- corrected storage-temperature range
- compliance documents
- sample quantity
- annual demand
- production schedule
