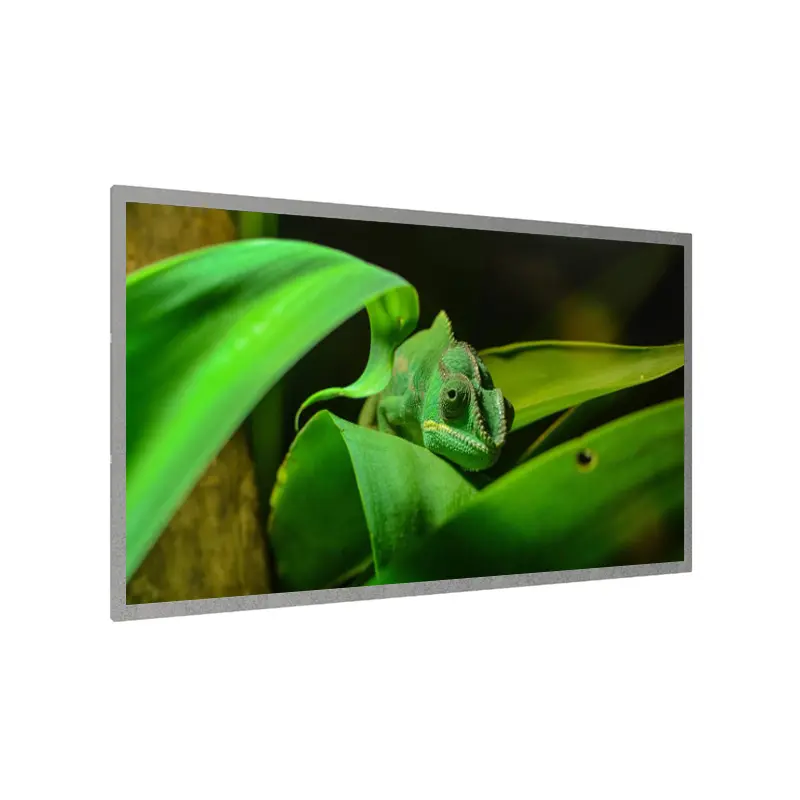

18.5 Inch Sunlight Readable LCD Panel Wide Temp for Outdoor Equipment

WXGA S-IPS Display with Auto Brightness, Anti-Blackening Design, and 5.0 V Panel Integration

An 18.5 Inch Sunlight Readable LCD Panel is a compact WXGA display module for outdoor equipment, kiosks, EV charging interfaces, and retail window-facing screens that need stronger readability than ordinary indoor LCDs. This panel combines 1366 × 768 resolution, 1000–5000 nits brightness, S-IPS wide viewing, anti-glare 3H surface treatment, auto brightness control, anti-blackening support up to 80°C surface temperature, 5.0 V typical input, and a no-touch structure. The source page identifies the product as a 18.5-inch sunlight-readable panel with 1366(RGB) × 768 resolution and 1000–5000 nits brightness.

At a Glance: 18.5-Inch Outdoor Equipment Panel Highlights

• 18.5-inch WXGA format gives compact equipment enough display area for status, instruction, advertising, and control content.
• 1000–5000 nits brightness range supports sunlight-readable project configurations.
• S-IPS, normally black, transmissive display mode supports wide-angle visibility in public-facing installations.
• Built-in ambient light sensor supports automatic brightness adjustment for changing outdoor light conditions.
• Anti-blackening design is listed as stable up to 80°C surface temperature, useful for outward-facing display positions.
• No-touch configuration gives OEM teams freedom to add project-specific cover glass, protective front structure, or separate touch later.
• 430.4 × 254.6 × 11.9 mm outline and 1.04/1.10 kg weight support compact kiosk and cabinet integration.

Product Overview of the 18.5 Inch Sunlight Readable LCD Panel

The 18.5 Inch Sunlight Readable LCD Panel is built for outdoor-facing commercial equipment where readability, heat behavior, and space efficiency need to be evaluated together. Instead of using a standard low-brightness indoor panel behind a front window, engineers can start from a panel platform that is already positioned for sunlight-readable operation, wide viewing, and anti-glare display performance.

Its 1366 × 768 WXGA resolution remains practical for compact equipment interfaces. For EV chargers, retail window information screens, outdoor kiosks, and advertising panels, WXGA can display charging status, pricing, operating instructions, schedules, product promotions, or simple interactive menu layouts without requiring a larger enclosure. The 16:9 format also fits many existing cabinet and front-window designs.

The product’s key engineering value is not brightness alone. The source confirms auto brightness through a built-in light sensor, anti-blackening stability up to 80°C surface temperature, WLED backlight with LED driver, -20 ~ 70°C operating temperature, and -30 ~ 80°C storage temperature. These points matter because outdoor equipment often fails from heat, reflection, and changing ambient light—not only from insufficient luminance.

Key Features of the 18.5 Inch Sunlight Readable LCD Panel

Technical Specifications of the 18.5-Inch WXGA Sunlight-Readable Panel

The confirmed specification set supports a component-level outdoor display evaluation. It does not confirm an IP rating, waterproof sealing, medical certification, or standard touchscreen integration for the bare panel, so those should be handled as separate enclosure or customization requirements.

Why Choose This 18.5-Inch WXGA Panel for Outdoor Equipment?

This panel is strongest where a compact display must remain readable under high ambient light without turning the equipment into a large-format signage structure.

1000–5000 Nits for Sunlight-Readable Project Matching

The source lists 1000–5000 nits brightness and also describes the product as a 1000-nit sunlight-readable LCD panel. For procurement, that means the buyer should confirm the exact luminance target before sampling. A lower setting may fit shaded kiosks or controlled storefronts, while a higher-brightness version may be needed for direct or reflected sunlight.

S-IPS Viewing for Public-Facing Screens

Outdoor-facing displays are rarely viewed from one perfect angle. Kiosk users, pedestrians, EV drivers, and retail customers may approach from the side. The confirmed 89/89/89/89 viewing specification supports stable off-axis readability, while the S-IPS normally black transmissive mode helps maintain commercial-grade image presentation.

Anti-Glare 3H Surface for Front-Window Integration

The anti-glare surface with haze 13% and hard coating 3H is important for enclosure design. When the panel sits behind cover glass, reflection control should be evaluated with the final front stack, not only from the bare panel data. Engineers should review cover glass, optical bonding, anti-reflective treatment, air gap, thermal path, and brightness target as one system.

Auto Brightness and Anti-Blackening for Outdoor Readability

The built-in ambient light sensor is a major advantage for outdoor equipment. It can detect changing light conditions and adjust brightness for more comfortable viewing while reducing unnecessary heat load when full brightness is not needed. For EV chargers, retail windows, or kiosks, this can improve real-world usability from morning to evening.

Anti-blackening behavior is equally important. The source states that the sunlight-readable LCD technology can withstand surface temperatures up to 80°C without blackening defects. This should still be validated in the final enclosure, because front glass, sunlight exposure, internal power dissipation, and ventilation all affect actual panel surface temperature.

Compact 5.0 V Panel Integration and Mechanical Fit

This 18.5-inch module is suitable for equipment where the display opening is already constrained. The 409.8 × 230.4 mm display area, 430.4 × 254.6 × 11.9 mm outline, and 413.4 × 234.0 mm bezel area give mechanical engineers clear dimensions for front-window design, mounting clearance, gasket planning, and enclosure depth.

The 5.0 V typical input and 60 Hz frame rate provide basic electrical planning references. The source page does not expose a complete signal-interface specification in the visible table, so buyers should request the datasheet or interface drawing before confirming the controller board. This 18.5 Inch Sunlight Readable LCD Panel should be treated as a no-touch panel unless a separate touch stack or protective front structure is specified.

Recommended Applications for Compact Outdoor Display Systems

Outdoor digital advertising displays can use this panel where cabinet size is limited but high ambient-light readability is still required. The 18.5-inch WXGA format is suitable for promotional loops, service messages, pricing, menu content, or public instructions.

Self-service kiosks and interactive signage systems can use the no-touch version as a display-only panel, or evaluate a separate touch and cover-glass stack according to the final product design. In these projects, brightness, touch performance, front glass reflection, and enclosure temperature should be verified together.

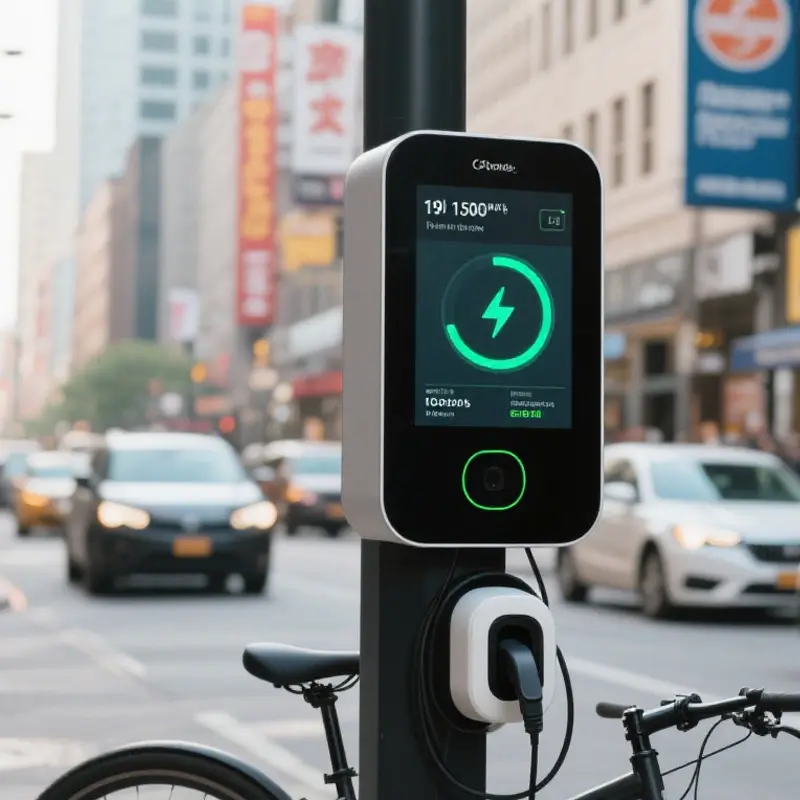

EV charging station interfaces are a strong fit because the screen size is large enough for charging status, instructions, payment flow prompts, and error messages, while remaining compact enough for charger cabinets. Retail window-facing information panels can also benefit from the brightness range, anti-glare surface, and anti-blackening design.

Customization Options for 18.5-Inch Sunlight-Readable Projects

Project evaluation can include brightness version selection, auto-brightness behavior, cover glass, anti-glare or anti-reflective treatment, optical bonding, protective front glass, custom enclosure adaptation, 5.0 V power and control-board matching, thermal planning, anti-blackening validation, and optional touch stack review. IP-rated outdoor protection should be specified at the finished enclosure level rather than assumed from the panel.

Procurement and Engineering Checklist for 18.5-Inch Panel Selection

• Confirm the required brightness target and whether 1000 nits is sufficient.
• Request the final datasheet for signal interface, pinout, timing, and power sequence.
• Validate 5.0 V input, controller compatibility, and backlight control.
• Check display area, bezel area, outline size, and enclosure depth.
• Decide whether the project needs no-touch, protective glass, optical bonding, or a touch add-on.
• Test auto brightness behavior in the real installation environment.
• Validate anti-blackening performance with final glass, airflow, and heat load.
• Avoid claiming waterproof or medical suitability unless the finished system is separately designed and certified.
