32 Inch Outdoor Waterproof Display for Fanless IP66 Signage

Compact Outdoor Digital Signage with 2500 cd/m² Brightness, AR IK10 Glass, and Optional Android Control

A 32 Inch Outdoor Waterproof Display is a compact FHD outdoor signage solution for projects that need strong readability, sealed protection, and reliable long-term public-facing operation. This model combines 1920 × 1080 resolution, 2500 cd/m² brightness, IP66 ingress protection, 5 mm anti-reflection IK10 glass, passive fanless cooling, and optional Android/touch/network functions. It is suitable for outdoor advertising terminals, public information boards, EV charging displays, self-service kiosks, and other compact outdoor signage systems.

At a Glance: 32-Inch IP66 Outdoor Signage Highlights

• 32-inch FHD display format for compact outdoor digital signage and public information systems.
• 2500 cd/m² brightness supports stronger visibility in high ambient light.
• IP66 ingress protection supports outdoor waterproof signage design.
• 5 mm anti-reflection glass with IK10 rating improves front-surface visibility and protection.
• Passive heat dissipation reduces reliance on fan-based cooling.
• Optional Android 11, 4G RAM, 32G ROM, WiFi/Ethernet/4G, and 10-point capacitive touch are available.
• AC 100–240 V input and 400 × 200 mm mounting pattern support practical project deployment.

Designed For

This product is designed for outdoor and semi-outdoor display equipment where a standard indoor monitor is not sufficient. It is best suited for compact signage systems that need sealed protection, bright visual output, and manageable installation dimensions.

Typical project fits include outdoor advertising terminals, passenger information displays, gas station media screens, EV charging station displays, self-service kiosks, factory-facing outdoor information boards, building entrance signage, and commercial public information panels. For direct sun, rain exposure, or vandal-prone areas, final project validation should still review enclosure orientation, thermal path, front-glass structure, IP requirement, installation height, and maintenance access.

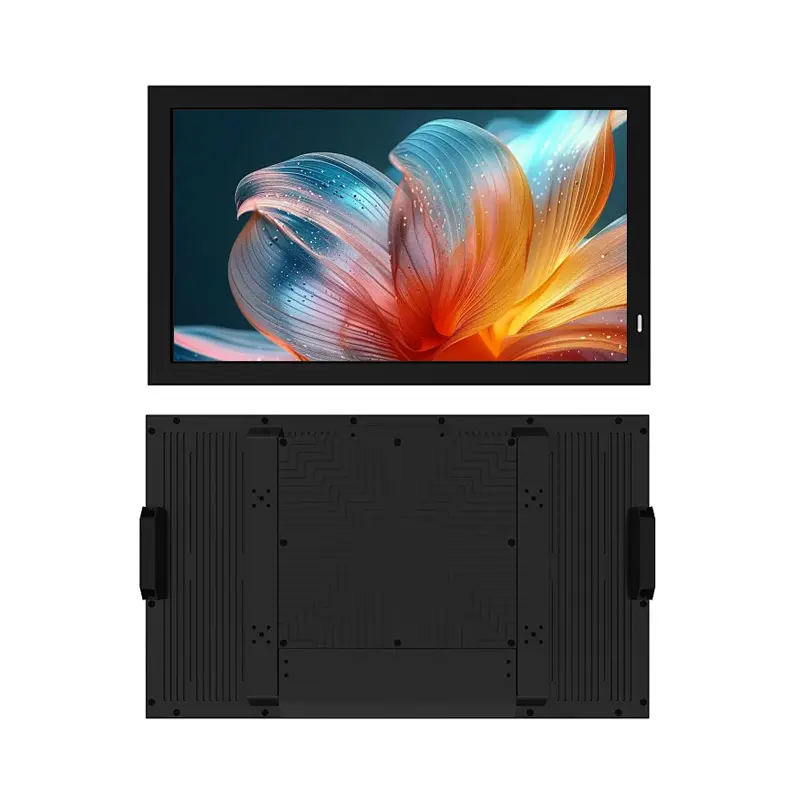

Product Overview of the 32 Inch Outdoor Waterproof Display

The 32 Inch Outdoor Waterproof Display is built for outdoor signage projects where visibility and environmental protection must be considered together. Instead of treating outdoor signage as a normal LCD plus a brighter backlight, this product combines high brightness, sealed structure, reinforced front glass, and passive cooling in one display platform.

Its 1920 × 1080 resolution gives designers a familiar 16:9 FHD canvas for advertising videos, public notices, user instructions, menus, payment prompts, and equipment status screens. The 32-inch size is also practical for buyers who need public visibility but cannot use a large-format cabinet. It fits smaller outdoor terminals, wall-mounted signage, EV charging equipment, and kiosk structures where enclosure space is limited.

The key engineering value is the combination of IP66 protection, fanless passive heat dissipation, and 5 mm anti-reflection IK10 glass. These confirmed features make the display more suitable for exposed commercial equipment than indoor signage panels placed behind a basic housing. Before procurement, buyers should verify the operating temperature target, power budget, mounting plan, front protection requirement, and whether the optional Android/touch/network functions are required.

Key Features of the 32 Inch Outdoor Waterproof Display

Technical Specifications of the 32-Inch IP66 Outdoor Display

These specifications show a display designed as an outdoor digital signage unit rather than a bare LCD panel. The 90 mm depth, AC input, mounting pattern, optional Android system, front protective glass, and fanless sealed structure are all important for enclosure planning, installation design, and procurement evaluation.

Why Choose This 32-Inch IP66 Display for Outdoor Signage?

IP66 Fanless Structure for Outdoor Equipment

The main reason to select this display is outdoor system reliability. IP66 protection and passive heat dissipation help reduce the risks associated with dust, water exposure, and fan-based cooling. For kiosk builders and signage integrators, a sealed fanless design can simplify maintenance planning and reduce the need for frequent air-path cleaning.

5 mm Anti-Reflection IK10 Glass for Public-Facing Screens

Outdoor displays often fail visually because reflections overwhelm the backlight. The 5 mm anti-reflection glass helps address this issue by improving front-surface readability. The IK10 rating also adds a stronger protection layer for public-facing installations such as EV charging stations, outdoor kiosks, gas station displays, and entrance signage.

Optional Android, Touch, and Network Functions for Smart Signage

This display can support more than simple video input. Optional Android 11, 4G RAM, 32G ROM, optional WiFi/Ethernet/4G, and optional 10-point capacitive touch make it suitable for smart signage, interactive kiosks, and networked public information systems. Buyers can choose a basic display configuration or a more integrated system depending on project requirements.

2500 cd/m² Readability for Compact Outdoor Screens

The 2500 cd/m² brightness level gives this product stronger readability for high ambient light than ordinary indoor displays. For a 32 Inch Outdoor Waterproof Display, brightness must be evaluated together with front glass, viewing angle, contrast, and installation direction. A bright panel placed behind reflective glass can still perform poorly, so the anti-reflection glass is a meaningful specification.

The 1920 × 1080 FHD resolution is also practical for signage content. It supports standard video, advertising layouts, wayfinding pages, equipment status screens, and user instructions without requiring unusual content formatting. For outdoor use, designers should validate text size, contrast, and viewing distance, especially if the display will show payment prompts, public notices, or operational instructions.

Interface, Mounting, and Outdoor Integration Notes

The display is designed for practical deployment, but every outdoor project still needs mechanical and electrical review. The 770.5 × 465.5 × 90 mm outline should be checked against the target cabinet, wall mount, kiosk cutout, or equipment frame. The 400 × 200 mm mounting pattern with 4-M8 fixing points gives a clear starting point for bracket design.

On the system side, optional HDMI, RJ45, USB, and AC input support different integration paths. Projects using the optional Android configuration should confirm application requirements, content scheduling, network access, remote management expectations, and boot behavior. Projects using touch should confirm whether 10-point capacitive input is suitable for the operating environment, cover-glass stack, and user workflow.

Thermal design also matters. Passive fanless cooling is a valuable advantage, but the final housing, sun exposure, wall clearance, and installation angle can affect heat dissipation. Before bulk order, buyers should validate operating temperature, ventilation-free installation limits, and any additional enclosure sealing requirements.

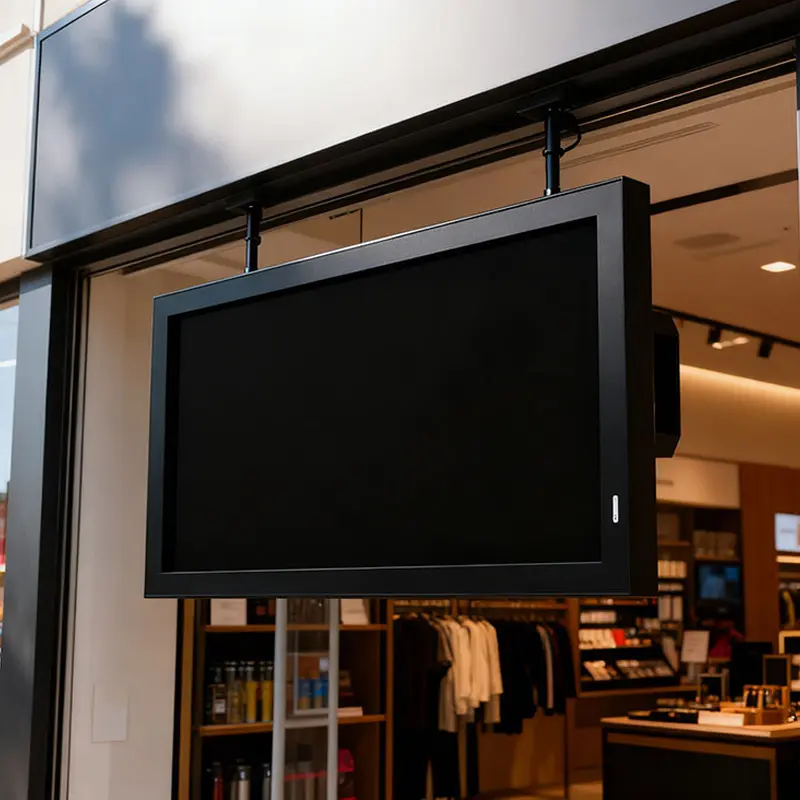

Recommended Applications for Compact Outdoor Digital Signage

This display is suitable for outdoor advertising terminals where a 32-inch screen is large enough for visibility but small enough to keep the cabinet compact. It can be used for promotions, public notices, maps, digital posters, and menu-style content in outdoor commercial areas.

It also fits EV charging displays and self-service kiosks. In those systems, the screen may need to show charging status, payment instructions, help information, advertising, or interactive menus. Optional Android, optional capacitive touch, and optional network connectivity make the display easier to adapt to different system designs.

For passenger information and public facilities, the 32-inch format can support entrance signs, station notices, service updates, and compact public information boards. The IP66 structure and reinforced glass are especially valuable where the display is installed in a public or semi-exposed location.

Customization Options for 32-Inch Outdoor Display Projects

Customization should be handled through project evaluation. HuiSoar can review requirements for brightness target, Android configuration, touch function, network connectivity, input interface set, mounting structure, front protection, glass requirements, and enclosure adaptation.

Project-specific options may include touch/no-touch configuration, media-player configuration, WiFi/Ethernet/4G selection, HDMI/RJ45/USB input planning, front-glass review, enclosure matching, bracket design support, and outdoor thermal validation. For IP-rated installations, final system sealing and mounting method should always be confirmed against the project environment.

Procurement and Engineering Checklist for 32-Inch Outdoor Display Selection

• Confirm the required brightness level and whether 2500 cd/m² is suitable for the installation location.
• Verify IP66 requirement, rain exposure, dust exposure, and installation orientation.
• Check 770.5 × 465.5 × 90 mm outline dimensions against the cabinet or mounting frame.
• Confirm 400 × 200 mm mounting compatibility and 4-M8 screw design.
• Decide whether optional Android 11, touch, WiFi, Ethernet, or 4G are required.
• Review AC 100–240 V input and <150 W power budget.
• Confirm operating temperature requirements against the specified -20°C ~ 50°C range.
• Validate glass, touch, and thermal behavior with a sample before bulk deployment.
