19.5 Inch Outdoor LCD Advertising Strip 1500 Nits for Narrow Installations

1920×540 High-Brightness LCD Strip for Bus Stations, Retail Bars, and Public Information Panels

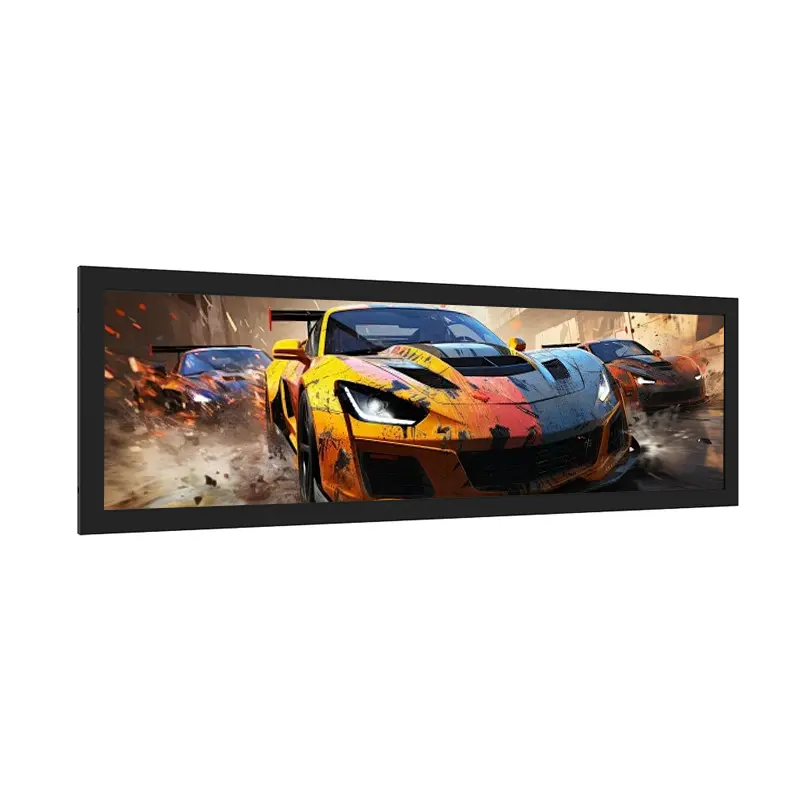

A 19.5 Inch Outdoor LCD Advertising Strip is a stretched LCD module for narrow public-facing signage spaces where a standard 16:9 screen is too tall or visually inefficient. With 1920×540 resolution, 1500 nits minimum brightness, VA transmissive display structure, 3000:1 typical contrast, 30-pin LVDS signaling, and a slim 15.7 mm profile, it fits bus station advertising, retail display bars, route notices, storefront strips, and compact public information panels.

At a Glance: 19.5 Inch Stretched LCD Strip Highlights

• 19.5-inch stretched format supports long horizontal content zones without wasting vertical space.
• 1920×540 resolution gives designers a wide canvas for route text, price strips, menu messages, alerts, and advertising layouts.
• 1500 nits minimum brightness helps outdoor-facing and high-ambient-light installations remain easier to read.
• 476.64 × 136.41 mm active area and 497.4 × 158.4 mm outline support compact enclosure planning.
• 15.7 mm slim profile helps signage builders design clean fascia, shelf, and header installations.
• LVDS 30-pin interface supports embedded controller integration after timing and pinout validation.
• No-touch structure is suitable for advertising and information display systems that use passive viewing rather than user interaction.

Product Overview of the 19.5 Inch Outdoor LCD Advertising Strip

The 19.5 Inch Outdoor LCD Advertising Strip is built for projects where the display opening is long and narrow rather than rectangular. In bus stations, retail shelving, vending fronts, storefront headers, and queue guidance systems, a conventional monitor often creates unused height or forces content into an awkward layout. This strip-format LCD solves that problem by matching the physical shape of horizontal information areas.

The strongest fit is signage that needs quick-read text and advertising content in a compact slot. The 1920×540 format allows route names, promotional messages, directional prompts, and multi-zone content to be arranged in a clean horizontal sequence. For OEM enclosure designers, the specified active area and outline dimensions support early mechanical review before custom housing, cover glass, brackets, or front-window tooling begins.

This product should be evaluated as a module-level display component rather than a finished outdoor waterproof monitor. The panel-level facts support high-brightness strip signage, but final outdoor performance depends on enclosure sealing, ventilation, cover-glass treatment, thermal design, controller selection, and installation angle. Buyers should confirm those system-level items during sample approval.

Key Features of the 19.5 Inch Outdoor LCD Advertising Strip

Technical Specifications of the 19.5 Inch Outdoor LCD Advertising Strip

These specifications make the module most useful when the design priority is a slim horizontal display area, not a full-size monitor. The active area and outline should be matched with the front-window opening, while the LVDS interface should be checked against the selected controller board, cable routing, timing file, and electromagnetic layout.

Why Choose This Outdoor LCD Advertising Strip for Narrow Signage?

1920×540 Format for Advertising and Route Content

The wide 1920×540 canvas supports signage content that needs horizontal flow. A bus stop can show route numbers, destination names, arrival messages, and notices across one strip. A retail fixture can show price, promotion, brand messaging, and availability in the same visual band. This reduces the need to split information across multiple small displays.

Slim 15.7 mm Structure for Header and Fascia Integration

The 15.7 mm profile is important for fascia-style installations, display bars, and compact public information panels. In these spaces, depth is often limited by the cabinet, shelf, frame, or enclosure. A slim LCD strip gives mechanical designers more room for the control board, cable path, cover glass, gasket, and thermal path.

No-Touch Signage Structure for Passive Viewing

This module is supplied as a no-touch display, which is a practical choice for advertising strips, route information, and status-message screens. If the final product requires touch, cover glass, or optical bonding, those items should be reviewed as a custom stack rather than assumed as standard panel features.

1500-Nit Readability Planning for Outdoor-Facing LCD Strip Projects

Brightness is the central optical decision for this product. The confirmed 1500 nits minimum makes the display more suitable for bright signage spaces than a standard indoor panel, while the stated 500–5000 nits customization range gives project teams a way to match the display to different lighting levels. A shaded station canopy, indoor retail shelf, and window-facing storefront will not require the same brightness strategy.

For direct sunlight or sealed outdoor use, do not evaluate brightness alone. Cover-glass reflectance, air gap, optical bonding, anti-glare treatment, enclosure ventilation, heat buildup, and viewing direction can all affect real readability. A high-brightness LCD strip should be tested in the actual enclosure or a representative prototype before bulk production.

LVDS 30-Pin and Mechanical Integration Checks

The LVDS 30-pin interface supports embedded display integration, but it must be validated before PCB or harness finalization. Engineers should request the timing table, pin assignment, recommended cable parameters, and compatible controller-board details. Cable length, connector orientation, grounding, and EMI handling can affect stable operation in signage equipment.

Mechanical fit should be checked with the 476.64 × 136.41 mm active area and 497.4 × 158.4 mm outline. The active area defines visible content placement, while the outline dimension controls housing size, bezel coverage, and bracket design. The final drawing should confirm front-window size, black mask, viewing area, screw or bracket clearance, and protection against pressure on the LCD cell.

Recommended Applications for Narrow Public Information Displays

Bus Station Advertising Screens

Bus station displays often need a long strip for route names, waiting information, public notices, and commercial messages. This display format fits that requirement because it presents information horizontally and supports higher brightness for bright stations, canopies, and outdoor-facing shelters.

Retail Display Bars and Shelf Messaging

Retail shelves and storefront headers often have limited vertical space. A stretched LCD strip can show price promotions, menu content, product highlights, and short brand messages without taking over the entire fixture. Designers should confirm viewing distance and font size for the 1920×540 layout.

Queue Guidance and Service Counters

Service counters, ticketing areas, and waiting zones need concise messaging that can be read quickly. The 19.5-inch strip format works for queue numbers, service status, warning messages, and directional prompts. The no-touch structure is suitable where interaction happens through another device or counter system.

Outdoor-Facing Public Information Panels

For public information panels, the wide-temperature range and 1500-nit minimum brightness are useful starting points. The finished product still needs enclosure-level validation for water, dust, condensation, UV exposure, heat dissipation, and service access.

Customization Options for Outdoor LCD Advertising Strip Projects

Customization can be evaluated around the final installation environment. Brightness selection is the first decision because ambient light strongly affects readability and thermal design. Direct-lit or side-lit backlight strategies may be reviewed when the mechanical depth, luminance target, and uniformity requirement are known.

Cover glass, anti-glare or anti-reflective treatment, optical bonding, cable customization, controller-board matching, enclosure adaptation, and mounting design can also be reviewed during project development. These options should be treated as engineering evaluation items until the drawing, application environment, and production quantity are confirmed.

Procurement and Engineering Checklist for LCD Strip Selection

• Confirm whether the installation is indoor, window-facing, semi-outdoor, or fully outdoor-facing.
• Define the brightness target based on real ambient light rather than a generic nit value.
• Validate the 1920×540 content layout with actual fonts, icons, and viewing distance.
• Check LVDS 30-pin compatibility, timing, cable routing, connector orientation, and controller board.
• Match active area, outline size, thickness, bezel opening, and front-window design before tooling.
• Decide whether the project needs no-touch, protective glass, optical bonding, or a custom front stack.
• Review heat dissipation, enclosure sealing, condensation risk, and service access at system level.
• Approve samples under representative lighting and temperature before bulk production.
