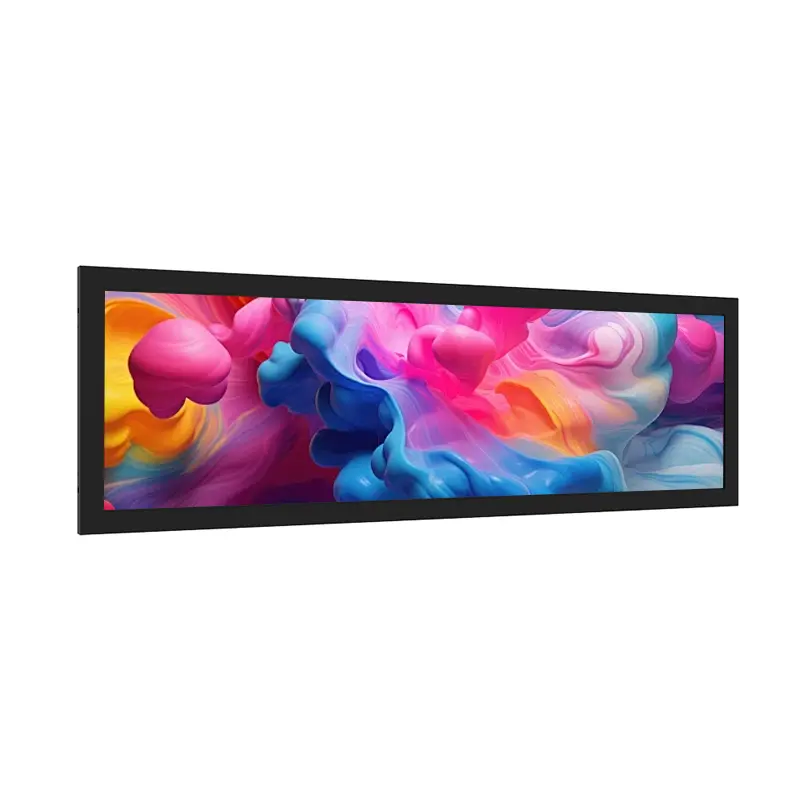

19 Inch Route Message Strip Display for OEM Panels

1680×342 LVDS Stretched LCD for Narrow Industrial Signage and Transport Information

A 19 Inch Route Message Strip Display is a narrow 1680×342 stretched LCD module for transportation route notices, machine status bars, queue guidance strips, and compact industrial signage. It gives OEM designers a long horizontal information area without using a conventional 16:9 screen. With configurable 500–5000 nits brightness, LVDS 2-channel 8-bit 30-pin signaling, 5.0 V typical driving voltage, anti-glare 3H surface treatment, and no-touch panel construction, it is best suited for enclosure-ready display projects that need clear text and controlled integration.

At a Glance: 1680×342 Narrow Strip Display Highlights

• 19.0-inch stretched LCD format supports route names, status messages, queue prompts, and compact signage strips.
• 1680×342 resolution gives designers a wide canvas for long text, icons, and segmented information zones.
• 500–5000 nits configurable brightness helps match indoor, bright public-space, or window-facing project conditions.
• LVDS 2-channel 8-bit 30-pin terminal interface supports embedded controller and signage electronics integration.
• 473.76 × 96.44 mm active area helps engineers evaluate enclosure windows and front-frame openings early.
• No-touch structure suits protected signage, machine headers, and public information panels where direct interaction is not required.
• Anti-glare 3H coating, 2000:1 contrast, and 89-degree viewing support clearer reading from multiple viewing positions.

Product Overview of the 19 Inch Route Message Strip Display

The 19 Inch Route Message Strip Display solves a common layout problem: many machines, terminals, transport fixtures, and public-information systems need a long message area, but do not have room for a full rectangular monitor. Its 1680×342 format creates a panoramic content strip for route information, direction prompts, machine status, queue numbers, short advertising text, and warning messages.

For OEM panel builders, the value is not only the shape. The module combines a compact 473.76 × 96.44 mm active area with 500–5000 nits brightness options, 2000:1 contrast, all-direction viewing, and an anti-glare 3H surface. That combination makes it more flexible than a fixed-brightness indoor display when the final installation may face high ambient light, reflective cover glass, or off-axis viewing.

The display is supplied without touch, so it is suitable for read-only information zones, protected front panels, and equipment where interaction is handled by external buttons, software controls, or a separate user interface. Before sample approval, buyers should confirm LVDS timing, 30-pin pin assignment, enclosure opening, cover glass stack, brightness target, and thermal design.

Key Features of the 19 Inch Route Message Strip Display

Technical Specifications of the 1680×342 Stretched LCD Module

These parameters are most important for system design because they affect content mapping, controller selection, cable design, optical performance, enclosure fit, and thermal validation. The public table only includes confirmed values; project-dependent items such as housing, mounting structure, front glass, and touch conversion should be evaluated separately.

Why Choose a Route Message Strip Display for Narrow OEM Panels?

A route message strip display is useful when the available installation space is long and shallow. Instead of forcing a standard rectangular screen into a narrow cabinet, designers can use the wide 1680×342 canvas to show text and symbols in the same visual direction as the equipment or signage frame.

1680×342 Layout for Route Names and Status Bars

The 1680×342 resolution is well matched to horizontal information. Transport systems can display route numbers, platform notes, and direction prompts. Industrial equipment can show alarm states, process steps, speed values, or machine-header instructions. Commercial fixtures can show concise advertising, queue numbers, or service notices without occupying a large front panel.

No-Touch Panel Structure for Protected Information Zones

The no-touch configuration is a practical fit for display-only applications. It avoids unnecessary touch stack complexity when the final system only needs to present information. If the project requires a protective front surface, buyers can evaluate separate cover glass, optical bonding, or anti-glare treatment at system level without assuming built-in touch functionality.

Compact Active Area for Custom Enclosure Design

The 473.76 × 96.44 mm active area gives mechanical engineers a clear starting point for window opening, mask design, and front-frame review. The view area of 477.7 × 100.44 mm should also be checked against the actual bezel, gasket, cover glass, and mounting structure before tooling.

Brightness and Readability for Public Information Strips

The display supports better visibility planning by offering configurable 500–5000 nits brightness instead of a single fixed luminance. Lower brightness may fit controlled indoor equipment, while higher settings may be evaluated for bright public spaces, transport facilities, or window-facing installations.

500–5000 Nits Brightness Selection

Brightness should be selected according to ambient light, front glass reflection, enclosure ventilation, and thermal path. For direct sunlight or outdoor-facing systems, brightness alone is not enough; cover glass, anti-glare treatment, optical bonding, enclosure protection, and heat dissipation should be reviewed together.

2000:1 Contrast and Anti-Glare 3H Surface

A 2000:1 contrast ratio and anti-glare 3H surface treatment help the strip present route text, status indicators, and icons more clearly. This is especially useful in public information displays, where users may read quickly while walking, waiting, or viewing from an angle.

Wide Viewing for Side-Angle Reading

The 89/89/89/89 viewing performance supports installations where viewers are not always directly in front of the screen. This matters in railway platforms, building corridors, machine rows, and public-service areas where reading angles change constantly.

LVDS 30-Pin Integration and Mechanical Fit

The module is best approached as an engineering component that needs controller, cable, power, and enclosure validation before mass production. Its LVDS 2-channel 8-bit 30-pin interface gives embedded-system developers a familiar signal path, but the final design still depends on timing, pin assignment, and cable quality.

LVDS 2-Channel 8-Bit Signal Matching

Before PCB layout or controller selection, engineers should confirm the LVDS mapping, timing table, connector orientation, and cable length. A mismatch at this stage can cause display instability, color errors, or EMI problems. For procurement, requesting the interface drawing and sample timing documentation is a practical first step.

5.0 V Driving Voltage and Backlight Planning

The panel lists a 5.0 V typical driving voltage and an 8S5P WLED backlight with integrated LED driver. System designers should review power sequencing, brightness control method, thermal margin, and expected duty cycle during sample testing, especially for higher brightness configurations.

Front Protection, Bezel, and Mounting Review

Because the panel is supplied without touch, the final equipment may require cover glass or an external protective layer. The cover design should consider reflection, air gap, bonding choice, bezel pressure, gasket compression, and cleaning conditions. Mechanical teams should validate the active area, view area, and available structure before confirming mass-production tooling.

Recommended Applications for Narrow Route and Status Displays

The 19 Inch Route Message Strip Display fits applications where information must be clear, horizontal, and compact.

Transportation Route and Platform Messages

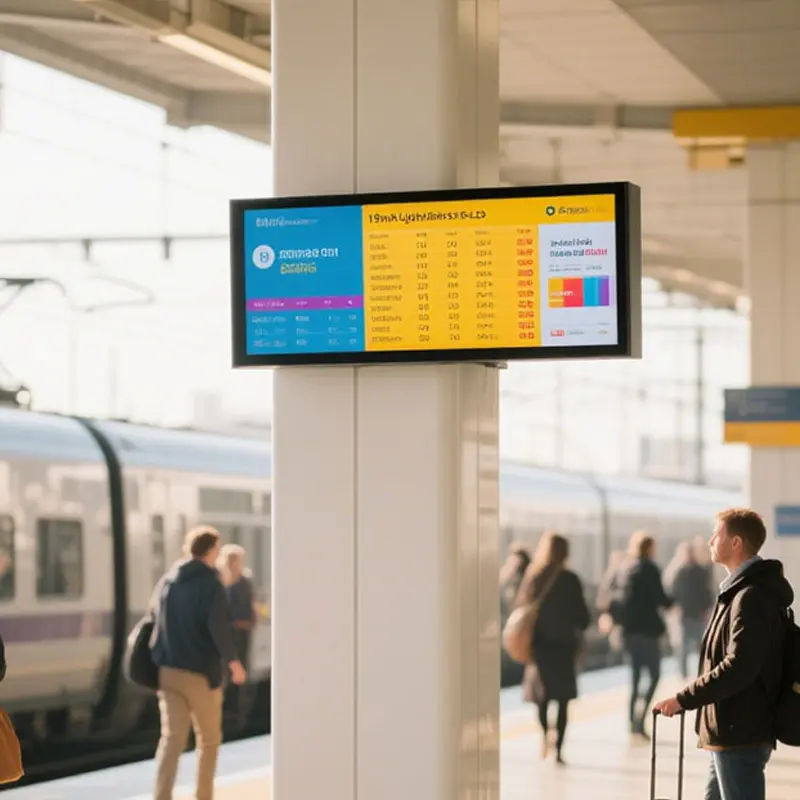

In rail, metro, bus, or station systems, the display can show route direction, service notices, platform prompts, and passenger guidance. Its stretched format allows text to flow naturally across a narrow header or fixture.

Machine Header and Industrial Status Bars

Industrial equipment can use the display for process status, alarm messages, operating mode, maintenance prompts, and production-line indicators. The LVDS interface and no-touch structure suit embedded controller designs that separate display output from operator controls.

EV Charger and Information Terminal Strips

EV charging equipment, service kiosks, and compact terminals often need a narrow information area above or beside the main control section. The display can show charging status, instruction text, promotional messages, or service alerts, while brightness is selected according to the installation environment.

Queue Guidance and Commercial Message Panels

Retail, healthcare, logistics, and service counters can use the narrow layout for ticket numbers, queue direction, pickup notifications, or short advertising. The high-visibility strip format helps keep the display readable without requiring a larger cabinet.

Customization Options for 19 Inch Stretched LCD Projects

Project evaluation can include brightness selection, anti-glare or cover glass review, optical bonding assessment, cable adaptation, controller-board matching, enclosure design, front-frame adaptation, and thermal planning. These options should be confirmed against the actual application, quantity, mechanical drawing, and environmental requirements.

If the display will be used in a semi-outdoor or outdoor-facing installation, the full system should be reviewed for cover glass reflection, sealing, ventilation, heat rise, condensation risk, and enclosure protection. Do not treat the panel itself as waterproof or IP-rated unless the finished product design and test documentation support that claim.

Procurement and Engineering Checklist for 19 Inch Strip Display Selection

• Confirm the final content layout: route text, message strip, status bar, or segmented information zones.
• Review the 1680×342 resolution against font size, icon size, and viewing distance.
• Confirm the required brightness target before choosing a 500–5000 nits configuration.
• Check LVDS 2-channel 8-bit timing, 30-pin pinout, connector direction, and cable length.
• Validate 5.0 V power, backlight driving, brightness control, and thermal margin.
• Compare active area and view area with the enclosure opening and cover glass design.
• Decide whether no-touch is sufficient or whether a separate front protection layer is required.
• Request sample testing under real ambient light, viewing angle, and operating-temperature conditions.
