Industrial 4:3 SXGA LCD panel with configurable brightness up to 1500 nits, IPS viewing technology, and LVDS connectivity.
19 Inch High Brightness LCD Panel for Industrial Control and Display Systems
19 Inch High Brightness LCD Panel solutions continue to play a critical role in industrial equipment, transportation terminals, medical systems, and control applications where traditional 4:3 and SXGA display formats remain industry standards. Many industrial platforms, HMI systems, and legacy equipment are designed around 1280×1024 resolution, making dependable replacement and upgrade panels essential for long-term operational continuity.
Designed for demanding industrial environments, this 19-inch TFT-LCD panel combines SXGA resolution, IPS viewing technology, configurable brightness up to 1500 nits, and industrial-grade durability to deliver consistent performance in both indoor and high-ambient-light environments.
Optimized SXGA Resolution for Industrial Applications
Unlike modern widescreen consumer displays, the 1280 × 1024 SXGA resolution provides a practical workspace for industrial software interfaces, machine control systems, diagnostic platforms, and process monitoring applications.
The 5:4 display format remains widely used across:
- Factory automation systems
- Industrial HMI terminals
- Medical equipment displays
- Test and measurement instruments
- Transportation control systems
- EV charging stations
This resolution allows seamless compatibility with legacy industrial platforms without requiring costly software redesigns.
High Brightness Performance for Enhanced Visibility
The panel is available in multiple brightness configurations ranging from 500 to 1500 nits.
For applications operating in brightly lit environments, sunlight-exposed kiosks, or transportation hubs, the 1500-nit configuration provides excellent readability while maintaining image quality and color consistency.
Compared with conventional LCD panels operating below 350 nits, this high-brightness design significantly improves visibility and operational efficiency.
The anti-glare surface treatment with 25% haze further reduces reflections and enhances viewing comfort.
IPS Viewing Technology for Consistent Image Quality
This panel utilizes advanced IPS optical technology with full viewing angles of 89° in all directions.
Benefits include:
- Consistent color reproduction
- Reduced color shifting
- Improved readability from multiple positions
- Enhanced collaboration in multi-user environments
These characteristics are particularly valuable for industrial workstations, control rooms, information displays, and public-facing terminals.
Industrial Reliability for Long-Term Operation
Industrial display systems frequently operate continuously for extended periods. To support these requirements, the panel incorporates a durable WLED backlight system with a rated lifetime of approximately 30,000 hours.
The robust design supports:
- Operating temperatures from -20°C to 70°C
- Storage temperatures from -30°C to 80°C
- Stable performance under demanding environmental conditions
These specifications make the panel suitable for industrial automation, transportation infrastructure, and semi-outdoor installations.
Advanced Refresh Performance
Unlike many traditional industrial displays, this model supports multiple refresh options including:
- 75Hz standard operation
- 120Hz MEMC enhancement
- 120Hz panel and backlight synchronization
- 240Hz simulation modes
These capabilities improve motion handling and visual smoothness for dynamic content and information display applications.
LVDS Interface for System Integration
The display utilizes a 30-pin dual-channel LVDS interface with 8-bit signal transmission.
Advantages include:
- High signal integrity
- Reliable industrial compatibility
- Simplified controller integration
- Low electromagnetic interference
- Long-term platform support
This makes the panel suitable for OEM equipment manufacturers and embedded system developers.
Typical Applications
This display is widely used in:
Industrial Automation
Machine control systems, operator terminals, production monitoring, and industrial HMIs.

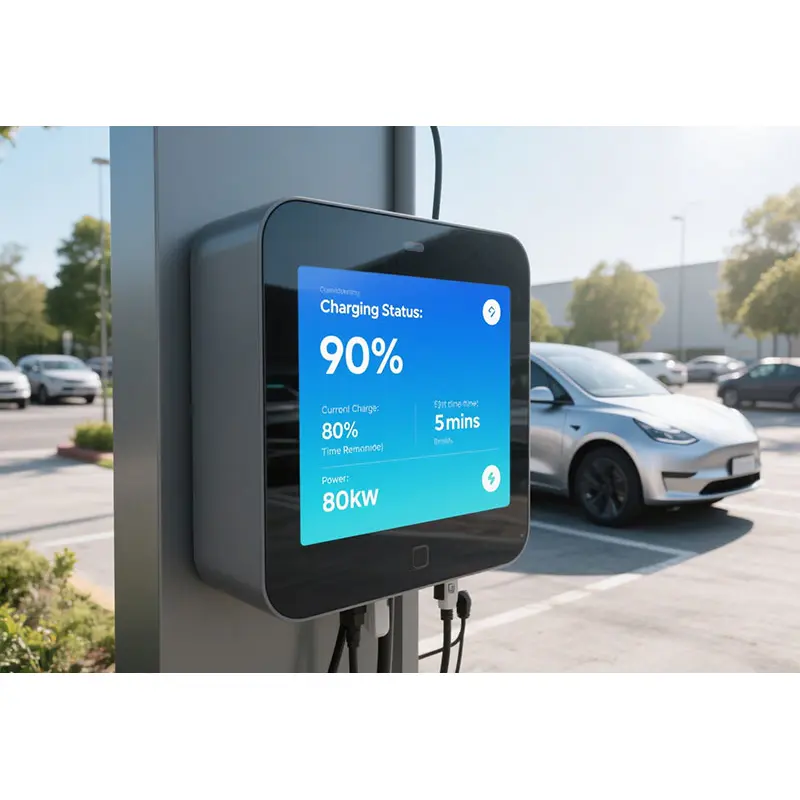

EV Charging Stations
Outdoor and semi-outdoor charging terminals requiring sunlight-readable displays.
Medical Equipment
Diagnostic systems, monitoring devices, and imaging equipment.
Transportation Systems
Passenger information displays, traffic management systems, and station terminals.
Industrial Monitors
Desktop replacement displays and rugged industrial monitoring platforms.
OEM and Custom Development Support
For equipment manufacturers and system integrators, OEM and ODM services can include:
- Brightness customization
- Touchscreen integration
- Optical bonding
- Cover glass enhancement
- Mechanical redesign
- Driver board development
- Branding services
These customization options help accelerate product development while meeting project-specific requirements.
