Full HD industrial LCD panel with 500–2500 nits brightness, wide temperature operation, and sunlight-readable performance.
21.5 Inch High Brightness Display Panel for Outdoor and Industrial Applications
21.5 Inch High Brightness Display Panel solutions are increasingly deployed in environments where standard commercial displays struggle to remain visible. Whether installed in transportation systems, retail storefronts, self-service kiosks, or industrial terminals, displays exposed to strong ambient light require significantly higher brightness and enhanced durability to maintain clear readability.
This industrial-grade 21.5-inch LCD panel combines Full HD resolution, configurable brightness up to 2500 nits, advanced thermal performance, and robust industrial engineering to meet the demands of long-term commercial and industrial deployments.
Full HD Resolution for Clear Visual Communication
The panel features a native resolution of 1920 × 1080, delivering sharp image quality and detailed content presentation.
The Full HD format supports:
- Transportation information systems
- Digital advertising displays
- Industrial HMI interfaces
- Retail promotion screens
- Self-service terminals
- Interactive kiosks
The 102 PPI pixel density ensures crisp text rendering and detailed graphics for both close-range and public-viewing applications.
Sunlight Readable Brightness up to 2500 Nits
One of the most important advantages of this display is its scalable brightness architecture.
Available brightness configurations include:
- 500 nits
- 1000 nits
- 1500 nits
- 2000 nits
- 2500 nits
The highest brightness versions are specifically designed for direct sunlight environments where conventional LCDs often become unreadable.
Combined with a matte anti-reflective surface and 3H hard coating, the display maintains excellent visibility while reducing glare and surface wear.
High Contrast VA Technology
The panel utilizes VA display technology with a typical contrast ratio of 3000:1.
Benefits include:
- Deep black levels
- Enhanced image depth
- Improved text visibility
- Better content readability in bright environments
The normally-black transmissive architecture further contributes to superior image performance compared to many standard display solutions.
Engineered for Harsh Environments
Industrial and outdoor applications often expose displays to challenging environmental conditions.
This panel supports:
- Operating temperatures from -20°C to 70°C
- Storage temperatures from -30°C to 80°C
- Continuous operation requirements
- High ambient temperature installations
Optional front IP65 protection and corrosion-resistant designs are available for demanding outdoor deployments.
Reliability Testing for Long-Term Deployment
The display platform undergoes extensive industrial qualification processes including:
- Thermal cycling verification
- Salt fog resistance evaluation
- Humidity testing
- Vibration testing
- Mechanical shock testing
- EMC compliance verification
These measures help ensure stable operation in transportation, industrial, and outdoor commercial environments.
Advanced Integration Features
System integrators often require flexibility during product development. This display supports a wide range of customization options including:
- PCAP touch integration
- Optical bonding
- Custom brightness tuning
- Mechanical redesign
- Interface adaptation
- Protective glass enhancement
The standard LVDS 30-pin interface simplifies integration into existing embedded systems and industrial control platforms.
Smart Thermal and Power Management
To improve reliability in sunlight-exposed environments, the panel can be paired with advanced thermal management solutions.
Optional features include:
- Auto brightness control
- Ambient light sensing
- Thermal monitoring
- Enhanced heat dissipation structures
These capabilities help reduce power consumption while extending display lifespan.
Typical Applications

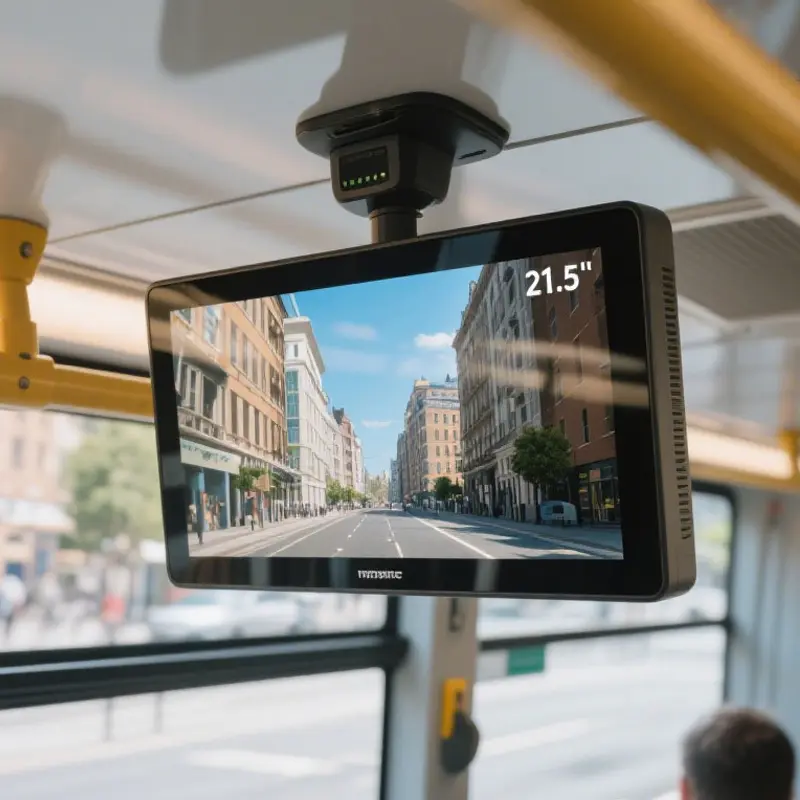

Transportation Information Systems
Passenger information displays, bus terminals, railway stations, and smart transit infrastructure.
Outdoor Digital Signage
Advertising displays, wayfinding systems, public information boards, and retail storefront signage.
Industrial HMI Platforms
Machine control systems, automation terminals, and industrial monitoring equipment.
Self-Service Equipment
Vending machines, ticketing kiosks, payment terminals, and interactive customer service stations.
Retail Display Solutions
High-visibility promotional displays and digital merchandising systems.
