21.5 Inch 1000 Nits Outdoor LCD Display Kit for Vending

A 21.5-inch Full HD MVA panel pairs 1000 cd/m² luminance with a matched LVDS controller for vending and outdoor-facing advertising integration.

The 21.5 Inch 1000 Nits Outdoor LCD Display Kit is a Full HD panel-and-controller configuration for vending equipment, advertising enclosures, and other commercial systems that need stronger brightness than a standard indoor screen. The 1920 × 1080 panel combines 1000 cd/m² typical luminance, MVA normally-black transmissive operation, a 3000:1 typical contrast ratio, and a 30-pin two-channel 8-bit LVDS interface. A paired VS-TY2660H-V661 controller, LVDS cable, backlight cable, and wired keypad provide a practical basis for OEM integration.

Product Summary

Full HD content fits standard commercial layouts

The 1920 × 1080 native raster supports conventional 16:9 interface and advertising content. Vending-machine product images, instructions, promotional graphics, status information, and service pages can be designed around a familiar Full HD canvas.

The active image area is 476.064 × 267.786 mm. The listed panel outline is 487.664 × 279.286 × 1.29 mm, so enclosure design should distinguish between the visible area, the listed cell or assembly boundary, cable exits, and the final mounting structure.

1000 cd/m² provides a high-brightness panel base

The panel is specified at 1000 cd/m² typical luminance, providing additional optical headroom for bright interiors, entrance-adjacent equipment, window-near placement, and protected outdoor-facing enclosures.

A 1000 cd/m² panel does not by itself guarantee direct-sun readability behind the finished front window. Front-glass transmission, reflection, AG/AR treatment, optical bonding, ambient light, and thermal conditions must be validated as part of the complete assembly.

Key Specifications

Preparing Full HD Content and Mechanical Layout

Use the native 1920 × 1080 raster

Keeping the GUI or advertising media at the native raster avoids unnecessary scaling and helps preserve text clarity. Vending interfaces can reserve stable zones for product selection, instructions, branding, status messages, and service information.

Release the enclosure from approved mechanical data

Enclosure design should account for the 476.064 × 267.786 mm active region, the 487.664 × 279.286 × 1.29 mm listed outline, backlight wiring, the 74 × 53 × 12 mm controller, keypad access, and cable bend radius.

Mounting, front glass, sealing, ventilation, and structural support remain system-level design items.

Optical Performance for Bright Commercial Environments

Validate the finished front stack

High luminance is only one part of outdoor-facing readability. A cover window can introduce reflections, while air gaps or touch layers can reduce effective contrast. AG/AR treatment or optical bonding may be considered when strong ambient light creates glare.

The finished front stack should be evaluated under representative lighting rather than approved from the panel-luminance value alone.

MVA normally-black optics support contrast-focused content

The detailed configuration identifies MVA, normally black, transmissive operation with a 3000:1 typical contrast ratio. Viewing values of 89°/89°/89°/89° are listed at CR ≥ 20.

The direction order is not explicitly defined, so directional labels should wait for approved production documentation.

Integrating the 21.5 Inch 1000 Nits Outdoor LCD Display Kit

Qualify the 30-pin two-channel LVDS interface

The LCD uses a 30-pin, two-channel, 8-bit LVDS path. Connector count alone does not establish compatibility because timing, mapping convention, voltage, pin assignment, connector orientation, cable design, and controller firmware can differ.

A matching 30-pin connector does not guarantee LVDS timing, voltage, channel mapping, bit convention, pin assignment, or controller-firmware compatibility.

Separate panel and controller power domains

The LCD panel is specified at 5.0 V typical input, while the paired controller uses a separate 12 V DC supply above 5 A. These are different electrical domains and should not be combined into one generic display-voltage specification.

The LCD panel uses a 5.0 V typical input while the VS-TY2660H-V661 controller uses a separate 12 V DC supply above 5 A.

Controller Board and Kit Architecture

OSD and speaker functions support setup

The controller supports OSD functions including brightness, contrast, auto adjustment, and language selection, with speaker output also listed. These functions can simplify commissioning without changing panel-side LVDS parameters.

The exact production controller revision and video-input connector set should be locked before enclosure tooling or cable procurement.

Board size and accessory scope support prototype planning

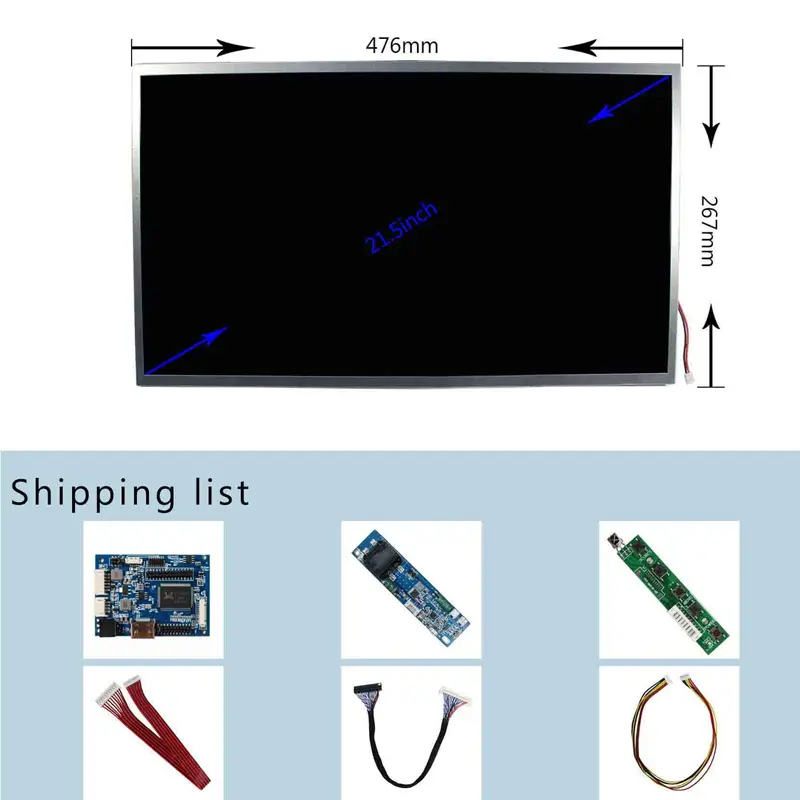

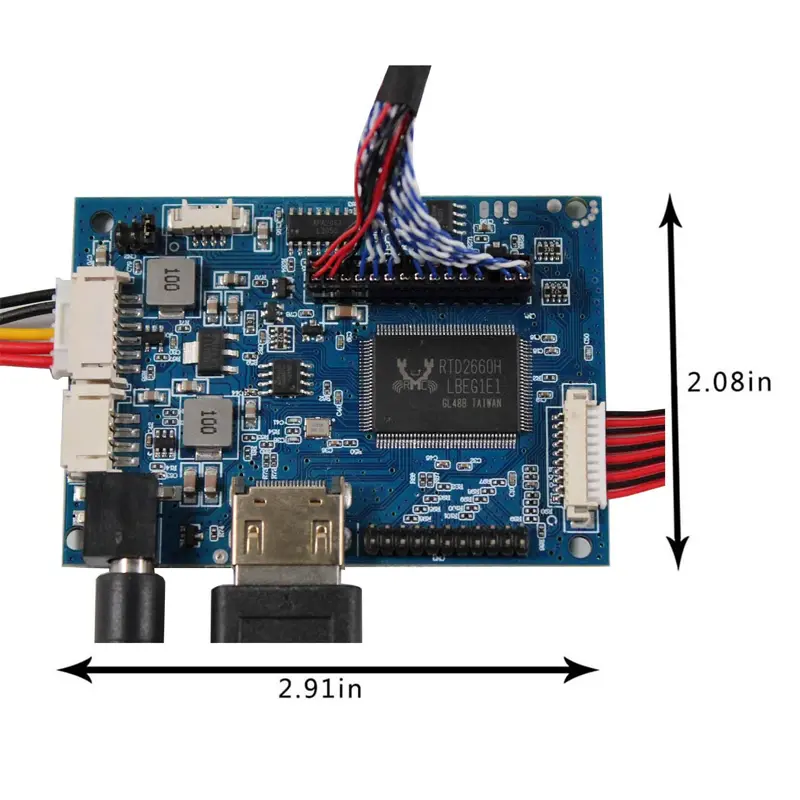

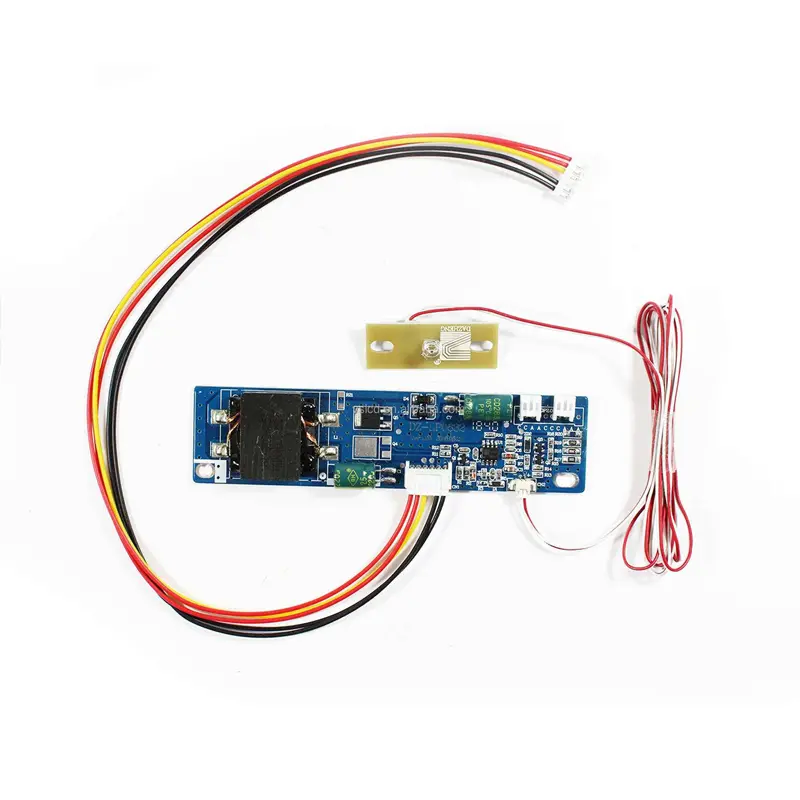

The controller measures 74 × 53 × 12 mm. The kit includes the LCD, controller, LVDS cable, backlight cable, and wired keypad. The 2.5 kg shipping figure should not be used as the panel or assembled-kit mounting weight.

Standby power below 1 W is not the maximum operating power of the complete display kit.

Vending and Outdoor-Facing Application Fit

Vending-machine product and instruction interfaces

The 21.5 Inch 1000 Nits Outdoor LCD Display Kit suits vending equipment that needs a Full HD product-selection or instruction screen inside a custom cabinet. The 21.5-inch format provides room for images, prompts, service messages, and advertising without moving to a larger signage panel.

This application wording does not imply payment-terminal certification or financial-transaction compliance.

Outdoor-facing advertising requires enclosure qualification

The panel can also be evaluated for bright signage, protected kiosks, advertising enclosures, and other outdoor-facing systems. The LCD/controller package is not a finished weatherproof monitor.

Outdoor wording does not establish an IP rating, waterproof construction, UV resistance, vibration grade, wide-temperature range, or finished-system direct-sun qualification.

Customization and Project Qualification

Project review can cover controller revision and firmware, LVDS mapping, cables, front glass, AG/AR treatment, optical bonding, enclosure adaptation, mounting, brightness validation, thermal design, separately engineered touch, branding, and packaging.

Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability, and the requested specification. Sample and standard-kit quantities are confirmed separately.

Procurement Checklist

Before sampling, confirm the exact panel/controller revisions, native 1920 × 1080 timing, MVA normally-black transmissive configuration, 1000 cd/m² luminance tolerance, 3000:1 typical contrast, and the documentation convention for the 89°/89°/89°/89° viewing values.

Approve the 476.064 × 267.786 mm active area and clarify the scope of the 487.664 × 279.286 × 1.29 mm listed outline. Lock the complete 30-pin two-channel 8-bit LVDS map, connector orientation, cable, 5.0 V panel input, and WLED electrical requirements.

For the controller, confirm firmware, 74 × 53 × 12 mm dimensions, 12 V DC supply above 5 A, maximum operating power, speaker output, OSD/keypad behavior, and exact video-input connector set. Also obtain operating/storage temperature, humidity, product net weight, touch requirement, front-window optics, thermal path, mounting, environmental/IP requirements, sample criteria, quantity, and annual demand.
