21.5" Outdoor Advertising LCD Display with Driver Board 1080p 1000nit
A 21.5-inch Full HD MVA LCD with 1000 cd/m² typical luminance, 30-pin LVDS and selectable HDMI or VGA driver-board configurations for commercial signage integration.
Product Summary
The Outdoor Advertising LCD Display with Driver Board 1080p 1000nit combines a 21.5-inch Full HD LCD with a ready-to-evaluate controller architecture for advertising displays, commercial information screens and protected outdoor-facing equipment. Its native 1920 × 1080 raster supports standard 16:9 media, while the 1000 cd/m² typical luminance provides additional optical headroom for brighter installation environments.
The LCD uses a detailed MVA, Normally Black, Transmissive configuration with a 3000:1 typical contrast ratio and 89° four-direction viewing specification at CR≥20. A 30-pin LVDS connection links the LCD to the selected driver board.
HDMI or VGA is selected at the controller level; neither interface replaces the LCD panel's native LVDS path.
Key Specifications
| Parameter | Specification |
|---|---|
| Size | 21.5 inch |
| Native resolution | 1920 × 1080 pixels |
| Format | Full HD, 16:9 |
| Display mode | MVA, Normally Black, Transmissive |
| Brightness | 1000 cd/m² typical |
| Contrast | 3000:1 typical |
| Viewing angle | 89°/89°/89°/89° L/R/U/D at CR≥20 |
| Active area | 476.064 × 267.786 mm |
| LCD outline | 487.664 × 279.286 × 1.29 mm |
| LCD interface | 30-pin LVDS |
| Listed signal structure | Two-channel, 8-bit |
| Panel input | 5.0 V typical |
| Backlight | WLED |
| HDMI board option | VS-TY2660H-V661 |
| VGA board option | RT2270C-A |
| Controller supply | 12 V DC, above 5 A |
| Standby | Below 1 W |
1080p Advertising Content and MVA Viewing
Native Full HD content
The 1920 × 1080 raster allows standard Full HD advertising assets to be prepared without unusual aspect-ratio conversion. Promotional graphics, product photography, information layouts, menus and video content can be designed around a conventional 16:9 canvas.
The 476.064 × 267.786 mm active area defines the actual visible image zone and should be used when designing the front opening or masking structure.
Using native-resolution media avoids unnecessary scaling and preserves predictable text and graphic proportions.
MVA viewing and contrast
The detailed optical configuration is MVA, Normally Black and Transmissive. Combined with the 3000:1 typical contrast ratio and 89°/89°/89°/89° viewing specification, this architecture supports advertising installations where viewers may approach from different horizontal or vertical positions.
The ordered production specification should nevertheless confirm panel-mode nomenclature because generic product categorization may use different terminology.
1000 cd/m² Bright-Ambient Performance
The fixed 1000 cd/m² typical luminance gives the display substantially more brightness than a conventional office-class panel and supports evaluation in bright retail spaces, protected outdoor-facing enclosures and window-adjacent commercial installations.
Luminance alone does not determine finished readability. Cover-glass transmission, reflections, anti-glare or anti-reflection treatment, bonding, air gaps, enclosure shading and the direction of incident light all influence perceived contrast.
A 1000 cd/m² panel specification does not by itself establish weatherproofing or guaranteed direct-sun readability.
The complete front stack should therefore be evaluated under the target lighting condition before final advertising-equipment qualification.
Outdoor Advertising LCD Display with Driver Board Integration
Native 30-pin LVDS panel path

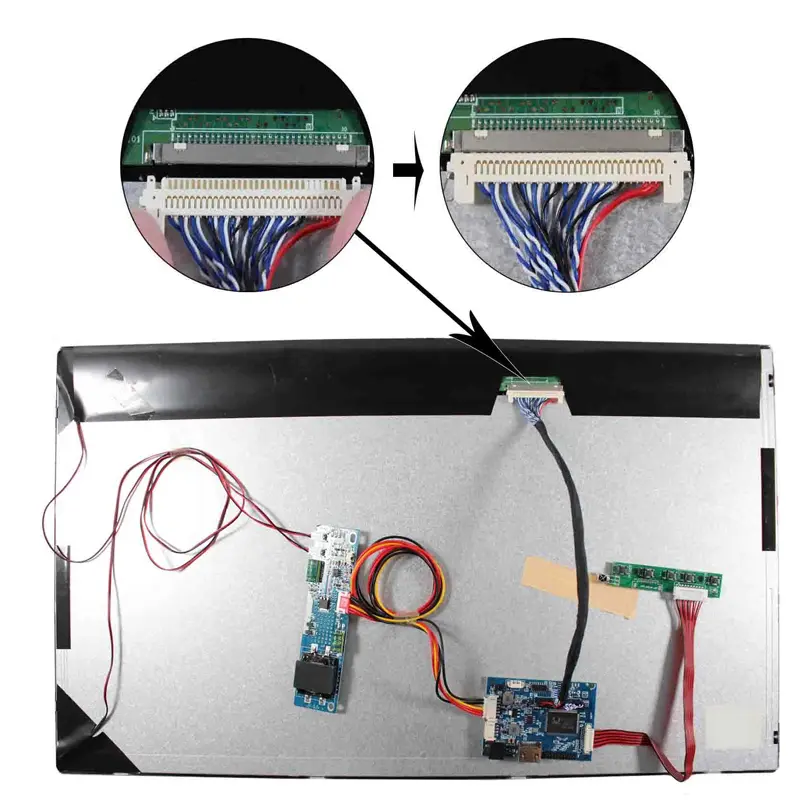

The LCD connects to its driver board through a 30-pin LVDS interface. The kit-level specification identifies a two-channel, 8-bit signal structure.
A matching 30-pin connector is not sufficient to establish compatibility. Timing, channel mapping, bit mapping, voltage, connector orientation and the complete pin assignment must match the ordered screen and controller.
The approved production pin map should control cable and controller release.
HDMI and VGA driver-board options
Two controller routes can be selected according to the external video source.
The VS-TY2660H-V661 option provides an HDMI-based controller architecture. The RT2270C-A option provides a VGA-based route. In both cases, the controller converts the external video source into the electrical format required by the panel-side LVDS connection.
This makes the Outdoor Advertising LCD Display with Driver Board 1080p 1000nit useful for projects where the same display platform may need to interface with different legacy or modern video sources.
Separate panel and controller power
The LCD panel is specified with a 5.0 V typical input, while the driver-board configurations are supplied around a separate 12 V DC controller power requirement above 5 A.
These values describe different electrical domains and should not be interchanged.
Backlight voltage, current, enable, dimming and driver requirements should also be confirmed before the final power harness is released.
The below-1 W standby figure applies to the controller in its no-input state and must not be treated as maximum display-system power.
Mechanical and Kit Integration
Thin LCD structure
The active area measures 476.064 × 267.786 mm, while the LCD structure is approximately 487.664 × 279.286 × 1.29 mm.
Because the LCD is very thin relative to a complete monitor, the enclosure must provide its own structural support, mounting method, cable protection and front-window architecture.
The active area should never be substituted for the complete mechanical envelope when defining the housing.
Included integration hardware

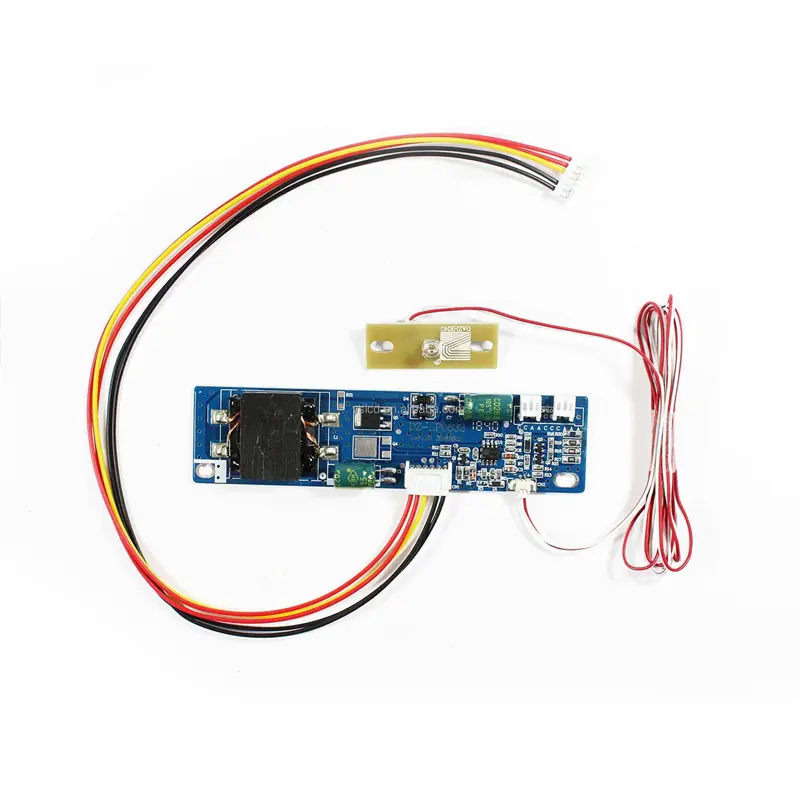

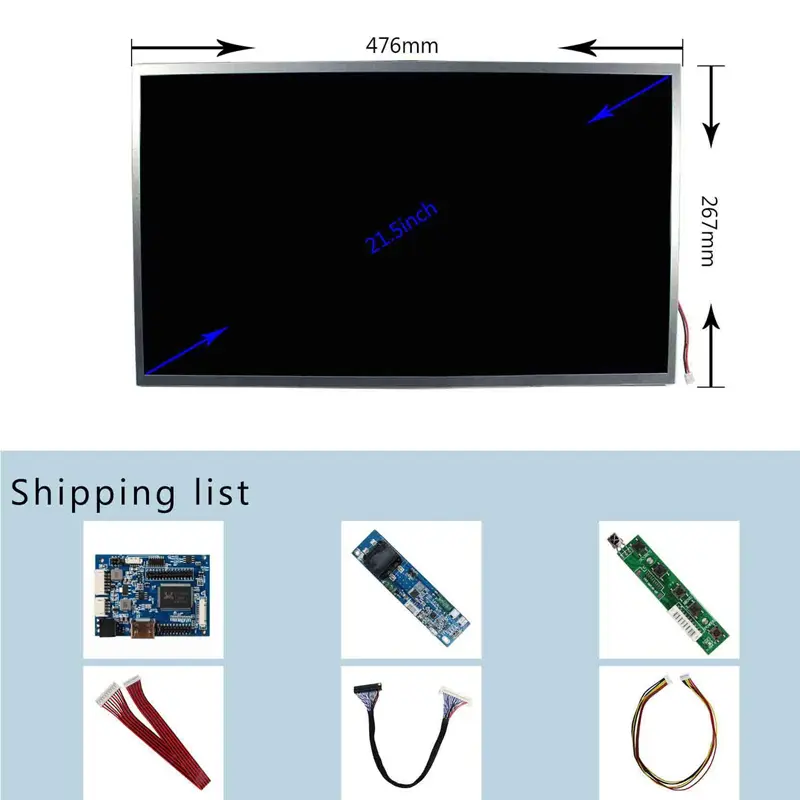

The configuration includes the LCD controller board, LVDS cable, backlight cable and wired keypad in addition to the LCD.

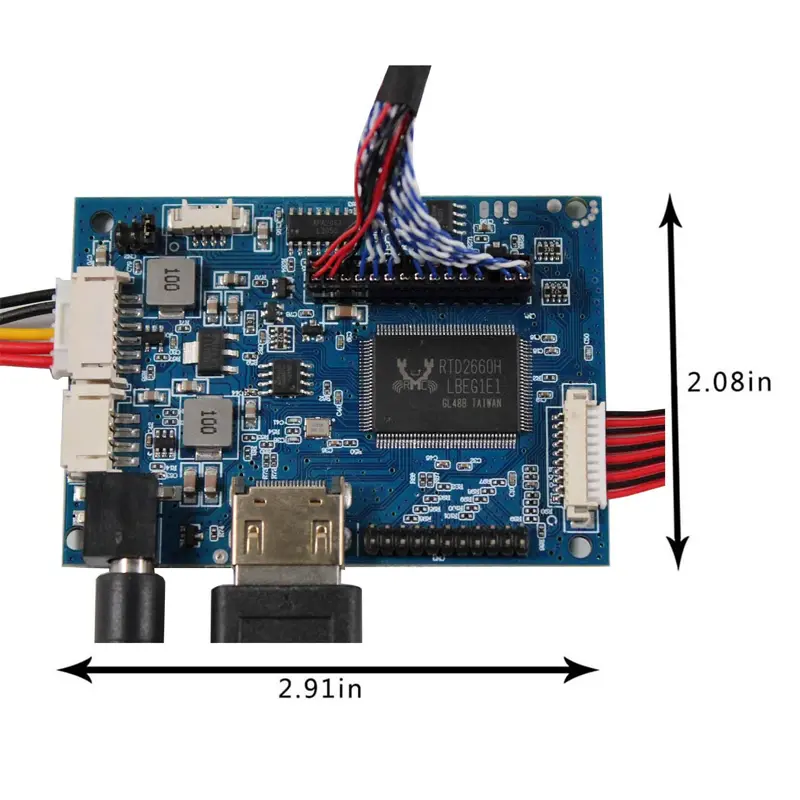

For the VS-TY2660H-V661 option, the controller-board reference is 74 × 53 × 12 mm. The exact controller revision should be frozen before enclosure tooling because connector positions and cable-clearance requirements are board-specific.
Revision and Compatibility Qualification
Panel-family and controller-board revisions must be checked as a complete ordered set rather than independently.
The Outdoor Advertising LCD Display with Driver Board 1080p 1000nit should therefore be released only after the LCD revision, controller option, LVDS cable, panel voltage, backlight circuit and controller firmware have been confirmed together.
This is especially important when replacing another 21.5-inch Full HD panel. Resolution and connector count alone do not prove electrical interchangeability.
Commercial Advertising Applications
Suitable evaluation routes include storefront advertising screens, promotional displays, commercial information panels, menu systems, protected kiosk displays, retail equipment and other signage assemblies where Full HD content and increased luminance are required.
Outdoor-facing use should be interpreted as an integration direction rather than proof that the bare LCD and controller kit are waterproof. A finished outdoor product may additionally require sealed housing, thermal design, UV-resistant materials, protected connectors, appropriate front glass and environmental qualification.
Configuration and Customization
Controller-board revision, HDMI or VGA input route, LVDS cable definition, cable orientation, front-window reflection treatment, enclosure adaptation, brightness review, backlight routing, branding and packaging can be evaluated by project.
Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability and the requested specification. Sample and standard-kit quantities are confirmed separately.
Procurement Checklist
Before sample or production approval, confirm:
- exact LCD and controller-board revisions;
- native 1920 × 1080 timing;
- detailed MVA, Normally Black, Transmissive configuration;
- 1000 cd/m² luminance tolerance and measurement condition;
- 3000:1 typical contrast;
- 89°/89°/89°/89° L/R/U/D viewing condition at CR≥20;
- 476.064 × 267.786 mm active area;
- 487.664 × 279.286 × 1.29 mm LCD outline;
- complete 30-pin LVDS pin assignment and channel/bit mapping;
- connector orientation and LVDS cable;
- 5.0 V panel input requirements;
- WLED voltage, current, enable, dimming and lifetime requirements;
- VS-TY2660H-V661 HDMI or RT2270C-A VGA controller option;
- controller firmware and external video-source requirements;
- 12 V DC above 5 A controller power specification;
- actual maximum operating power;
- front-window optics and ambient-light target;
- operating/storage temperature requirements;
- touch requirement, if any;
- sample acceptance criteria, quantity and annual demand.
