28 Inch USB 1920×360 700cd/m² Stretched Bar Advertising LCD Screen

28 Inch USB 1920x360 700cd/m² Stretched Bar Advertising LCD Screen

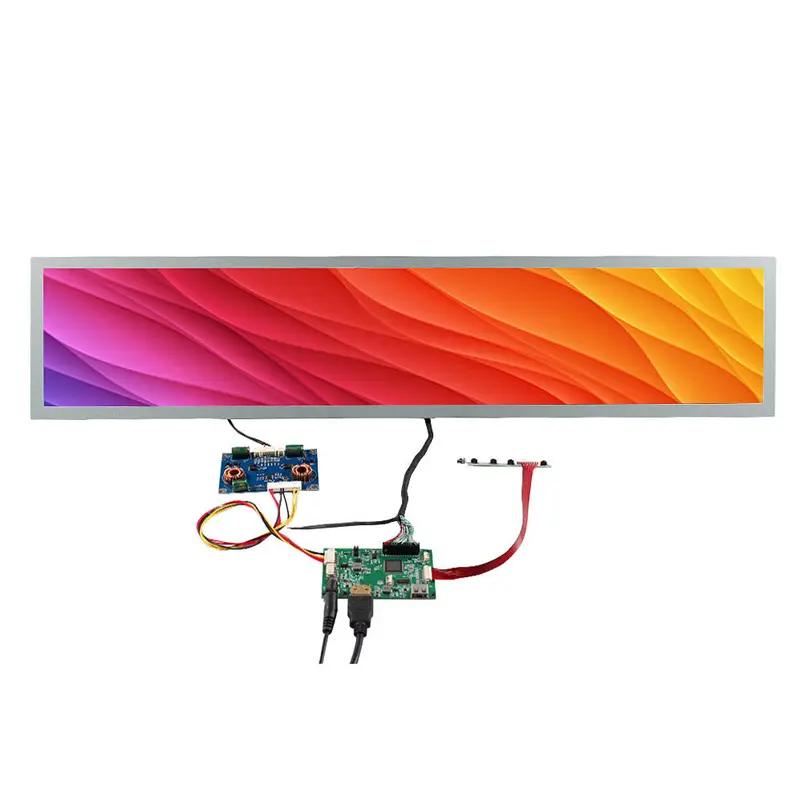

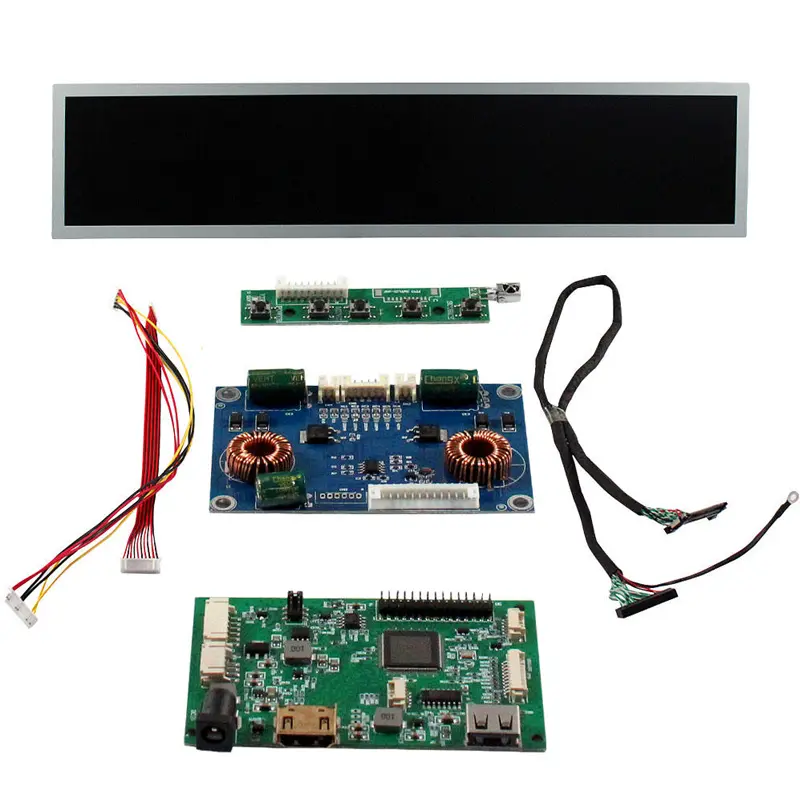

A panoramic advertising screen needs more than an unusual aspect ratio. It also needs a practical media workflow, enough luminance for the intended installation and a controller architecture that can be qualified before production. This USB 1920x360 700cd/m² Stretched Bar Advertising LCD Screen combines a 28-inch ultra-wide LCD, native 1920 × 360 graphics, 700 cd/m² typical luminance and a USB media controller for narrow retail and commercial display positions.

The screen uses a 51-pin one-channel 8-bit LVDS signal path, while the paired controller supports video, picture and text playback from USB media. This makes the configuration useful when a project needs local advertising playback without automatically moving to an Android or networked-CMS architecture.

Product Summary

The 28-inch format provides a 699.64 × 121.104 mm active display area inside a 732 × 165 × 20.2 mm screen outline. Its long horizontal geometry is intended for panoramic content rather than conventional 16:9 artwork.

Native 1920 × 360 Panoramic Canvas

Native 1920 × 360 content should be prepared specifically for the screen. Promotional prices, product names, menu items, directional messages and branded graphics can be distributed along the width without wasting vertical space.

Using purpose-built 1920 × 360 artwork also reduces dependence on scaling. Integrators should test text size, image placement and rotation with the actual USB media files before approving a rollout.

700 cd/m² IPS Optical Performance

The detailed configuration identifies an IPS, normally-black, transmissive display with 700 cd/m² typical luminance and a 1200:1 typical contrast ratio. Viewing performance is specified at 89°/89°/89°/89° in left/right/up/down order at CR≥10.

The 700 cd/m² rating provides a useful luminance target for bright commercial interiors, but finished-screen visibility should still be checked under actual lighting and front-window conditions.

Key Specifications

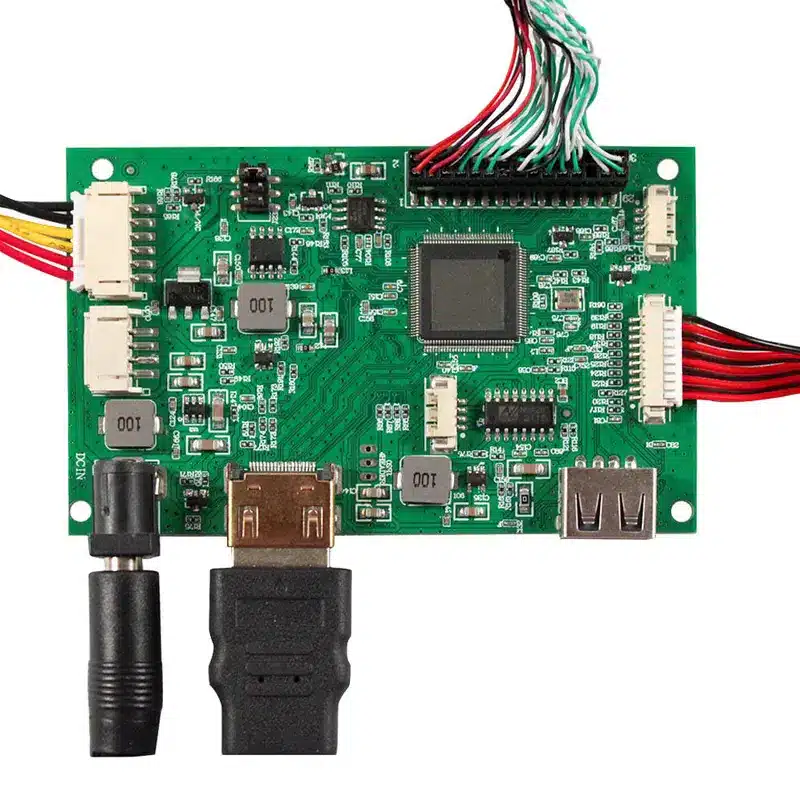

USB Media Playback for Advertising

The USB controller gives the display a straightforward local-content path for projects where files can be maintained directly rather than through a remote network platform.

Video, Picture and Text Playback

Video, picture and text playback are identified functions of the controller. This supports promotional loops, product messaging and information bands without assuming Android applications or cloud-based content management.

Before volume deployment, buyers should confirm the required file formats, autoplay behavior, update procedure and content orientation with the approved controller firmware.

180° Rotation, OSD and Peripheral Inputs

The controller supports 180° image rotation, which can help when the screen must be installed in an inverted mechanical orientation. OSD functions provide display-setting access, while the board also identifies photoresistor input, external induction-signal support and speaker capability.

These functions should be treated as board-level integration features. Sensor hardware, speaker design and automatic-brightness implementation still require project-specific definition.

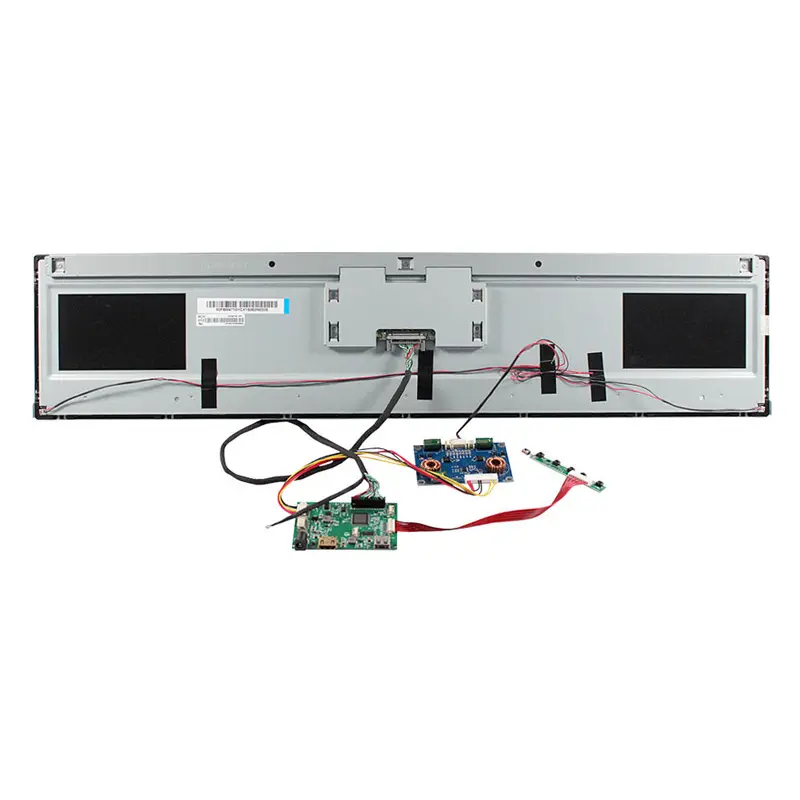

USB 1920x360 700cd/m² Stretched Bar Advertising LCD Screen Integration

Electrical qualification matters because the display and controller descriptions contain different connector references. The screen itself is specified as 51-pin LVDS, while generic controller wording refers to 30-pin LVDS support.

51-Pin LVDS Screen vs Generic 30-Pin Controller Wording

A connector count is not sufficient to establish compatibility. Production release should use the approved LVDS timing, complete pin assignment, channel/bit mapping, connector orientation and the exact cable or adapter supplied for the selected screen/controller combination.

This is especially important when replacing a panel or controller with another visually similar stretched-screen component.

Separate Screen and Controller Power Requirements

The LCD screen is identified with a 12 V typical input. The controller is also powered from 12 V DC and calls for an adapter capacity above 2 A, but its LCD-output voltage can be selected among 3.3 V, 5 V and 12 V by jumper.

The correct jumper position must match the ordered LCD. A shared “12 V” label should not be used as a substitute for verifying the complete power and cable configuration.

Mechanical and Controller Planning

732 × 165 × 20.2 mm Screen Envelope

The confirmed screen outline is 732 × 165 × 20.2 mm, while the active area is 699.64 × 121.104 mm. These dimensions serve different enclosure functions: the active area controls the visible content opening, while the complete outline governs internal clearances and support.

Mounting details and product net weight should be obtained before releasing brackets or enclosure tooling.

Controller Revision and Board-Footprint Control

Two controller dimensions appear in the available product information: 85 × 54 × 14 mm and 90 × 51 × 14 mm. Enclosure design should therefore wait for the exact VS-TY2660H-V823 revision and its approved mechanical drawing.

Cable exit direction, keyboard access, speaker wiring, sensor inputs and board ventilation should also be included in the internal-layout review.

Retail and Commercial Application Fit

The USB 1920x360 700cd/m² Stretched Bar Advertising LCD Screen is suited to projects that need a long visual band with straightforward local media playback.

Shelf Headers, Menu Bands and Promotional Strips

Potential layouts include retail shelf headers, product-category messaging, checkout promotions, menu strips, reception information bands and other narrow commercial advertising positions. The 1920 × 360 canvas gives designers room to combine branding, short text and product imagery across a wide horizontal area.

Controlled-Light Brightness Boundary

The 700 cd/m² panel rating should be evaluated in the completed installation. Front glass, reflections, viewing distance and ambient illumination can change the practical appearance of the display.

Direct-sun, weatherproof or window-facing performance should therefore be qualified separately rather than inferred from panel luminance alone.

Configuration and Customization Planning

Logo and packaging customization are shown from 1,000 sets. Other project changes—including controller firmware, LVDS harness, enclosure, mounting, sensor functions, audio integration and optical treatment—should be reviewed against the exact ordered configuration.

Sample and standard-kit quantities should be confirmed separately from customization quantities.

Procurement Checklist

Before approving the screen/controller combination, confirm:

• native 1920 × 360 media layout and required orientation;
• detailed IPS normally-black transmissive mode versus the marketplace TN category field;
• 700 cd/m² luminance tolerance and 1200:1 contrast;
• 699.64 × 121.104 mm active display area;
• 732 × 165 × 20.2 mm screen outline;
• complete 51-pin one-channel 8-bit LVDS definition;
• approved cable or adapter for the controller;
• 12 V typical LCD input;
• 12 V DC controller supply and >2 A adapter requirement;
• correct 3.3 V / 5 V / 12 V LCD-output jumper setting;
• VS-TY2660H-V823 firmware and exact board revision;
• final controller-board dimensions;
• USB file formats, autoplay and 180° rotation behavior;
• OSD, photoresistor, induction-signal and speaker requirements;
• WLED electrical requirements;
• enclosure, mounting and front-window conditions;
• sample acceptance criteria, quantity and annual demand.
