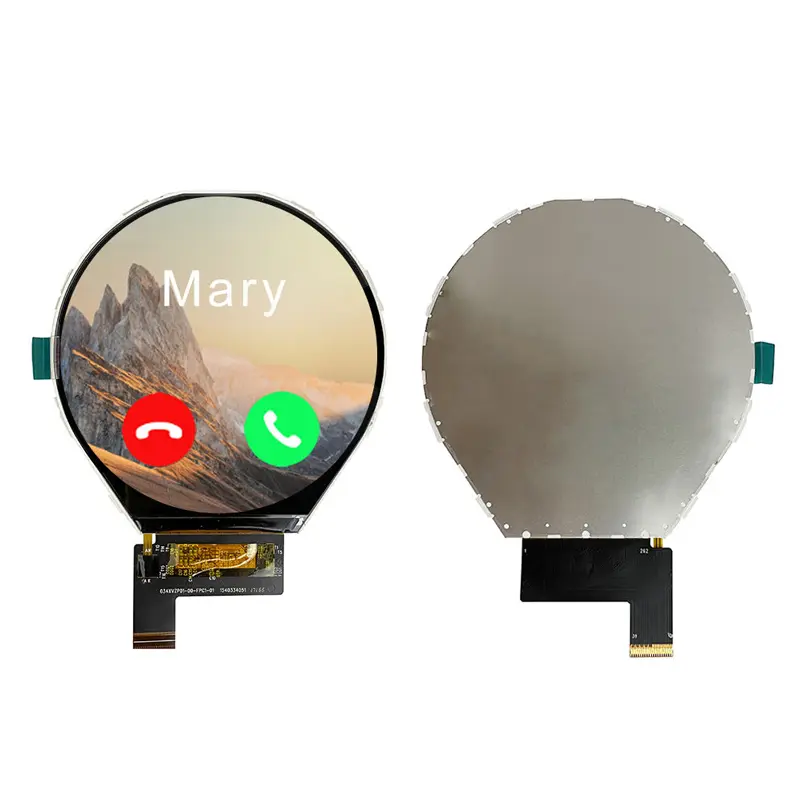

3.4 Inch MIPI Circular TFT LCD 800×800 CTP for Smart Wearable & Industrial

800×800 Round TFT Display with MIPI 3-Lane Interface and Integrated CTP

The 3.4 Inch MIPI Circular TFT LCD is a compact 800×800 round TFT display module for smart wearables, industrial instruments, portable smart devices, compact control interfaces, and automotive auxiliary screens. It combines a circular display format, MIPI 3-lane interface, integrated CTP touch, 16.7M color depth, ILI9881C LCD driver IC, HX8526-E30 CTP driver IC, FPC connection, and a 99.0 × 96.6 × 3.98 mm module structure with CTP. For B2B projects that need a round high-resolution interface, it provides a practical base for custom embedded display development.

At a Glance: 3.4 Inch Round TFT Display Highlights

• 3.4 inch circular TFT LCD format supports round UI design for wearable, compact HMI, and instrument-style devices.
• 800(RGB) × 800 resolution provides a square pixel canvas for circular menus, icons, gauges, and compact data views.
• MIPI 3-lane interface supports high-speed embedded display integration.
• Integrated CTP touch helps simplify user interaction in smart wearable and handheld-device projects.
• 16.7M color depth supports vivid UI graphics and clear status differentiation.
• 99.0 × 96.6 × 3.98 mm module size with CTP supports compact product structures.
• FPC connection, ILI9881C LCD driver IC, and HX8526-E30 CTP driver IC give engineers defined integration references.

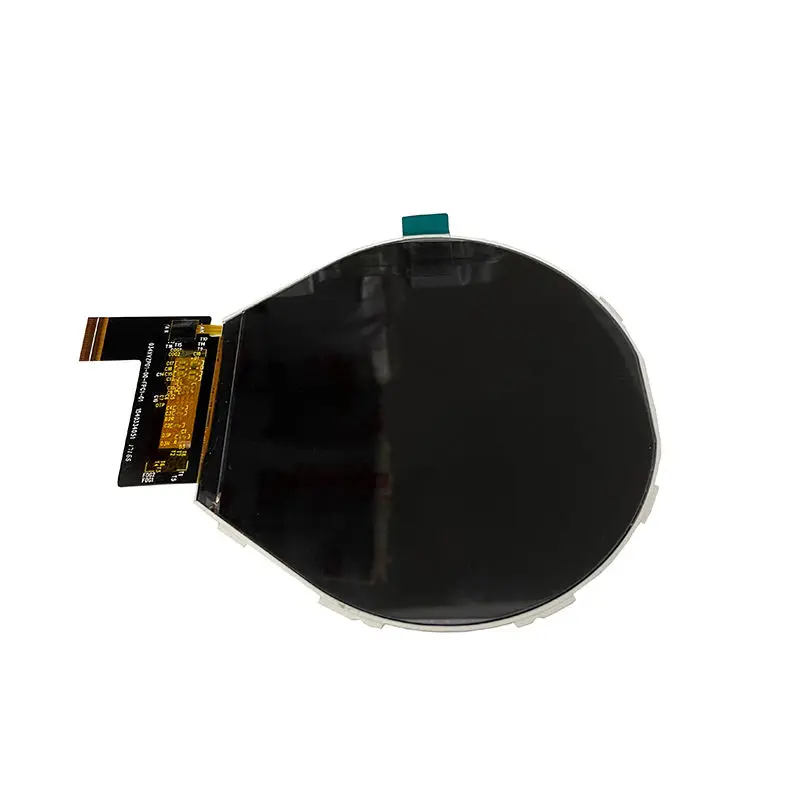

Product Overview of the 3.4 Inch MIPI Circular TFT LCD

The 3.4 Inch MIPI Circular TFT LCD is designed for compact devices that need a round display shape, touch interaction, and high-resolution graphics in a small mechanical footprint. The Alibaba source identifies the product as a 3.4-inch round screen with 800×800 IPS / MIPI LCD TFT module and CTP, while the key attributes and detailed specification confirm MIPI 3-lane interface, active area, driver ICs, pixel configuration, and CTP details.

For product teams, the round format is the main design advantage. It can support smartwatch-style interfaces, circular industrial meters, compact automotive display points, handheld instruments, portable controllers, and smart device panels where a rectangular screen does not match the product ID. The 800×800 resolution is especially relevant because the pixel canvas can be used for dial-style graphics, circular buttons, radial progress indicators, and compact menu systems.

From an engineering perspective, this module is more than a decorative display. The source specification lists 3.4 inch size, 800(RGB) × 800 resolution, a-Si technology, R.G.B. vertical stripe, 109.5 × 109.5 μm pixel pitch, SFT display mode, HC surface treatment, FREE viewing direction, FPC connection, 8 LEDs, CTP surface hardness above 7H, ILI9881C LCD driver IC, and HX8526-E30 CTP driver IC.

Key Features of the 3.4 Inch MIPI Circular TFT LCD

Technical Specifications of the 3.4 Inch Round MIPI TFT Display

These specifications directly affect system selection. The 800×800 resolution affects UI density, the MIPI 3-lane interface affects host-controller matching, the CTP structure affects touch and cover design, and the compact module thickness affects enclosure planning. The active area and module outline should be checked against the customer’s circular window drawing before sample approval.

Why Choose This 3.4 Inch Round TFT LCD Module?

This 3.4 inch round TFT LCD module is valuable when the product’s user interface needs to be compact, touch-enabled, and visually distinctive. Compared with a standard rectangular display, the circular form factor can better match watch faces, instrument dials, compact controllers, and product designs that rely on centered circular graphics.

800×800 Round Display Layout for Wearable and Instrument UI

The 800(RGB) × 800 pixel structure allows designers to build UI assets that stay balanced inside a circular display window. This is useful for smart wearable home screens, gauge indicators, compact medical-device menus, industrial meter graphics, and automotive auxiliary display information.

The 87.6 × 87.6 mm active area gives mechanical teams a clear reference for window design. The display can show icons, user prompts, system status, mode selection, and data feedback without requiring a larger panel footprint.

MIPI 3-Lane Interface and CTP Structure for Compact Electronics

The MIPI 3-lane interface is a strong fit for compact embedded electronics that need efficient image transmission. It should be reviewed with the selected processor, display timing, connector plan, and software resources before final design freeze.

The integrated CTP structure supports interactive operation. For wearable and handheld projects, touch input can reduce button count and create a cleaner product interface. Engineering teams should still confirm touch firmware, cover design, CTP interface details, and final front-lens stack before mass production.

Display Performance of the Circular TFT LCD Module for Compact Devices

The circular TFT LCD module supports clear visual output through its 800×800 resolution, 16.7M color depth, R.G.B. vertical stripe pixel configuration, and SFT display mode. These parameters make it suitable for UI-rich compact products where both shape and clarity matter.

16.7M Color Output for Modern Circular Interfaces

The 16.7M color depth helps the module support modern-looking UI graphics. For wearable products, this can include activity icons, notification symbols, status rings, colorful menus, and application screens. For industrial devices, it can support color-coded states, warnings, measurement labels, and operating modes.

The R.G.B. vertical stripe arrangement is also important for UI rendering. It gives designers a predictable pixel structure for text, symbols, and compact graphics.

FREE Viewing Direction and HC Surface Treatment

The detailed source table lists viewing direction as FREE and surface treatment as HC. FREE viewing direction supports more flexible viewing positions, while HC surface treatment and professional tempered-glass wording in the supplier content support scratch-resistance positioning for practical device use. The CTP surface hardness is listed as above 7H.

For final design, teams should confirm whether an additional cover lens, coating, bonding process, or anti-glare requirement is needed. These choices can change brightness, reflectance, stack thickness, touch response, and mechanical tolerances.

Compact Display Conditions for Wearable and Industrial Equipment

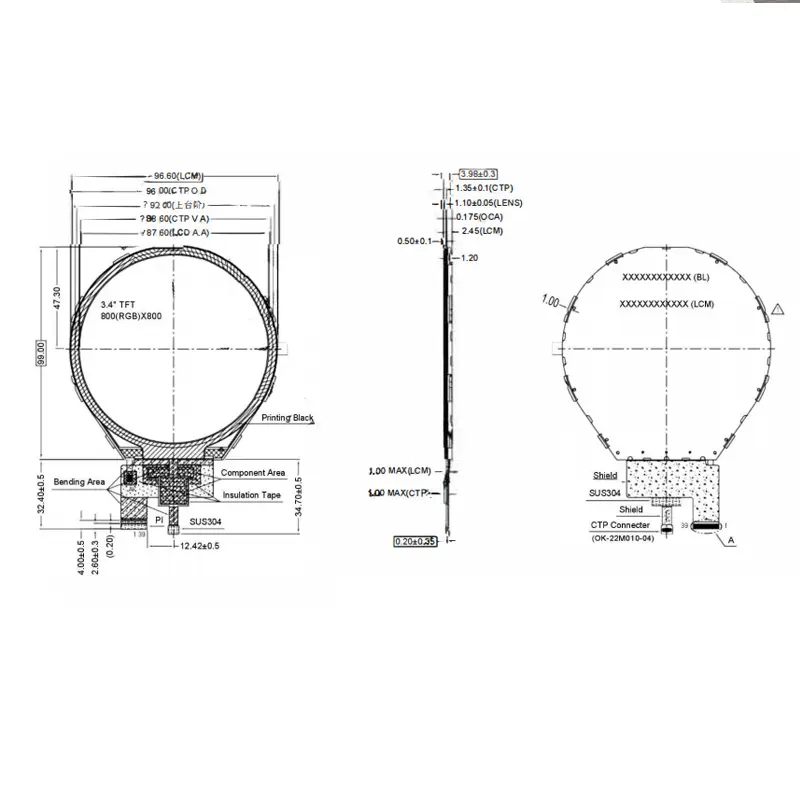

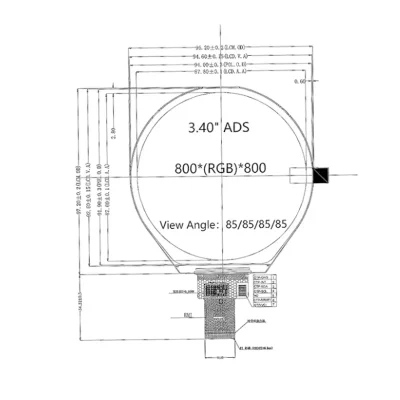

Compact circular displays must be evaluated as a full stack: display module, touch panel, FPC, housing, front window, adhesive, cable bend, and host PCB. The source drawing and table identify FPC connection, CTP connector context, active area, module outline, and mechanical notes, which should be used for early mechanical review.

Integration and Mounting Options for MIPI 3-Lane Circular TFT Projects

MIPI 3-lane circular TFT projects should be validated through interface matching, touch-driver planning, FPC routing, enclosure design, and sample testing. A round display is more sensitive to alignment than many rectangular modules because any offset can be visually obvious.

MIPI 3-Lane Interface and Host Controller Matching

The display uses MIPI 3 lane, so the host platform must support the required display interface, timing, lane configuration, and driver resources. Engineers should confirm the LCD driver IC, display initialization sequence, voltage rails, FPC pin definition, and software compatibility before board layout.

MIPI integration should also consider EMI behavior, signal integrity, connector retention, and cable length. These points are especially relevant for compact wearable devices and industrial handheld equipment where PCB space is limited.

CTP Driver and Touch Stack Planning

The touch system uses HX8526-E30 as the CTP driver IC, while the LCD driver IC is ILI9881C. This separation helps engineers evaluate display and touch behavior independently. Touch integration should include firmware support, coordinate mapping, cover thickness, touch sensitivity, and environmental testing.

The module is listed as “With CTP,” so it is suitable for applications that require direct user interaction. However, buyers should confirm whether their project needs custom cover glass, customized graphic printing, or special FPC routing.

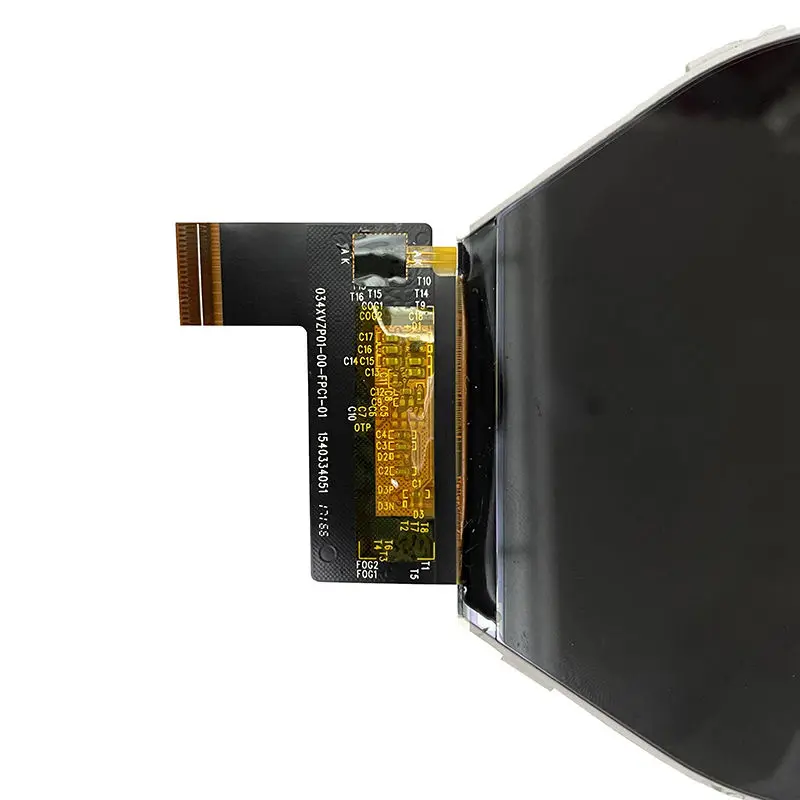

FPC, Mechanical Window, and Circular Housing Review

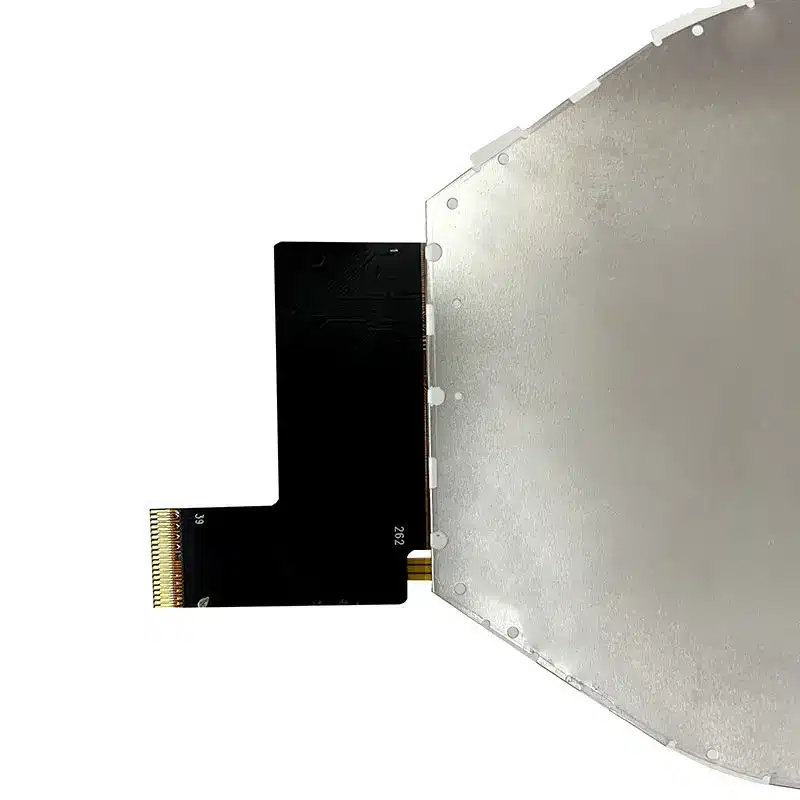

The module size with CTP is 99.0 × 96.6 × 3.98 mm, while the active area is 87.6 × 87.6 mm. These values should drive the round window, gasket, cover lens, and housing design. The matching connection type is listed as FPC, so cable route and bend area need early review.

For compact instruments and wearables, the FPC exit, component area, insulation tape, shield, and connector access must be validated with the real enclosure. A good display choice can still fail mechanically if the round opening, FPC bend, or PCB clearance is not planned.

Recommended Applications for Smart Wearable and Industrial Circular Displays

This product is most suitable for compact systems where round UI design, touch input, and MIPI display integration are important. It should be chosen for product-fit reasons, not only because the screen is visually distinctive.

Smart Wearables with High-Resolution Circular Touch UI

Smart watches, fitness trackers, wearable controllers, and portable consumer electronics can use this 3.4 inch circular display for app-style interfaces, activity indicators, alerts, menus, and touch-based navigation. The circular shape supports a familiar wearable design language, while 800×800 resolution provides enough room for detailed graphics.

Industrial Meters and Handheld Test Instruments

Compact industrial meters, handheld test tools, IoT edge panels, and small control devices can use the round TFT as a status and command interface. The MIPI interface, CTP input, FPC structure, and compact outline are relevant for equipment where front-panel area is limited.

Automotive Auxiliary Displays and Compact Device Panels

Automotive auxiliary screens and compact device panels can benefit from a circular UI that resembles gauges and status indicators. The product should be validated for operating environment, touch response, cable retention, mechanical mounting, and thermal behavior before automotive or equipment deployment.

Customization Options for 3.4 Inch Circular TFT Projects

Customization can be evaluated for graphic customization, customized packaging, customized logo, drawing-based development, sample-based development, and full customization. The supplier content also references customized LCD size and resolution, customized interface and pin definition, and customized FPC shape and material.

For project evaluation, buyers may request changes to FPC length, connector direction, cover lens, graphics, interface pin definition, touch stack, mechanical outline, and packaging. These should be confirmed as custom project requirements, not assumed as default configuration.

Procurement teams should submit the target product drawing, UI orientation, host platform, MIPI interface plan, touch requirement, target quantity, and application environment. This reduces the risk of selecting a round display that is optically suitable but mechanically difficult to install.

Procurement and Engineering Checklist for 3.4 Inch Circular TFT Selection

• Confirm display format: verify that the 3.4 inch circular shape fits the product ID and enclosure concept.
• Confirm resolution: test 800×800 UI graphics, fonts, icons, and circular menu layouts.
• Confirm interface: validate MIPI 3-lane compatibility with the host processor and software stack.
• Confirm touch: review CTP driver, coordinate mapping, cover lens thickness, and touch sensitivity.
• Confirm mechanics: check 99.0 × 96.6 × 3.98 mm module size and 87.6 × 87.6 mm active area against the housing.
• Confirm FPC route: validate connector position, bend radius, retention, and assembly access.
• Confirm surface needs: evaluate HC treatment, 7H-class touch surface hardness, and whether extra cover glass is required.
• Confirm procurement plan: verify sample quantity, customization MOQ, lead time, packaging, and bulk production schedule.

MIPI / CTP / FPC Selection Guide for Circular TFT Modules

For this 3.4 inch round module, MIPI, CTP, and FPC should be reviewed together. The MIPI lane configuration affects the host board, the CTP driver affects touch behavior, and the FPC affects enclosure routing. The sample test should use the real host board, intended UI, actual cover design, and expected mechanical assembly.
