32 Inch Commercial Display LCD Panel High Brightness for Advertising Systems

32 Inch Commercial Display High Brightness LCD Panel for Advertising Systems

This Full HD IPS panel provides a large 16:9 canvas and 1000 cd/m² typical luminance for commercial, industrial and equipment-display integration.

Product Summary

The Commercial Display LCD Panel is a 32-inch non-touch TFT-LCD module developed for equipment that needs a large Full HD image area, wide viewing performance and an LVDS connection. Its 1920 × 1080 native resolution supports advertising graphics, information layouts, process data, video content and large-format equipment interfaces.

The panel can be evaluated for outdoor high-brightness display assemblies, advertising machines, commercial displays, medical equipment displays, industrial displays and vehicle display systems. Final suitability depends on the controller, enclosure, optical cover, mounting, cooling and application-level qualification.

Key Specifications

Full HD Content Planning

1920 × 1080 Signage Canvas

The native 1920 × 1080 raster provides a familiar Full HD workspace for commercial graphics, equipment status pages, advertising media and information-display layouts.

Content should be prepared at the native resolution to preserve text edges, icon detail and image scaling. Common design elements can include:

• Promotional graphics
• Price and product information
• Equipment status indicators
• Operating instructions
• Process dashboards
• Queue or service information
• Vehicle system data
• Medical-equipment interface content
• Public-information messages

Viewing Distance and Information Hierarchy

A 32-inch screen is often read from farther away than a compact HMI. Text size, contrast and information hierarchy should therefore be validated at the actual installation distance.

Primary information should remain visually dominant. Secondary labels, disclaimers and detailed operating data should not compete with the main message. Enclosure openings and decorative borders must also be considered so that critical content does not sit too close to the visible edge.

1000 cd/m² IPS Optical Performance

Panel Luminance and Ambient Light

The panel provides 1000 cd/m² typical luminance.

A 1000 cd/m² panel does not by itself establish finished-system sunlight readability behind cover glass.

Final visibility depends on:

• Cover-glass transmission
• Ambient reflections
• Air gap or bonding layer
• Decorative printing
• Anti-glare or anti-reflective treatment
• Installation angle
• Enclosure shadowing
• Backlight control
• Ambient-light direction
• Operating temperature
• Thermal design

The completed assembly should be evaluated under the target installation lighting rather than relying only on the panel luminance value.

Wide-Angle Public Viewing

The IPS panel is identified as a full-view design with a listed 80/80/80/80 viewing-angle sequence. This is useful where users, customers or operators may view the screen from different positions.

The supplied information does not establish the directional order of the four values, so the sequence should remain unassigned until the approved technical specification confirms left, right, upper and lower ordering.

Commercial Display LCD Panel Integration

51-Pin LVDS Host Qualification

The panel uses a 51-pin LVDS interface.

A 51-pin LVDS connector does not guarantee channel mapping, bit width, timing, voltage or pin compatibility with another panel.

Before controller or cable release, confirm:

• Native 1920 × 1080 timing
• LVDS channel count
• Bit mapping
• Clock arrangement
• Complete 51-pin assignment
• Panel supply voltage
• Logic levels
• Enable and control signals
• Backlight power
• Dimming method
• Connector orientation
• Cable length
• Grounding and shielding
• Electromagnetic-noise requirements

Controller and Cable Matching

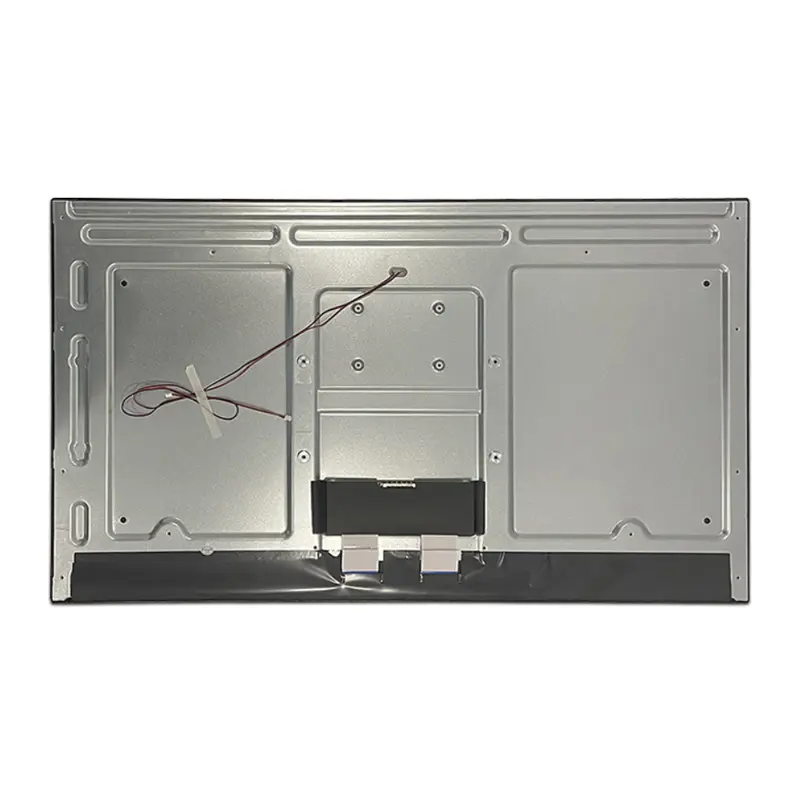

The standard product is an open LCD panel rather than a finished monitor. A compatible controller board, LVDS cable, power architecture and backlight-control solution must be selected separately unless they are explicitly included in the ordered project configuration.

An HDMI, DVI, VGA, USB or network source cannot be assumed to connect directly to the panel. Such sources normally require an appropriate controller or conversion board qualified for the native panel timing and electrical definition.

Mechanical and Thermal Design

The exact module outline is 725.2 × 422.7 × 21.3 mm. The active image area is 698.4 × 392.85 mm.

Mechanical review should cover:

• Front opening
• Active-area alignment
• Bezel overlap
• Mounting-point positions
• Rear clearance
• Connector access
• LVDS cable path
• Backlight-cable path
• Housing stiffness
• Panel support
• Tolerance accumulation
• Service access
• Protective-cover clearance
• Ventilation and heat removal

The operating range is −20°C to +70°C, with storage from −30°C to +80°C. These panel limits do not automatically qualify the complete product. The controller, power supply, adhesives, protective cover, enclosure and cooling system require separate environmental verification.

Application Scenarios

Outdoor High-Brightness Display Assemblies

The 1000 cd/m² panel can be considered for sheltered or system-engineered high-brightness displays. Outdoor use requires evaluation of the complete optical stack, enclosure protection, cooling and ambient-light conditions.

Advertising Machines

The 32-inch Full HD canvas can support promotional content, retail graphics, menus, product information and public notices. Controller-board and media-input requirements should be defined before hardware release.

Commercial Displays

Commercial installations can include retail information displays, reception screens, building information panels and other fixed display equipment where a large non-touch panel is required.

Medical Equipment Displays

The panel may be considered as a display component in medical-equipment systems. This application description does not establish diagnostic-display performance or medical certification. Regulated products require system-level safety, usability, optical and regulatory qualification.

Industrial Displays

Industrial applications can include process-monitoring displays, equipment dashboards, machine-information panels and operator-viewing screens. Environmental, electrical and mounting requirements must be confirmed for the final installation.

Vehicle Displays

The panel may be evaluated for large vehicle-display systems or transport-equipment interfaces. Vehicle use does not establish automotive qualification, vibration grade, EMC compliance or road-vehicle certification.

Customization Boundaries

Project review can include:

• LVDS cable and controller matching
• Complete 51-pin definition
• Brightness target
• Backlight-control review
• Cover glass
• Anti-glare or anti-reflective treatment
• Optical bonding
• Touch-overlay development
• Enclosure adaptation
• Mounting design
• Thermal planning
• Branding
• Packaging
• Sample validation

Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability and the requested specification. Samples and standard-module quantities are confirmed separately.

Procurement Checklist

Submit:

• Host or controller-board model
• Native 1920 × 1080 timing
• LVDS channel count
• LVDS bit width and mapping
• Complete 51-pin definition
• Panel input voltage
• Backlight voltage and current
• Dimming requirement
• Cable length and orientation
• Connector drawing
• Enclosure drawing
• Front opening
• Mounting method
• Cover-glass specification
• Bonding requirement
• Target finished-front luminance
• Installation lighting
• Operating environment
• Temperature requirements
• Touch requirement
• Media input or controller requirement
• Sample quantity
• Annual demand
• Production schedule
