4.3 Inch Daylight HMI Touch Panel for Embedded Controllers

480×272 IPS TFT LCD with RGB 40-Pin Interface, GT911 I2C Touch, and 500–1000 cd/m² Brightness

A 4.3 Inch Daylight HMI Touch Panel is a compact 480×272 IPS TFT LCD module for embedded controllers and outdoor-facing interface panels that need higher brightness, wide viewing, and projected capacitive touch. It combines 500 cd/m² standard luminance with an up-to-1000 cd/m² option, 24-bit RGB 40-pin input, ST7282 display driver, GT911 I2C touch controller, G+G 5-point PCAP structure, and -20°C to +70°C operation for industrial and smart-device integration.

At a Glance: 4.3-Inch High-Brightness IPS PCAP Highlights

• 4.3-inch 480×272 format supports compact HMI menus, status screens, pump-control interfaces, and equipment panels.
• 500 cd/m² standard luminance with up-to-1000 cd/m² brightness supports high-ambient-light applications.
• IPS normally black transmissive TFT provides 80/80/80/80 viewing for shared or angled interface viewing.
• 24-bit RGB interface with FPC 40 pins gives controller-board teams a defined embedded display path.
• GT911 I2C projected capacitive touch supports 5-point touch for modern tap and gesture-style operation.
• G+G touch structure, ≥85% transparency, and ≥6H hardness support durable front-panel interaction.
• 105.5 × 67.1 × 4.48 mm LCM+touch size helps enclosure teams plan stack height and front-window fit.

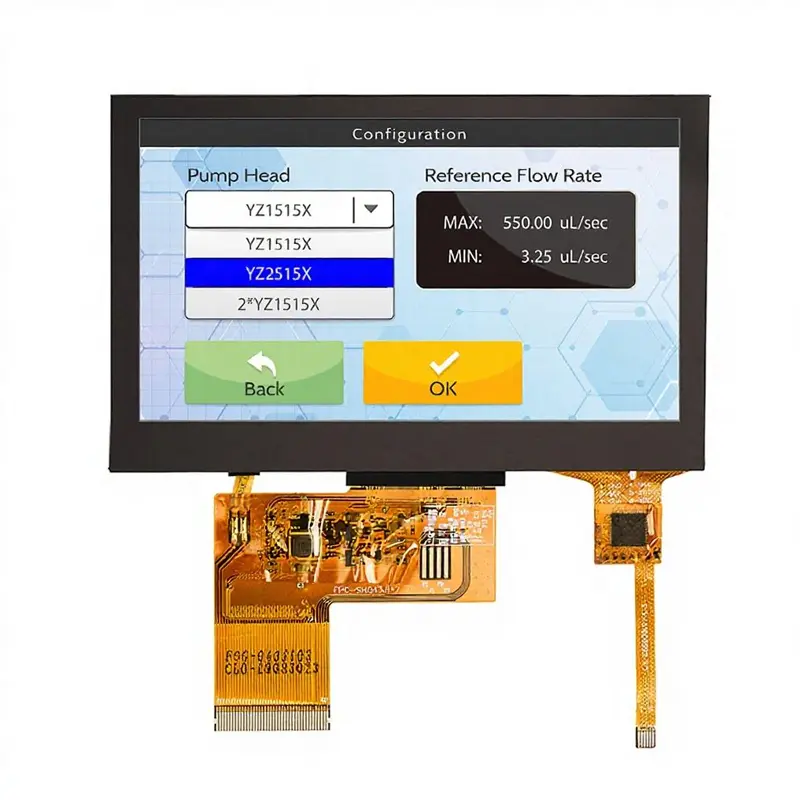

Product Overview of the 4.3 Inch Daylight HMI Touch Panel

The 4.3 Inch Daylight HMI Touch Panel is designed for compact equipment that needs a bright touch interface without moving to a larger display assembly. Its 480×272 resolution is suitable for menu screens, operating prompts, numeric input, compact dashboards, and status visualization in embedded devices.

The main value is the combination of daylight-oriented brightness and IPS viewing. Many compact TFT modules are designed only for controlled indoor environments. This module provides 500 cd/m² standard luminance and an up-to-1000 cd/m² brightness option, making it more practical for outdoor-facing equipment, bright workshops, vehicle-adjacent panels, and industrial terminals where ambient light can reduce readability.

Its projected capacitive touch structure also supports a more modern user interface than button-only or resistive designs. With GT911 touch IC, I2C touch interface, and 5 touch points, the module can support tap, slide, and simple gesture-style operation. Final touch behavior should still be validated with the chosen cover lens, grounding, bonding, and enclosure design.

Key Features of the 4.3 Inch Daylight HMI Touch Panel

Technical Specifications of the 480×272 IPS RGB Touch LCD

These confirmed values define the main integration checks: RGB timing, ST7282 initialization, 40-pin FPC pinout, GT911 I2C touch routing, 500–1000 cd/m² brightness selection, backlight drive, cover-lens stack, and enclosure fit. Unknown values are excluded from the public specification table.

Why Choose a Daylight HMI Touch Panel for Compact Equipment?

A daylight HMI touch panel is useful when a compact product must stay readable in brighter spaces while still offering direct touch control. This module is not positioned as a complete outdoor-rated finished display; it is a component-level TFT LCD and touch panel that should be integrated into a validated enclosure.

500–1000 cd/m² Brightness for High Ambient Light

The adjustable brightness range is the most important selection factor. A 500 cd/m² version can fit standard indoor HMI panels, while a higher-brightness option may be useful for outdoor-facing kiosks, vehicle-adjacent devices, payment terminals, or industrial controllers near strong lighting. Final readability should be tested with the actual cover lens, UI colors, viewing angle, and ambient light.

IPS 80/80/80/80 Viewing for Shared Interfaces

The IPS normally black transmissive TFT structure supports 80/80/80/80 viewing. This is valuable when the display is mounted above, below, or beside the user’s direct eye line. Industrial control panels, medical instruments, and smart terminals often need multiple users to see status information from different positions.

480×272 Layout for Practical HMI Screens

The 480×272 layout is suitable for compact interfaces where users need clear buttons, status cards, prompts, and configuration menus. It is especially practical for small HMI systems where a high-resolution portrait module would increase cost, processing load, or enclosure complexity.

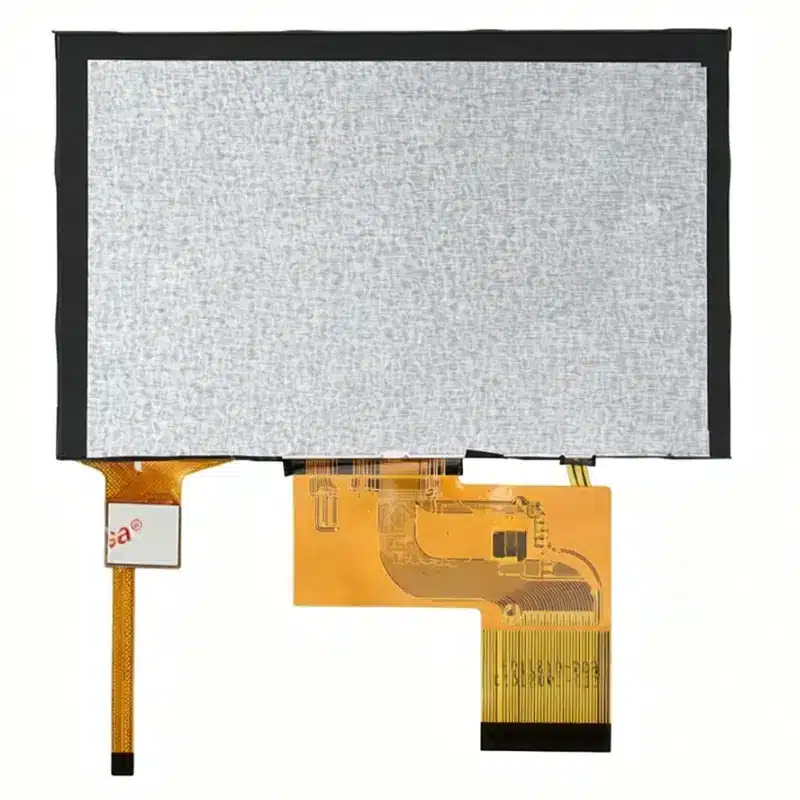

RGB 40-Pin, GT911 Touch, and Mechanical Integration

This module should be treated as a display-plus-touch component. The LCD interface and touch interface are separate, so both paths must be reviewed before PCB layout is locked.

24-Bit RGB and ST7282 Controller Matching

Before design-in, engineers should confirm RGB timing, pixel clock, sync signals, voltage levels, data order, 40-pin FPC pin assignment, and connector orientation. The ST7282 driver also requires firmware bring-up review, including initialization, display test patterns, and reset sequence.

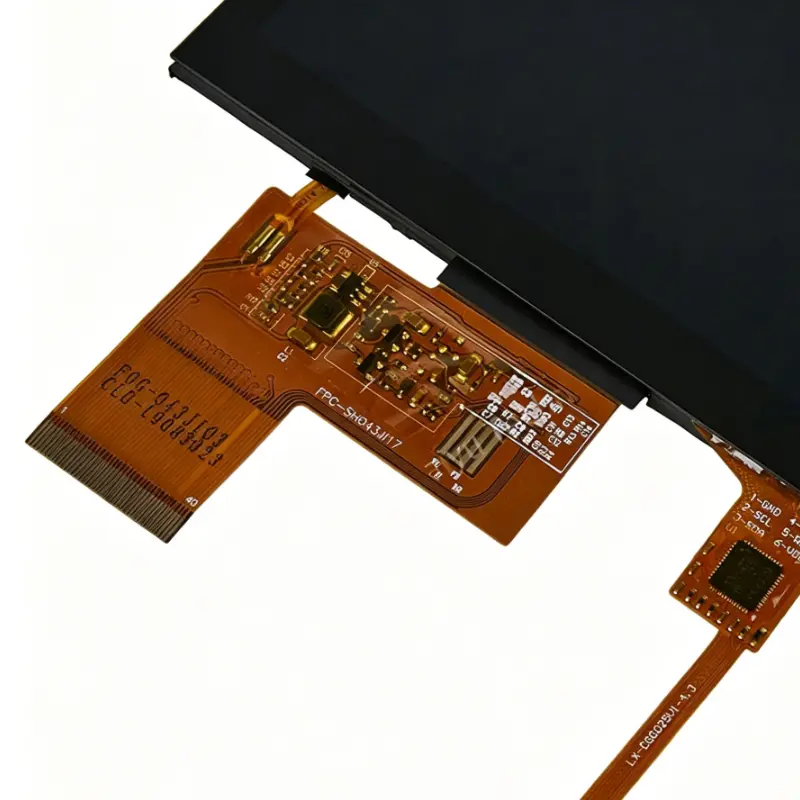

GT911 I2C Capacitive Touch Routing

The projected capacitive touch panel uses GT911 and I2C. Controller-board teams should confirm SDA, SCL, interrupt, reset, VDD, grounding, shielding, and firmware support. Sample testing should include edge accuracy, tap response, gesture behavior, and touch performance after the module is installed behind the final cover lens.

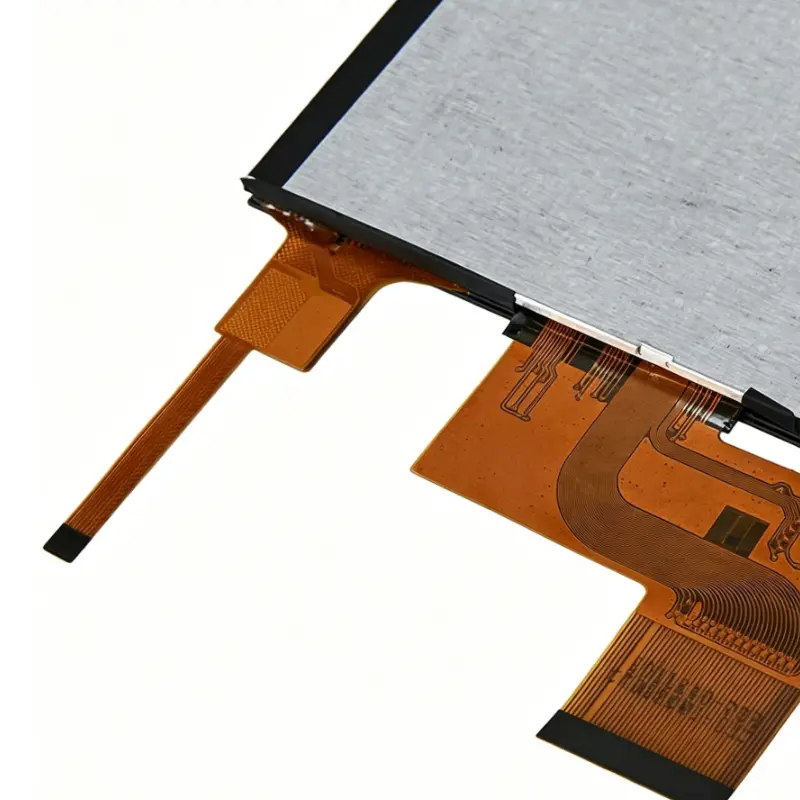

LCM+Touch Stack and Backlight Review

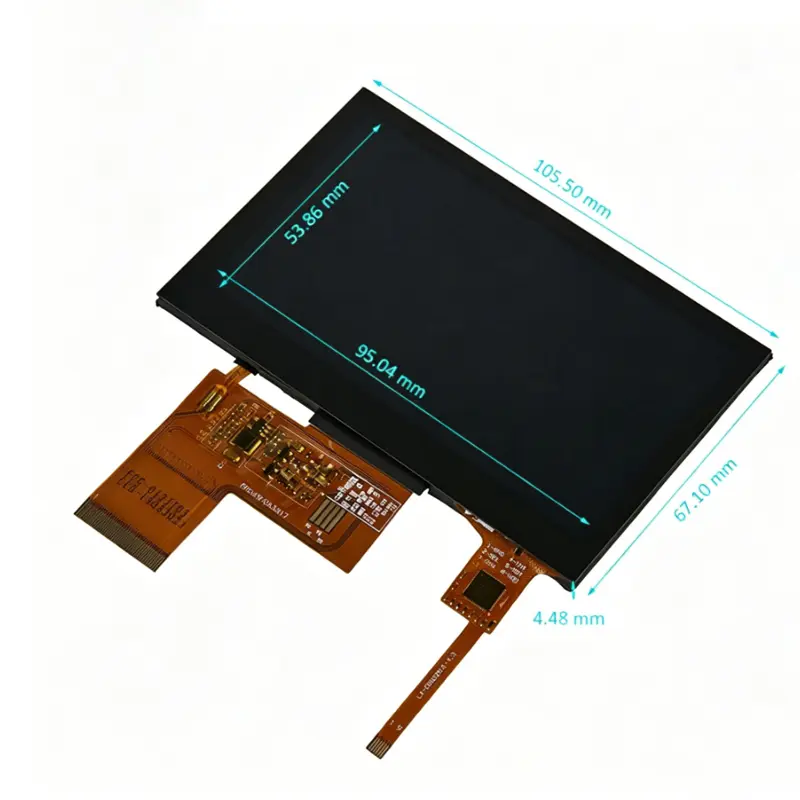

The confirmed LCM+touch module size is 105.5 × 67.1 × 4.48 mm, while the touch outline is 105.30 × 67.00 × 1.58 mm. Mechanical engineers should check active area, touch view area, cover glass, adhesive frame, FPC bend radius, internal clearance, and front opening. The 10-chip WLED backlight lists 15V / 40mA, so power and dimming design should be reviewed during sample validation.

Recommended Applications for Bright Embedded Interfaces

The module is suitable for compact products where touch operation, daylight-oriented readability, and wide viewing are required.

Industrial Control Panels and Equipment HMIs

Industrial devices can use this panel for configuration pages, pump-control screens, status menus, and alarm prompts. The IPS viewing angle and brightness range help improve usability in workshops and control cabinets.

Medical and Diagnostic Device Interfaces

Portable medical and diagnostic equipment can use the panel for measurement data, touch buttons, setup menus, and operating prompts. The final system should validate cover material, cleaning requirements, touch response, and readability under real usage conditions.

Smart Home, POS, and Terminal Displays

Smart home panels, POS terminals, access devices, and compact smart terminals can use the module for touch-driven menus and status output. The GT911 I2C touch interface supports responsive interaction, while RGB 40-pin input supports embedded display-control architectures.

Outdoor-Facing Compact Equipment

For outdoor-facing devices, the brightness option up to 1000 cd/m² is useful, but the finished system must still validate cover glass reflection, heat, sealing, UV exposure, and enclosure protection. The LCD module itself should not be treated as a finished waterproof product.

Customization Options for 4.3-Inch Daylight HMI Projects

Project evaluation can include FPC and interface design, RGB timing review, GT911 I2C touch tuning, brightness and backlight selection from 500 to 1000 cd/m², PCAP touch stack, cover lens, bonding, mechanical drawing adaptation, packaging, sample validation, and controller-board support. Any waterproofing, certification, optical bonding, or special surface treatment should be confirmed at finished-system level.

Procurement and Engineering Checklist for 4.3-Inch IPS Touch Panel Selection

• Confirm the 480×272 HMI layout, button size, icon spacing, and viewing distance.
• Check RGB 24-bit host support, 40-pin FPC pinout, connector direction, and timing.
• Validate ST7282 initialization, reset sequence, and display test procedure.
• Confirm GT911 I2C routing, interrupt/reset pins, grounding, and touch firmware.
• Review active area, LCM+touch size, touch outline, cover lens, and adhesive frame.
• Select 500 cd/m² or up-to-1000 cd/m² brightness based on real ambient light.
• Confirm 10-chip WLED backlight drive, 15V / 40mA requirement, and dimming plan.
• Test samples under the required operating temperature and enclosure conditions.
