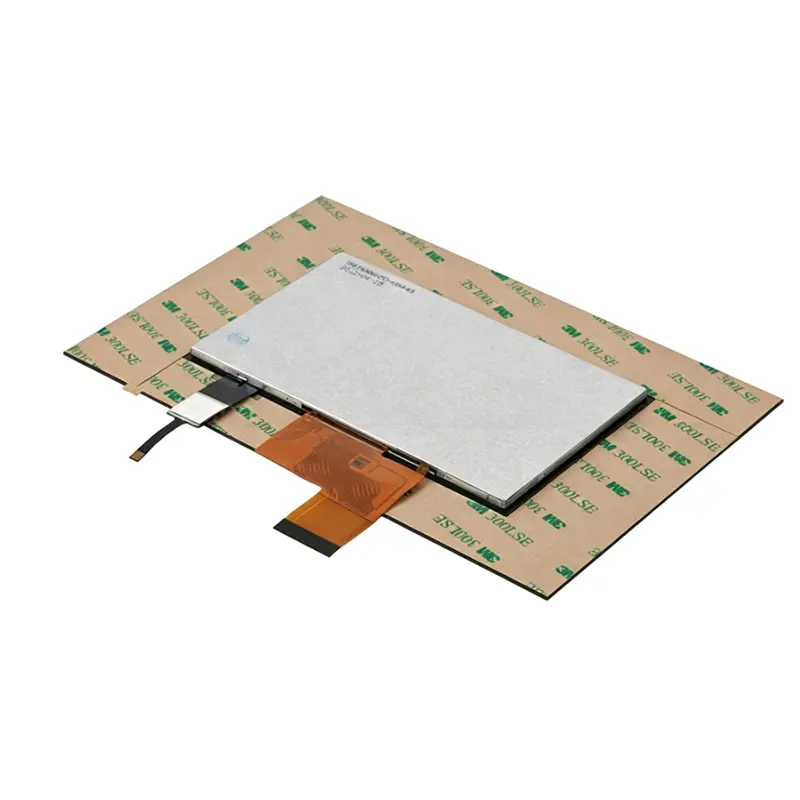

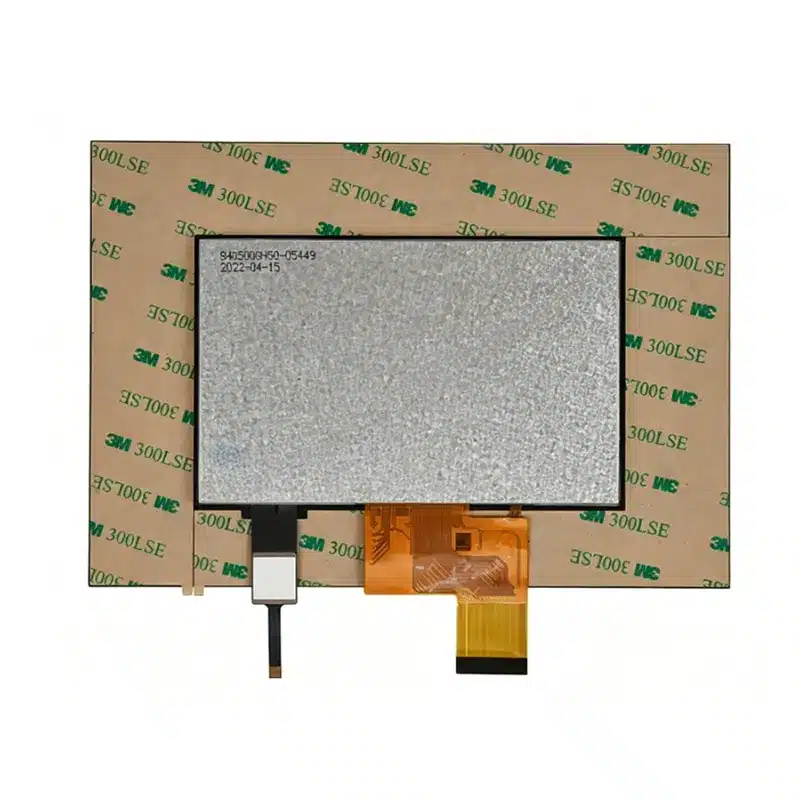

5 Inch RGB HMI TFT Module With PCAP Capacitive Touch Display

800×480 IPS TFT LCD with RGB 40-Pin FPC, ST7262 Driver, and GT911 I2C Touch

A 5 Inch RGB HMI TFT Module is an 800×480 IPS TFT LCD touch module for embedded controllers, industrial HMI panels, and compact commercial equipment that need stable RGB display input and projected capacitive touch. It combines 500 cd/m² luminance, 800:1 contrast, RGB 40-pin FPC, ST7262 display driver, GT911 I2C touch controller, G+G 5-point PCAP, air bonding, and -20°C to +70°C operation for compact interface design.

At a Glance: 800×480 RGB HMI Touch Module Highlights

• 5.0-inch 800×480 resolution supports compact HMI pages, control screens, and equipment menus.
• IPS normally black transmissive TFT improves multi-angle readability with 80/80/80/80 viewing.
• 800:1 typical contrast helps text, icons, and status graphics appear clearer on small interfaces.
• RGB 40-pin FPC gives controller-board teams a direct embedded display interface.
• ST7262 TFT driver provides a defined display bring-up target for firmware review.
• GT911 I2C projected capacitive touch supports 5 touch points for modern UI operation.
• G+G touch structure, ≥86% transparency, ≥6H surface hardness, and air bonding support durable interface integration.

Product Overview of the 5 Inch RGB HMI TFT Module

The 5 Inch RGB HMI TFT Module is designed for compact products that require a wider interface area than 4.3-inch modules but do not need the mechanical size of a 7-inch display. Its 800×480 format is practical for industrial menus, parameter settings, status cards, control buttons, simple charts, and compact graphical user interfaces.

The product’s key value is its balance of display clarity and integration simplicity. The IPS TFT structure provides stable viewing from different operator positions, while the RGB 40-pin FPC interface gives engineers a familiar display path for embedded controller platforms. For many HMI and smart-device projects, this is easier to integrate than a larger video-interface display assembly.

The touch stack also supports modern operation. With GT911 I2C touch control, G+G projected capacitive structure, 5 touch points, ≥86% transparency, and ≥6H hardness, the module fits tap-based menus, slider controls, basic gestures, and compact equipment interfaces. Final touch performance should be validated with the selected cover lens, grounding, bonding, and enclosure.

Key Features of the 5 Inch RGB HMI TFT Module

Technical Specifications of the 800×480 IPS RGB Touch LCD

These confirmed values define the main engineering checks: 800×480 UI scaling, RGB timing, 40-pin FPC pinout, ST7262 initialization, GT911 I2C routing, backlight power, touch stack, cover lens, and enclosure fit. Unknown values are not included in the public table.

Why Choose an RGB HMI TFT Module for Embedded Controllers?

An RGB HMI TFT module is useful when a product needs a compact color interface but does not require HDMI, MIPI, or LVDS architecture. The display can be integrated directly into controller-based equipment where the system board provides RGB display signals.

800×480 Layout for Compact HMI Pages

The 800×480 layout supports more detailed control pages than many smaller low-resolution displays. It can show multiple buttons, menu rows, system status, numeric values, and operating prompts without forcing the UI into a crowded layout. This is useful for smart devices, POS terminals, industrial panels, and compact equipment interfaces.

ST7262 and RGB 40-Pin Integration

The ST7262 driver and RGB 40-pin FPC interface should be reviewed together during hardware design. Engineers should confirm RGB timing, clock, sync signals, data order, voltage levels, reset control, and FPC orientation before PCB release. A clear pinout and initialization plan can reduce bring-up risk.

GT911 I2C PCAP Touch Control

The projected capacitive touch path uses GT911 with I2C communication. System designers should confirm SDA, SCL, reset, interrupt, VDD, grounding, and firmware support. Sample validation should include edge touch, button accuracy, gesture behavior, and touch stability after the module is installed into the final enclosure.

Display Performance for Industrial and Commercial Interfaces

The module is positioned for stable visual output in compact HMI systems. Its IPS viewing, contrast, and brightness support readable interface design when the product is mounted on a panel, terminal, or handheld device.

800:1 Contrast for Clear UI Elements

An 800:1 contrast ratio helps separate text, icons, progress bars, and warning prompts from the background. This matters in equipment interfaces where users need to read status quickly and avoid input errors.

500 cd/m² Brightness for Equipment Panels

The confirmed luminance is 500 cd/m² typical. This can support indoor commercial equipment, control panels, and bright workshop environments. For outdoor-facing use, final readability should be tested with the cover lens, UI colors, viewing angle, and ambient lighting.

80/80/80/80 IPS Viewing

The IPS viewing specification supports better readability when operators view the screen from above, below, or the side. This is valuable for shared terminals, mounted control panels, and compact devices used from changing angles.

Recommended Applications for RGB HMI Touch Interfaces

This module is suitable for compact products requiring color graphics, touch input, and embedded controller integration.

Industrial Control Panels

Industrial HMI panels can use the screen for parameter settings, alerts, equipment status, and manual control pages. The RGB interface and operating temperature range support embedded control environments.

POS, Kiosk, and Commercial Terminals

POS terminals, small kiosks, and commercial equipment can use the 5-inch format for touch buttons, transaction prompts, and status screens. The PCAP touch layer supports a more modern user experience than keypad-only operation.

Smart Devices and Embedded Systems

Smart home controllers, IoT devices, access terminals, and handheld modules can use the display for menus, icons, setup screens, and device feedback. The 5-inch size gives enough interface area while keeping the product compact.

Medical and Instrument Interfaces

Portable instruments and medical-device interfaces can use the display for values, prompts, and operating menus. Final system design should validate cleaning method, cover material, touch behavior, and readability under actual use conditions.

Customization Options for 5-Inch RGB HMI Projects

Project evaluation can include FPC customization, RGB timing review, ST7262 bring-up support, GT911 I2C touch tuning, backlight and brightness adjustment, PCAP stack review, cover lens, air or optical bonding review, mechanical drawing adaptation, packaging, sample validation, and controller-board support. Any waterproofing, certification, optical bonding, or special cover treatment must be confirmed at finished-system level.

Procurement and Engineering Checklist for 5-Inch TFT Module Selection

• Confirm the 800×480 UI layout, font size, icon spacing, and touch-button area.
• Check RGB 40-pin host support, timing, voltage levels, and FPC direction.
• Validate ST7262 initialization, reset sequence, and display test procedure.
• Confirm GT911 I2C touch routing, interrupt/reset pins, grounding, and firmware.
• Review active area, cover lens, adhesive frame, air bonding, and drawing fit.
• Confirm 12-white-LED backlight drive at 18.6V / 40mA and dimming plan.
• Test 500 cd/m² brightness with the final cover and lighting environment.
• Validate operating temperature, sample performance, quantity, and application requirements.
