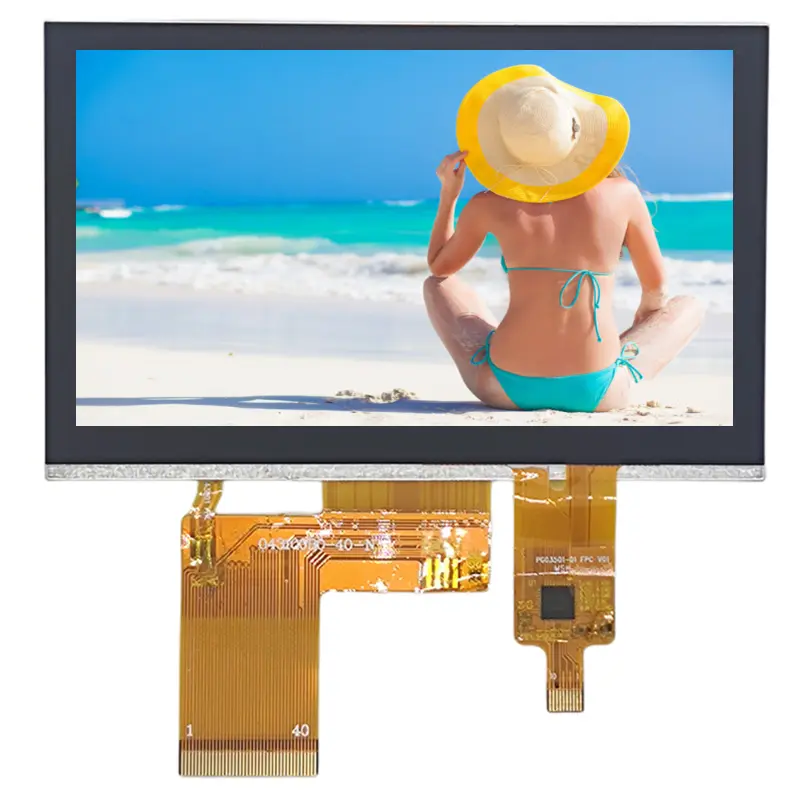

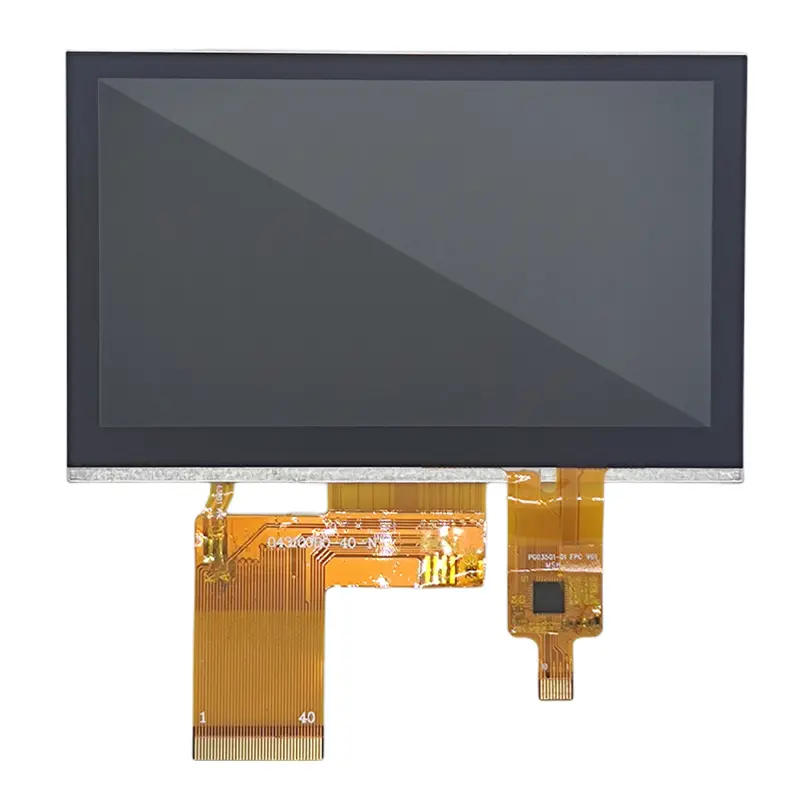

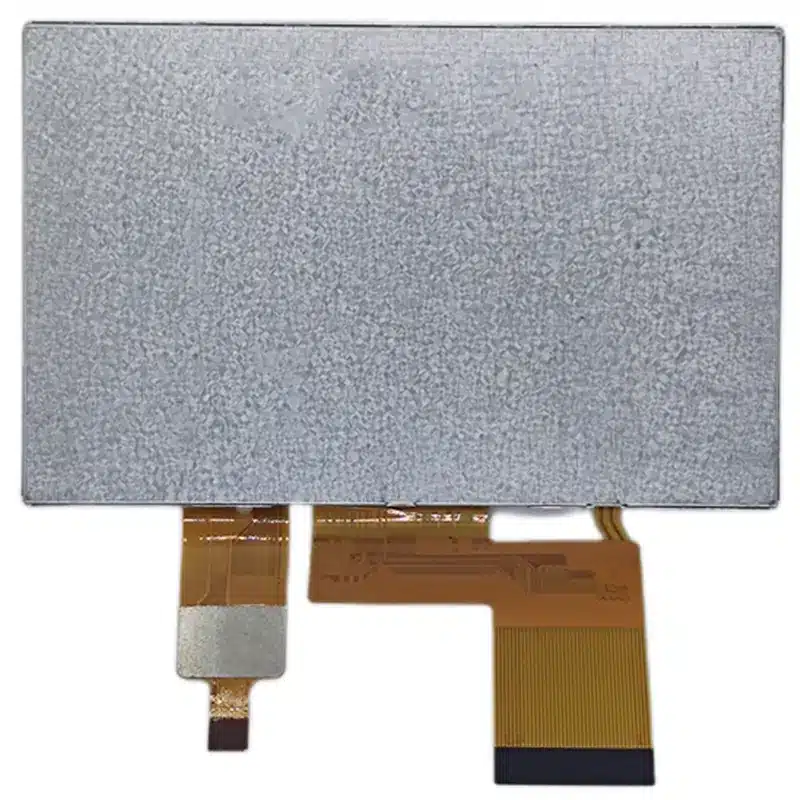

4.3 Inch Wide Temp Industrial Consumer Touchscreen Module for HMI

4.3 Inch Wide Temp Industrial Consumer Touchscreen Module for HMI

A compact 4.3-inch IPS touchscreen assembly combines 480 × 272 graphics, 600 cd/m² luminance and a 40-pin RGB/TTL display path for HMI designs.

The Wide Temp Industrial Consumer Touchscreen Module combines a compact 4.3-inch TFT format with projected capacitive touch and a wide −30°C to +85°C operating range. Its 480 × 272 raster, IPS normally-black optical mode, 600 cd/m² typical luminance and 1000:1 typical contrast make it suitable for compact user interfaces where temperature range, viewing consistency and touch input need to be evaluated together. The display side uses an RGB/TTL signal path with a 40-pin connection, while the touch-control interface requires separate qualification.

Product Summary

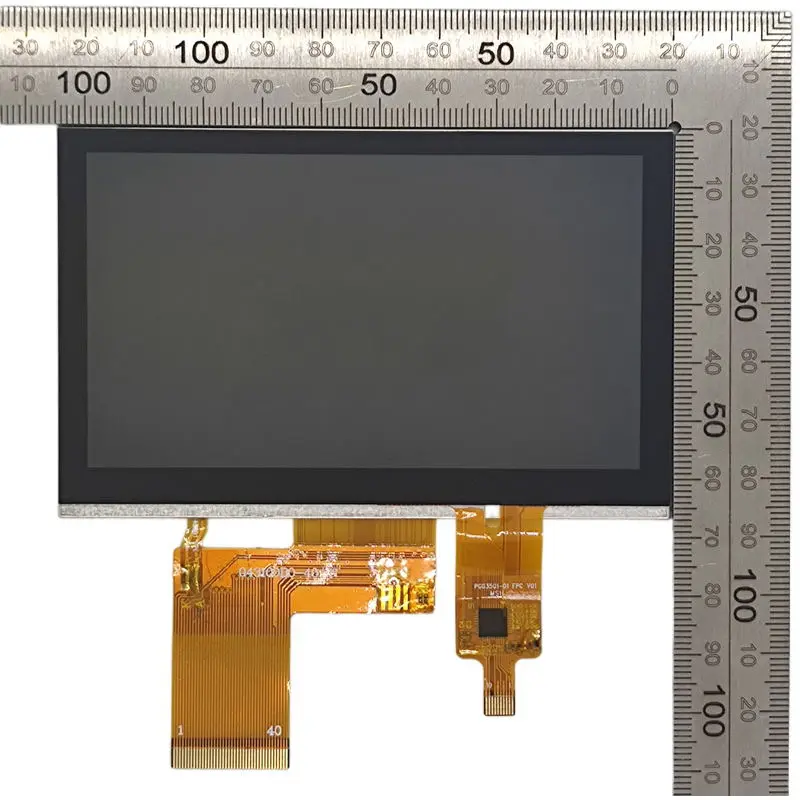

The 4.3-inch format uses a 95.04 × 53.856 mm active image area within a nominal 105.50 × 67.20 × 3.00 mm LCD-module envelope. The panel presents 16.7M colors and a 480 × RGB × 272 pixel structure in a 16:9 layout.

That resolution is appropriate for status screens, menu-based controls, machine settings and compact graphical HMIs where a high-resolution desktop-style interface is unnecessary. The 480 × 272 raster should be treated as the native UI canvas when graphics, fonts and touch targets are prepared.

Key Specifications at a Glance

600 cd/m² IPS Optical Performance

85° Typical Viewing in Four Directions

The IPS optical structure is specified with 85° typical viewing in the left, right, up and down directions, with 80° minimum values at CR ≥10. This supports interfaces that may be observed from different operator positions without relying on a narrow preferred viewing direction.

A 600 cd/m² panel is suitable for evaluating brighter indoor and high-ambient-light installations, but luminance alone does not establish finished-system sunlight readability.

Contrast, Response and Color Presentation

The 1000:1 typical contrast specification works with the normally-black transmissive mode to support text, icons, warning colors and menu graphics. The response grade is 30 ms typical and 35 ms maximum for the combined rise-and-fall measurement.

The module supports 16.7M colors. Its 95.04 × 53.856 mm active area and 480 × 272 raster correspond to an approximately 0.198 × 0.198 mm pixel pitch.

40-Pin RGB/TTL Integration

Host Timing and Pin Assignment Must Match

The display uses an RGB/TTL data-transfer path and a 40-pin signal connection. A host therefore needs the correct native timing, pixel-data mapping, synchronization/control signals, logic levels and pin assignment.

A matching 40-pin connector does not guarantee RGB/TTL timing, voltage, data mapping or pin compatibility.

The complete pinout and approved timing specification should be checked before a controller PCB or custom FPC is released.

15 V / 40 mA Backlight Boundary

The mechanical drawing identifies a 10-LED backlight arrangement with a 15 V / 40 mA electrical reference. That value belongs to the backlight circuit and should not be reinterpreted as the LCD logic-supply voltage.

Backlight-driver selection should confirm the required current regulation, enable/dimming arrangement and electrical tolerance for the approved production revision.

Integrating a Wide Temp Industrial Consumer Touchscreen Module

PCAP Touch Requires a Separate Interface Check

Projected capacitive touch is part of the confirmed configuration, but the available product data does not establish a touch-controller model, I²C/SPI/USB protocol or touch-point count.

The confirmed PCAP touch function does not establish its controller, bus protocol or touch-point count.

Before host hardware is finalized, request the touch-controller specification, touch-FPC pin definition and interface requirements. This avoids assuming that another capacitive-touch design with a similar FPC can be substituted directly.

LCD Dimensions Versus Final Touch Stack

The LCD data gives a nominal 105.50 × 67.20 × 3.00 mm module size and a 95.04 × 53.856 mm active area. These two dimensions serve different mechanical purposes: the active area determines visible content placement, while the outer envelope affects enclosure clearance.

The final combined touchscreen envelope should be locked to the approved touch assembly drawing if front-cover, adhesive, touch sensor or cover-lens dimensions affect tooling.

The 105.50 × 67.20 × 3.00 mm LCD dimensions should not automatically be treated as the finished touchscreen-envelope dimensions.

Wide Temperature Operation for HMI Design

The panel is specified for both operating and storage temperatures from −30°C to +85°C. That range makes temperature capability a meaningful selection factor for industrial controllers, compact equipment interfaces and other devices that may experience colder startup or elevated enclosure temperatures.

Wide-temperature capability is still a component-level boundary. The controller PCB, backlight driver, touch sensor, adhesives, cover stack and enclosure must also remain within their own qualified ranges.

The −30°C to +85°C LCD operating range does not establish waterproofing or an IP rating.

Current wide-temperature display guidance similarly treats display, touchscreen and bonding-material behavior as separate system considerations under thermal cycling.

Application Fit and Selection Boundaries

Industrial applications can include compact HMI panels, machine controls, factory information terminals, equipment settings interfaces and embedded monitoring devices. The IPS viewing characteristics and −30°C to +85°C temperature range are particularly relevant where operator angle and enclosure temperature vary.

For projects choosing a Wide Temp Industrial Consumer Touchscreen Module for consumer or smart-device integration, validate the final controller, touch interface, front stack, mechanical loading and environmental profile rather than treating the industrial temperature rating as proof of finished-device qualification.

Current 4.3-inch touch-display products are commonly positioned for industrial HMI, embedded controls, smart terminals and compact electronic products, supporting this general application language.

Customization and Qualification

FPC shape and pin definition, RGB timing, touch-controller selection, touch FPC, cover-lens design, bonding, optical treatment, backlight targets, enclosure adaptation, branding and packaging may be evaluated as project-specific configurations.

Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability and the requested specification. Samples and standard-module quantities are confirmed separately.

No standard claim is made for a specific touch controller, multi-touch count, Raspberry Pi compatibility, IP protection, backlight lifetime or universal controller compatibility.

Procurement Checklist

Before sample approval, confirm native 480 × 272 timing; the complete 40-pin RGB/TTL pin definition; connector pitch, contact side and FPC orientation; display logic voltage and current; touch-controller model and protocol; touch-point requirement; touch-FPC pinout; 15 V / 40 mA backlight-driver requirements; the 95.04 × 53.856 mm active area; LCD and complete touchscreen mechanical drawings; 600 cd/m² optical target; operating environment; sample quantity and annual demand.
