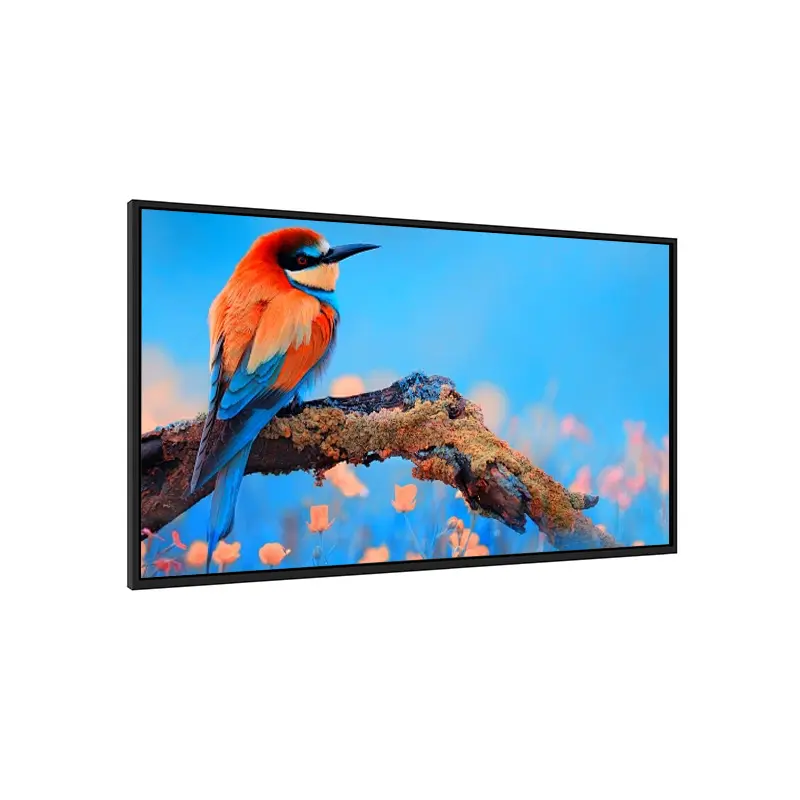

49 Inch Outdoor LCD Panel for Industrial & Commercial Signage

Full HD 49-inch panel with ultra-high brightness, wide viewing angles, and WLED backlight for long-term outdoor applications.

A 49 Inch Outdoor LCD Panel is a practical choice for projects that require stronger visibility than standard indoor commercial screens. This industrial-grade display combines Full HD resolution, a 2000 to 5000 nits brightness range, ADS optical mode, and LVDS connectivity in a size that works well for digital signage, information boards, and bright-environment commercial display systems. For integrators developing signage equipment, it offers an optimal balance of screen area, optical readability, and system-level compatibility.

Why the 49 Inch Outdoor LCD Panel Fits Digital Signage

Optical Value

The primary advantage of this 49-inch outdoor LCD panel is its visibility under high ambient light conditions. With a brightness range from 2000 to 5000 nits, it surpasses typical indoor commercial displays, making it suitable for retail spaces, passenger information boards, semi-outdoor halls, and commercial signage.

Combined with a 1200:1 typical contrast ratio, ADS optical mode, 16.7M colors, and 68% NTSC gamut, the panel ensures content remains clear and legible. Its 89° viewing angles in all directions support public-facing use, allowing viewers to read information from multiple positions. The anti-glare surface (1% haze) further reduces reflections and enhances readability.

Integration Value

Electrical & Mechanical Benefits for OEMs

The panel’s LVDS 2-channel, 8-bit, 51-pin interface and typical 12.0 V supply simplify system integration. Its active area (1073.78 × 604 mm) and visible area (1078.6 × 609.5 mm) provide ample layout flexibility for housing design, optical windows, and front-frame planning.

Weighing 9.8 kg, the 49-inch module is easier to handle than larger-format signage panels while still delivering an expansive display area. Offered as a module rather than a finished monitor, it provides OEMs and ODMs a component platform for integrated display systems instead of a ready-made retail solution.

Reliability & Motion Support

The display is designed for continuous professional use. Its WLED backlight with LED driver is rated for 15,000 hours, and it operates across -20 to 70°C. Multiple refresh rate options (60Hz, 120Hz MEMC, 120Hz+120Hz, 240Hz MEMC) enhance motion rendering for video content, animated information layouts, and dynamic signage.

This combination of brightness, temperature tolerance, and motion flexibility makes it more suitable for industrial and commercial projects than standard indoor displays.

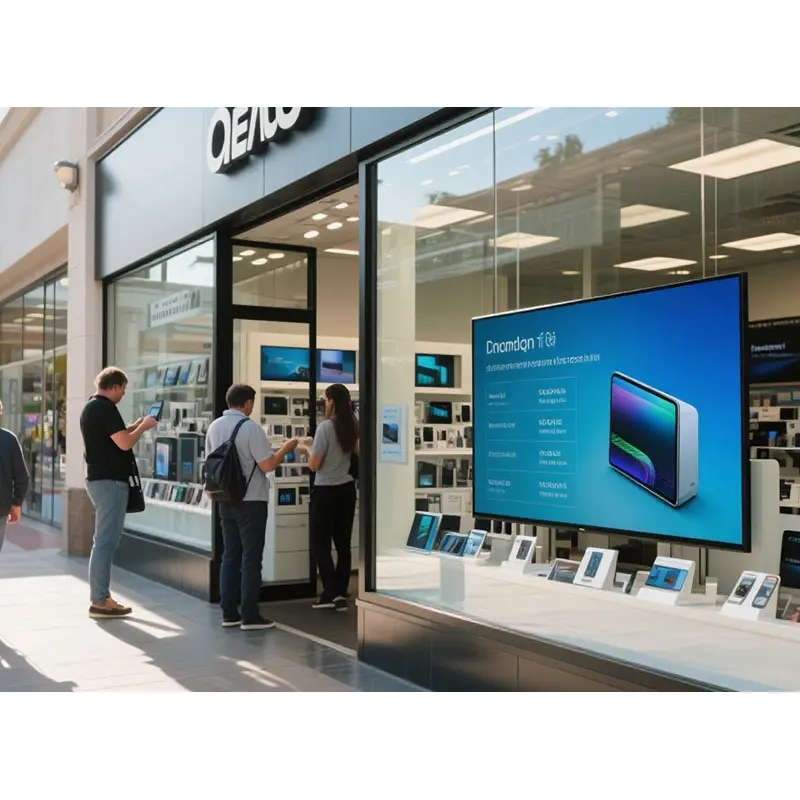

Applications

This 49 Inch Outdoor LCD Panel is ideal for:

• Digital Signage Displays: Airports, train stations, shopping malls, bus stops
• Advertising Screens: Retail stores, promotional displays, indoor/outdoor campaigns
• Information Panels: Passenger updates, wayfinding signage, public service messages
• Control & Monitoring: Industrial and commercial monitoring in bright environments

Its 49-inch size balances readability with integration ease, making it suitable for advertising displays, passenger information systems, wayfinding equipment, and commercial information boards.

Procurement Value

For B2B buyers, value comes not only from brightness but also from the combination of Full HD resolution, ADS wide viewing, anti-glare surface, LVDS connectivity, and industrial operating reliability. This panel provides a robust foundation for OEM and ODM signage projects, reducing the need for later modifications or adaptations.

Buyers can request tailored recommendations by sharing brightness targets, interface requirements, enclosure dimensions, and application environments to ensure optimal integration.
