5 Inch Portrait Touch Display Module for Industrial HMI

5 Inch Portrait Touch Display Module for Industrial HMI

A portrait IPS TFT assembly with RGB display input and an optional capacitive-touch path.

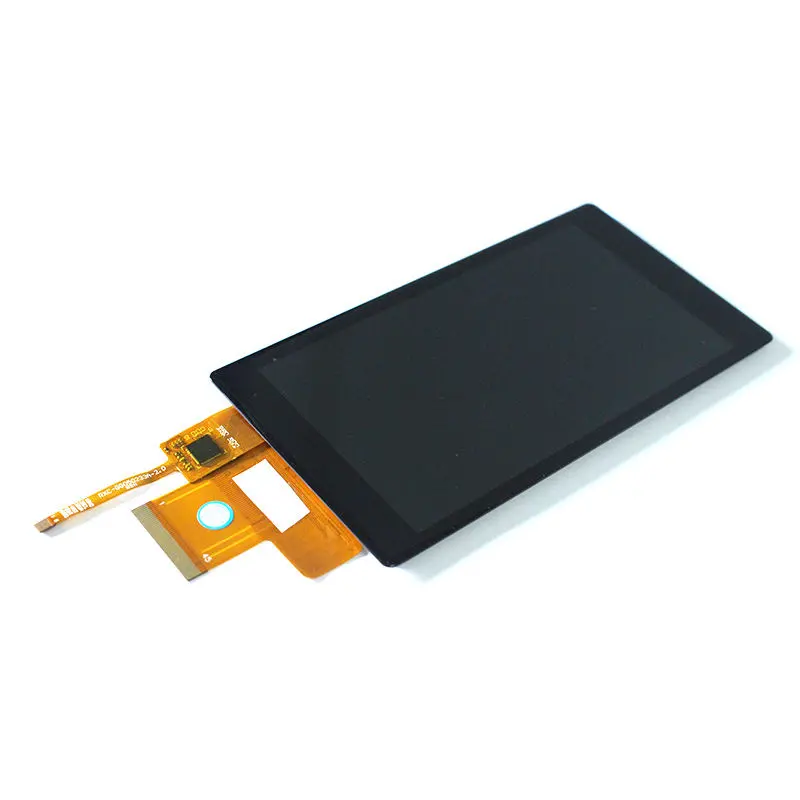

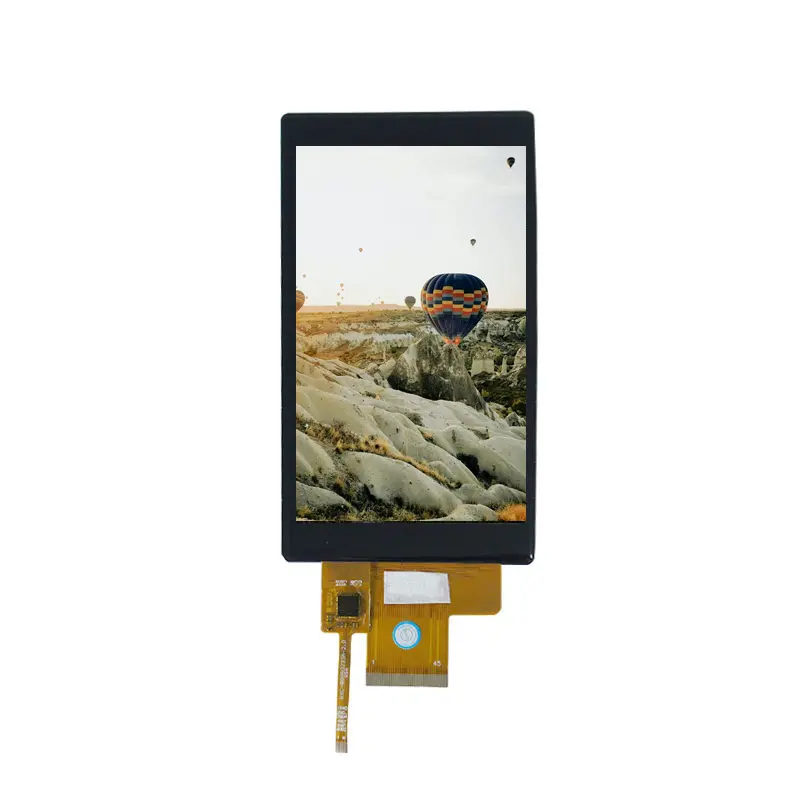

The 5 Inch Portrait Touch Display Module is a 480×854 IPS TFT component for industrial HMI controls, handheld service terminals, compact operator panels, and embedded devices that need a narrow vertical interface. Its 61.63 × 109.65 mm active area supports menu-driven layouts, status information, numerical controls, diagrams, and touch targets within a compact enclosure.

The display and touchscreen connections must be qualified as separate electrical functions rather than treated as one interchangeable SPI display interface.

Key Specifications at a Glance

Final approval must cover the ordered LCD or LCD-plus-CTP configuration, pin definitions, voltage levels, timing, touch controller, cover structure, and physical samples.

Portrait Display Design for Embedded Interfaces

A 480×854 portrait canvas is well suited to interfaces that arrange information vertically. Navigation areas, status fields, readings, alarms, instructions, and touch controls can be stacked without requiring a wide front panel.

Native-resolution UI planning

The host should generate the native 480×854 image format. Scaling from a different resolution can reduce text clarity and may increase controller complexity.

Graphics should be tested at the physical 5-inch size. Font weight, icon dimensions, touch-target spacing, and information density should be reviewed on a real sample rather than judged only from desktop mockups.

IPS viewing behavior

The IPS panel is intended to provide stable appearance across a broad viewing range. Numerical viewing angles are not confirmed, so the final mounting angle and cover structure should still be evaluated with the actual interface.

Portrait enclosure layout

The narrow active area can suit handheld service tools, vertical equipment controls, and compact wall or panel interfaces. Connector exits, FPC bending, touch-cover dimensions, and mounting tolerances must remain accessible within the enclosure.

Capacitive-Touch Configuration

Capacitive touch is identified as an optional configuration. The base LCD must not automatically be treated as a complete touch assembly.

The ordered part should define whether the capacitive-touch panel, cover structure, touch controller, adhesive system, and touch FPC are included.

Ten-point touch qualification

A ten-point capability is stated for the touch route, but the required number of simultaneous contacts must be confirmed against the selected controller, firmware, host operating environment, cover thickness, and final assembly.

Ten-point touch should not be guaranteed for every LCD-only or customized configuration without an approved touch specification.

Touch-interface review

The separate 6-pin CTP FPC indicates that the touch path is distinct from the 45-pin TFT display connection. Confirm:

• Touch-controller identity
• Supply and logic levels
• SPI or other communication definition
• Interrupt and reset requirements
• FPC pin sequence
• Contact side and connector pitch
• Firmware or host-driver requirements
• Supported touch-point count

Cover and front-surface design

The completed touch interface may include a cover structure whose thickness, border, optical area, surface treatment, and bonding method affect the final dimensions. These values should be fixed before enclosure tooling.

5 Inch Portrait Touch Display Module Interface Compatibility

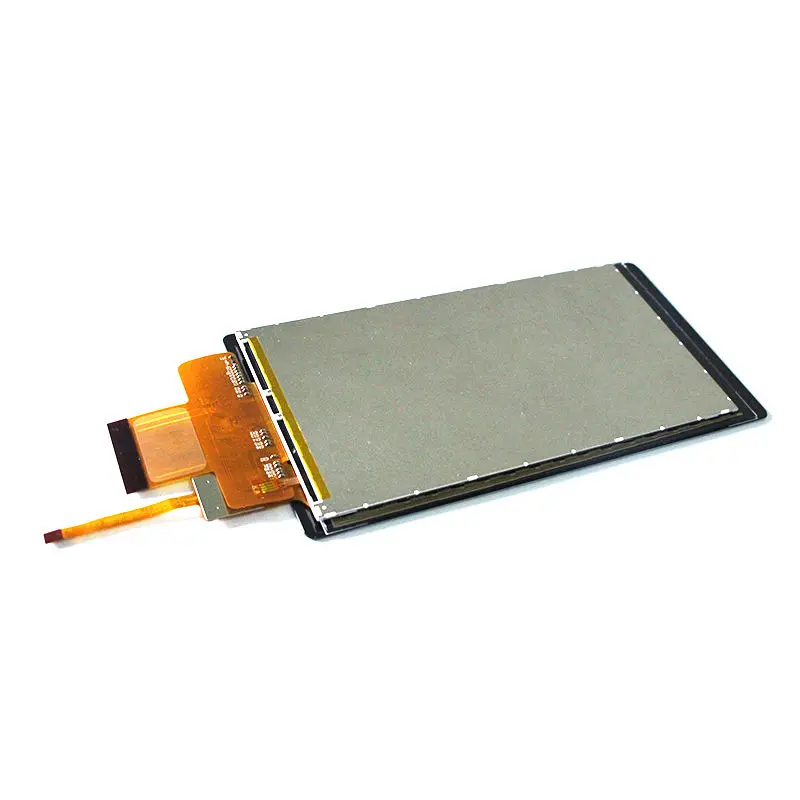

The 45-pin TFT FPC is used for the LCD connection, while the 6-pin CTP FPC serves the touch assembly. A connector with the same number of pins is not proof of compatibility.

RGB display input

The RGB path carries pixel information and associated display timing. The host design must match:

• Native 480×854 timing
• RGB data mapping
• Pixel-clock requirements
• Horizontal and vertical synchronization
• Logic and supply voltages
• Reset and enable signals
• Complete 45-pin assignment
• FPC contact side and insertion direction

SPI function boundary

SPI is stated as part of the product’s interface description, but it should not be assumed to replace the RGB pixel-data path. Its exact role must be confirmed against the touch controller, control signals, and ordered pin definition.

Non-RGB hosts require conversion

HDMI, MIPI DSI, LVDS, eDP, DisplayPort, and USB video cannot drive the raw RGB TFT path directly without appropriate conversion or controller hardware.

A generic “5-inch controller board” is insufficient evidence of compatibility.

ILI9806E Integration Boundary

ILI9806E is identified as the display driver IC. This helps distinguish the module but does not establish a universal host design.

The IC name alone does not prove:

• An identical FPC pinout
• A universal initialization sequence
• A particular register configuration
• A compatible power sequence
• Matching RGB timing
• Compatibility with another ILI9806E panel
• Direct support from a generic software library

Datasheet-defined timing, power requirements, pin mapping, and the approved module specification remain controlling.

Mechanical and FPC Integration

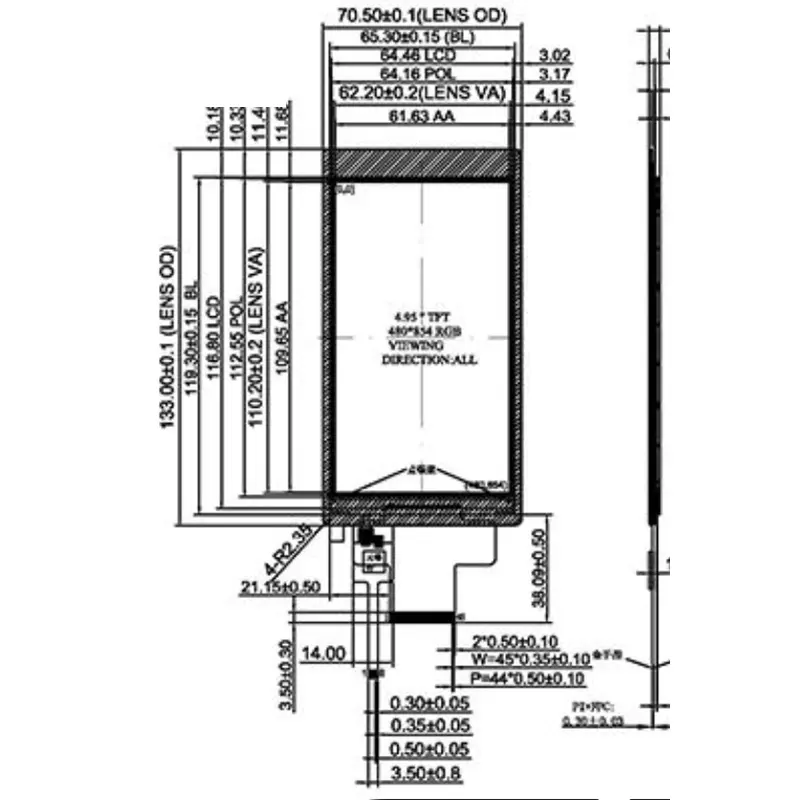

The active area is 61.63 × 109.65 mm. The complete touch-display outline is approximately 70.50 × 133.00 × 3.93 ± 0.15 mm.

The 5 Inch Portrait Touch Display Module requires space for both the TFT and touch FPC routes, not only the visible panel outline.

Viewing-window design

The enclosure opening should follow the approved cover-lens and display-area drawing. Using the active area alone may expose border structures or obscure usable pixels.

Separate cable clearance

Allow room for:

• The 45-pin TFT connector
• The 6-pin CTP connector
• Connector locking mechanisms
• Cable bend radius
• FPC component areas
• Assembly and service access

Sharp folds, adhesive pressure, and fastener interference should be avoided.

Thickness stack

The total thickness combines the LCD, capacitive-touch structure, adhesive layers, and tolerances. A customized cover or bonding method can change the completed assembly thickness.

Operating Environment and Selection Boundaries

The stated operating range is −20°C to +70°C, with storage from −30°C to +80°C. These figures apply to the display assembly and do not automatically qualify the completed product.

The host board, touch controller, cover adhesive, enclosure, connector, and power design must also support the required environment.

No brightness, sunlight-readability grade, waterproofing, optical bonding, impact rating, vibration grade, or environmental certification is confirmed.

Recommended Applications

Appropriate integration routes include:

• Industrial HMI control panels
• Handheld service terminals
• Compact machine interfaces
• Smart-home control panels
• Portable test and service equipment
• Portrait monitoring interfaces
• Equipment configuration terminals
• Embedded operator controls

Medical, vehicle, outdoor, safety-critical, and payment-related applications require separate engineering and regulatory qualification.

Customization and Procurement Scope

Project review may cover display size or resolution, interface and pin definition, FPC shape and material, capacitive-touch integration, cover structure, brightness, packaging, and controller matching.

Commercial quantities, tooling, material availability, sample terms, and the exact scope of touch customization are confirmed separately for the requested configuration.

Procurement and Sample Approval Checklist

Confirm:

• Native 480×854 RGB timing
• Complete 45-pin TFT assignment
• Complete 6-pin CTP assignment
• SPI or touch-controller interface definition
• Display and touch voltage levels
• FPC pitch, contact side, and orientation
• Required capacitive-touch configuration
• Required simultaneous touch-point count
• Cover and bonding structure
• Active-area and enclosure alignment
• Total assembly thickness
• Operating environment
• Sample quantity
• Estimated annual demand
• Production timing
• Controller or conversion-board requirement
