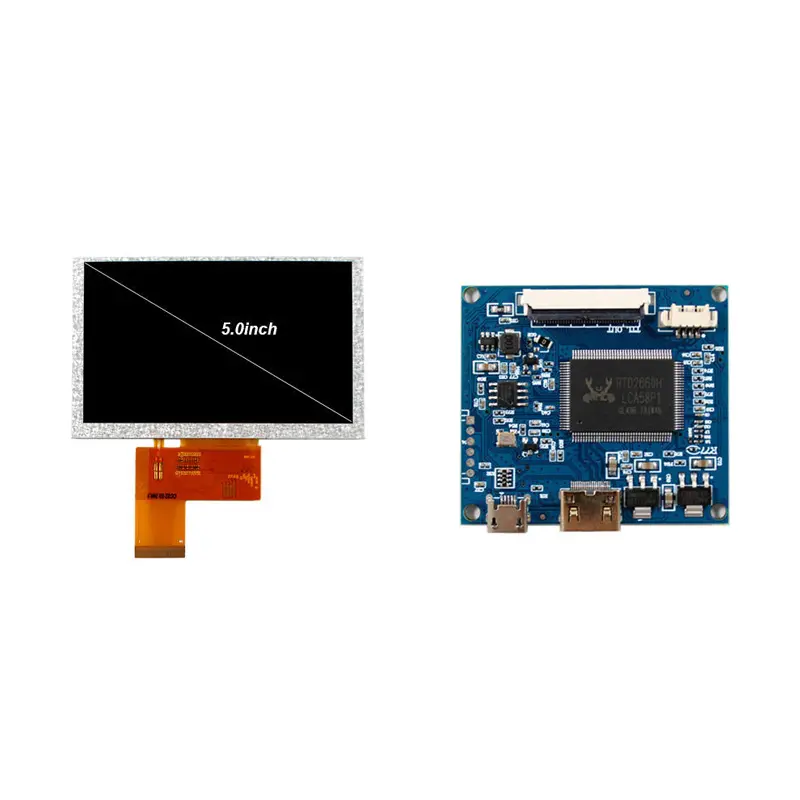

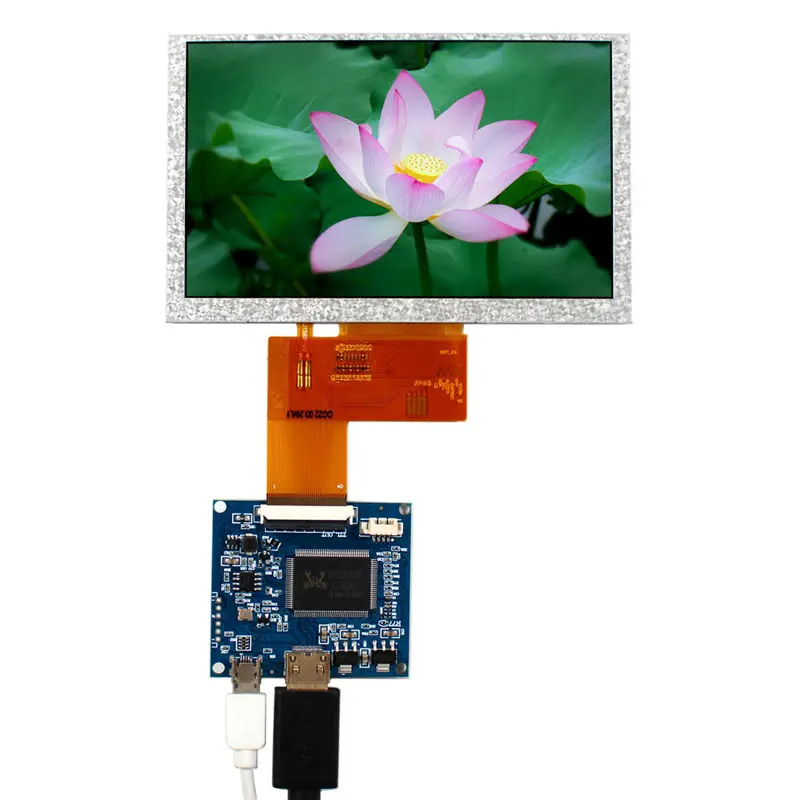

A 5 Inch High Brightness LCD Controller Board package is a practical starting point for compact equipment that needs an 800 × 480 visual interface and a ready HDMI input path. This configuration combines a 5.0-inch LCD, 1000 cd/m² typical luminance, a 40-pin panel connection and the VS-TY2660V1-851 HDMI-mini controller board. It is intended for engineering evaluation and embedded display integration where a small screen and external video source need to be qualified together.

Product Summary

This display-and-controller set simplifies early prototype sourcing. The LCD provides a 108.0 × 64.8 mm active area inside a 120.7 × 76.3 × 3.3 mm outline, while the controller board measures 52 × 46 × 6 mm. Panel input is 3.3 V typical; the controller adapter path is 5–9 V DC with a rating above 20 W.

The configuration currently carries conflicting optical-mode labels: the product name uses IPS, while the detailed specification identifies TN, Normally White, Transmissive. The approved production specification should control the final optical-mode statement.

Key Specifications

A matching 40-pin FPC does not guarantee compatibility with another 5-inch TTL or parallel LCD. Resolution, signal definition, voltage, pin assignment, timing and FPC orientation still have to match.

Why This 5 Inch High Brightness LCD Controller Board Fits Compact HMI Work

1000 cd/m² luminance for bright ambient conditions

The 1000 cd/m² typical panel rating gives this small display useful luminance headroom for equipment near windows, service terminals, bench systems and bright commercial interiors. Finished readability still depends on cover glass, reflections, bonding and ambient lighting.

The 1000 cd/m² panel rating does not by itself establish direct-sun readability behind a finished front stack.

800 × 480 resolution for compact interface layouts

An 800 × 480 raster is suitable for compact menus, instrument values, status graphics, icons and basic monitoring screens without requiring a large front-panel opening. The 108.0 × 64.8 mm active area gives mechanical teams a clear image-zone reference for bezel and enclosure planning.

Prepare new UI assets at the native 800 × 480 resolution when possible, and validate any scaling with the production board and target video source.

Integrating the 5 Inch High Brightness LCD Controller Board

HDMI-mini is the system-side input

HDMI-mini is a controller-side video input; the LCD panel itself uses a separate 40-pin parallel connection.

This distinction matters when replacing the controller, changing the screen or moving the display to a custom embedded motherboard. Treat the controller as a conversion layer rather than proof that any 40-pin LCD can be substituted. A controller-free design must support the panel interface directly or use a qualified bridge.

Keep panel and controller power requirements separate

The LCD panel is specified at 3.3 V typical, while the VS-TY2660V1-851 board uses a 5–9 V DC adapter path with a rating above 20 W. The adapter rating should not be interpreted as the maximum operating power of the complete display assembly.

Confirm connector polarity, cable routing, panel power, backlight requirements and controller supply before releasing a custom harness.

Mechanical Planning for a Compact Display-and-Board Set

Panel and board dimensions support separate mounting decisions

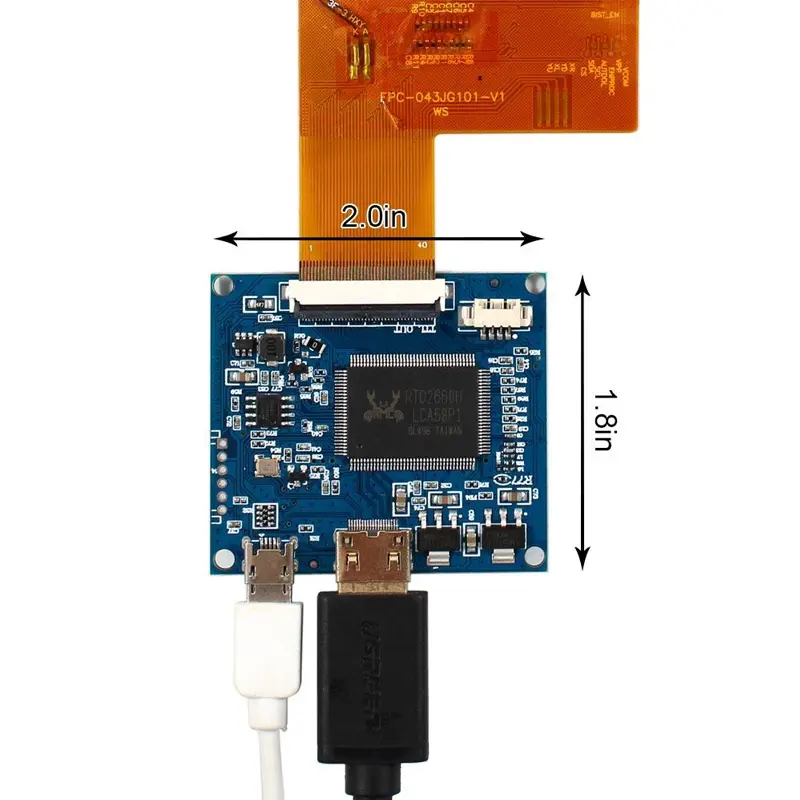

The LCD outline is 120.7 × 76.3 × 3.3 mm, and the controller board is 52 × 46 × 6 mm. These dimensions should be considered independently because the board can be positioned separately from the screen within the enclosure.

Use the approved drawing for the front-window opening, and include FPC access and HDMI-mini connector clearance in the mechanical review.

Optical-Mode Confirmation Before Design Release

The current configuration is marketed with IPS wording, but its detailed specification states TN, Normally White, Transmissive. Those descriptions should not be merged into a single assumption.

The approved production specification should control optical-mode release because the current configuration contains conflicting IPS and TN designations.

Lock the exact panel revision before release, especially when the application depends on off-axis viewing or a fixed installation angle.

Application Fit and Selection Boundaries

This 5 Inch High Brightness LCD Controller Board configuration fits compact embedded HMI prototypes, equipment status displays, portable test and service equipment, smart-control terminals and small commercial interface assemblies that use an external HDMI video source.

It should not be positioned as a weatherproof outdoor display, certified sunlight-readable product, touch display or direct replacement for another 40-pin screen without further qualification. Touch, operating temperature, storage temperature, response time, display colors and backlight lifetime are not confirmed for the current standard configuration.

Configuration and Customization Review

Projects can be reviewed for cable routing, controller matching, enclosure adaptation, cover glass, optical treatment, touch assemblies and other mechanical or electrical changes.

Custom configurations are generally reviewed from 500 pieces, subject to tooling requirements, material availability and the requested specification. Sample and standard-module quantities are confirmed separately.

Use one approved BOM that locks the LCD revision, VS-TY2660V1-851 board revision, cable, power requirements and mechanical drawings.

Procurement Checklist

Before ordering or releasing the design:

• Confirm native 800 × 480 timing and intended installed orientation.
• Confirm the complete 40-pin panel pin assignment, FPC pitch, contact side and orientation.
• Confirm the 3.3 V panel requirement and obtain complete backlight electrical data.
• Lock the VS-TY2660V1-851 controller revision and HDMI-mini input behavior.
• Confirm the 5–9 V DC controller adapter requirement and required supply capacity.
• Approve the 108.0 × 64.8 mm active area and 120.7 × 76.3 × 3.3 mm panel outline.
• Allow 52 × 46 × 6 mm controller-board clearance and connector access.
• Resolve the IPS-versus-TN optical-mode designation.
• Define any touch requirement separately.
• Define the target ambient-light condition and front-cover optical stack.
• Confirm sample quantity, annual demand and production schedule.
