This compact 720 × 1280 AMOLED module uses a 39-pin four-lane MIPI interface and can be paired with a qualified driver board for handheld and embedded display development.

Product Summary

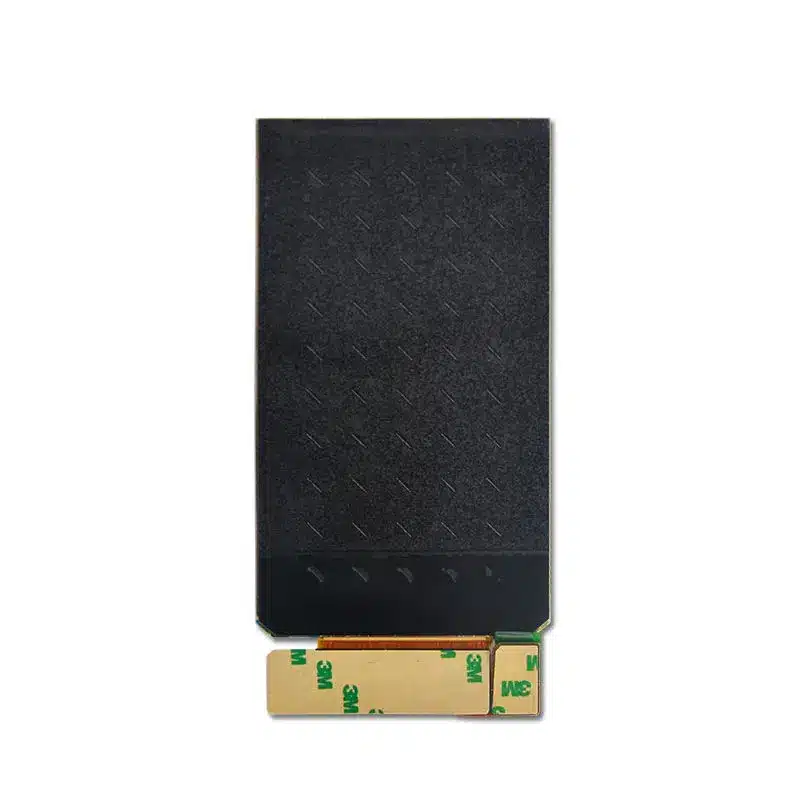

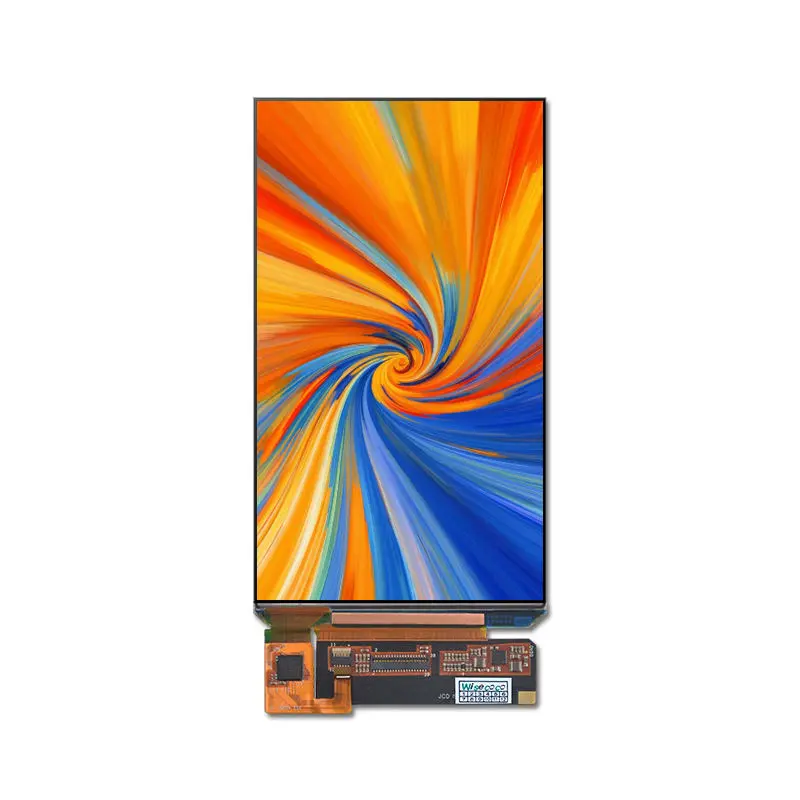

The 5 Inch MIPI Driver Board AMOLED Display provides a portrait-format display platform for compact electronics that need strong contrast, fast pixel response and a modern serial display connection. Its 5-inch format combines a 61.92 × 110.08 mm active area with a 720 × 1280 native pixel matrix, making it suitable for handheld interfaces where screen height is more useful than a conventional landscape layout.

AMOLED pixels are self-emissive, so the module does not use the conventional WLED backlight architecture found in TFT LCD modules. The configuration combines 275 cd/m² typical luminance, a 10000:1 minimum contrast ratio, 16.7M colors and a 1.0 ms maximum response specification.

A matching 39-pin connector alone does not establish electrical or software compatibility.

Key Specifications

AMOLED Optical Performance for Compact Devices

High contrast from a self-emissive display structure

AMOLED technology produces light directly at the pixel level rather than passing light from a separate backlight through an LCD stack. For compact UI designs, that architecture supports strong separation between bright interface elements and black or dark backgrounds.

The specified minimum contrast ratio is 10000:1. This makes the display suitable for interface concepts that rely on dark themes, high-contrast icons, status graphics and visually differentiated information zones.

Fast response for dynamic interfaces

A 1.0 ms maximum response specification is useful in products that display scrolling menus, animated transitions or frequently updated visual elements.

The native 60 Hz refresh specification should still be treated separately from pixel response. The host system must generate the correct 720 × 1280 timing and MIPI output for the selected panel configuration.

The 275 cd/m² rating positions the module for controlled indoor and embedded use rather than certified direct-sun viewing.

5 Inch MIPI Driver Board AMOLED Display Integration

39-Pin Four-Lane MIPI Qualification

The panel uses four MIPI data lanes through a 39-pin FPC connection. This is one of the most important integration parameters, but it does not by itself guarantee compatibility with another 39-pin MIPI display or controller.

Engineering qualification should verify the complete FPC pin assignment, mating connector, contact orientation, DSI operating mode, lane rate, clocking, native timing and control signals before a prototype board is powered.

Matching resolution does not make two MIPI panels interchangeable.

Three Panel Voltage Rails Require Documentation

The electrical table identifies three typical voltage values:

• 1.8 V for VDDI
• 3.1 V for VCI
• 3.7 V for VBAT

These values should be treated as separate named panel rails rather than one interchangeable supply.

The production documentation should define permitted tolerances, current requirements and required sequencing. Voltage values alone are not enough to derive a safe power architecture.

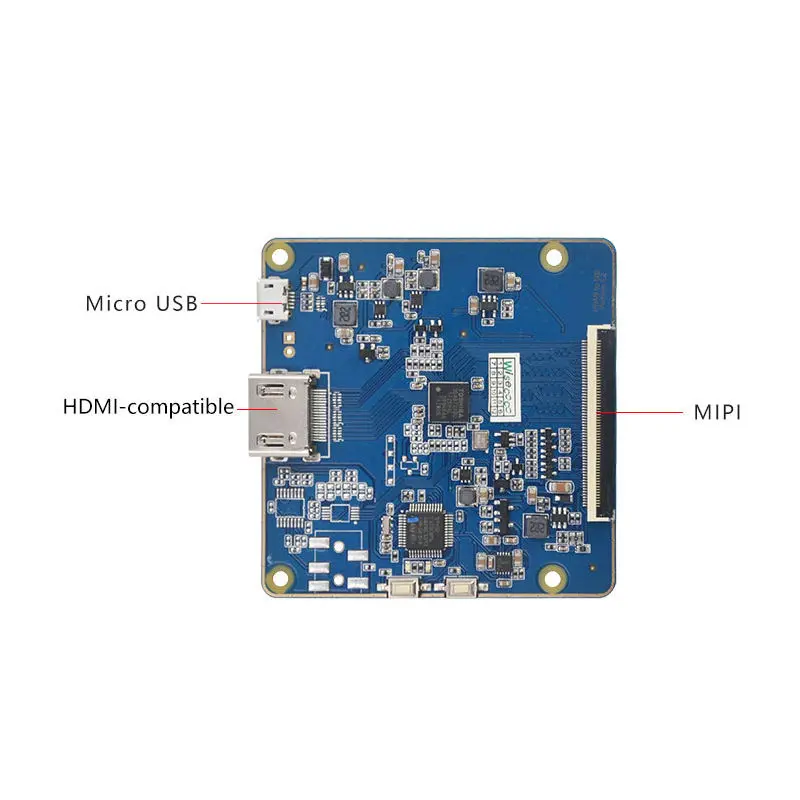

Driver Board and Native Panel I/O Are Separate

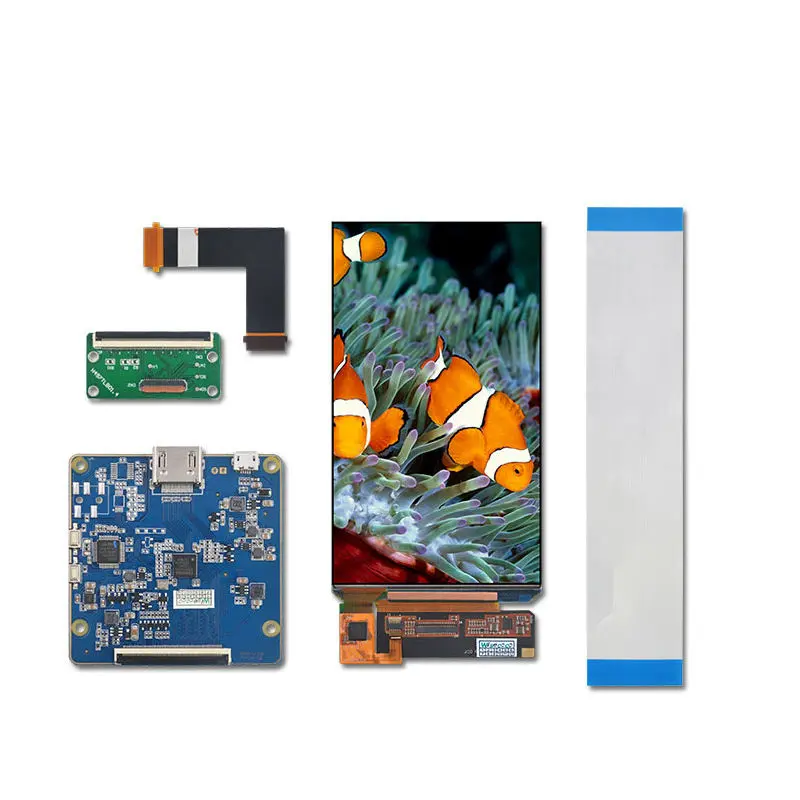

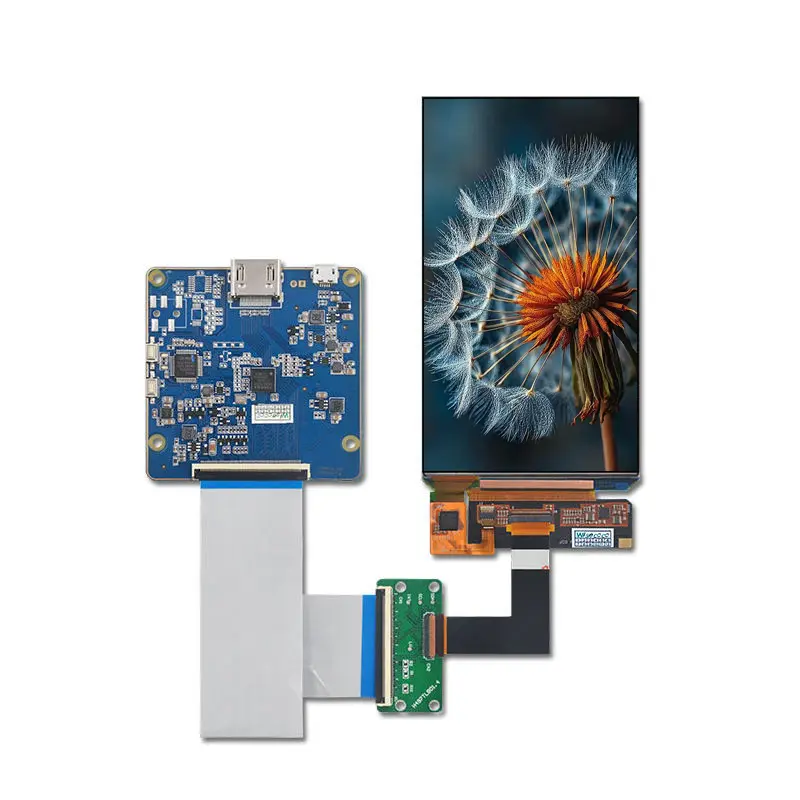

A driver board can simplify evaluation when the host system does not provide a directly qualified MIPI connection. It may also provide external video, power or control connectors depending on the selected board revision.

Those board-side connectors are not native interfaces on the AMOLED module.

For a production embedded design, determine whether the host processor will drive the MIPI panel directly or whether a bridge/controller board will remain part of the final architecture.

Mechanical Integration for Portrait Handhelds

Active area and final drawing control

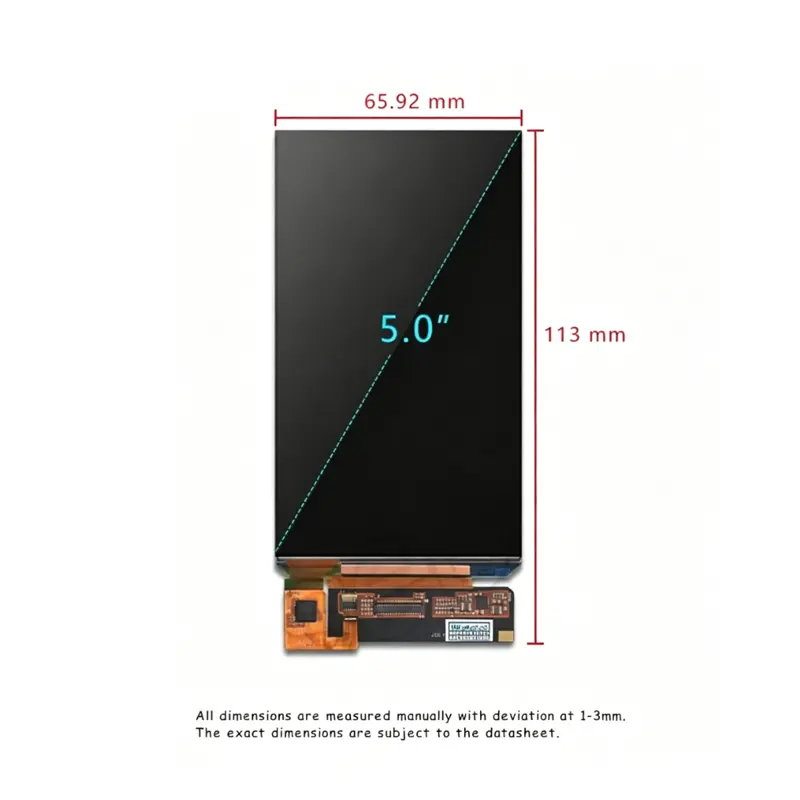

The active image area is 61.92 × 110.08 mm. The main parameter table gives a 65.92 × 118.64 mm module footprint, while another dimensional graphic indicates approximately 113 mm in the vertical direction.

Because the two mechanical references do not fully agree, enclosure tooling should not be released from the marketing dimension graphic alone.

An approved production drawing should define the final module height, thickness, FPC geometry, connector position, component keep-out zones and mounting clearances.

The 720 × 1280 orientation should also be validated with the actual UI before front-window dimensions are frozen.

No-Touch Configuration and Device Design

The captured configuration is specified without a touchscreen. This makes it appropriate when input is provided through physical controls, buttons, a separate touch sensor or another system-level interface.

A touchscreen should not be assumed merely because similar AMOLED products in the same size family can be supplied with touch.

If touch is required, the project should separately define the touch technology, controller, communication interface, FPC, cover lens, bonding structure and combined mechanical stack.

Temperature and Environmental Qualification

The specified operating and storage range is −40°C to +70°C for this captured configuration.

That range is useful for projects that need broader component-level temperature limits than ordinary consumer-only indoor products, but it does not automatically establish a rugged, automotive, outdoor or certified environmental grade.

The complete device must still be reviewed for enclosure temperature, humidity, condensation, shock, power behavior and any required compliance conditions.

Handheld and Embedded Application Direction

The 5 Inch MIPI Driver Board AMOLED Display is a practical evaluation candidate for handheld terminals, portable smart devices, compact embedded controllers, visual prototypes and specialized electronic equipment that can support the required MIPI and power architecture.

The portrait 720 × 1280 canvas works well for vertically structured interfaces such as menus, item lists, instrument information, navigation controls and status screens.

For development teams, the main selection question is not only whether the display has the required resolution. The host, MIPI timing, connector, voltage rails, mechanical envelope and input strategy must all match the ordered module.

Customization and Procurement Planning

Logo, packaging and graphic customization are offered from 1,000 pieces for this configuration.

Technical changes such as FPC definition, driver-board selection, touch integration, connector mapping, mechanical adaptation and power architecture require separate engineering review. Sample and standard-module quantities should be confirmed separately from customization quantities.

Procurement Checklist

Before approving a sample or production revision, confirm:

• exact HS050OLED-1 production configuration;
• native 720 × 1280 timing and orientation;
• MIPI DSI revision;
• four-lane mode and required lane rate;
• command or video operating mode;
• complete 39-pin FPC assignment;
• mating connector and FPC pitch;
• contact side and cable orientation;
• VDDI 1.8 V typical requirement;
• VCI 3.1 V typical requirement;
• VBAT 3.7 V typical requirement;
• rail tolerances, current and sequencing documentation;
• 275 cd/m² luminance tolerance;
• 10000:1 minimum contrast definition;
• 80/80/80/80 viewing test condition;
• 16.7M color mode;
• 1.0 ms maximum response specification;
• 60 Hz operation;
• 61.92 × 110.08 mm active area;
• final approved outline, including the 118.64 mm versus approximately 113 mm conflict;
• module thickness and tolerances;
• no-touch versus touch ordered configuration;
• −40°C to +70°C operating range;
• −40°C to +70°C storage range;
• exact driver-board revision when one is required;
• controller-board output timing and power architecture;
• cover protection and enclosure stack;
• sample acceptance criteria;
• order quantity and annual demand.
